Year |
1994 |
|---|---|
Make |
Jomar |
Model |
135E |
Description |
Blow Molder |
Reference # |
8073163 |
Price |
Activate Pricing |

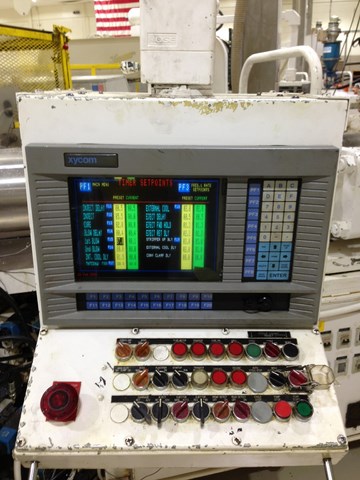

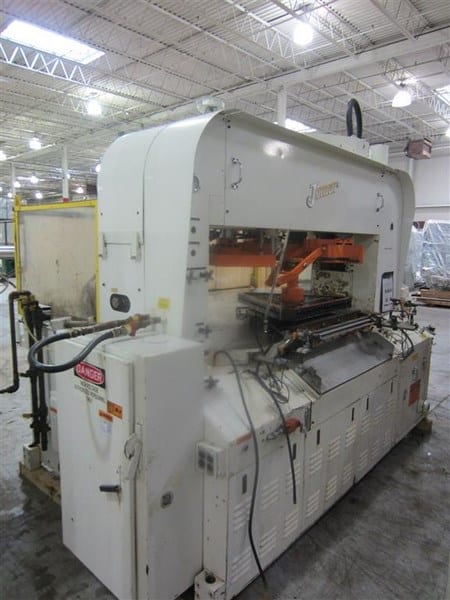

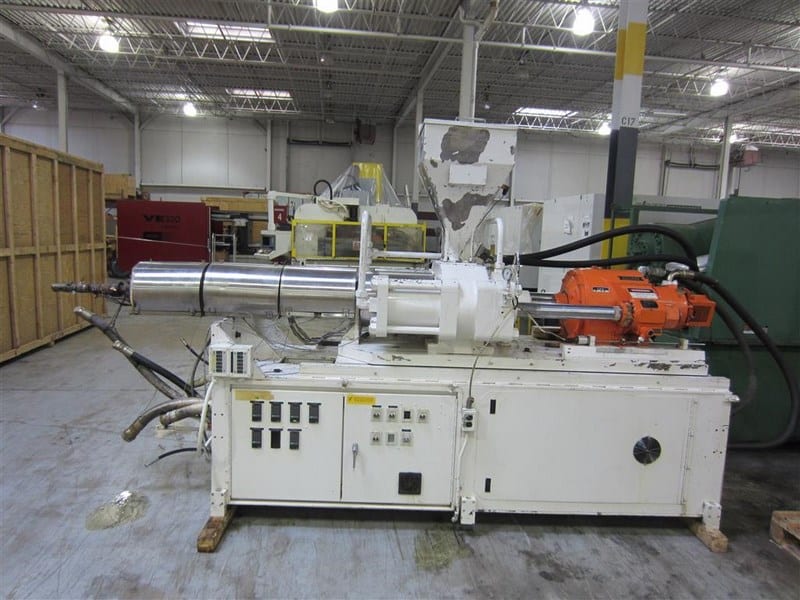

Used Jomar 135E (1994) Blow Molder for Sale. This injection blow molding machine runs a 3″ screw with a 25:1 L/D ratio and a 125 HP drive. Parison clamp tonnage is rated at 135.4 tons at 2,850 PSI, with blow clamp tonnage of 28 tons at 2,850 PSI. Shut height is 10″ with a 6″ press stroke, and the maximum die set size is 35.5″ x 19″ with a trigger bar distance of 34″. Controls are an A-B PLC 2/16 with XY Com Color and dual controller. Power requirement is 460/3 at 300 AMPS. The machine can be seen under power for an inspection. See more used blow molding machines, [Activate Pricing](#activate-pricing), or Request a Quote for details. This machine is located in Illinois.
Specifications
| Screw Size |
3" |
|---|---|
| L/D Ratio |
25:1 |
| Horsepower |
125 |
| Parison Clamp Tonnage |
135.4 Tons @ 2,850 PSI |
| Blow Clamp Tonnage |
28 Tons @ 2,850 PSI |
| Shut Height |
10" |
| Press Stroke |
6" |
| Max Die Set Size |
35.5" x 19" |
| Trigger Bar Distance |
34" |
| Control |
Dual Controller, A-B PLC 2/16 W/XY Com Color |
| Power Requirement |
460/3 300 AMPS |
