Year |
2000 |
|---|---|
Make |
Amada |
Model |
Vipros 255 |
Description |

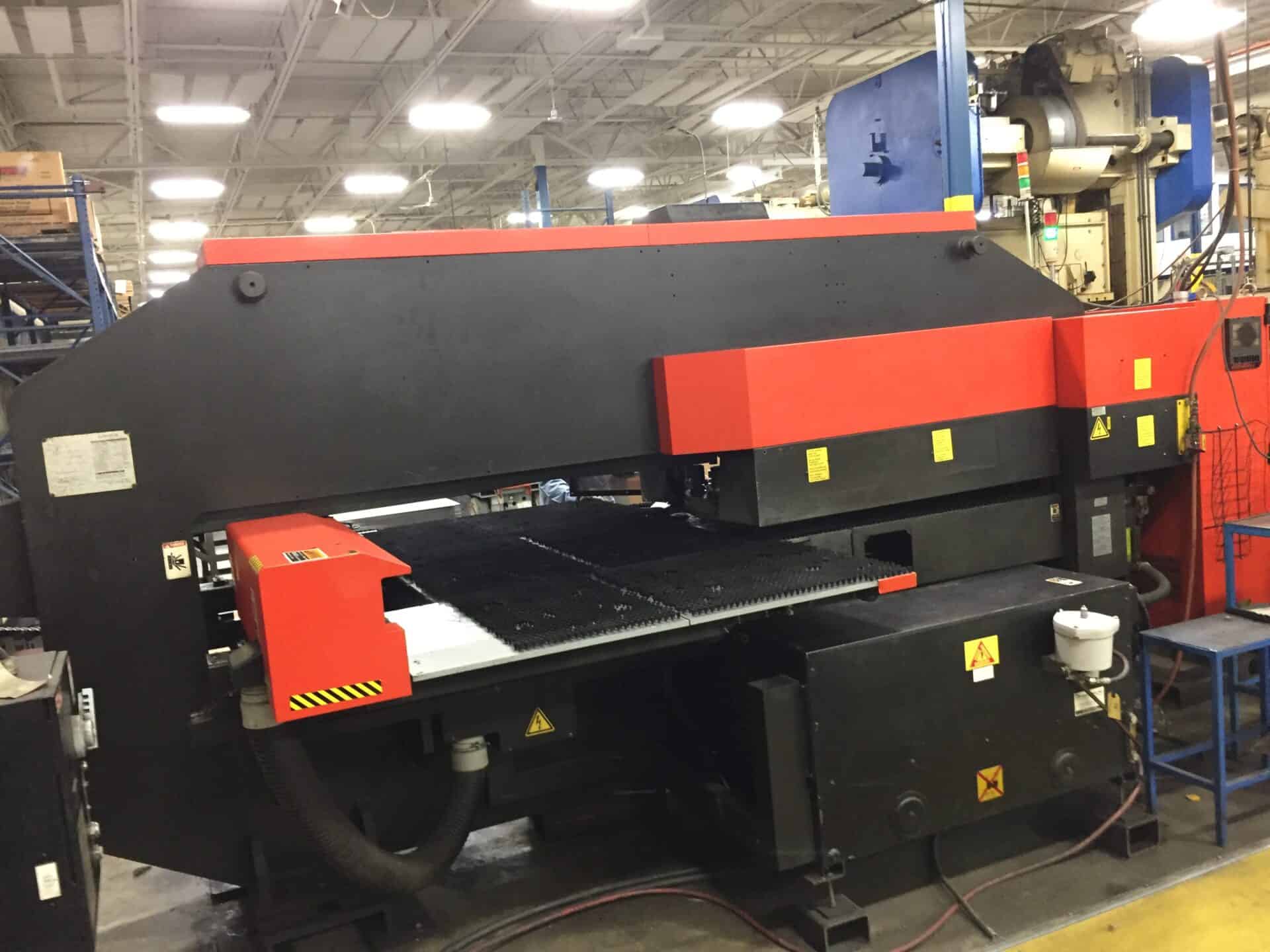

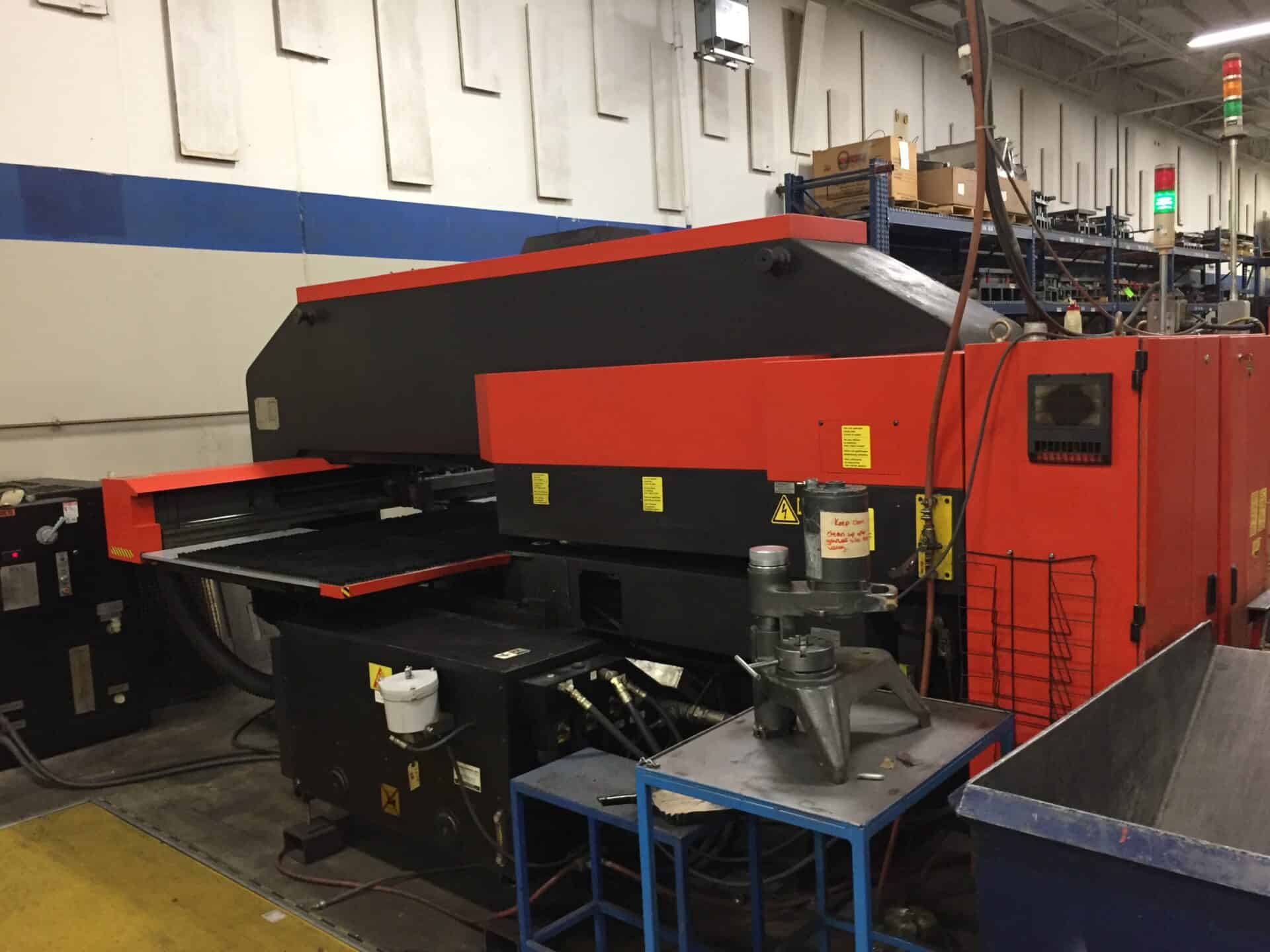

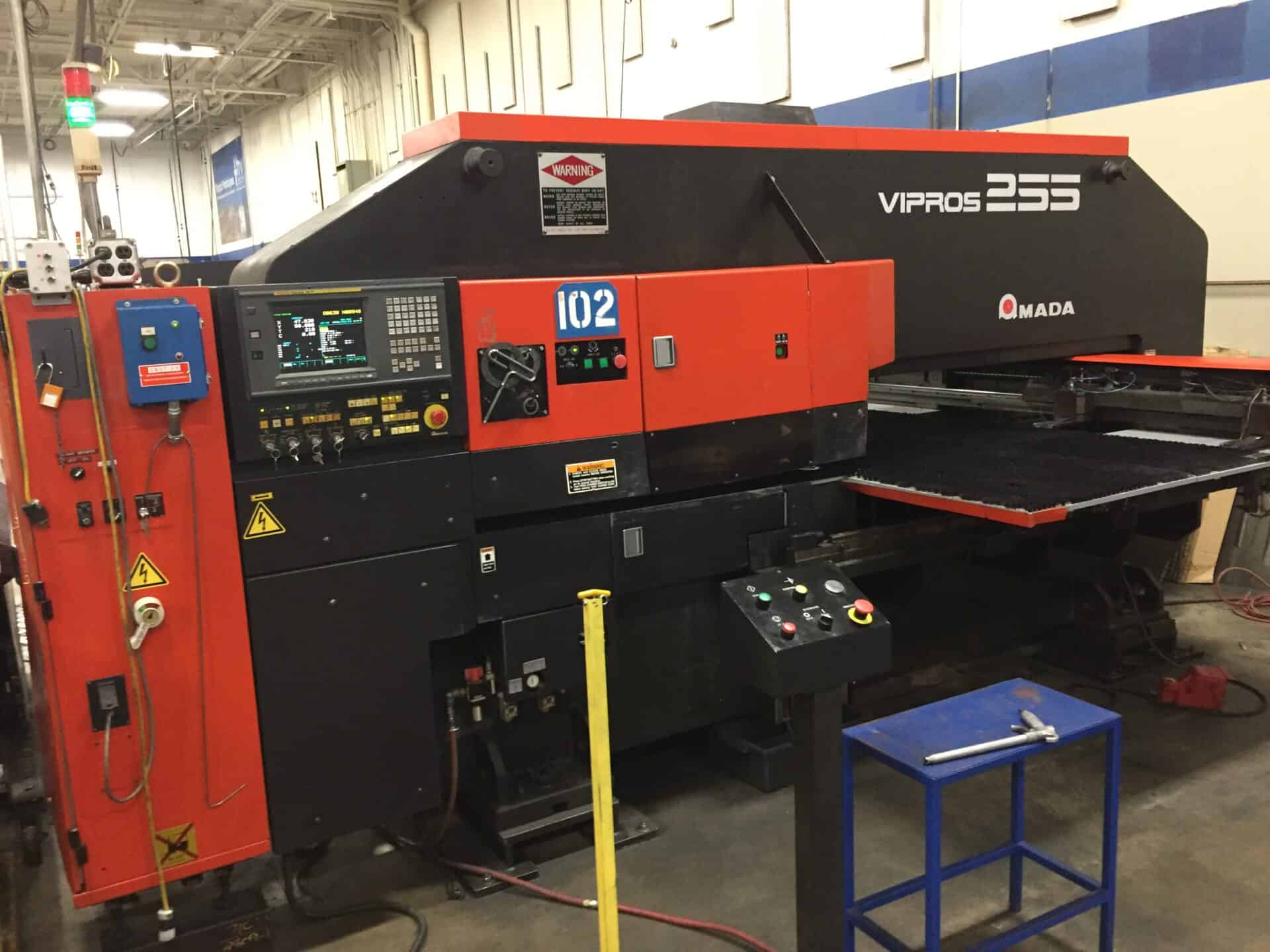

22 Ton Turret Punch |
Reference # |
8069554 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| Capacity |
22 Ton |
|---|---|
| Sheet Width |
4.16' |
| Sheet Length |
8.33' |

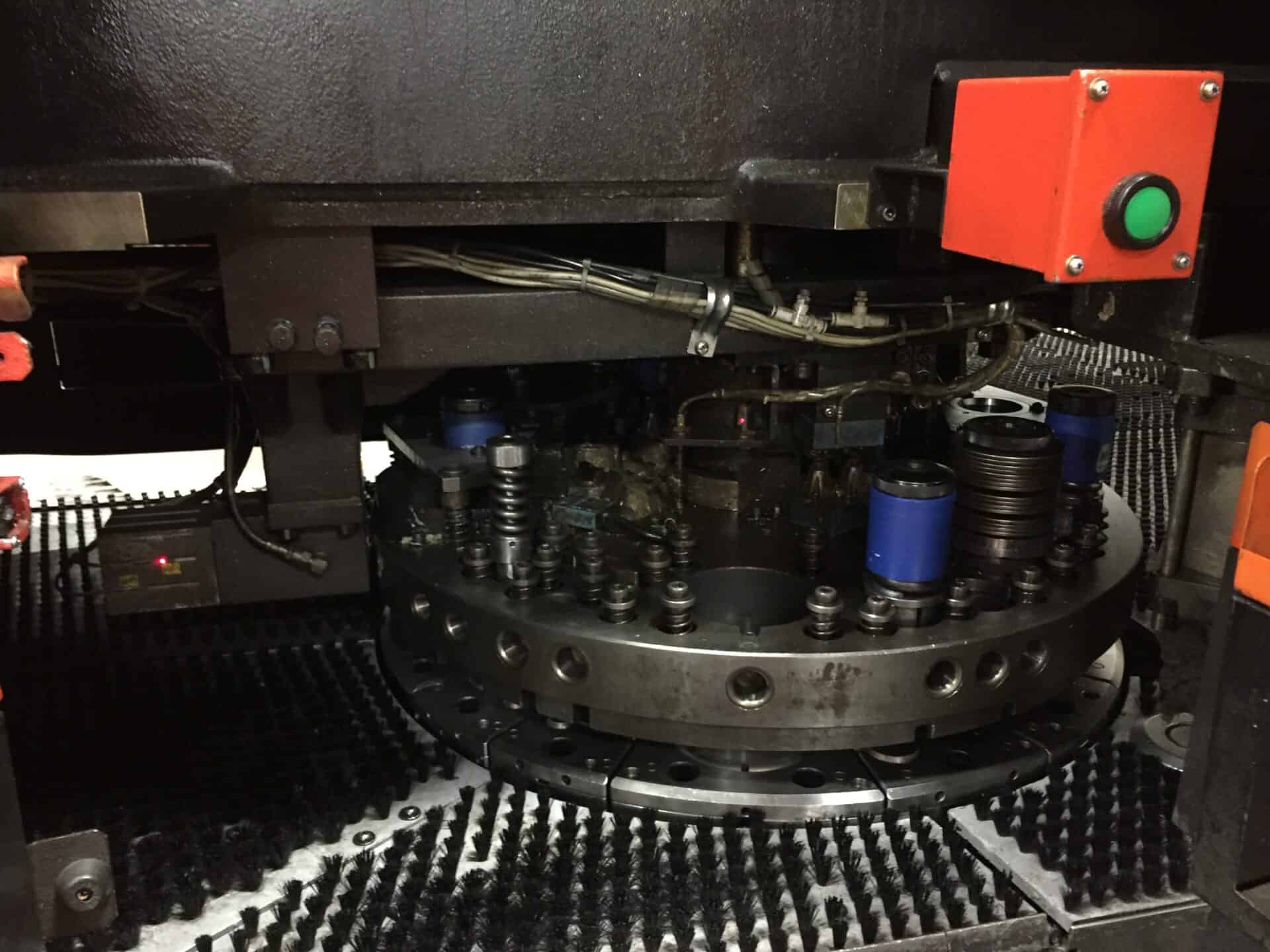

| Turret Stations |
31 With 3 Auto Indexing |
| Y-Axis Travel |
50" |
| Throat Depth |
50" |
| Tooling Style |
Thick |
| Table Speed IPM |
3228 |
| Max Hit Rate |
1000 Hpm |
| Stroke Length |
1.57" |
| Turret Rotation Speed |
35 RPM |
| Max Sheet Thickness |
0.250" |
| Max Workpiece Weight |
231 Lbs. |
| Machine Dimensions |
205" x 123" x 97" |
| Net Weight |
21,604 Lbs |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
