Year |
1997 |
|---|---|
Make |
Ingersoll |
Model |
Gantry 500 |
Description |
EDM Sinker |
Reference # |
8039126 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| X-Axis Travel |
20.7" |
|---|---|
| Y-Axis Travel |
15.7" |
| Z-Axis Travel |
14.7" |
| Electrod Changer (3R Macro) |
20 Position |

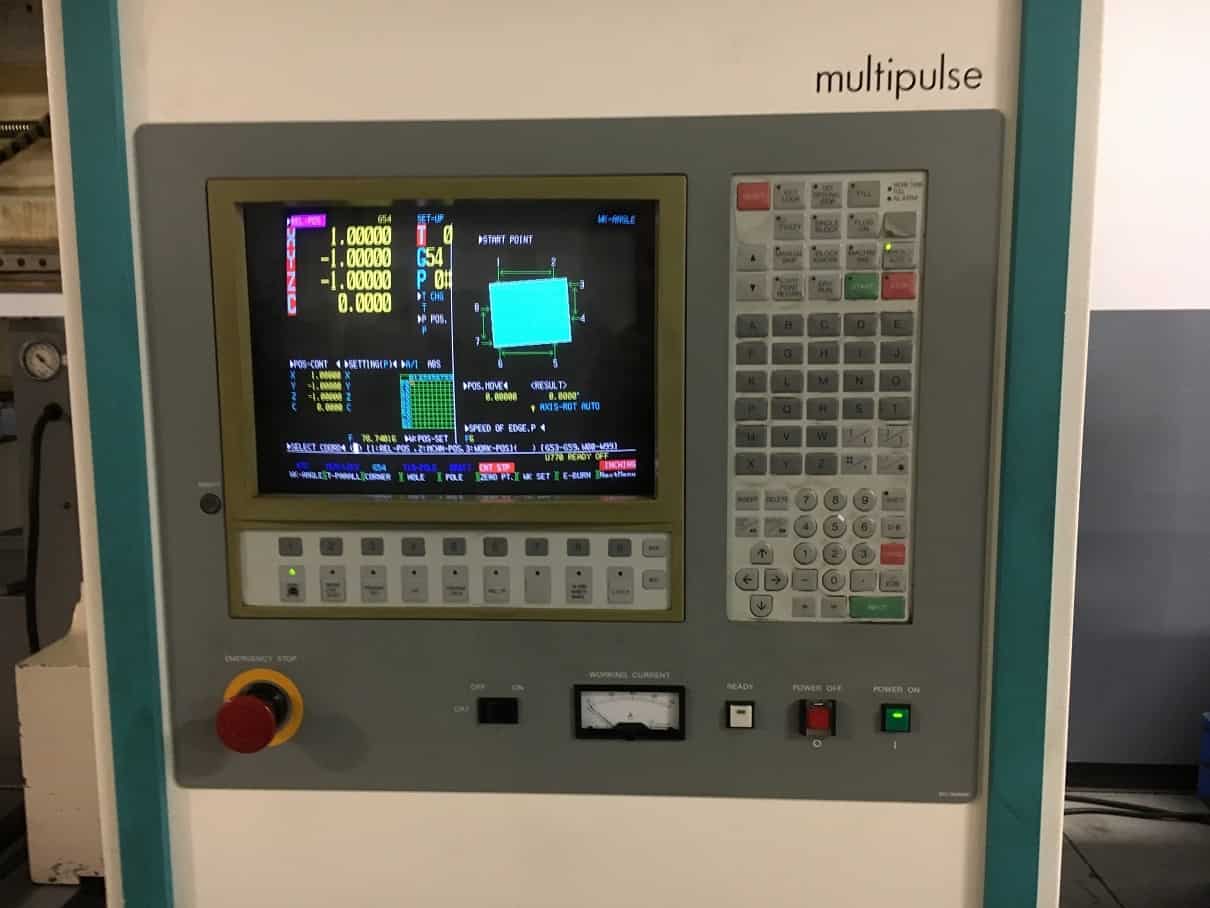

| Control |
Mitsubishi CNC |
| Power Source |
60/80 AMP |
| C-Axis |
System 3R |
| Work Tank Dimensions |
29.5" x 25.6" x 16.5" |

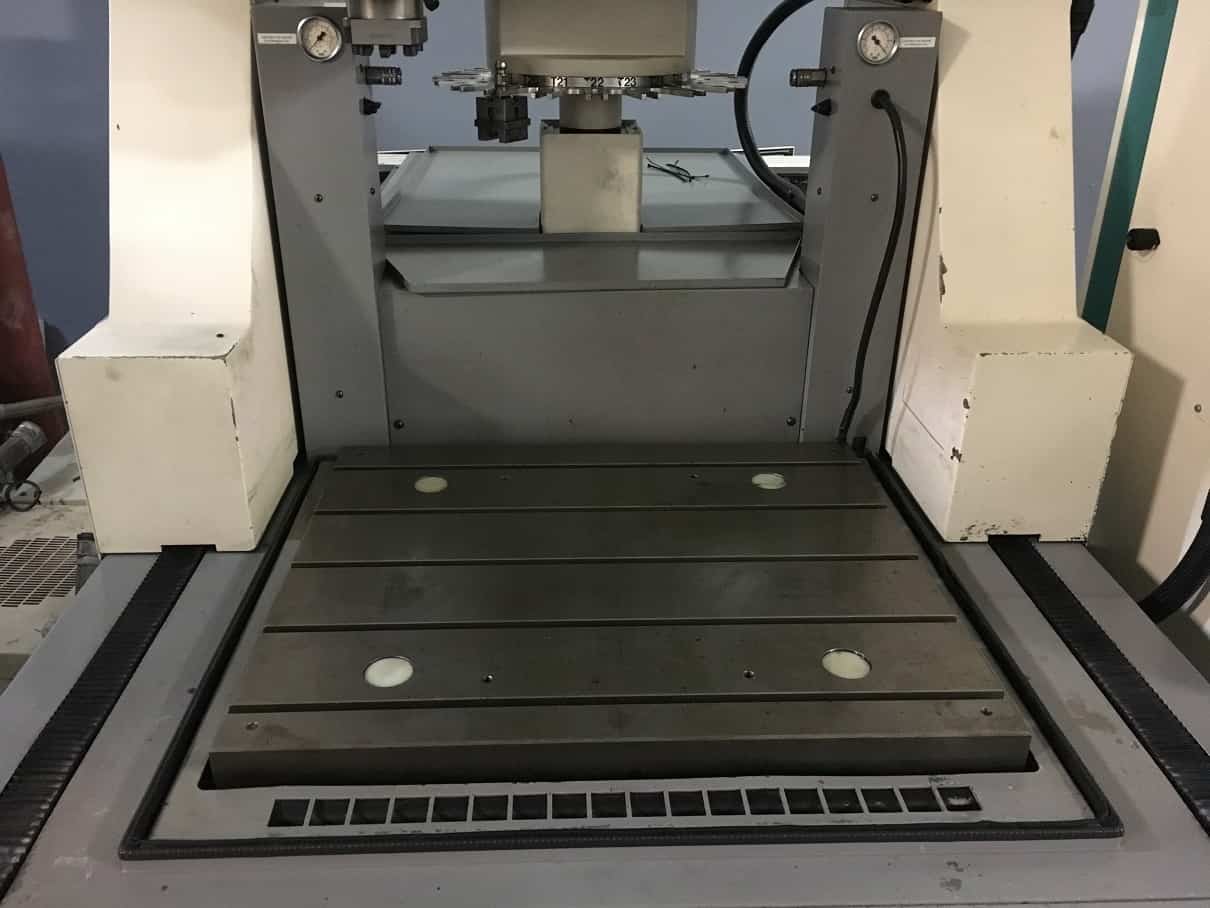

| Work Table Dimensions |
28.7" x 24.8" |
| Allowable Weight on Table |
2,200 lbs |
| Distance Table to Platen |
5.3" - 20.0" |
| Dielectric Capacity |
105 gal |
| Machine Dimensions |
97" x 106" x 106" |
| Machine Tool Weight |
9,592 lbs |
| Power Requirement |
400/3 |
Features
|
Chiller |
Transformer |
|
Dielectric Filtration System |
E.S.P.E.R (Easy Simple Programming by Expert System) |
|
FP (Fine-Pulse) Power Supply |
MF Fuzzy Logic |
