Year |
1993 |
|---|---|
Make |
Kautex |
Model |
KB 250 |
Description |
Blow Molder |
Reference # |
8076947 |
Price |
Activate Pricing |

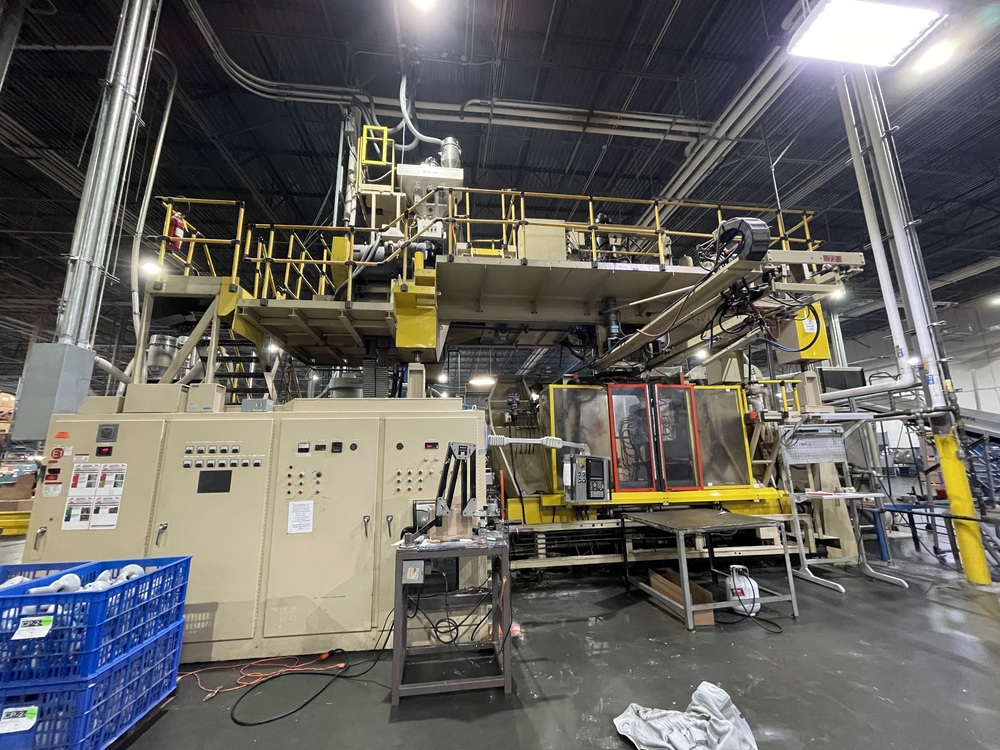

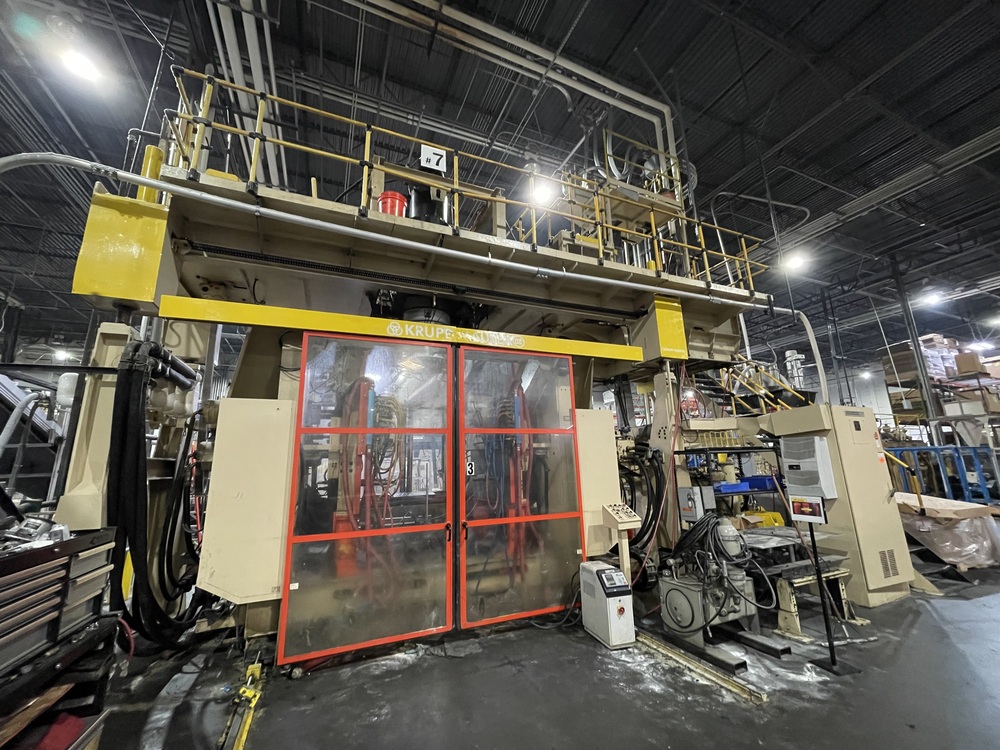

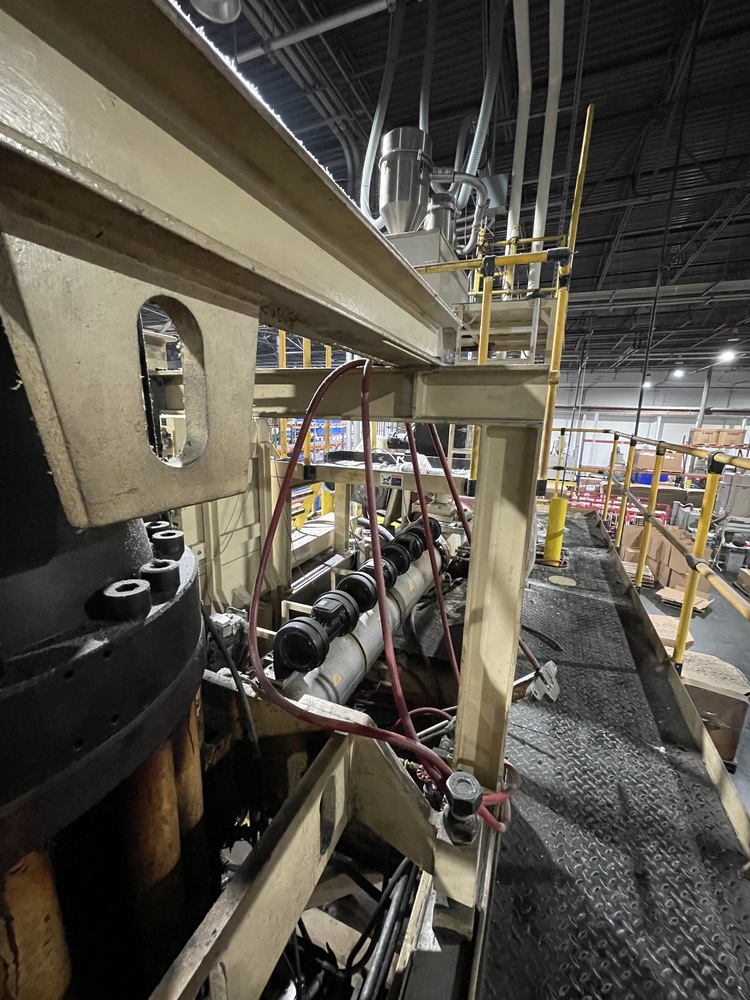

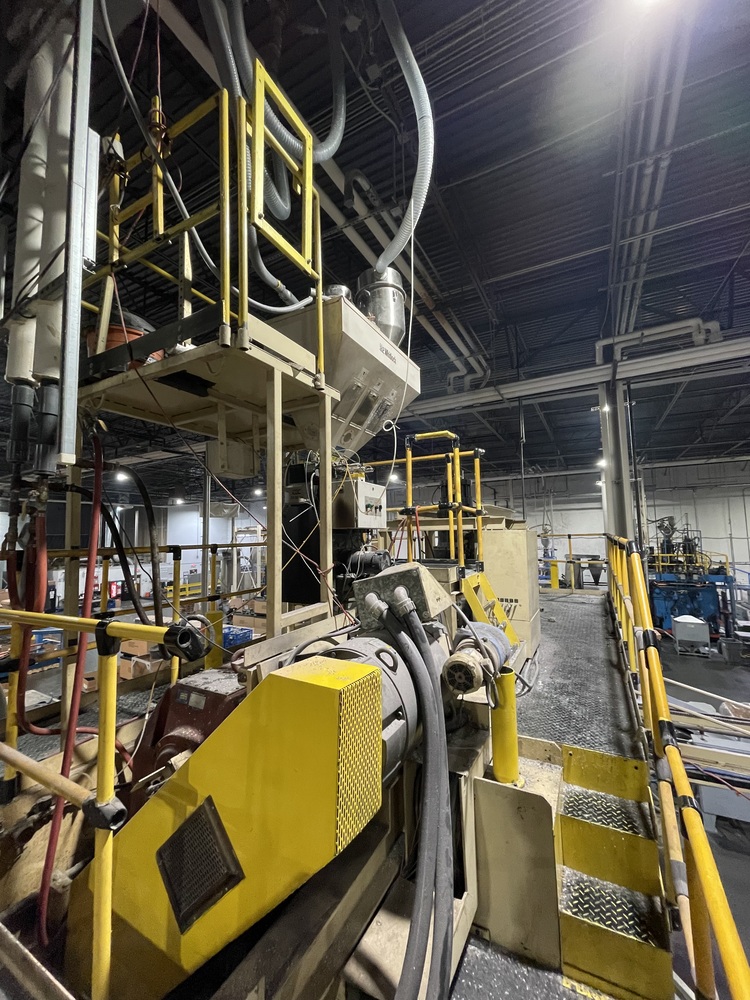

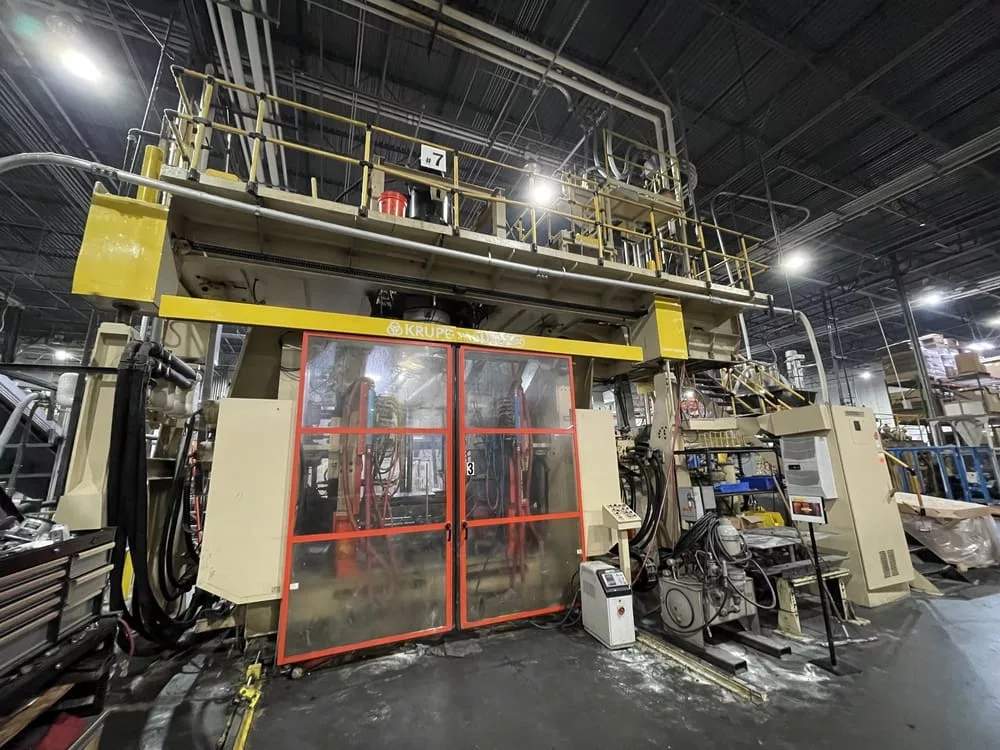

Used Kautex KB 250 (1993) Blow Molder for Sale. This single-head accumulator machine carries a 50 lb. shot size and handles head tooling sizes from 9.4″ to 17.71″, with a platen size of 71″ x 59″. It runs a 120 mm extruder screw driven by 150 HP and is operated through a Maco 6500 control. Power requirement is 480v – 3ph – 60hz, and overall dimensions are approximately 18′ W x 37′ L x 24′ H. Equipped with a new Kautex screw, a new Voith pump, and a rebuilt Koellman gearbox. The machine is under power and can be seen running for an inspection. See more used blow molding machines, use Activate Pricing, or Request a Quote for details.
Specifications
| Number of Heads |
Single |
|---|---|
| Shot Size |
50 Lbs. |
| Head Tooling Sizes |
9.4" - 17.71" |
| Platen Size |
71" x 59" |
| Extruder Screw Size |
120 mm |
| Horsepower |
150 |
| Control |
Maco 6500 |
| Power Requirement |
480v - 3ph - 60hz |
| Dimensions |
18' W x 37' L x 24' H (Approx.) |
Features
|
New Kautex Screw |
New Voith Pump |
|
Rblt. Koellman Gearbox |
Under Power for Inspections |
