Year |
1992 |
|---|---|
Make |
Techne |
Model |
20000 |
Description |
Continuous Extrusion Blow Molder |
Reference # |
8078735 |
Price |
Activate Pricing |

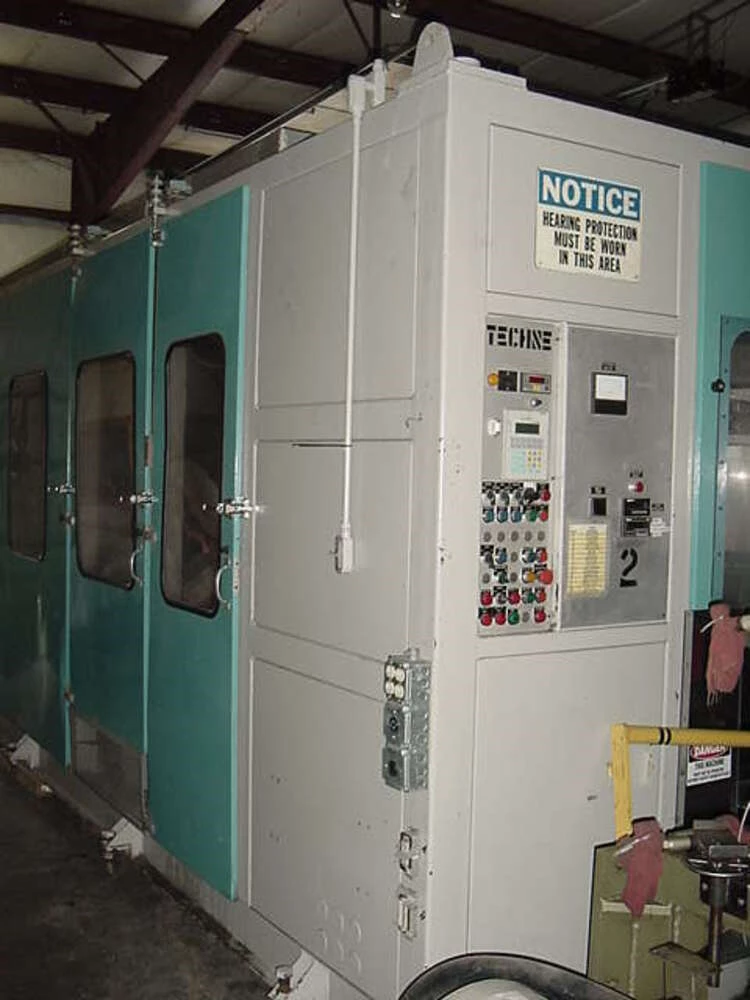

Used Techne 20000 (1992) Blow Molder for Sale. This machine runs a dual 330mm PE processing head with max head tooling of 7″, fed by a 90mm 24:1 air cooled extruder rated at an hourly output of 700#/Hr. The extruder is driven by a 125HP DC motor, with a 40 HP hydraulic motor. Control is by Barber Colman Maco 6500 Series controls installed in 2004, with 200-point parison programming. Platen size is 24″ x 24″. Equipped with 37401 hours, all manuals, and ladder and platform. The machine can be seen under power for an inspection. Additional used blow molding machines are available. Use Activate Pricing for current figures, or Request a Quote and we will follow up with details.
Specifications
| Head Configuation |
Dual 330mm PE Processing Head |
|---|---|
| Max Head Tooling |
7” |
| Extruder |
90mm 24:1 Air Cooled Extruder |
| Hourly Output |
700#/Hr |

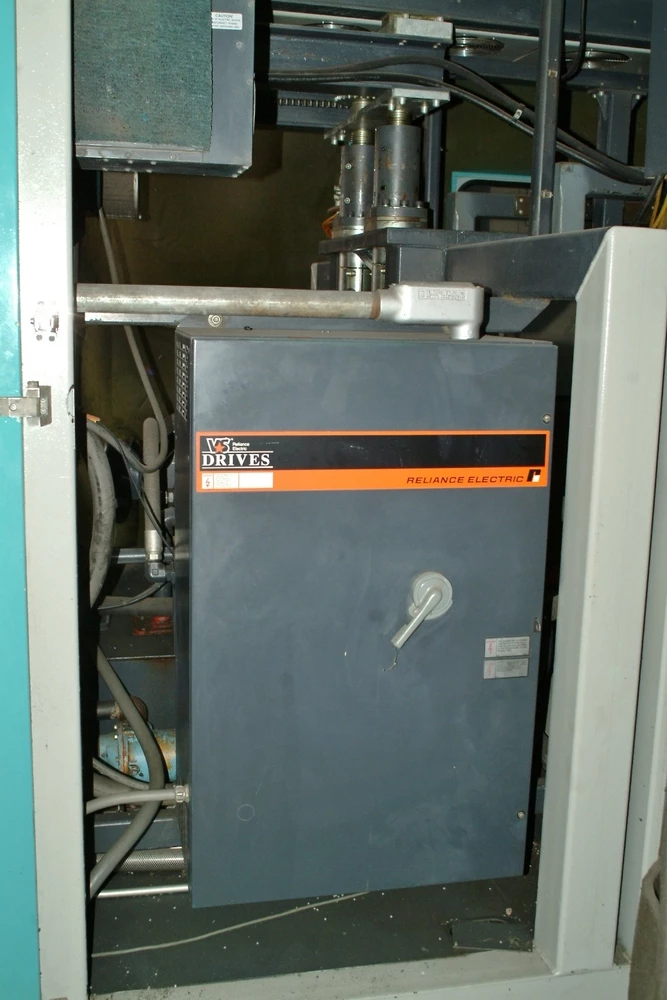

| Extruder Horsepower |
125HP DC Extruder Drive Motor |
| Hydraulic Motor |
40 HP |

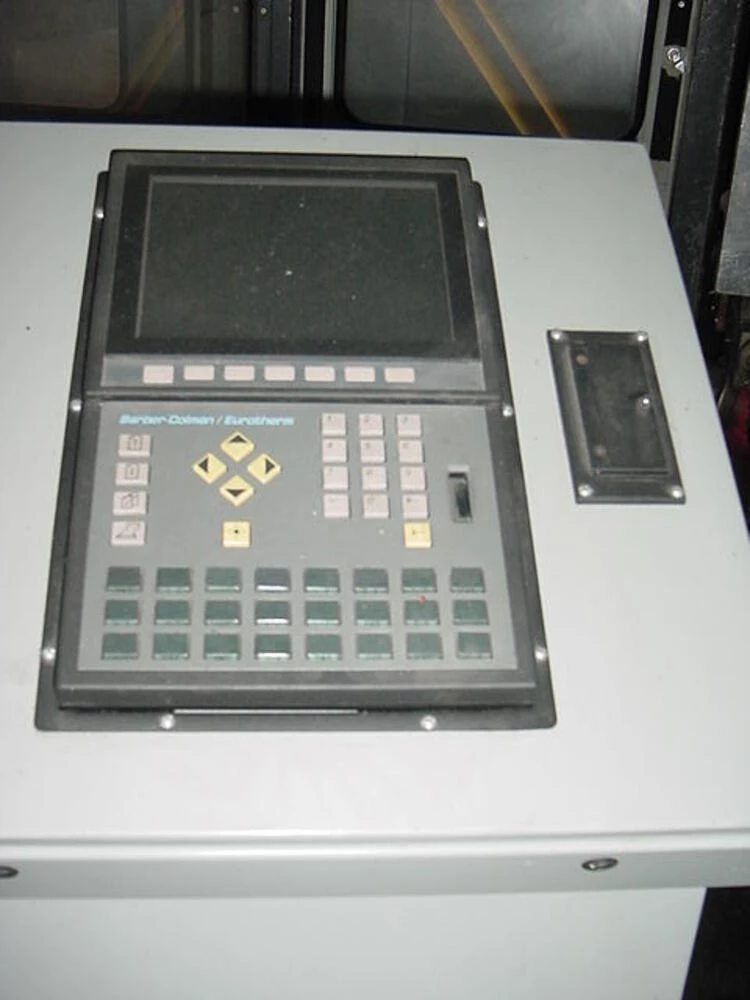

| Control |
Barber Colman Maco 6500 Series Controls Installed 2004 |
| Parison Programming |
200-Point |
| Platen |
24” x 24” |
Features
|
37401 Hours |
All Manuals |
|
Ladder & Platform |
