Year |
1993 |
|---|---|
Make |
Davis Standard |
Model |
DS-20 |
Description |
Single Screw Extruder |
Reference # |
8078106 |
Price |
Activate Pricing |

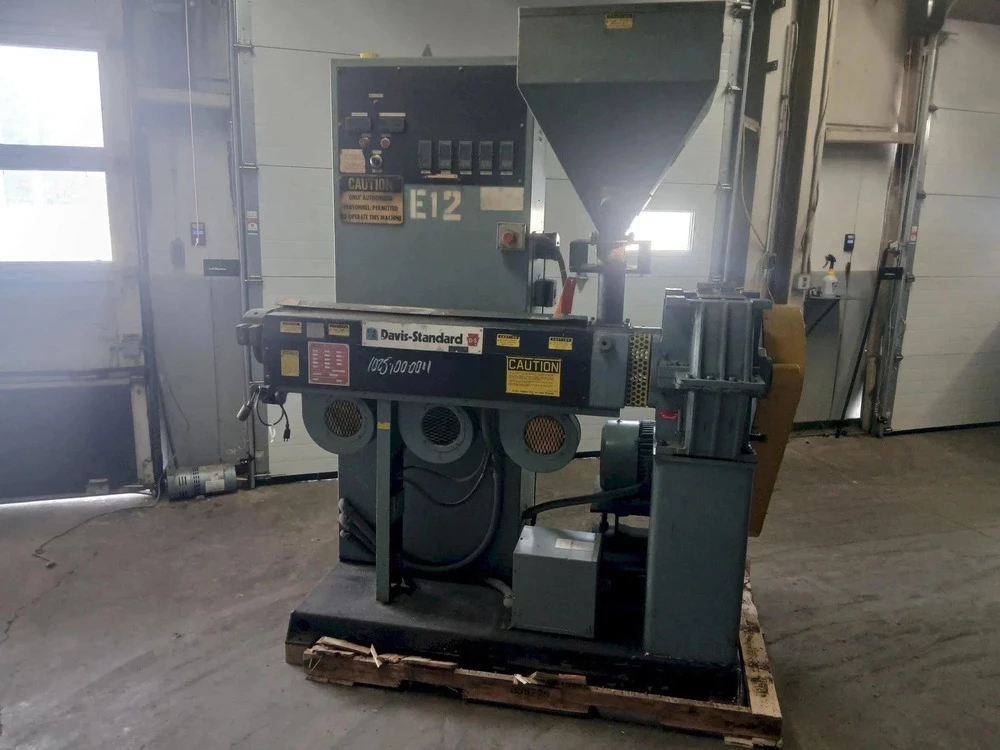

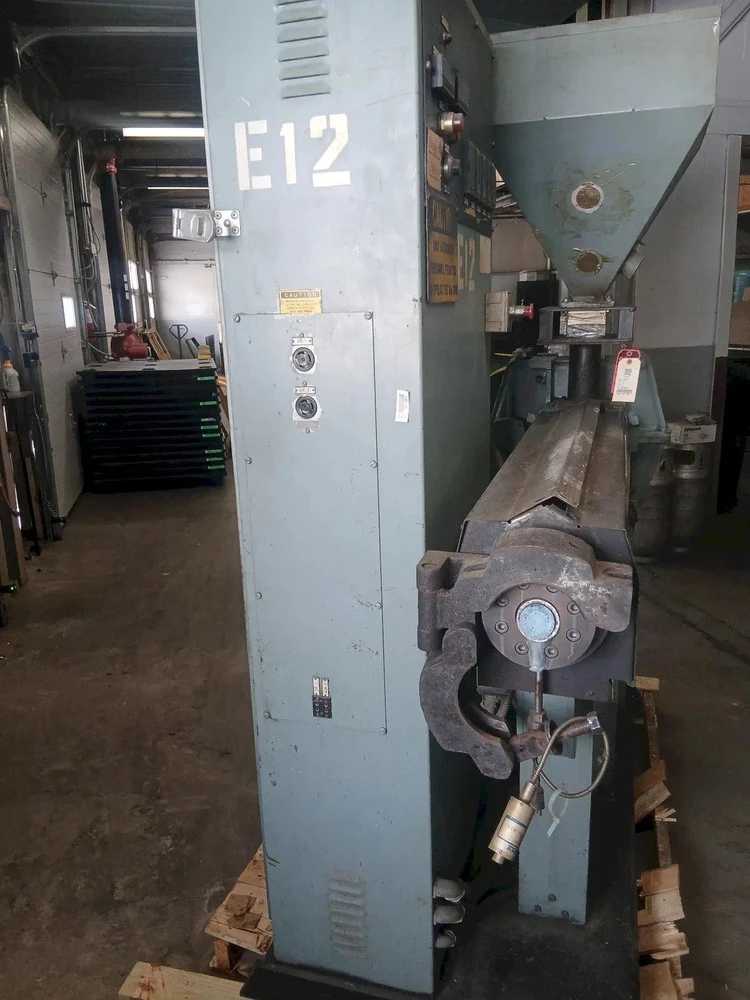

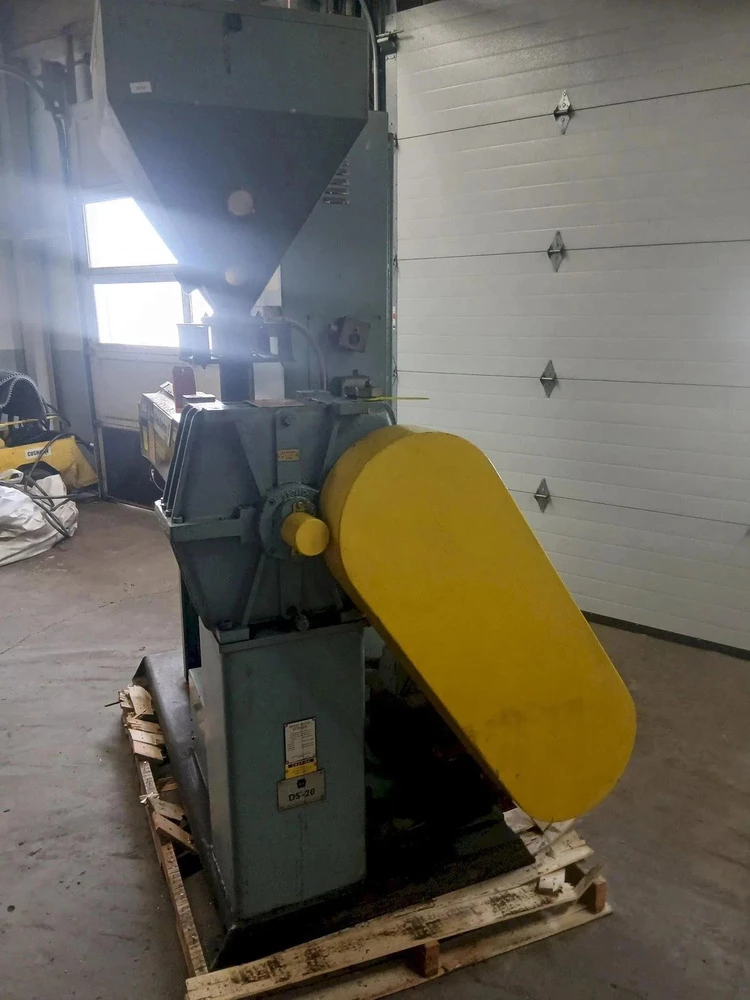

Used Davis Standard DS-20 (1993) Extruder for Sale. This single screw extruder has a 2.0″ screw with a 24:1 L/D ratio and has run HDPE. It is air cooled, with (3) barrel cooling zones and (2) die zones, controlled by EuroThermo temperature controls. Drive is a 20 HP DC motor through an Allen-Bradley PowerFlex drive, with a 6.53:1 gearbox rated to 50 HP. Power requirement is 230v/460v – 3ph. The machine has been cleaned up and test ran, and is equipped with a hopper loader. It can be seen under power for an inspection prior to purchase. Use Activate Pricing to view the price, or Request a Quote and we will follow up with details.
Specifications
| Screw Size |
2.0" |
|---|---|
| L/D Ratio |
24:1 |
| Material Ran |
HDPE |
| Air Cooled |
Yes |
| Die Zones |
(2) Die Zones |
| Barrel Cooling Zones |
(3) Zones |
| Horsepower |
20 HP DC Motor |
| Drive |

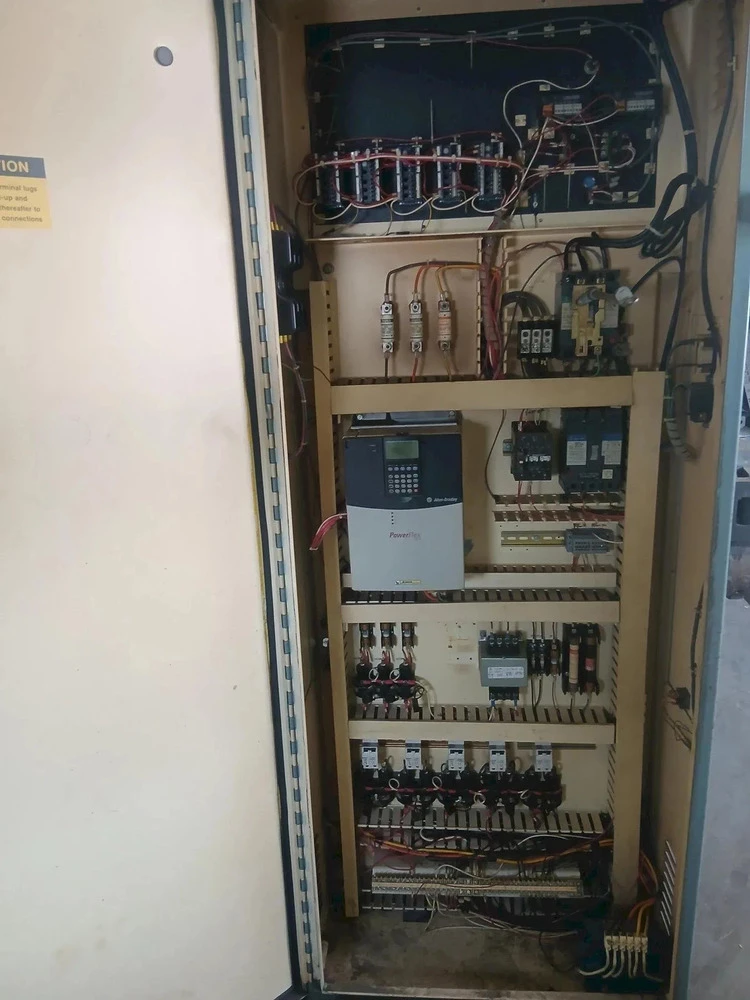

A-B PowerFlex Drive |
| Gearbox Ratio |
6.53:1 |
| Control |

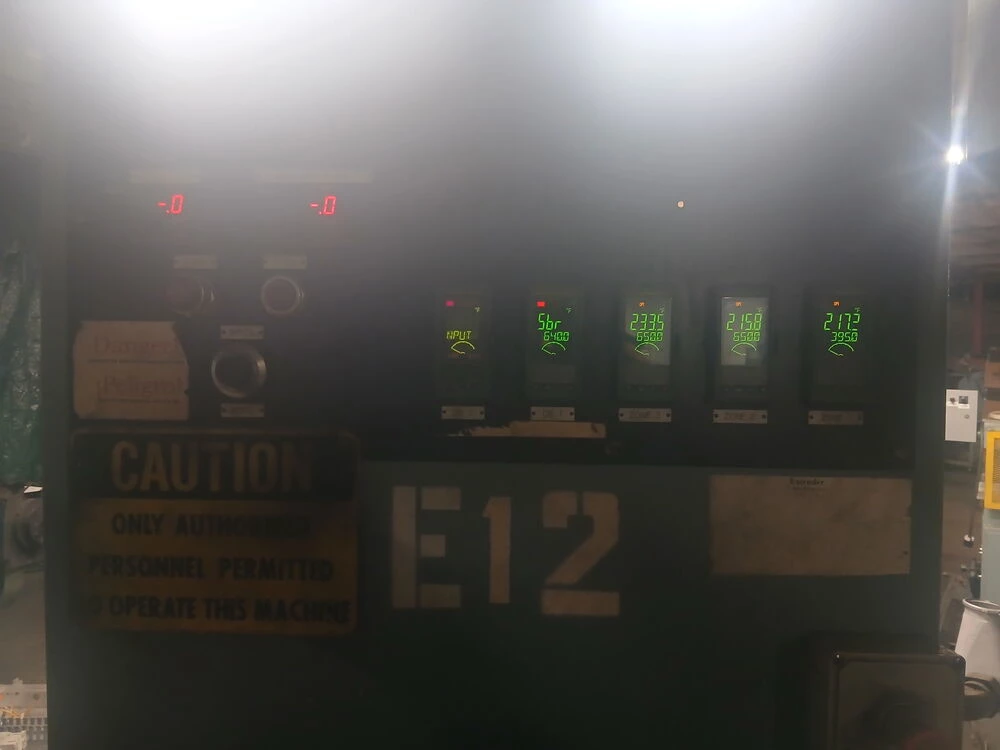

EuroThermo Temp Controls |
| Gearbox HP Cap |
50 HP |
| Power Requirement |

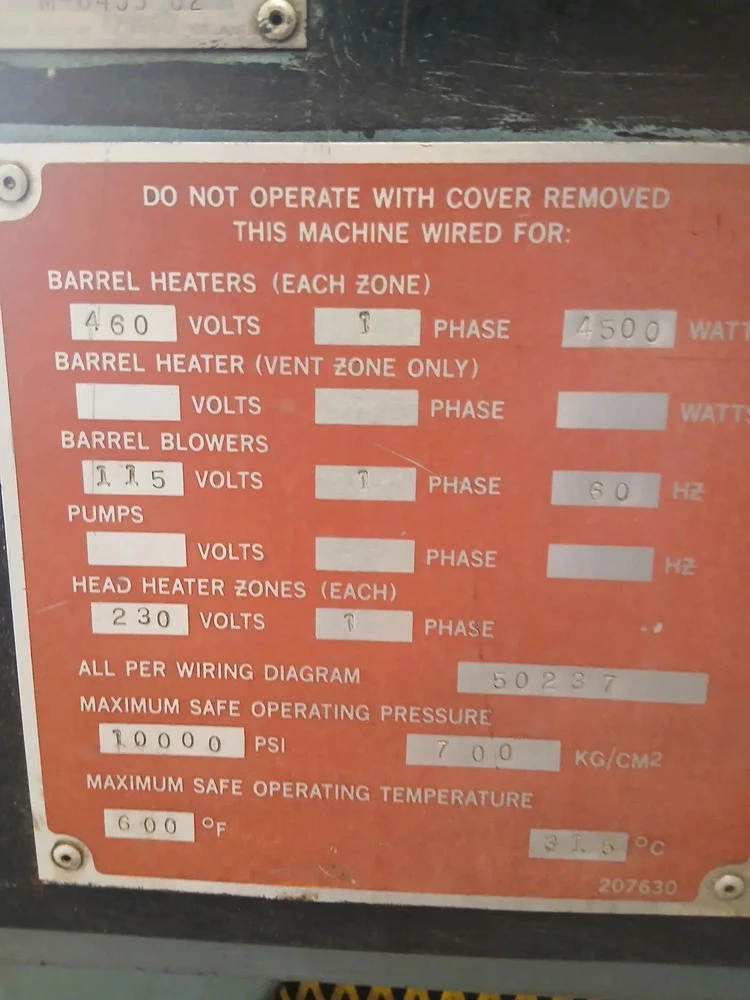

230v/460v - 3ph |
Features
|
Cleaned Up & Test Ran |
Hopper Loader |
