Year |
1985 |
|---|---|
Make |
Davis Standard |
Model |
45IN45 |
Description |
Single Screw Extruder |
Reference # |
8077981 |
Price |
Activate Pricing |

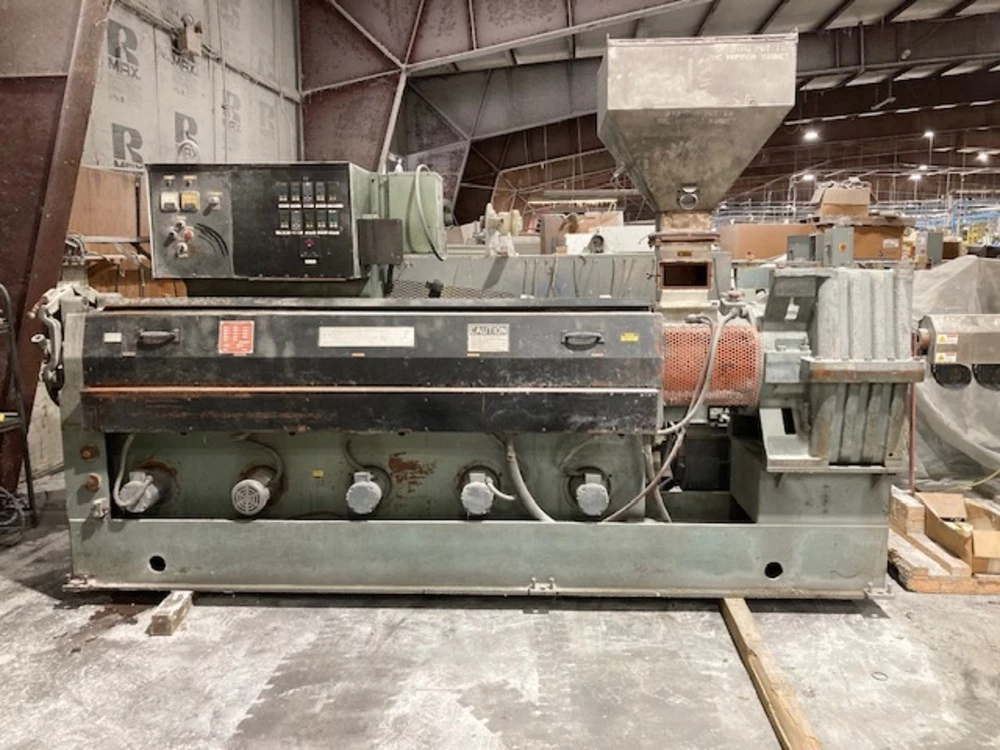

Used Davis Standard 45IN45 (1985) Extruder for Sale. This single screw plastic extruder has a 4.5″ screw with a 24:1 L/D ratio and is air cooled with five cooling zones. The gearbox is rated at a 17.36:1 ratio with 225 HP capacity, and power requirement is 460v – 3ph – 60hz. The machine is equipped with a new chrome plated screw. It can be seen under power for an inspection, so buyers are welcome to arrange a viewing and run it before committing. Full specifications are listed above for comparison against your line requirements. Use the [Activate Pricing](#activate-pricing) link for figures on this unit, or Request a Quote and we will follow up with details.
Specifications
| Type of Extruder |
Single Screw |
|---|---|
| Screw Size |
4.5" |
| L/D Ratio |
24:1 |
| Air Cooled |
Yes |
| Number of Cooling Zones |
(5) Five |
| Gearbox Ratio |
17.36:1 |
| Gearbox HP Capacity |
225 |
| Power Requirement |
460v - 3ph - 60hz |
Features
|
New Chrome Plated Screw |
*
