Make |
MGB / NRM |
|---|---|
Model |
3.5" Single Screw Extruder |
Description |
Extruder |
Reference # |
8078992 |
Price |
Activate Pricing |

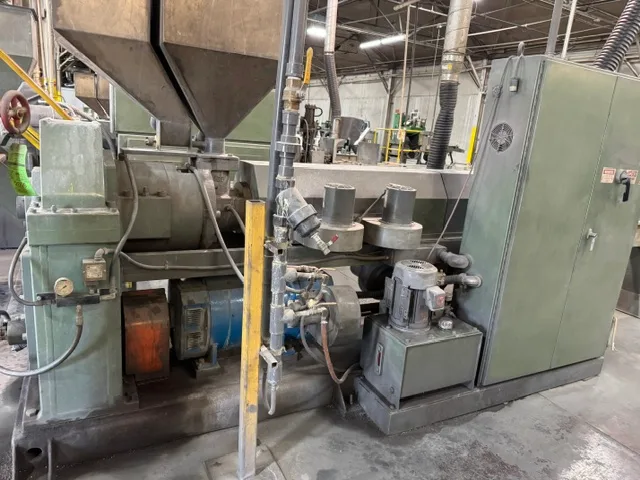

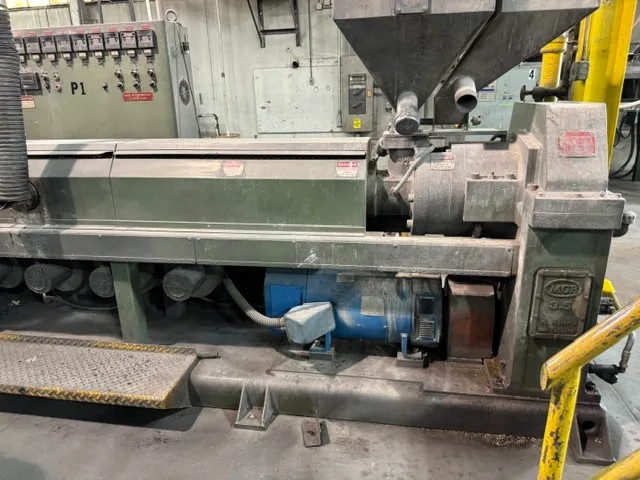

Used MGB / NRM 3.5″ Single Screw Extruder for Sale. This vented, air cooled extruder runs a 3.5″ screw with a 32:1 L/D ratio and six barrel zones. Power comes from a 125 HP DC motor through a Control Techniques Mentor II DC drive, with a 15:1 gearbox ratio. It is equipped with a 9 zone control panel unitized on the base and a hopper. The machine can be seen under power for an inspection, so buyers can verify drive response and zone control before committing. It is listed alongside the rest of our used plastic extruders, and is available for immediate sale. Activate Pricing to see the current asking figure, or use the Inquire Now button to reach us with questions or to arrange an inspection.
Specifications
| Screw Size |
3.5" |
|---|---|
| L/D Ratio |
32 :1 |
| Cooled |
Air Cooled |
| Vented or Non |
Vented |
| Barrel Zones |
(6) Six |
| Horsepower |
125 hp DC Motor |
| Drive |
Control Techiques Mentor II DC drive |
| Gearbox Ratio |
15:1 |
| Note |
They were all running PE fine into August. Screen changers and strand dies NOT included. |
Features
|
9 Zone Control Panel Unitized on Base |
Hopper |
