Year |
1992 |
|---|---|
Make |
PTI |
Model |
Strand Die Pelletizing Line |
Description |
PTI Extruder |
Reference # |
8077799 |
Price |
Activate Pricing |

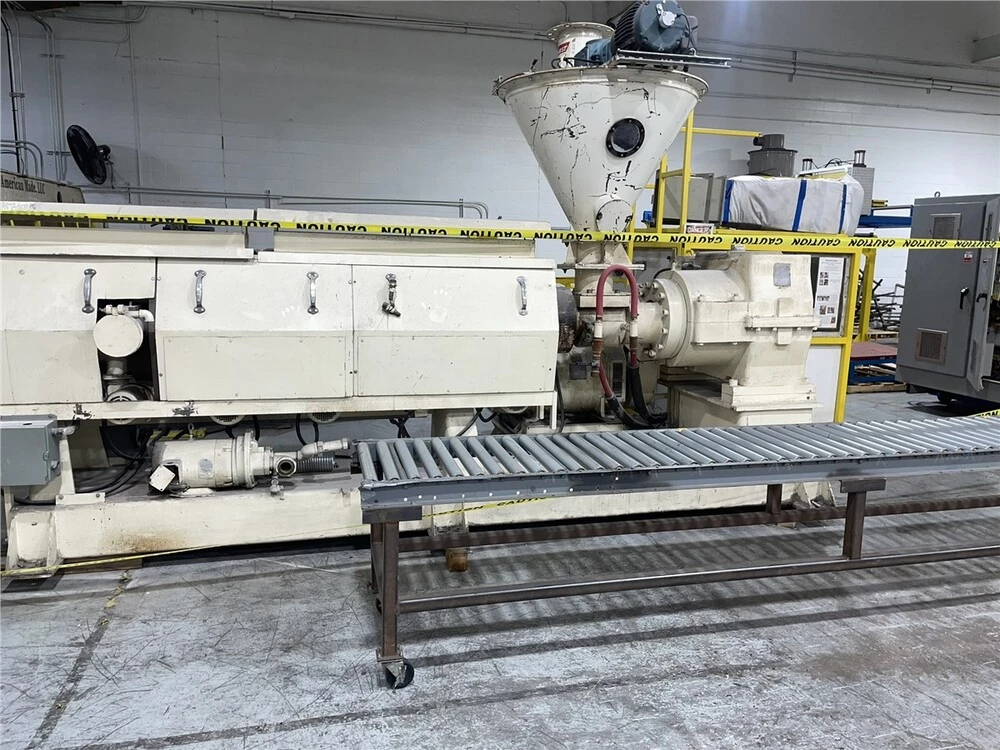

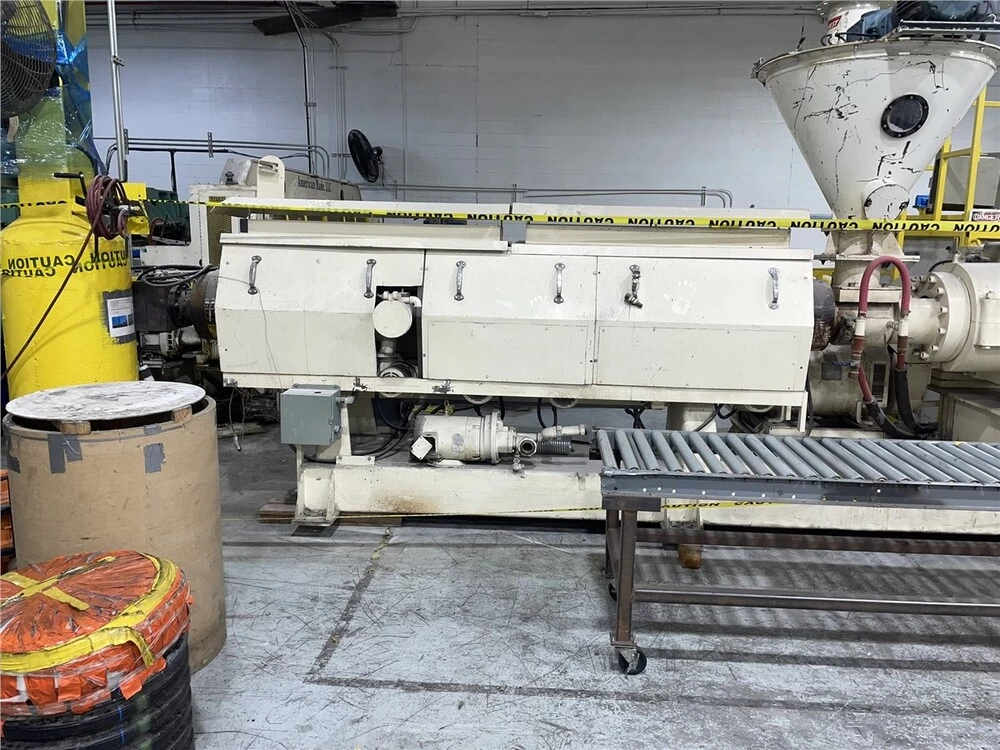

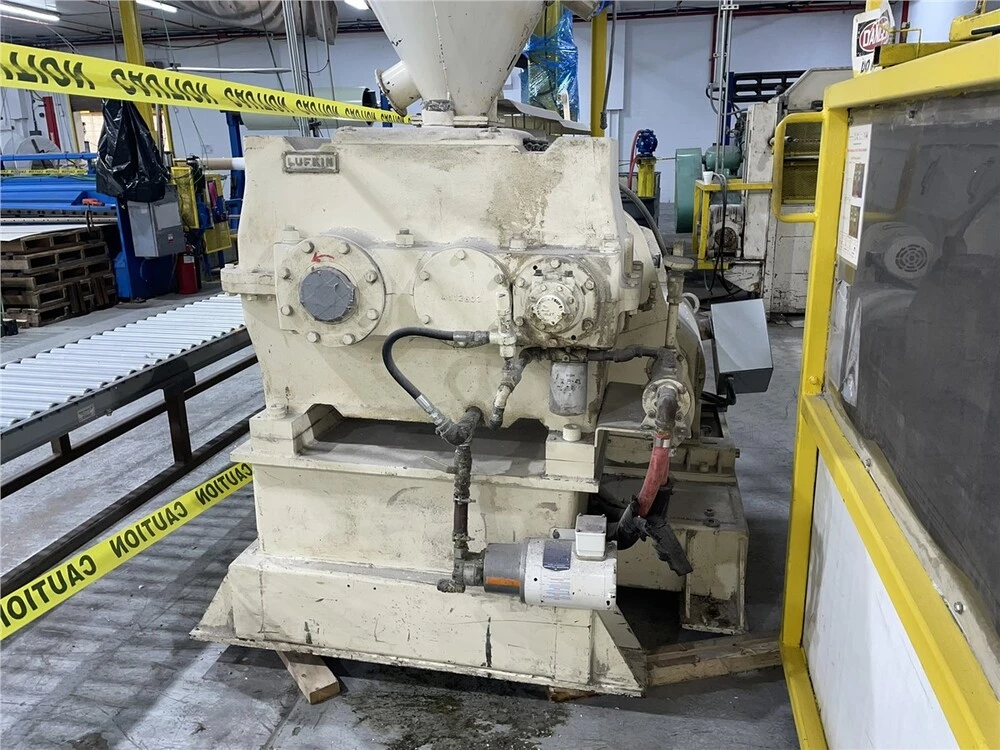

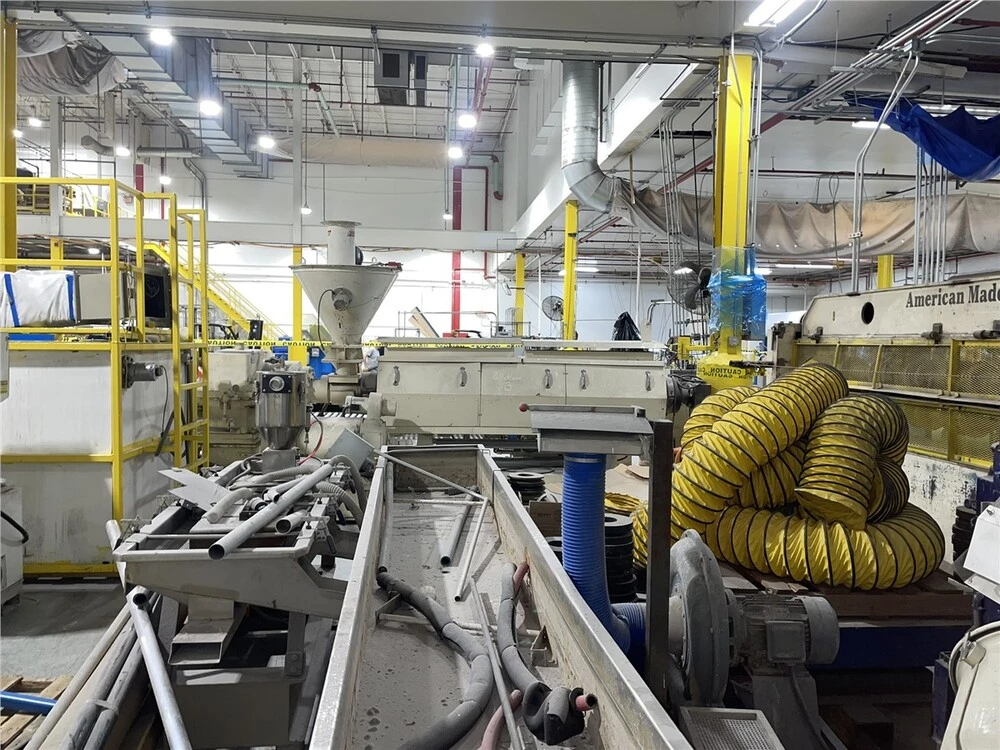

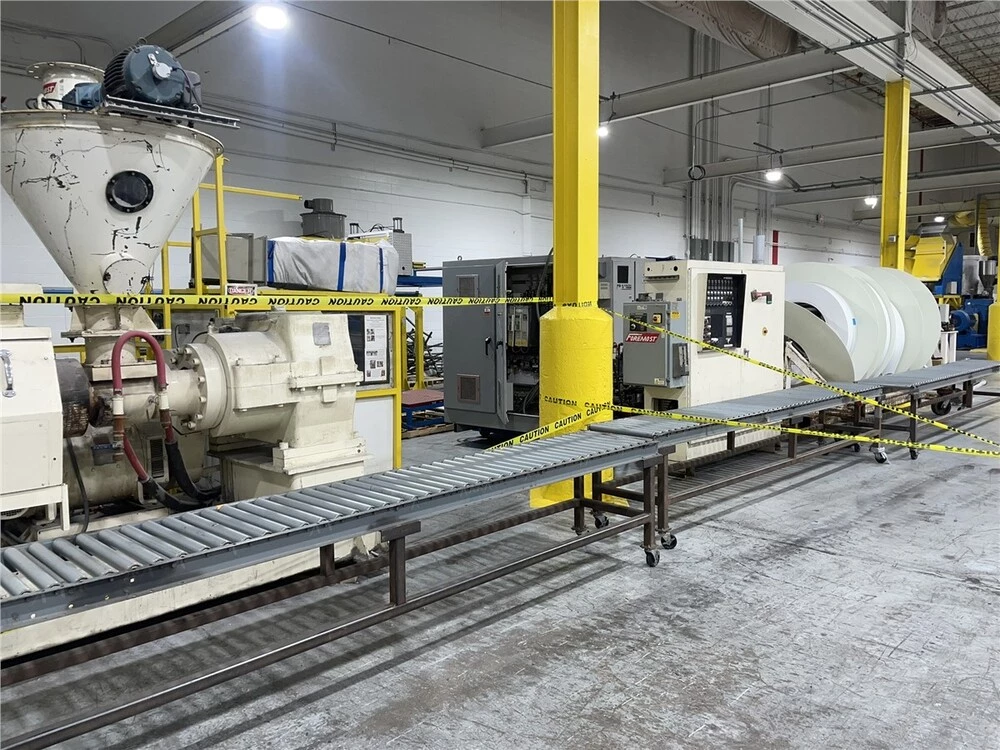

Used PTI Strand Die Pelletizing Line (1992) Extruder for Sale. This vented extruder runs a 32:1 L/D ratio with 125 RPM screw speed, driven by a 200 HP Emerson DC motor through an Emerson Quantum II DC drive, with a PTI control panel and six barrel zones, three screen changer zones and three die zones. Approximate dimensions are 50″ L x 42″ W x 72″ H, with approximate output of 800 to 1200 PPH running PP and PE materials. The line includes a right angle strand die, Tec Polymer air knife, 14′ Tec Polymer water bath (14′ long x 24″ wide x 12″), MGB Engineering 28″ classifier separating fines, overs and right sized pellets, and a Cumberland Model 6 pelletizer with 8 knife deep. Note the line does not have a screen changer. Can be seen under power for inspection. See more used plastic extruders, then Activate Pricing and Request a Quote.
Specifications
| L/D Ratio |
32:1 |
|---|---|
| Vented |
Vented |
| Screw Speed |
125 RPM Screw Speed |
| Horsepower |

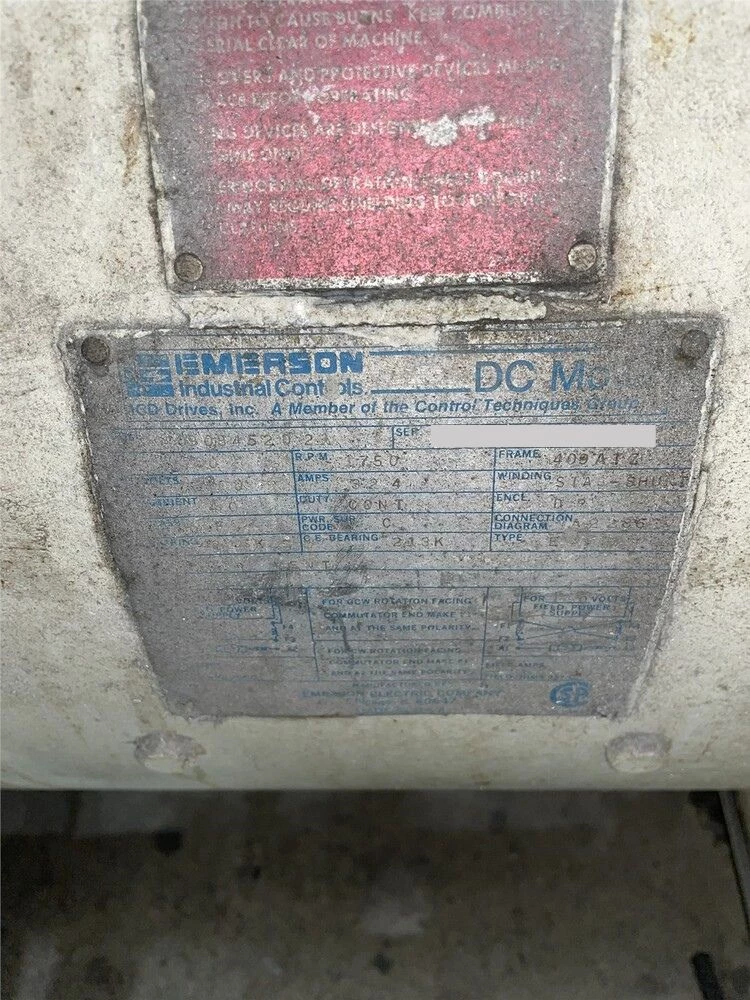

200 HP Emerson DC Motor |
| Drive |
Emerson Quantum II DC Drive |
| Control |
PTI Control Panel |
| Zone Controls |
6 Barrel Zones / 3 Screen Changer Zones / 3 Die Zones |
| Approximate Dimension |
50" L x 42" W x 72" H |
| Approx Output |
800 lbs. / 1200 lbs. PPH, was running PP & PE Materials |
Features
|
1 HP 230/460V Motor |
10 HP Baldor Motor Driven by AC Tech AC Inverter Drive |
|

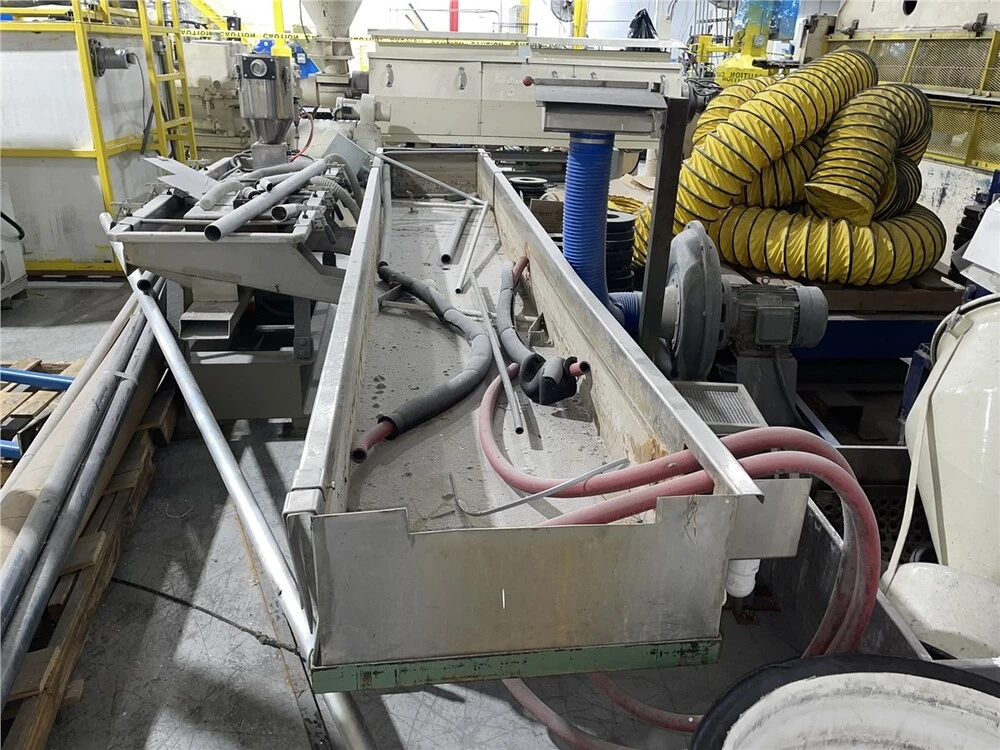

14' Tec Polymer Water Bath / 14' Long x 24" Wide x 12" |
28" W x 64" L / Separates Fines / Overs and Right Sized Pellets |
|
59" In-Feed Height |
39" Discharge / Mounted on Casters |
|
Line does not have Screen Changer |
MGB Engineering 28" Classifier |
|

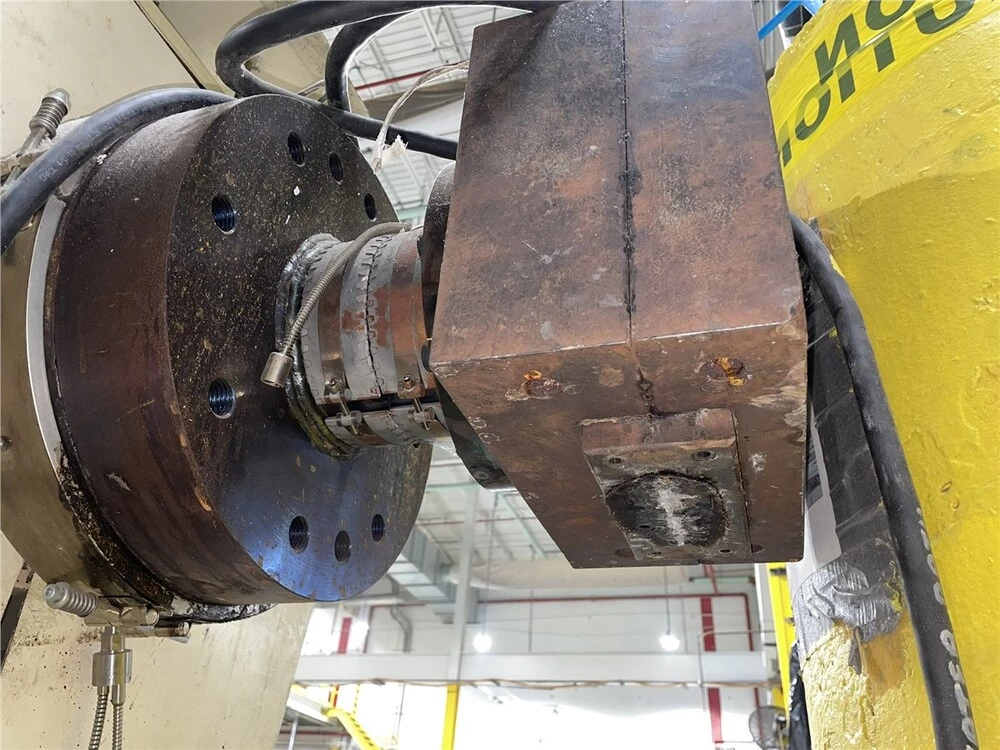

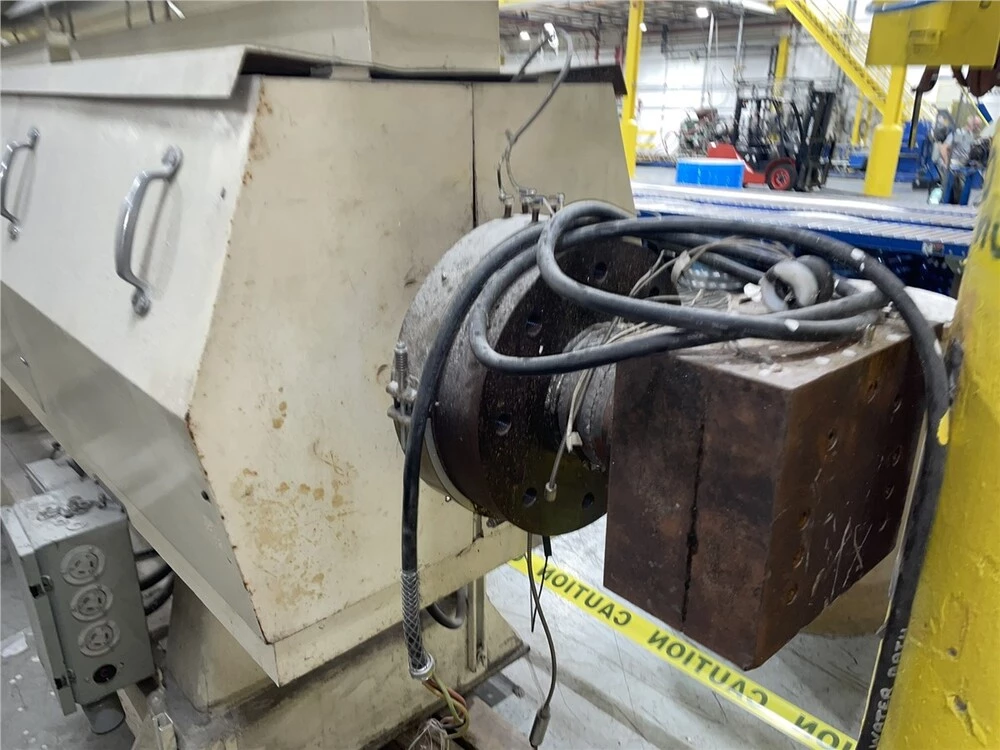

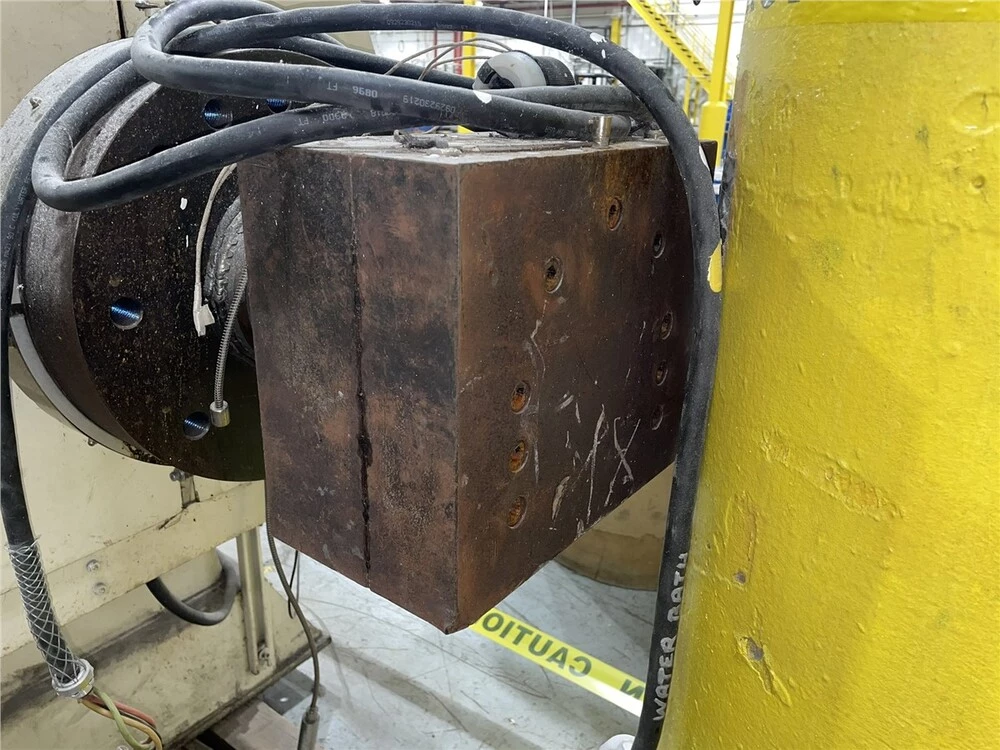

Right Angle Strand Die |

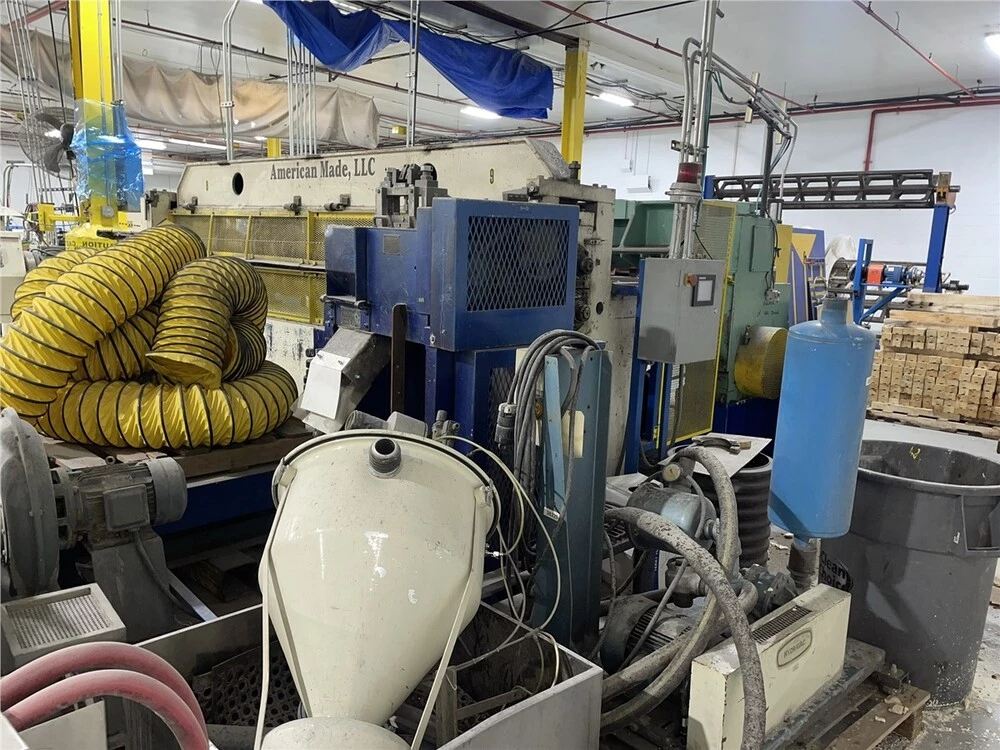

Tec Polymer Air Knife Cumberland Pelletizer / Model 6 / 8 KnifeDeep |
