Make |
Sodick |
|---|---|
Model |
AQ535L/LQ1W |
Description |
EDM Wire |
Reference # |
8079263 |
Price |
Activate Pricing |

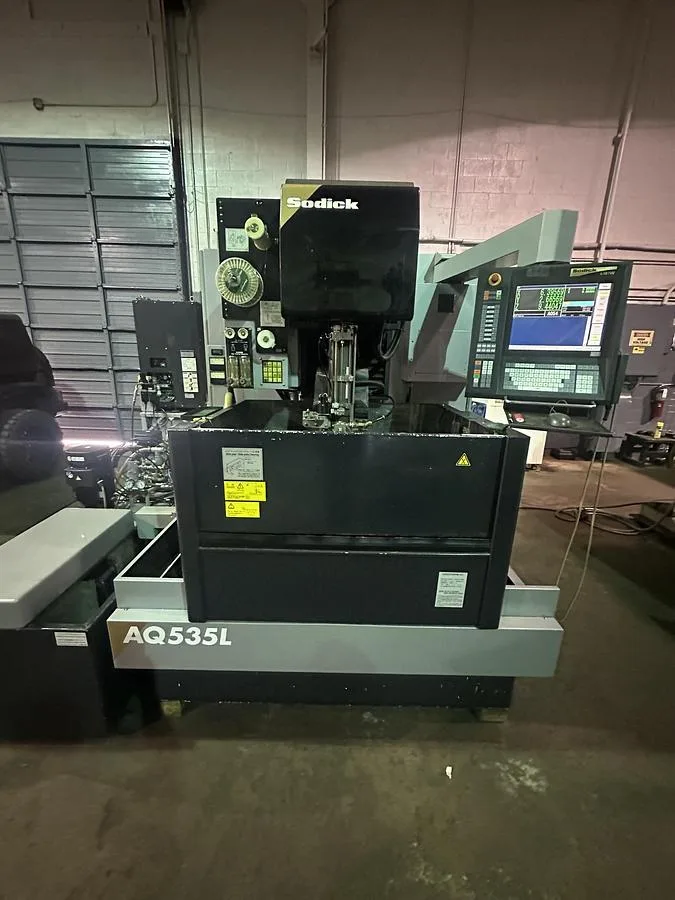

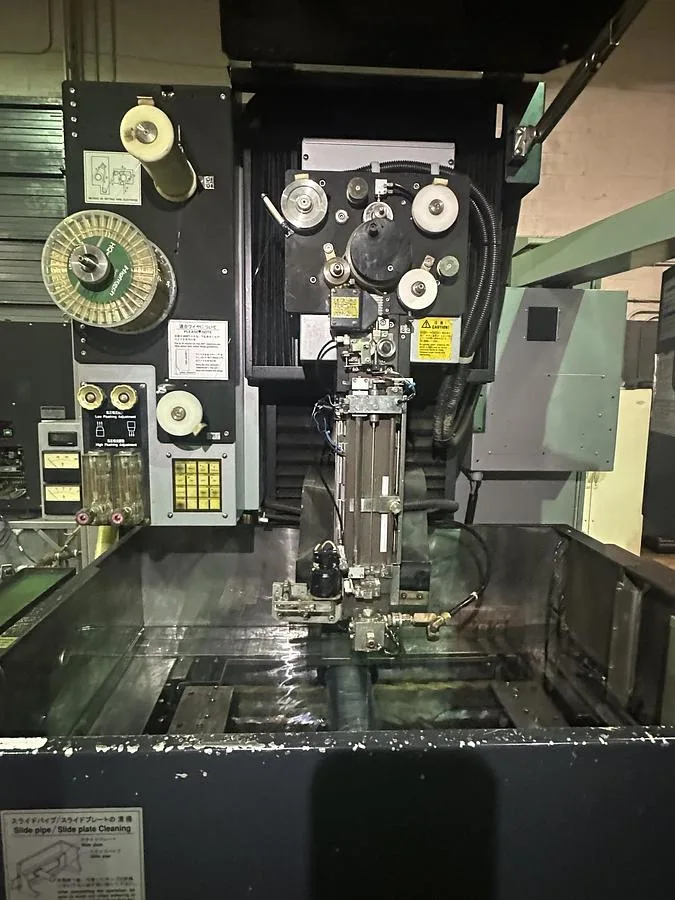

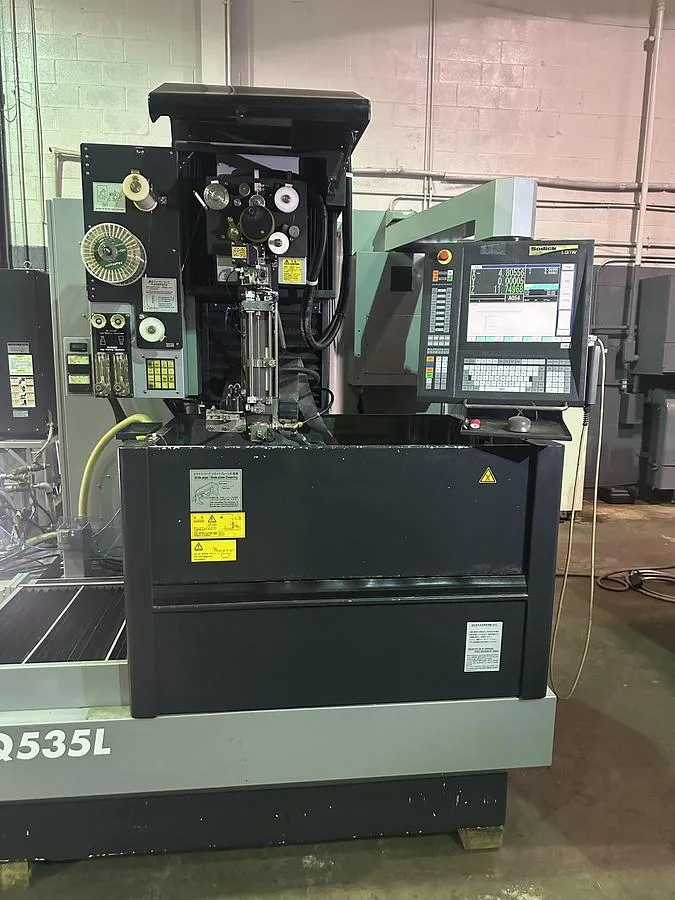

Used Sodick AQ535L/LQ1W EDM for Sale. This wire EDM runs the LQ1W control and offers 21.6″ of X-axis travel, 13.7″ of Y-axis travel and 11.8″ of Z-axis travel, with U/V axis travel of 3.1″ x 3.1″ and a taper angle of +/- 20 degrees. The work table measures 31.1″ x 19.7″, the work tank measures 43.3″ x 28.3″, and maximum material weight is 1,764 lbs. Equipped with High Speed AWT, dielectric cooling unit, linear scale, float nozzle, taper cut unit and programmable software (Hard NC / Esprit CAD/CAM package). The machine can be seen under power for an inspection by appointment. Compare it against our other used EDM machines and the rest of our used Sodick machines, then Activate Pricing or use the Inquire Now button.
Specifications
| X-Axis Travel |
21.6" |
|---|---|
| Y-Axis Travel |
13.7" |
| Z-Axis Travel |
11.8" |

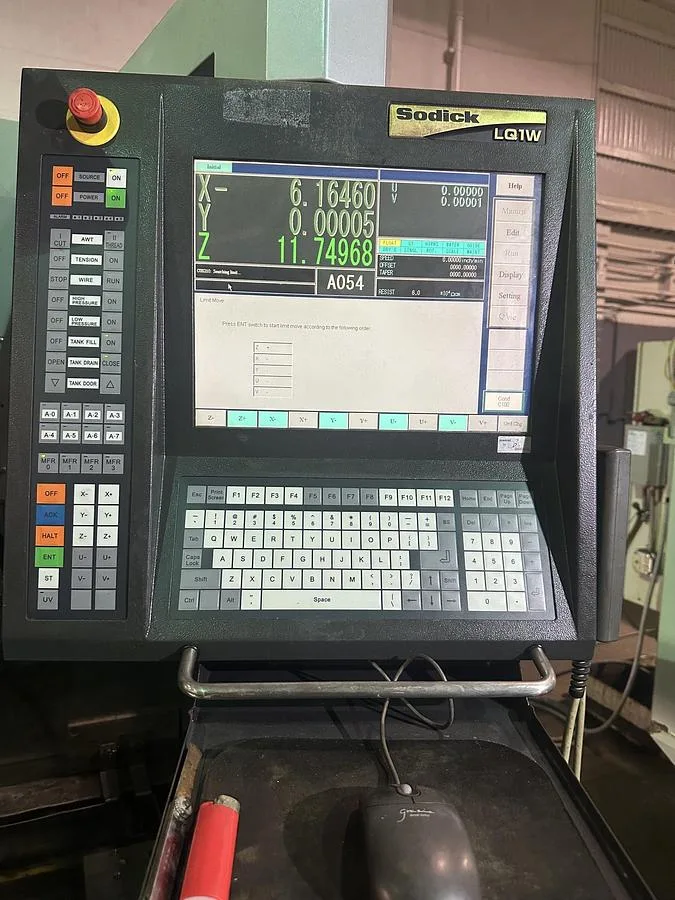

| Control |
LQ1W |
| U/V Axis Travel |
3.1" x 3.1" |
| Work Table Size |
31.1" x 19.7" |

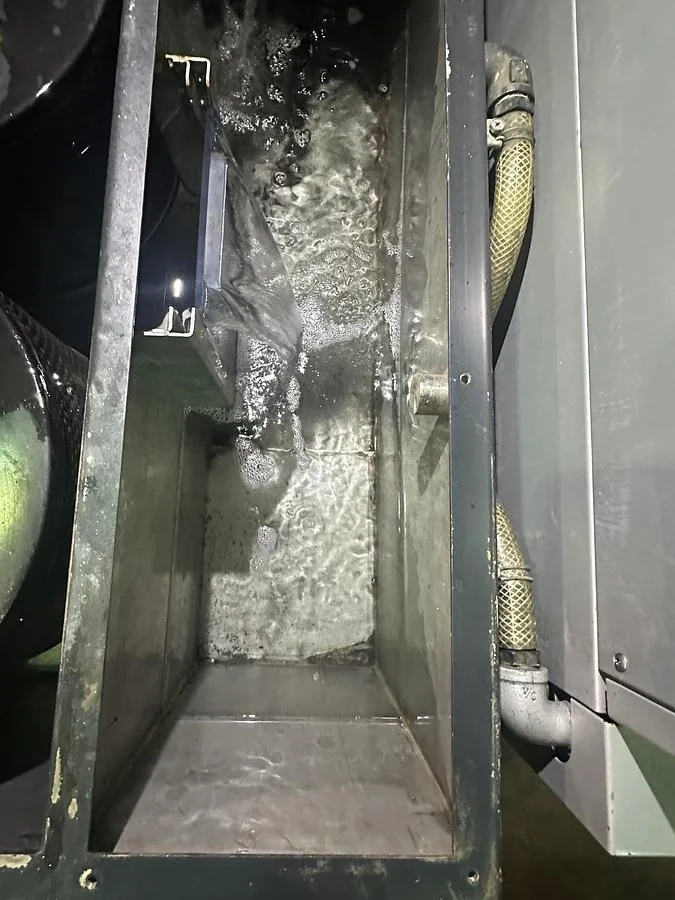

| Work Tank Size |
43.3" x 28.3" |
| Max Material Weight (lbs) |
1,764 lbs. |
| Taper Angle |
+/- 20 Degrees |
Features
|
Linear Scale |
Programmable Software (Hard NC / Esprit CAD/CAM Package) |
|
Taper Cut Unit |
Float Nozzle |
|
High Speed AWT |

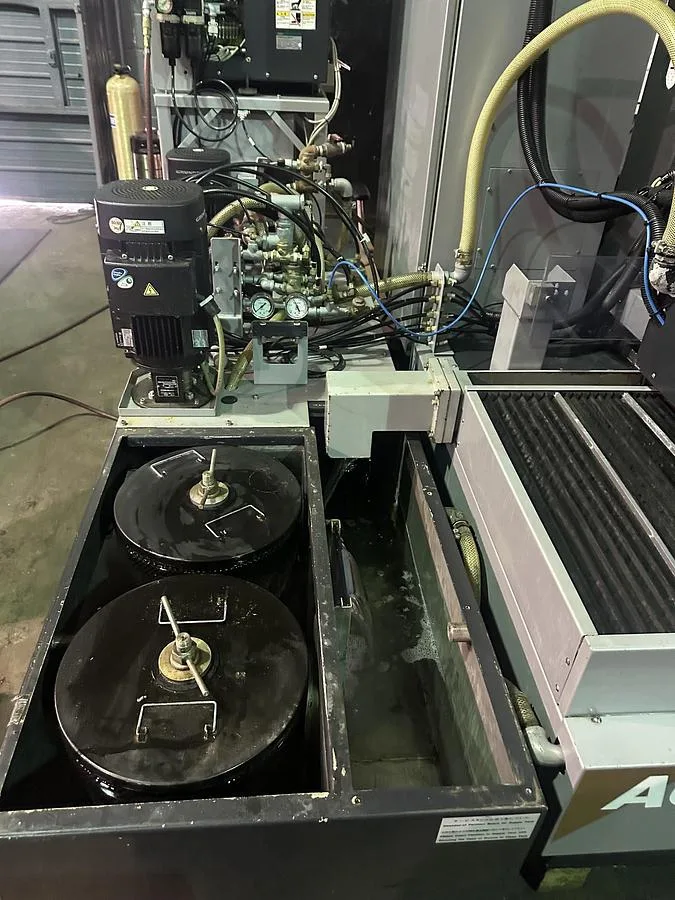

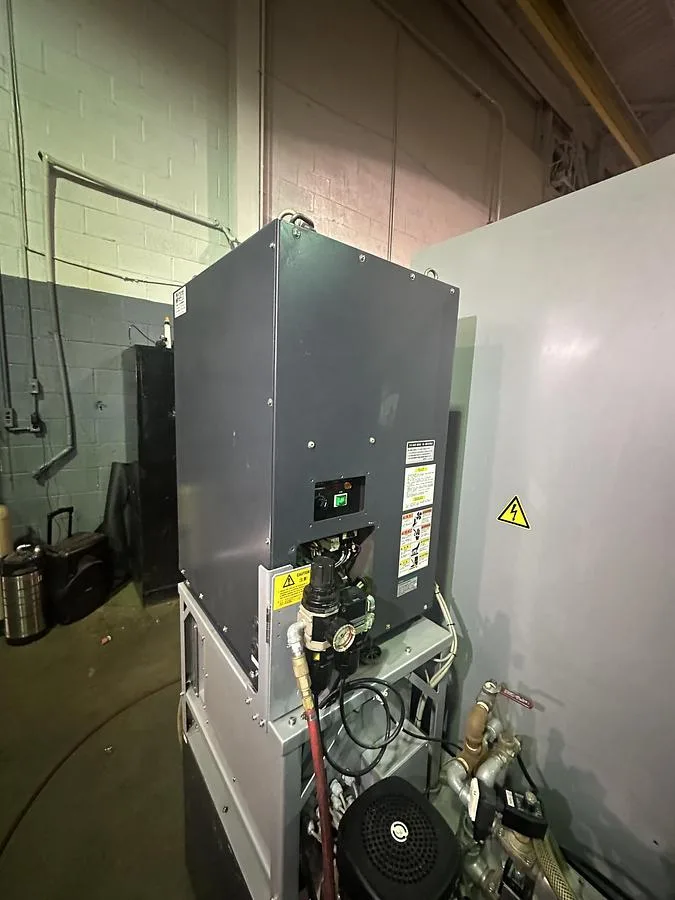

Dielectric Cooling Unit |
