Year |
2026 |
|---|---|
Make |
Modern Machinery |
Model |
5x6 SS |
Description |
Thick Gauge Single Station Thermoformer |
Reference # |
8077967 |
Price |
Activate Pricing |

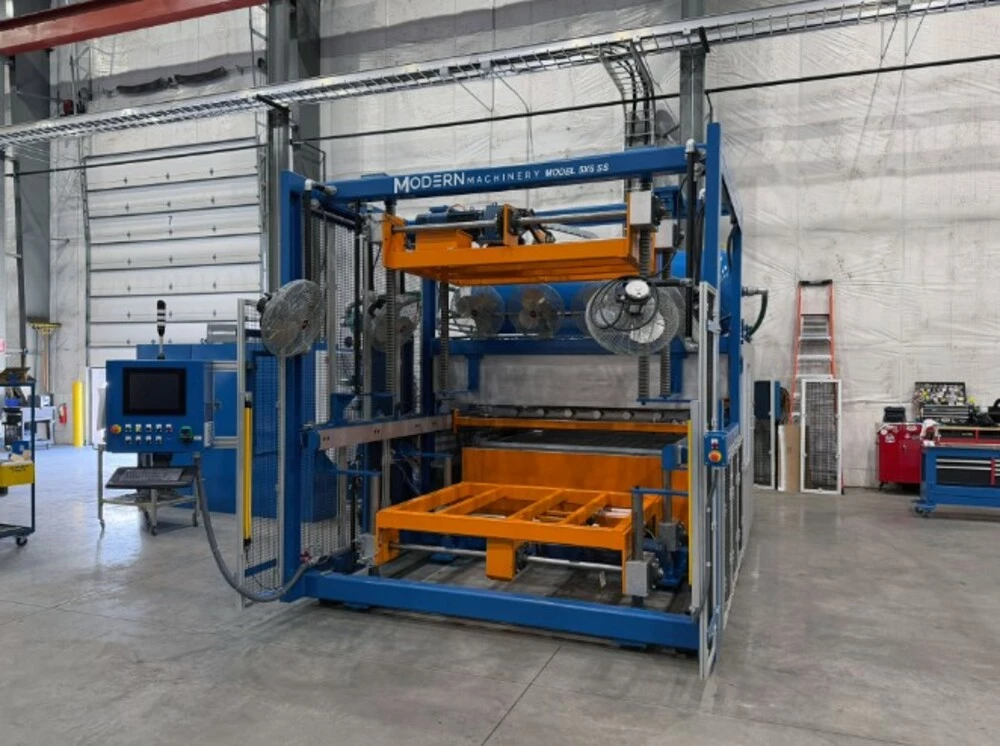

Used Modern Machinery 5×6 SS (2026) Thermoformer for Sale. This single-station machine handles a maximum mold capacity of 5′ x 6′, with a 48″ top platen stroke and 24″ bottom platen stroke, both driven by electric motors. Sheetline height is 44″, indexing and shuttling are electric motor driven, and the clamp frames are four-way adjustable. Heating is by quartz elements with 42 top oven zones and 42 bottom oven zones using 3″ x 5″ 400 Watt heaters, monitored by Hetronik heat controls, IR sensor and sag eye. Controls are Allen Bradley CompactLogix PLC. Equipped with a 500 gallon vacuum reservoir, upper and lower vacuum valve trees with 2″ valves, eight cooling fans, full perimeter safety guarding with gate switches, and light curtains at the load/form area. Completion date is eight weeks. Available for inspection under power. See more used thermoforming equipment, use Activate Pricing, or Request a Quote.
Specifications
| Max Mold Capacity |
5' x 6' |
|---|---|
| Top Platen Stroke |
48" |
| Bottom Platen Stroke |
24" |
| Platen Drives |
Electric Motors (Top & Bottom) |
| Sheetline Height |
44" |
| Indexing/Shuttling |
Electric Motor |
| Clamp Frames |
(4) Way Adjustable |
| Top Oven |
Quartz Elements |
| Top Oven Zones |
(42) Top Oven Zones (3" x 5" 400 Watt Heaters) |
| Bottom Oven |
Quartz Elements |
| Bottom Oven Zones |
(42) Bottom Oven Zones (3" x 5" 400 Watt Heaters) |
| Oven Heat Detectors |
Hetronik Heat Controls / IR Sensor / Sag Eye |
| Control |
Allen Bradley Compact Logix PLC Control System |
Features
|
500 Gallon Vacuum Reservoir / Upper and Lower Vacuum Valve Tree / 2” Valves |
Completion Date - 8 Weeks |
|
Eight (8) Cooling Fans |
Full Perimeter Safety Guarding and Gate Switches along with Load/Form Area Guarded with Light Curtains |
