Make |
Plasti-Vac |
|---|---|
Model |
Double-Ender |
Description |
Thermoformer |
Reference # |
8079114 |
Price |
Activate Pricing |

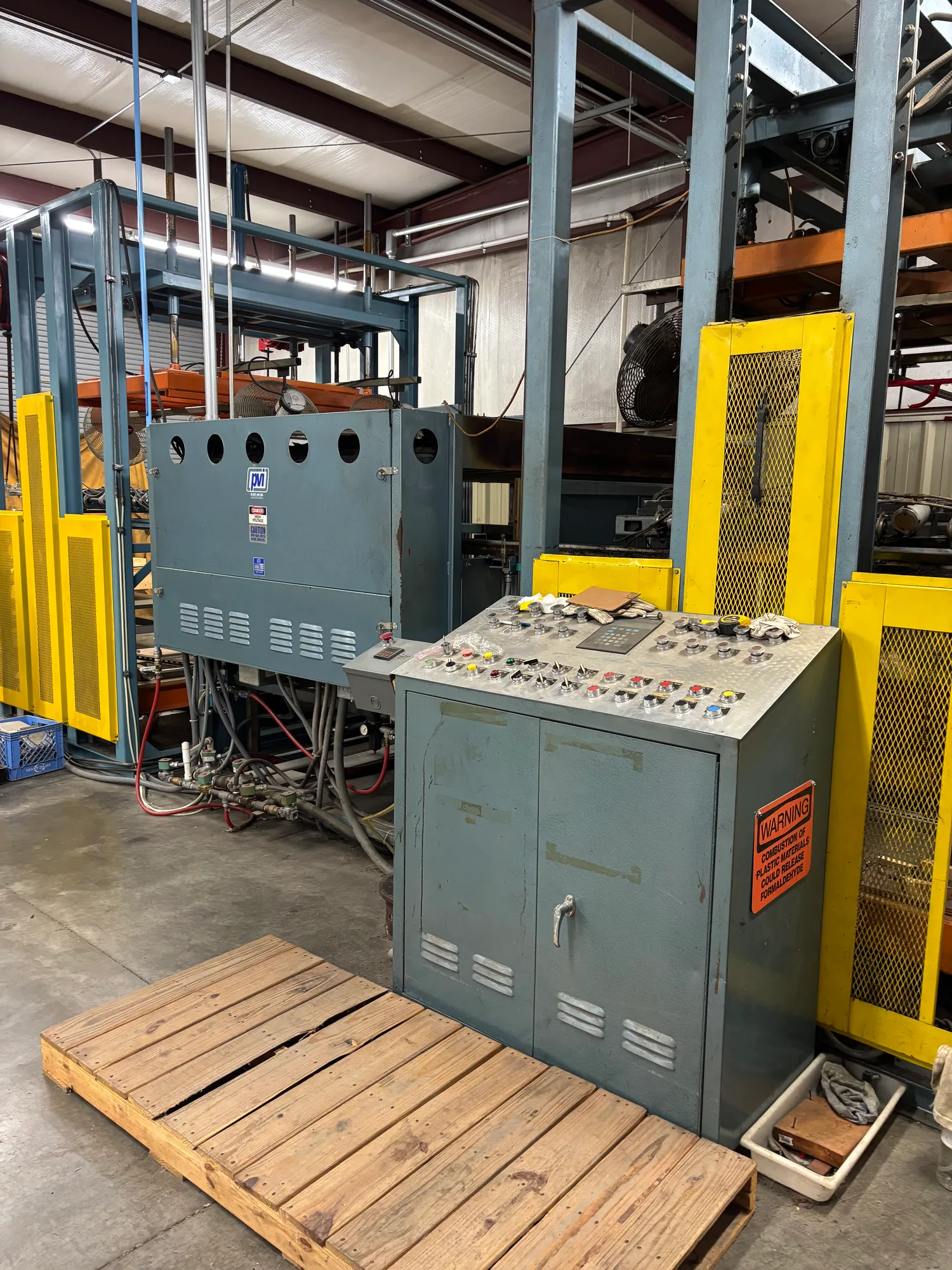

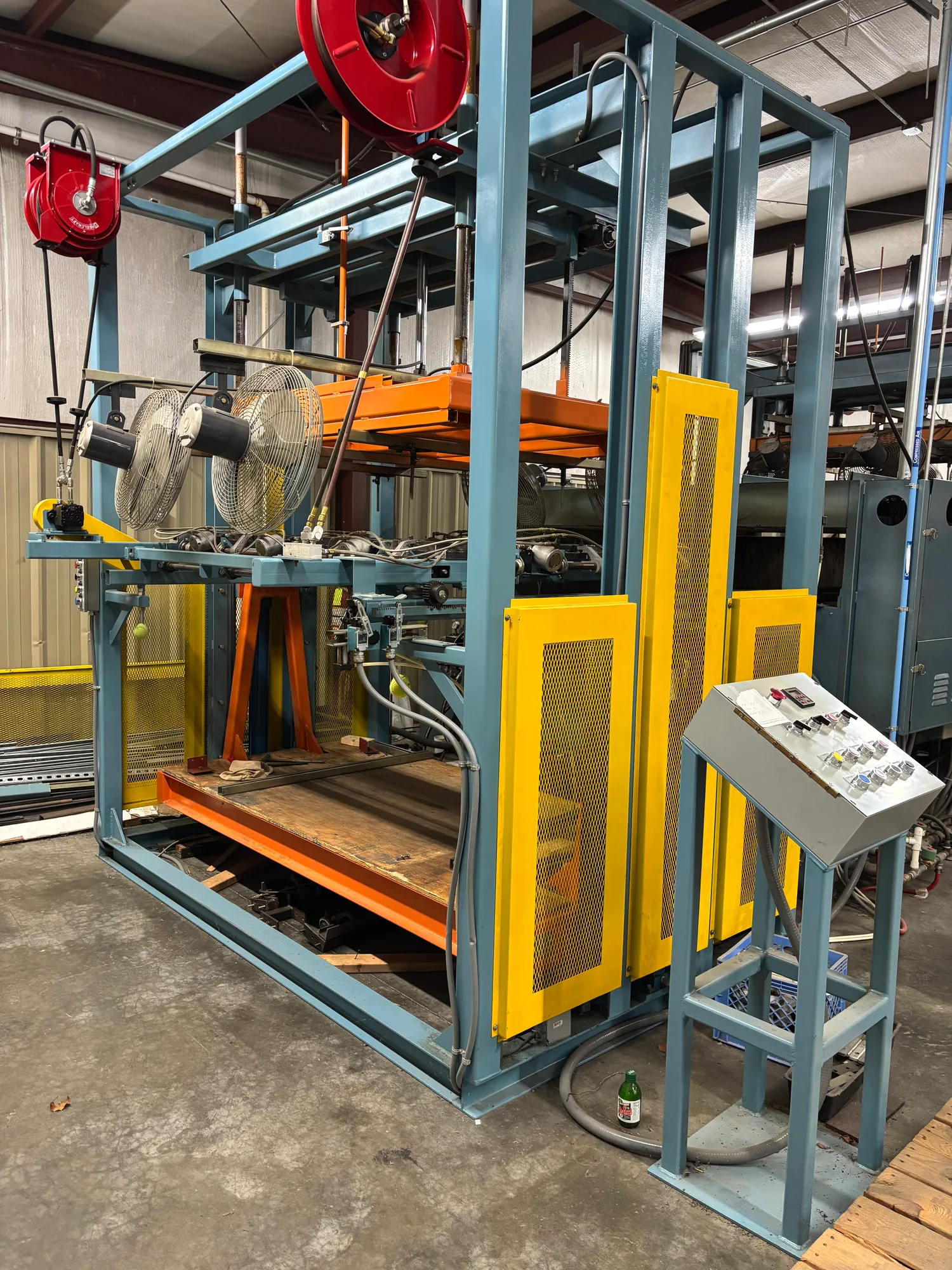

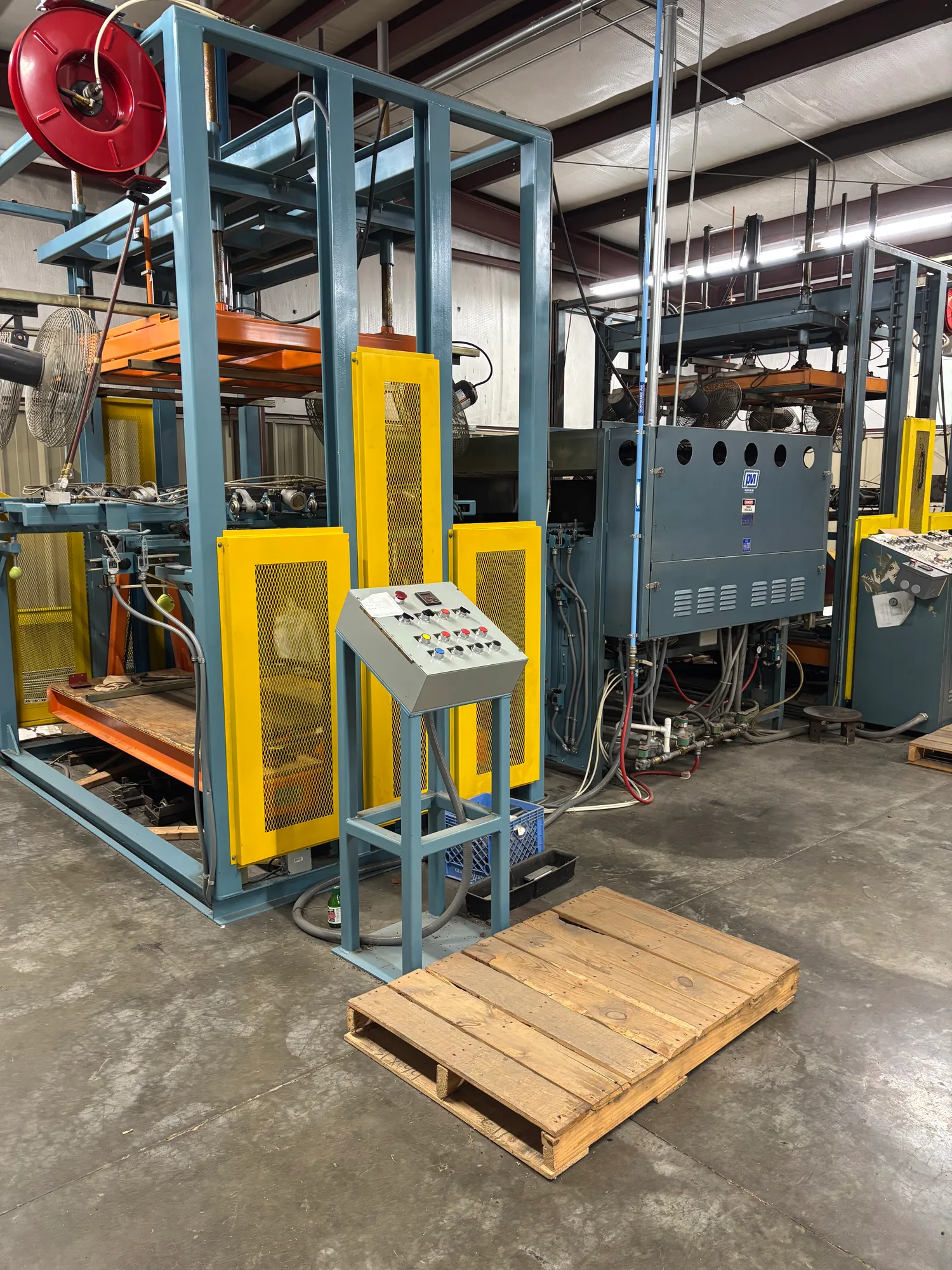

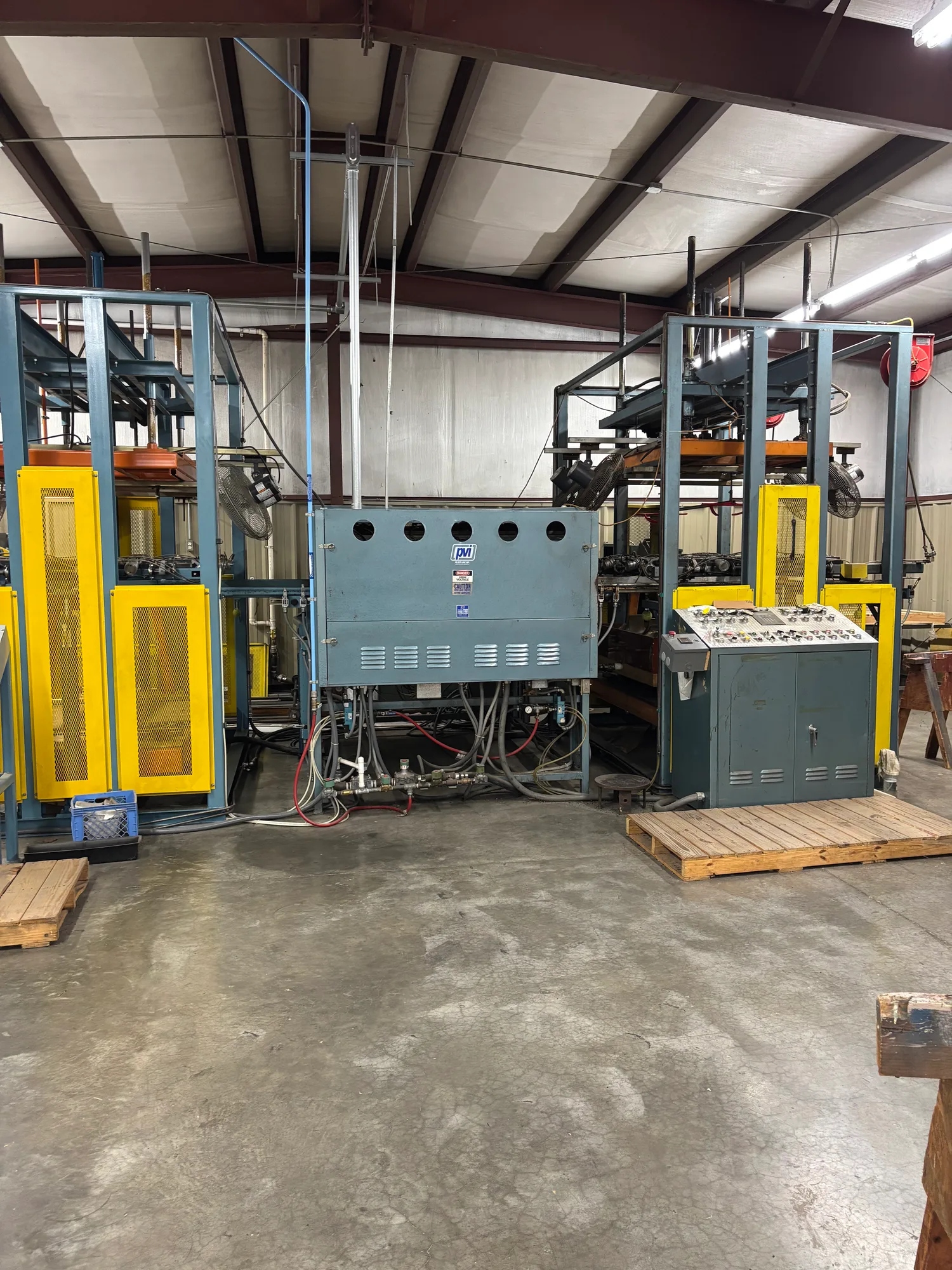

Used Plasti-Vac Double-Ender Thermoformer for Sale. This machine handles a maximum mold size of 48″ x 72″, with a top oven and bottom oven both using ceramic elements and each divided into (8) zones. Top platen stroke is 44″ and bottom platen stroke is 36″, with hydraulic platen drives. Control is an Allen Bradley DTAM Plus, which just had the battery replaced and the program is on hand. Electrical requirements are 208v – 3ph – 60hz. The machine is equipped with air blow off and extra cooling fans on each side. It can be seen under power for an inspection, and it is listed alongside the rest of our used thermoforming equipment. Activate Pricing or use the Inquire Now button to get details.
Specifications
| Max Mold Size |
48" x 72" |
|---|---|

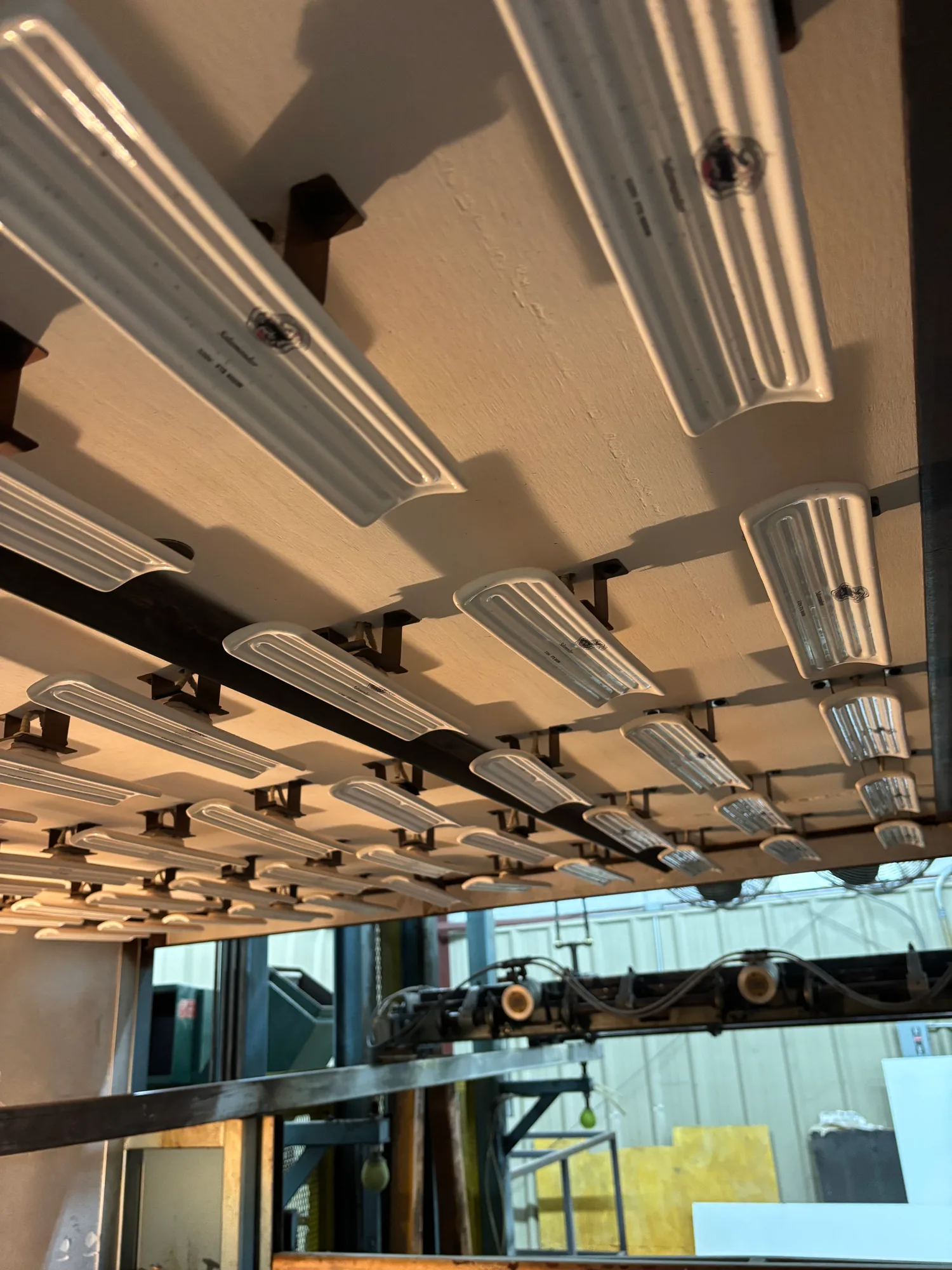

| Top Oven |
Ceramic Elements |
| Top Oven Zones |
(8) Zones |

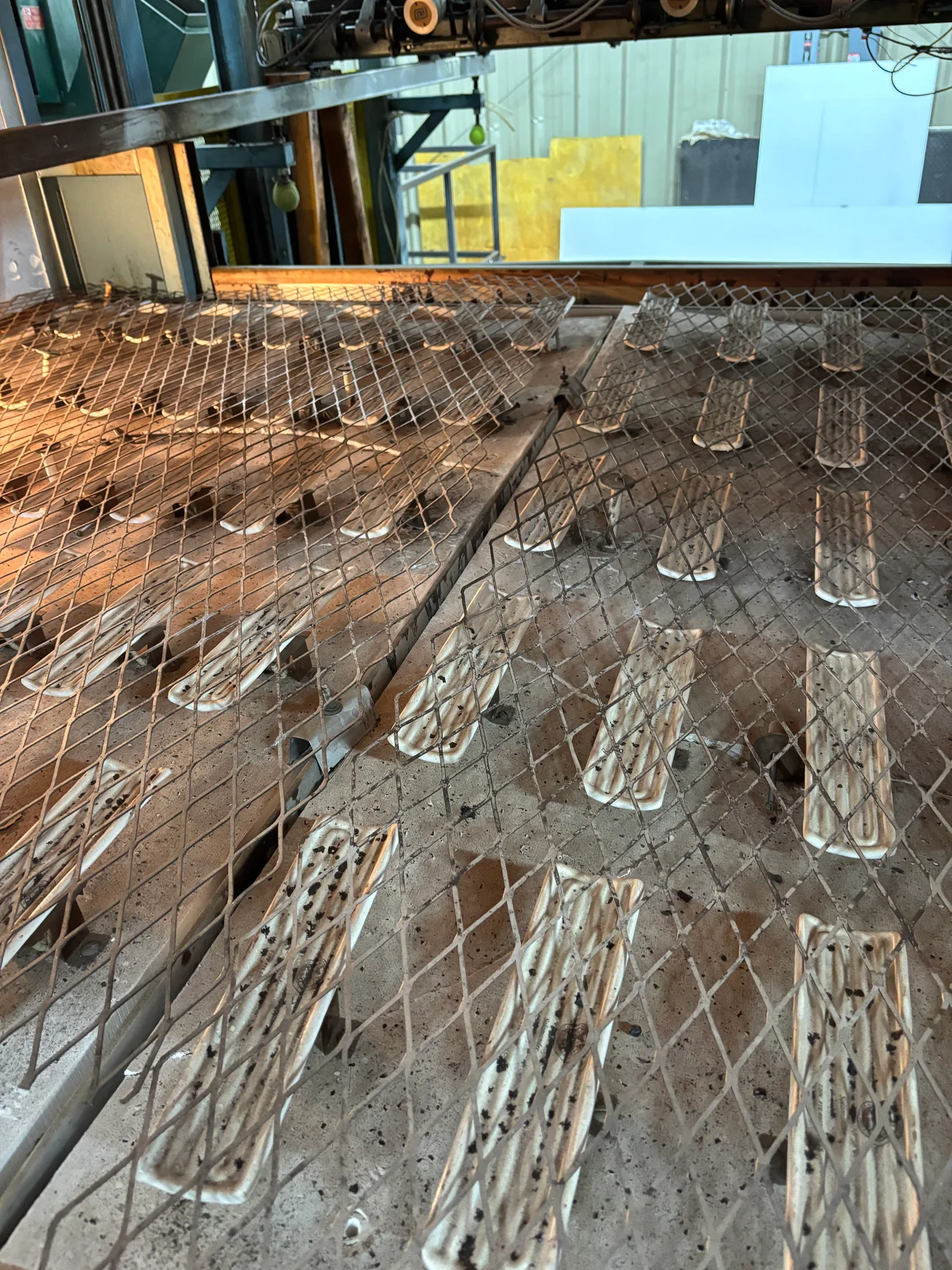

| Bottom Oven |
Ceramic Elements |
| Bottom Oven Zones |
(8) Zones |
| Top Platen Stroke |
44" |
| Bottom Platen Stroke |
36" |
| Platen Drives |
Hydraulic Platens |

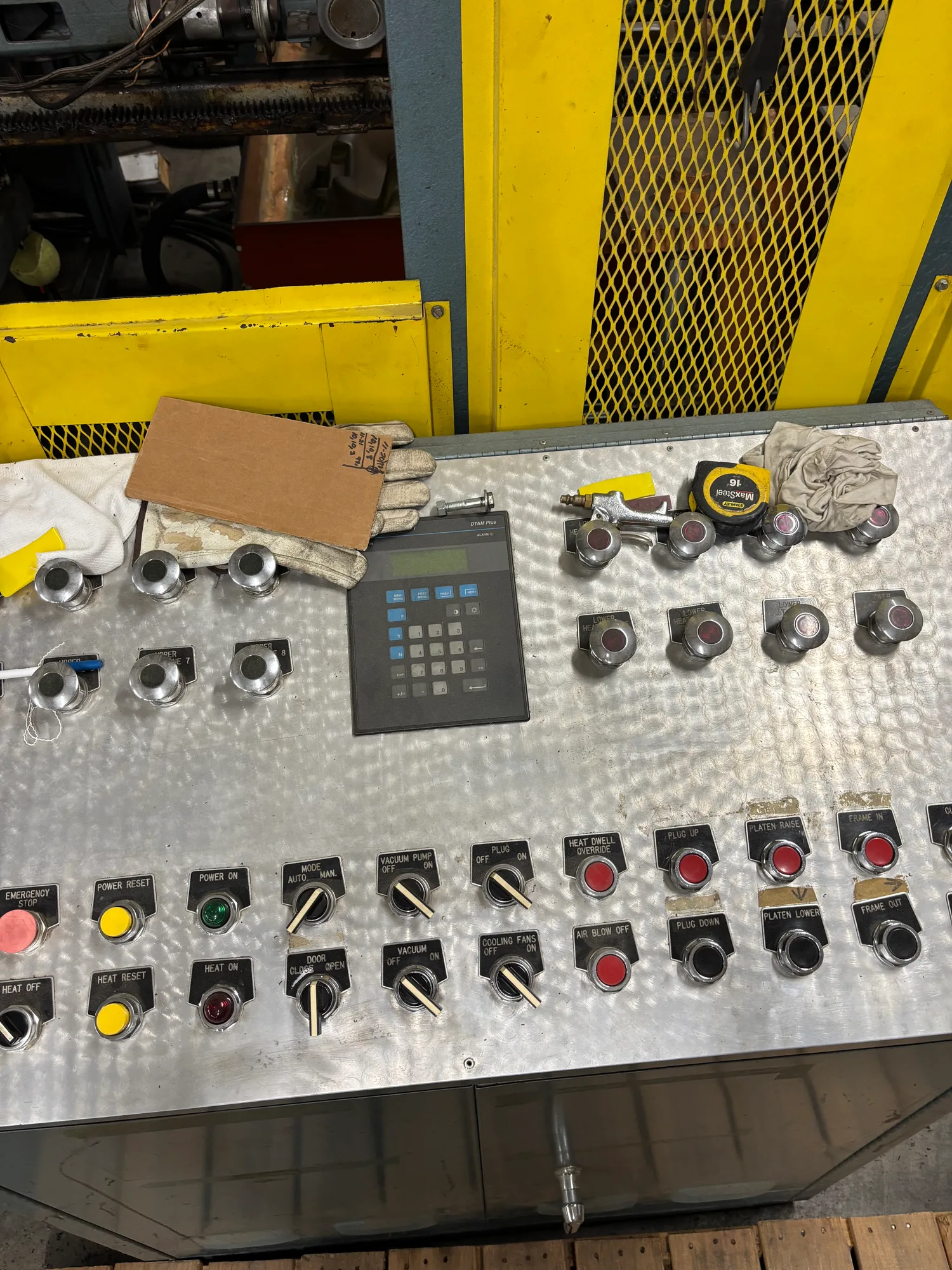

| Controller |
Allen Bradley DTAM Plus Control ( Just Had Battery Replaced & I Have The Program) |
| Electrical Requirements |
208v - 3ph - 60hz |
| Footprint |
10’ wide x 23.5’Long x 12.5’Height |
Features
|
Air Blow Off & Extra Cooling Fans On Each Side |
