Year |
2023 |
|---|---|
Make |
Nissei |
Model |
NEX180IV-25E |
Description |
200 Ton 5.5 oz Shot Size Injection Molding Machine |
Reference # |
8079113 |
Price |
Activate Pricing |
Used Nissei NEX180IV-25E (2023) Injection Molding Machine for Sale. This all-electric press is rated at 200 ton clamp capacity with a 5.5 oz shot size, 22″ x 22″ tie bar spacing and 31.5″ x 31.5″ platens. Max daylight is 37.8″, minimum/maximum mold height runs 9.8″-20.1″, and clamp stroke is 17.7″. Control is the Nissei Tact IV. Equipped with air blow and showing only 2010/3782 hours. Two machines are available, with a 2022 Nissei offered at $69,500. The machine is under power and can be seen running for an inspection. See our other used plastic injection molding machines and additional used Nissei machines. Activate Pricing or use the Inquire Now button to get details on either press.
Specifications
| Capacity |
200 Ton |
|---|---|
| Shot Size |
5.5 oz |
| Tie Bar Spacing |
22" x 22" |
| Platen Size |
31.5" x 31.5" |
| Max Daylight |
37.8" |
| Min /Max Mold Height |
9.8"-20.1" |
| Clamp Stroke |
17.7" |

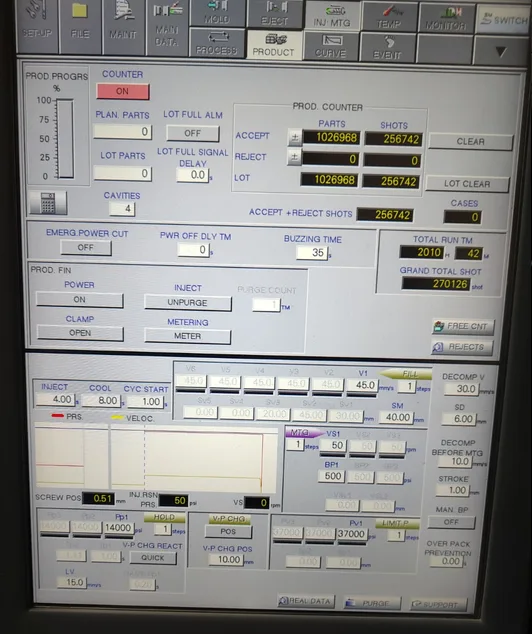

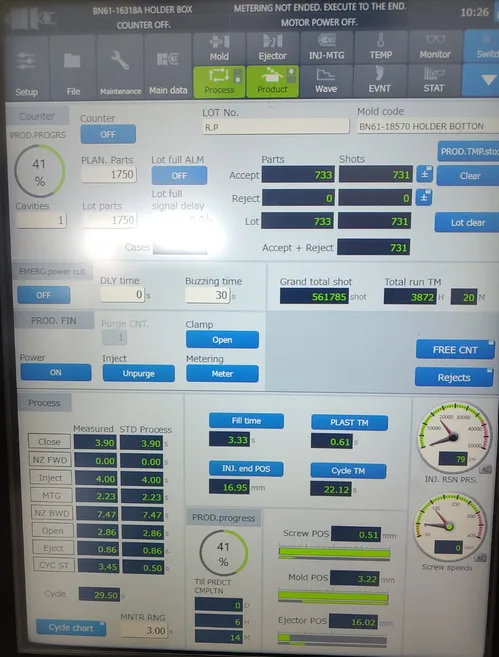

| Control |
Tact IV |
| Note |
(2) Machines Available, 2022 Nissei For $69,500 |
Features
|
Only 2010/3782 Hours |
Air Blow |
|
Under Power |
