Year |
2023 |
|---|---|
Make |
Messer |
Model |
MetalMaster Evolution |
Description |
6' x 20' Hypertherm HPR170 Plasma Cutter |
Reference # |
8078517 |
Price |
Activate Pricing |

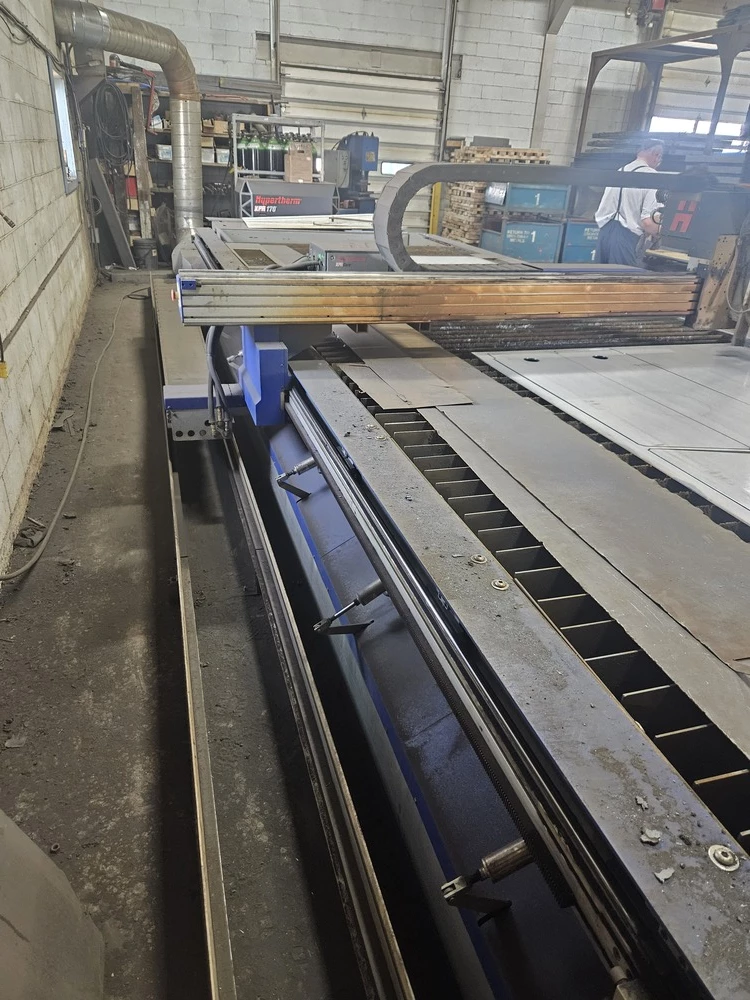

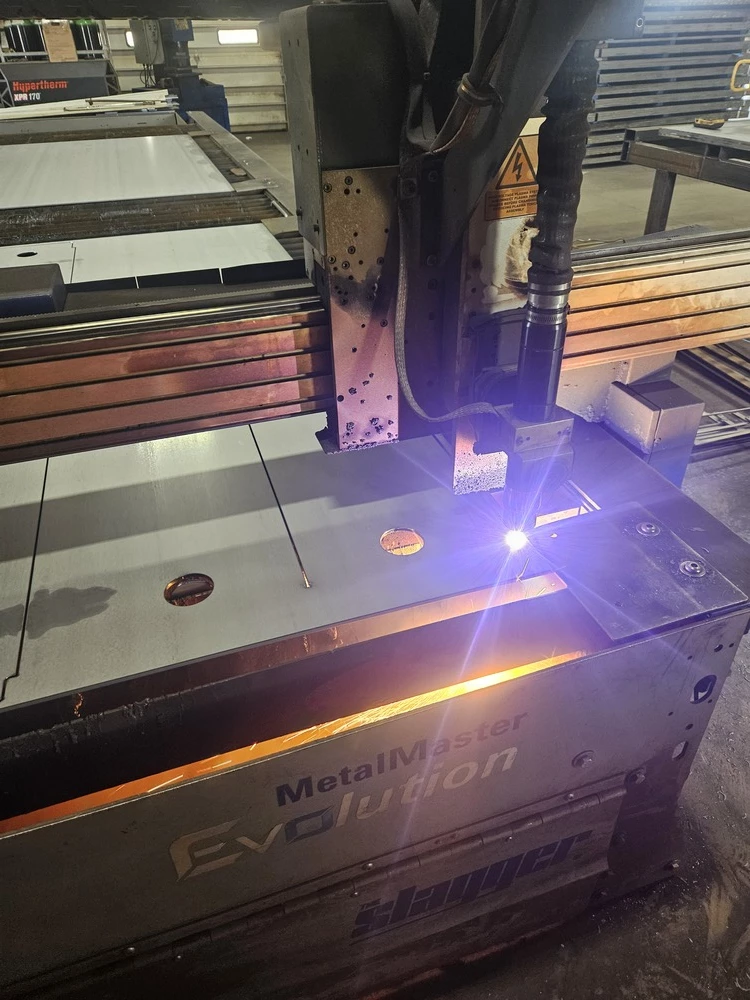

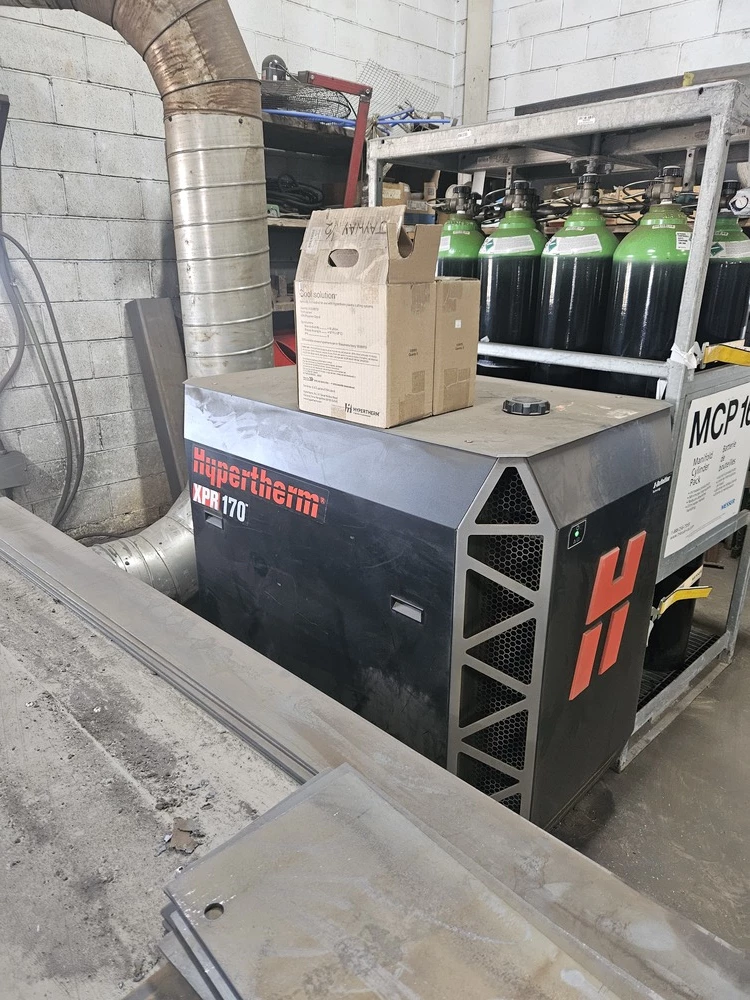

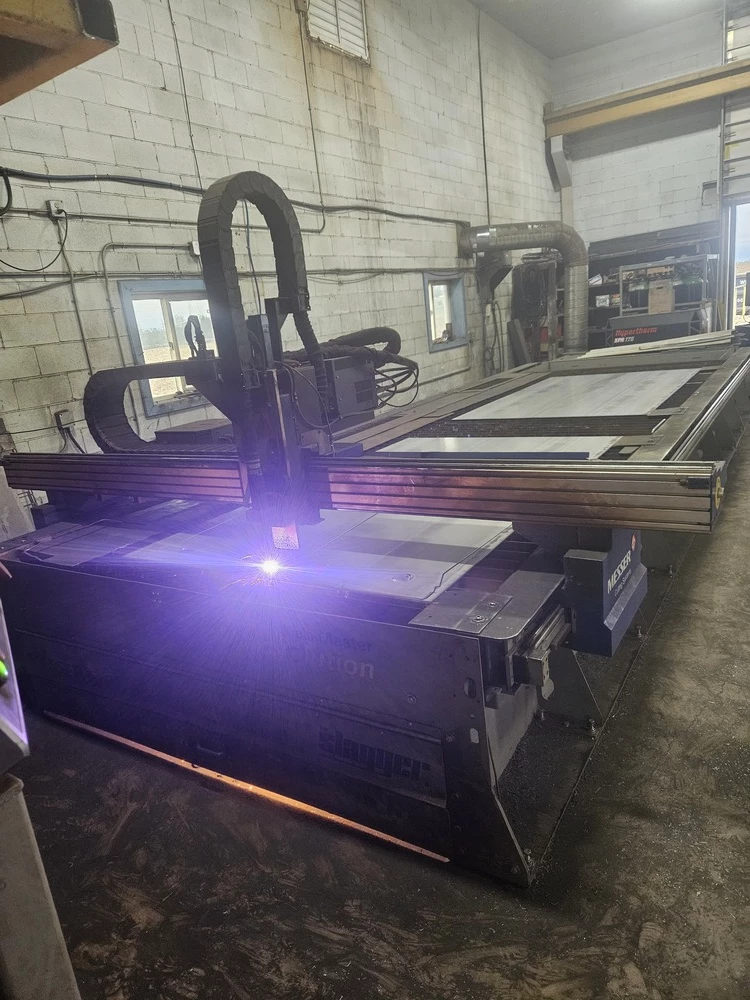

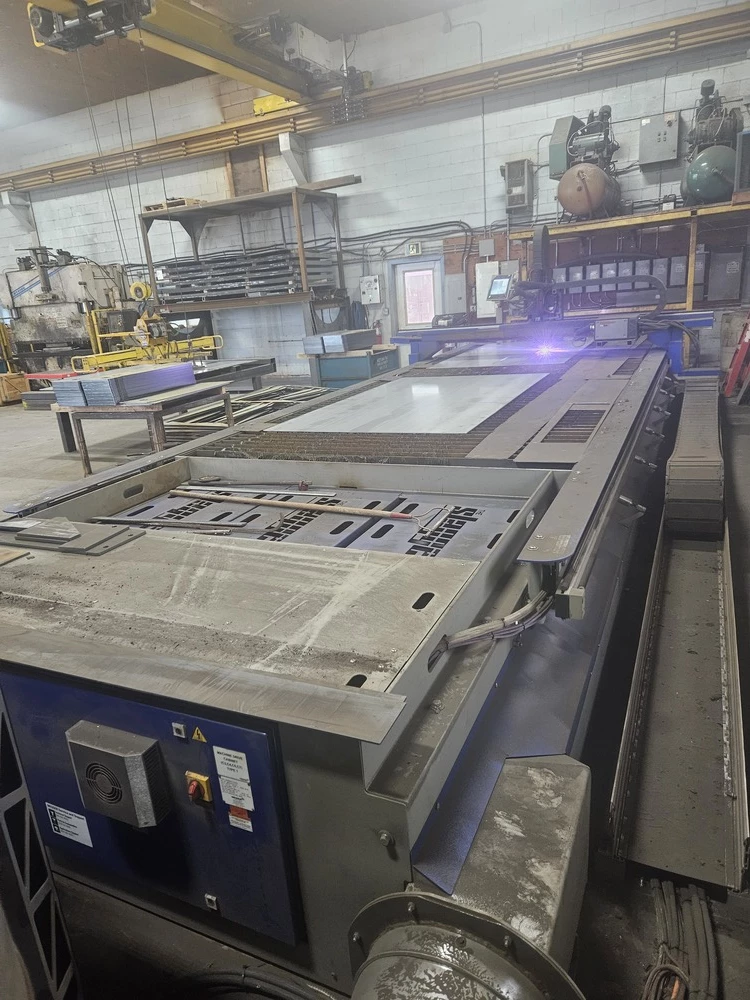

Used Messer MetalMaster Evolution (2023) Plasma Cutter for Sale. This machine has a 6′ x 20′ table and runs Messer’s Windows-based Global Control with an HPR170 power source, wired for 480V / 3 Phase / 60 Hz. Rated capacities are 35mm (1-3/8″) pierce and 60mm (2-3/8″) severance on mild steel, 22mm (7/8″) pierce and 38mm (1-1/2″) severance on stainless, and 25mm (1″) pierce and 38mm (1-1/2″) severance on aluminum, with 20-25mm recommended on stainless and aluminum. Travels are 51″-52″ X, 26″-27″ Y and 24″-25″ Z. Equipped with a high-speed CSL200 torch lifter, Slagger self-cleaning zoned downdraft table and SureStop collision sensor. The machine can be seen under power for an inspection. See more used plasma cutters, use Activate Pricing, or Request a Quote.
Specifications
| Table Width |
6' |
|---|---|
| Table Length |
20' |
| Control |

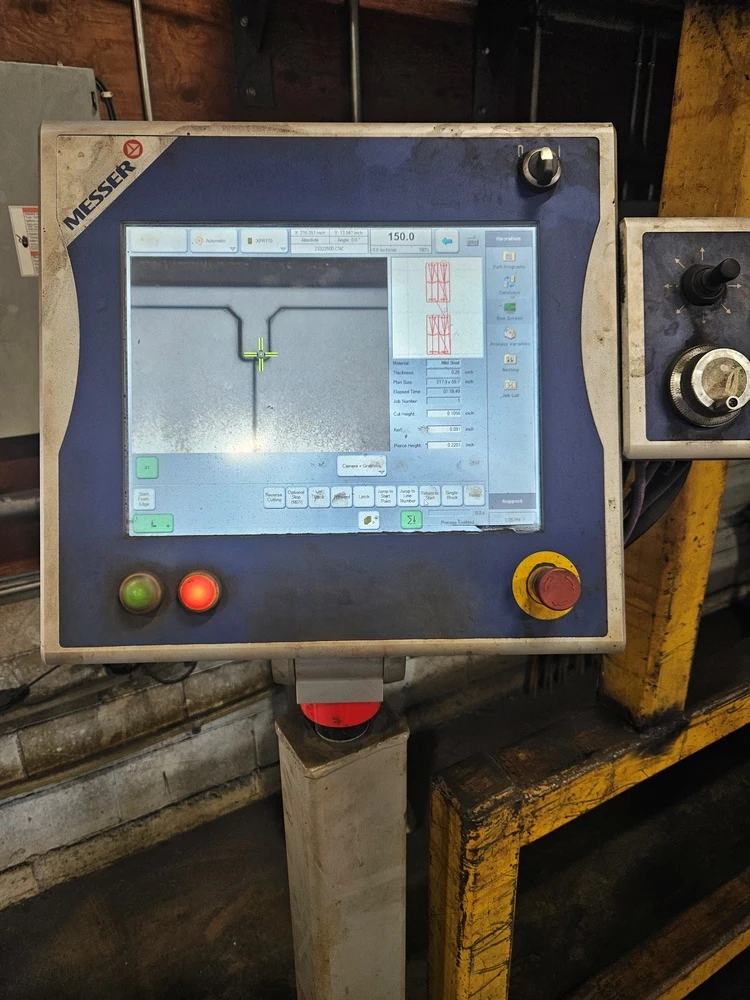

Global Control (Windows Based) |
| Power Source |
HPR170 |
| Power Requirement |
480V / 3 Phase / 60 Hz |
| Mild Steel (Pierce Capacity) |
35mm / (1-3/8") |
| Mild Steel (Severance Capacity) |
60mm / (2-3/8") |
| Mild Steel (Recommended Capacity) |
35mm / (1-3/8") |
| Stainless Steel (Pierce Capacity) |
22mm / (7/8") |
| Stainless Steel (Severance Capacity) |
38mm / (1-1/2") |
| Stainless Steel (Recommended Capacity) |
20-25mm |
| Aluminum (Pierce Capacity) |
25mm / 1" |
| Aluminum (Severance Capacity) |
38mm / 1-1/2" |
| Aluminum (Recommended Capacity) |
20-25mm |
| Z-Axis Travel |
24"–25" (625 mm) |
Features
|

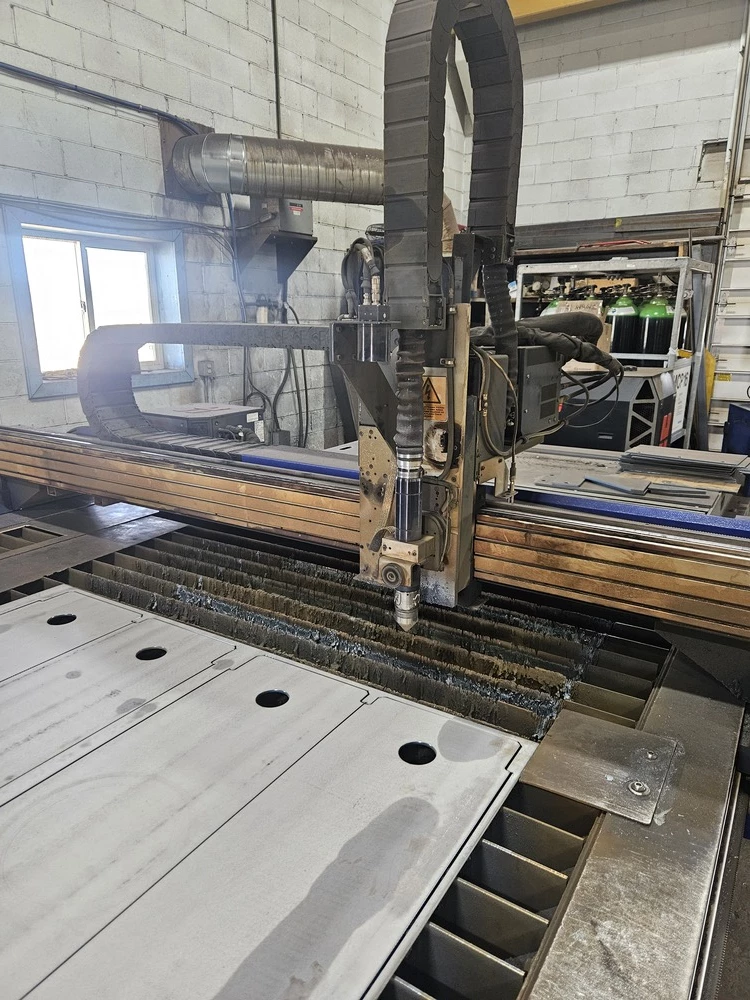

High-Speed CSL200 Torch lifter |

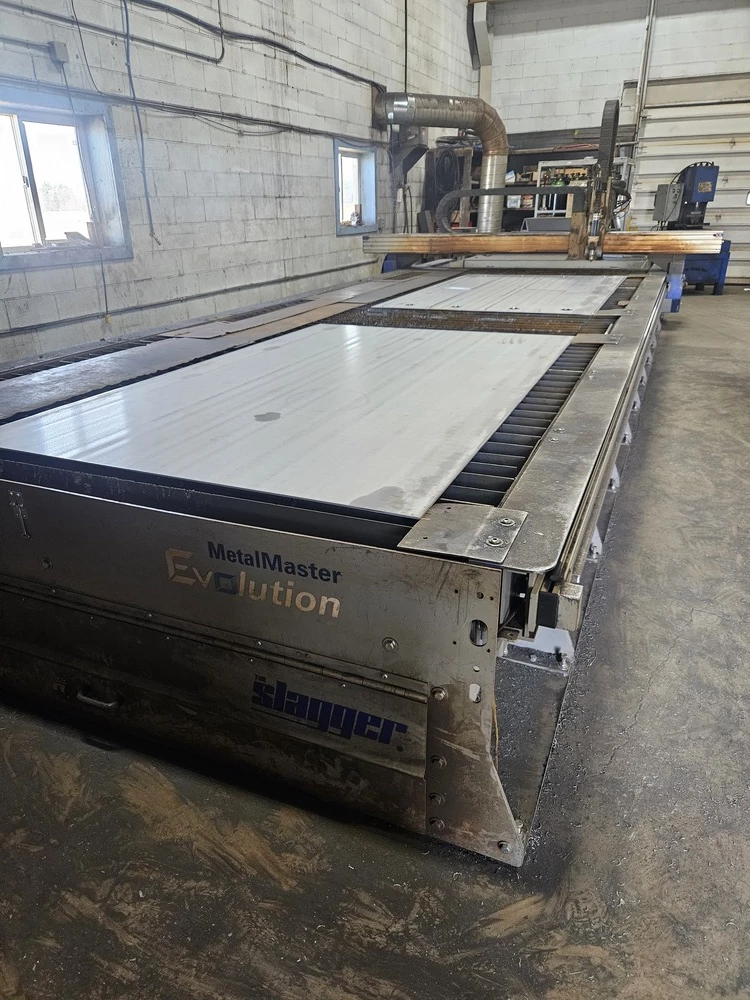

Slagger Self-Cleaning Zoned Downdraft Table |
|
SureStop Collision Sensor |
