Year |
2013 |
|---|---|
Make |
Voortman |
Model |
VCS MULTI 2500 |
Description |
10' x 20' Hypertherm HPR400XD Plasma Cutter |
Reference # |
8076909 |
Price |
Activate Pricing |

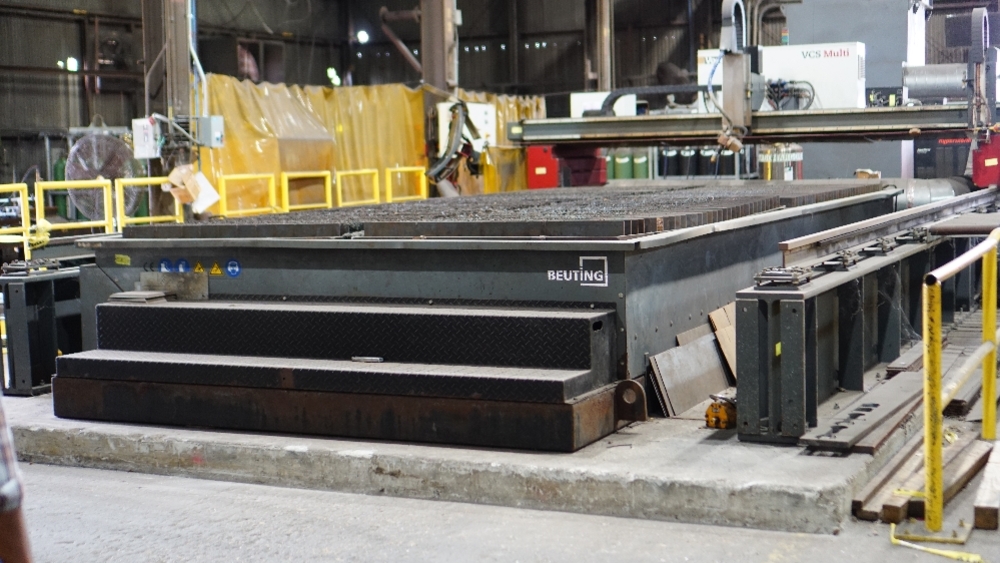

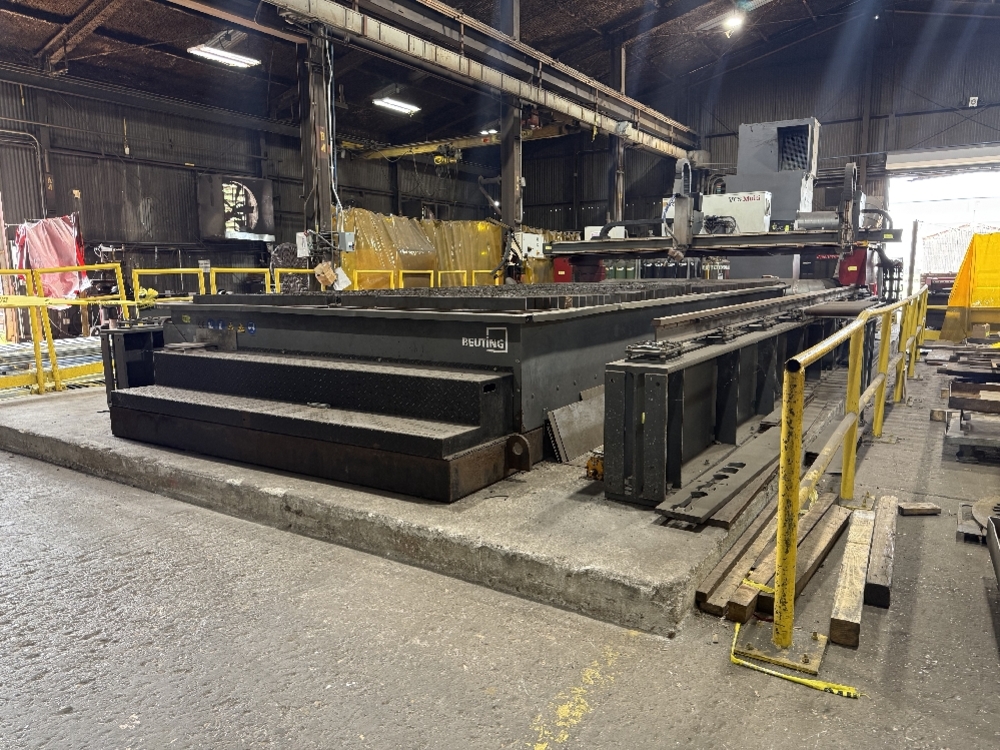

Used Voortman VCS MULTI 2500 (2013) Plasma Cutter for Sale. This CNC plasma unit has a 10′ by 20′ table and is equipped for auto bevel plasma plus oxy-fuel cutting. The power source is a Hypertherm HPR400XD, with height control handled by an IHT M4000 CAP system and machine control through VACAM Machine Edition software. Electrical requirements are 230V supply at 50/60 Hz with 24V control voltage, a 2500 KVA load and a 16A fuse. It also includes a Donaldson DFPRO8 dust collector and a laser pointer. The machine can be seen under power for an inspection by appointment. See more listings in our used plasma cutters category, [Activate Pricing](#activate-pricing) to view the figure, and Request a Quote to move forward.
Specifications
| Table Width |
10' |
|---|---|
| Table Length |
20' |
| Height Control |
IHT M4000 CAP System |
| Control Software |
VACAM Machine Edition |
| Power Source |

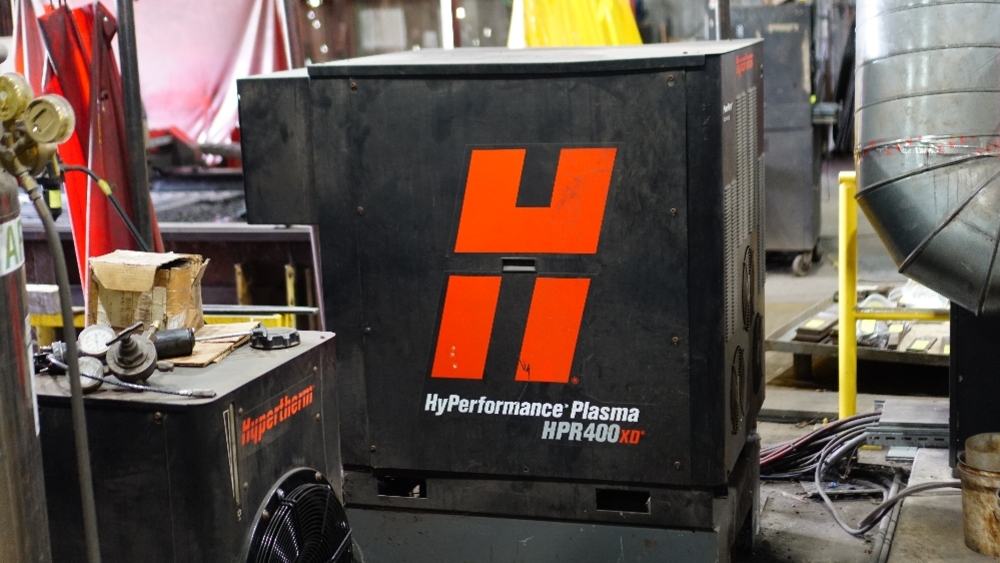

Hypertherm HPR400XD |
| Power Requirement |
Supply Voltage: 230V | Frequency: 50/60 Hz Control Voltage: 24V | Load: 2500 KVA | Fuse: 16A |
Features
|
CNC Plasma with Auto Bevel + Oxy-fuel Cutting |

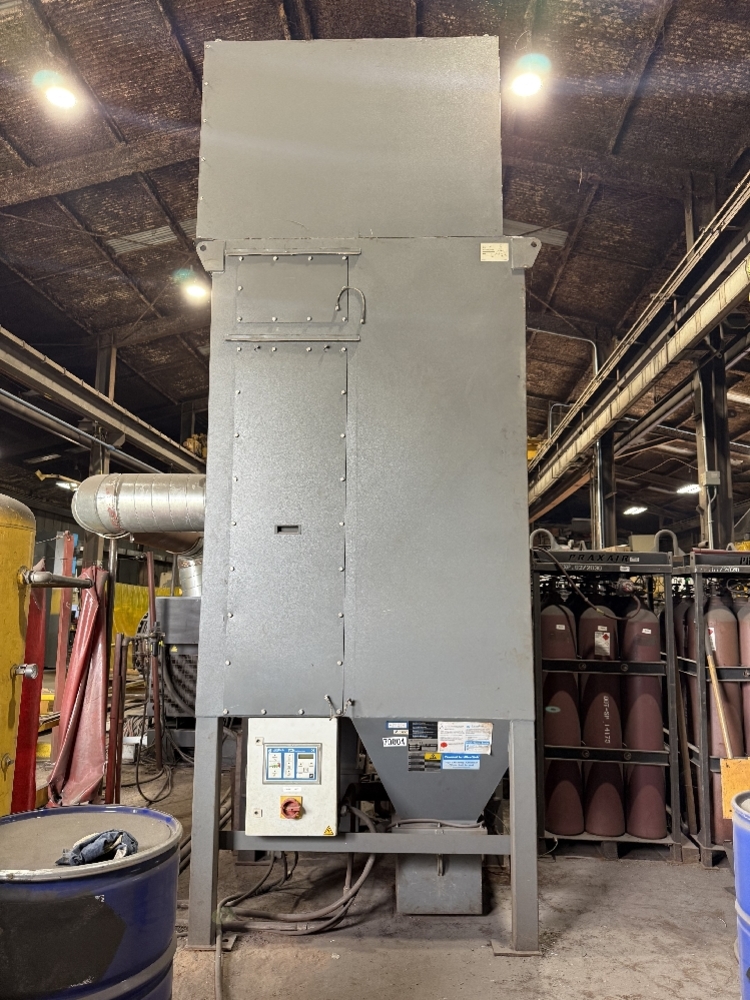

Includes Donaldson DFPRO8 Dust Collector |
|
Includes Laser Pointer |
