Year |
2021 |
|---|---|
Make |
ESAB |
Model |
SUPRAREX HD 5500 |
Description |
Plasma Cutter |
Reference # |
8079257 |
Price |
Activate Pricing |

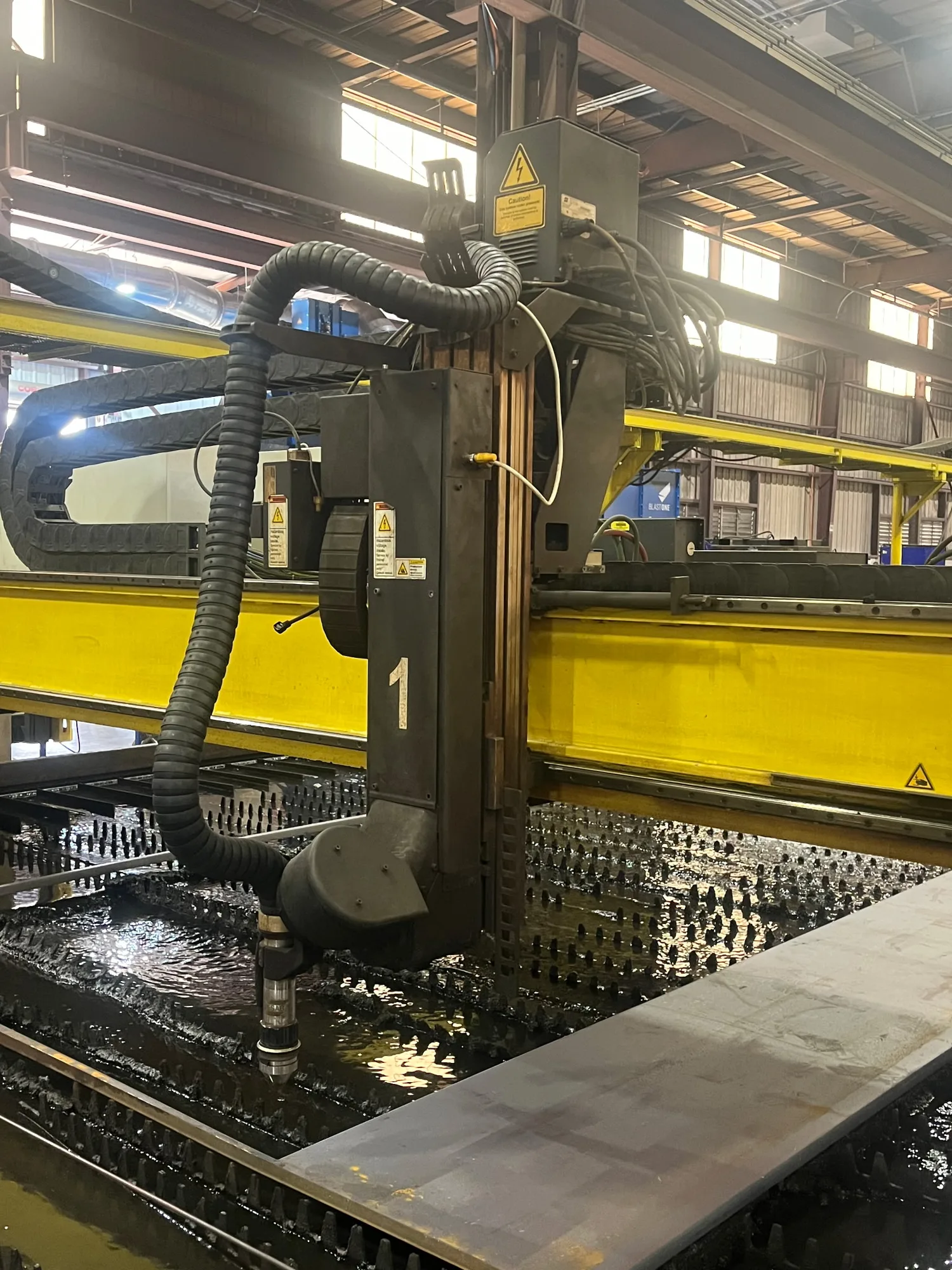

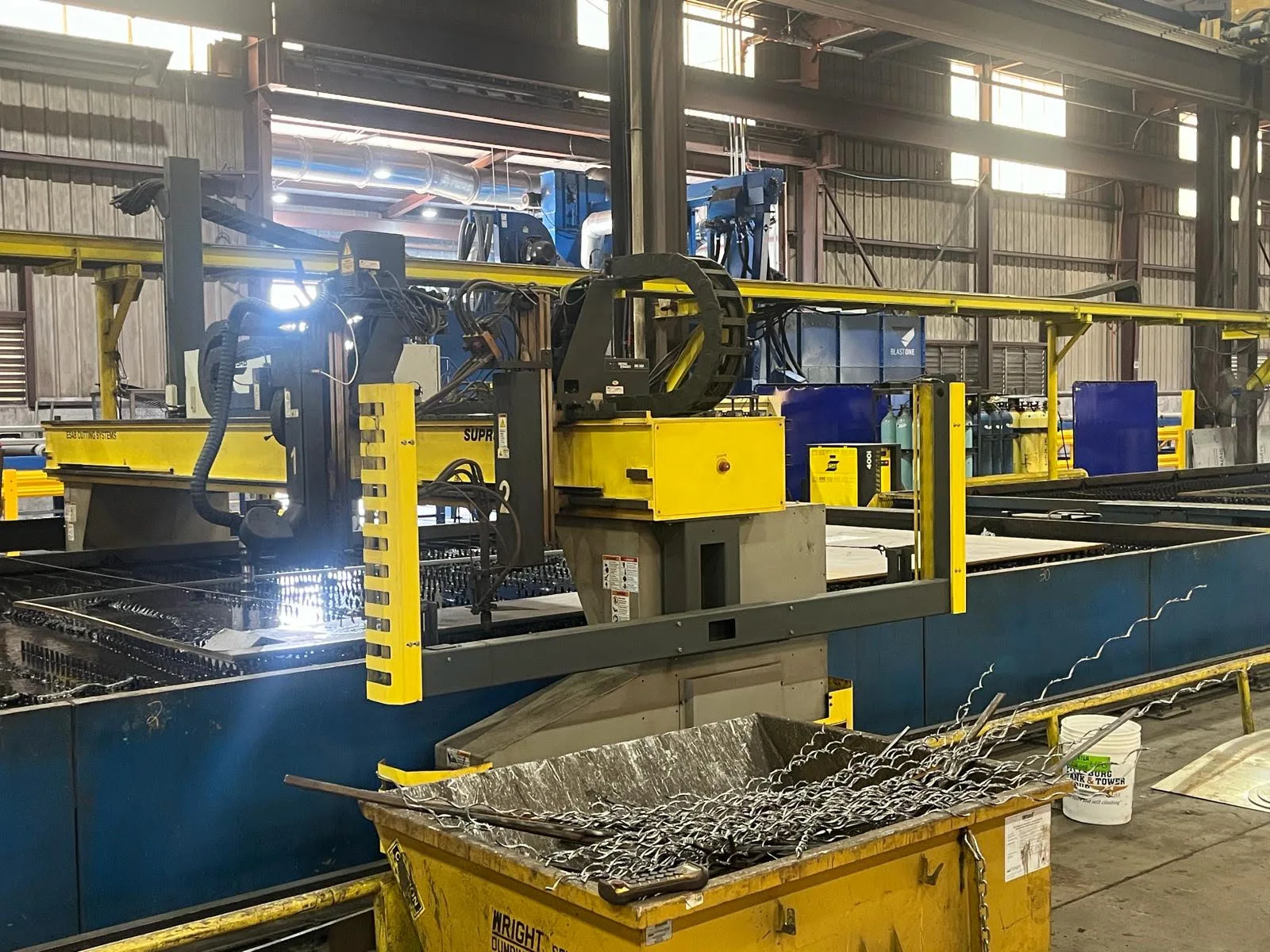

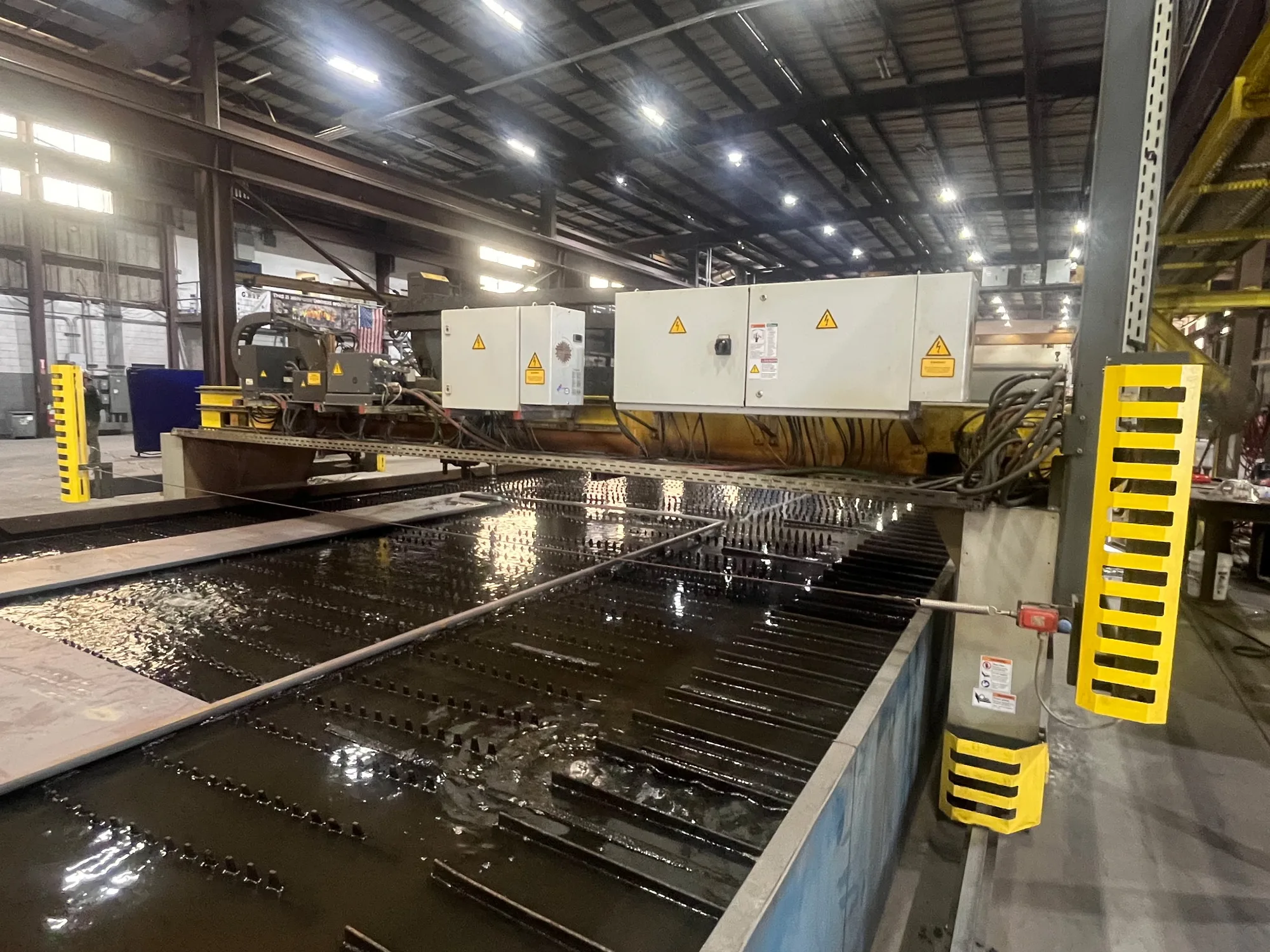

Used Esab Suprarex HD 5500 (2021) Plasma Cutter for Sale. This machine runs an ESAB Plasma System iSeries 400i power source under Vision T5 control, with a maximum working width of 3100 mm (approx. 10 ft.) and a maximum working length of 30000 mm (approx. 98.42 ft.). Oxy-fuel vertical cutting range is 0.125 – 8 in. (3 – 200 mm), and plasma vertical cutting range in carbon steel with the DMX beveller is 0.25 – 2 in. (6 – 50 mm). Equipped with 1x DMX Beveller, CoolJet PRO oxy-fuel torch, optical-manual plate alignment camera, Columbus programming system (2 licences), EasyNest, light curtain safety device, air conditioning for the main electrical cabinet and a WiFi adaptor for the Vision T5. Table not included. Available to see under power for an inspection. Browse our other used plasma cutters, then Activate Pricing or use the Inquire Now button.
Specifications
| Table Width |
Inside- 4900 mm (approx. 16.1 ft.), Inside- 5012 mm (approx. 16.44 ft.) |
|---|---|
| Table Length |
Inside -13500 mm (approx. 44. ft.), Outside- 13817mm (approx. 45.3 ft.) |

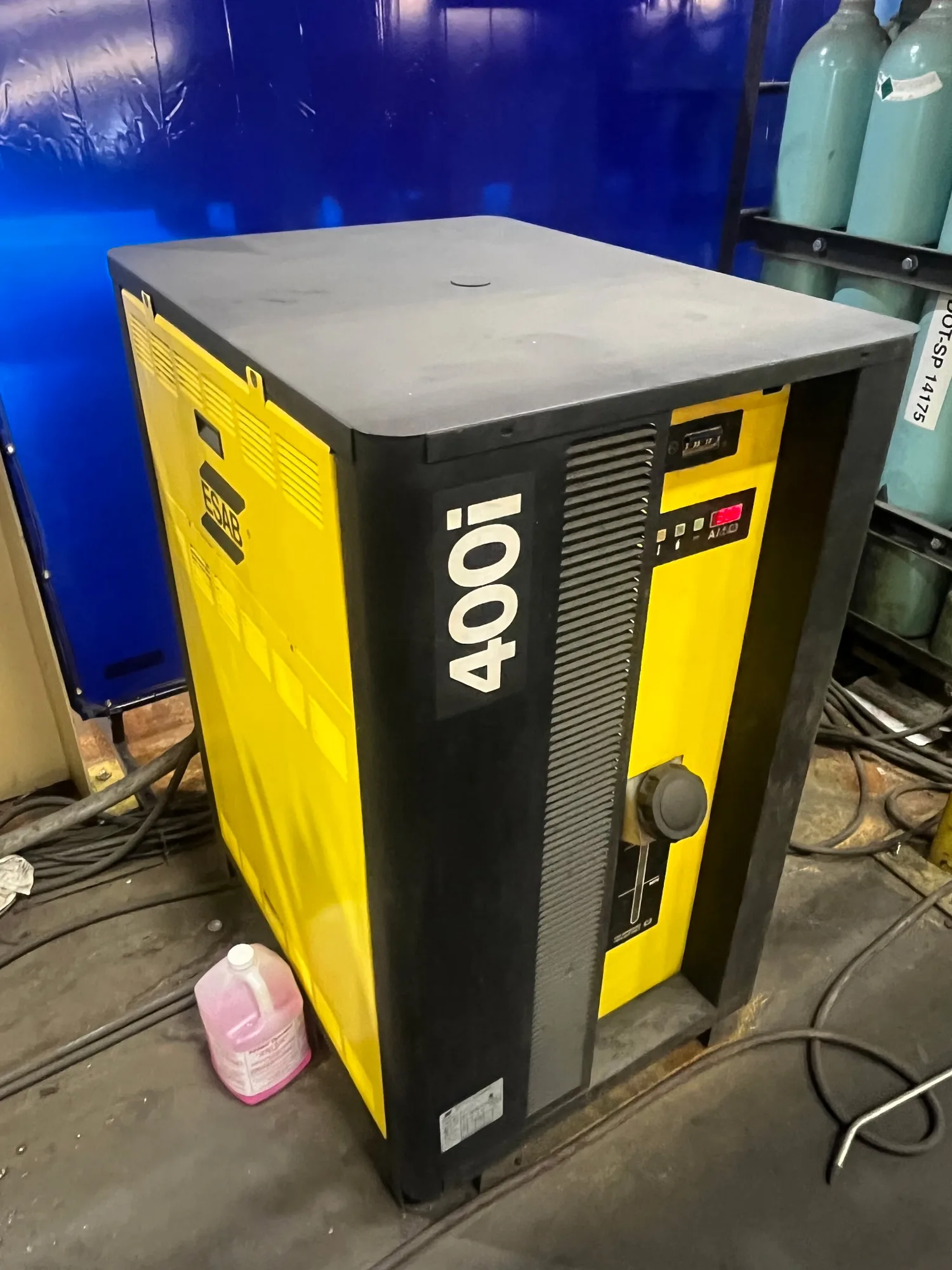

| Power Source |
ESAB Plasma System iSeries 400i |

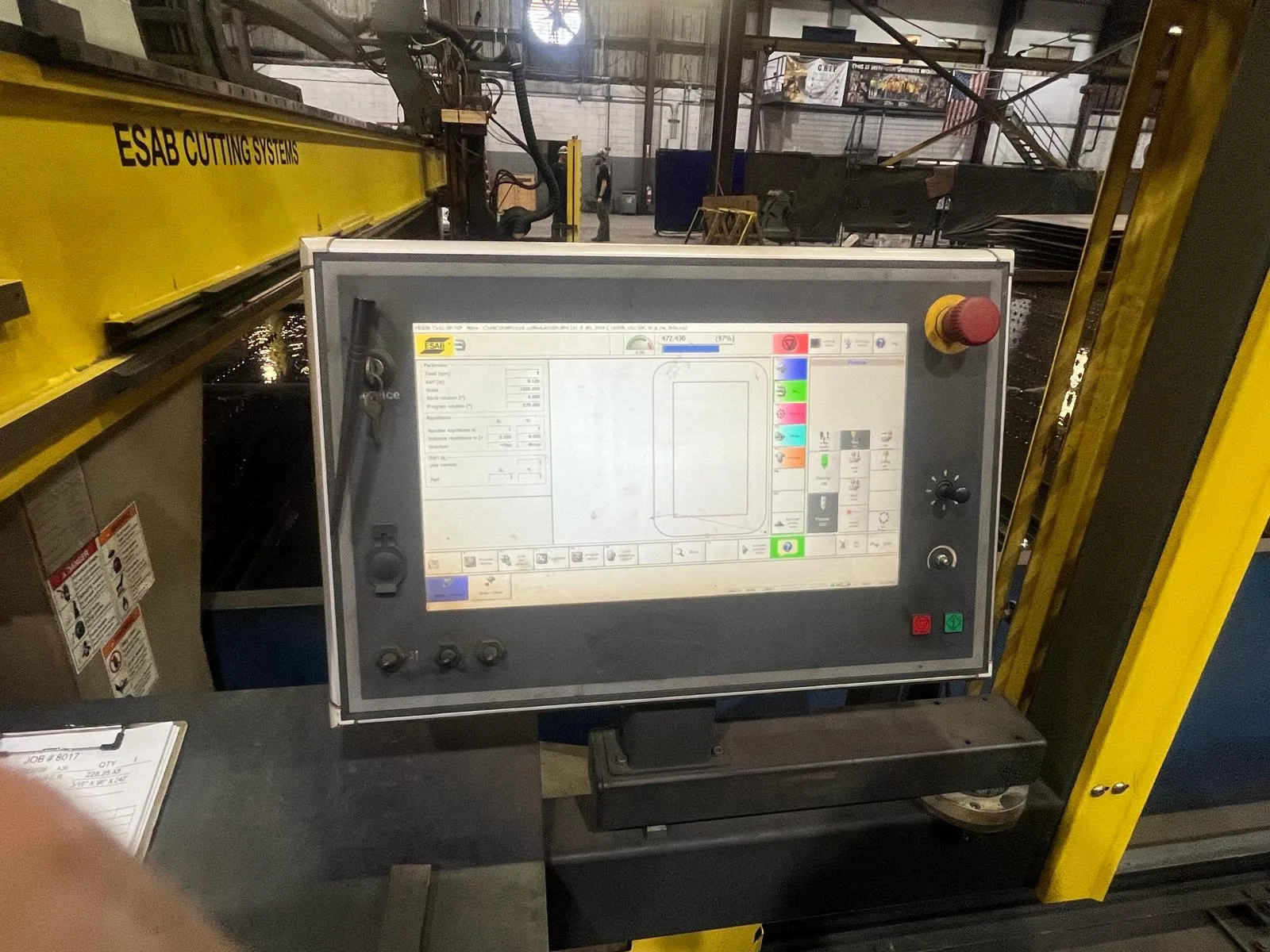

| Control |
Vision™ T5 |
| Table Height |
700 mm (Approx. 27.56 in.) |
| Cutting Capacity |
Oxy-Fuel Vertical Cutting Range: 0.125 - 8 in. (3 - 200 mm), Plasma Vertical Cutting Range (Carbon Steel) With DMX Beveller: 0.25 - 2 in. (6 - 50 mm) |
| Cutting Area |
Working Width, Max. 3100 mm (Approx. 10 ft.), Working Length, Max. 30000 mm (Approx. 98.42 ft.) |
| Table |
Not Included |
Features
|

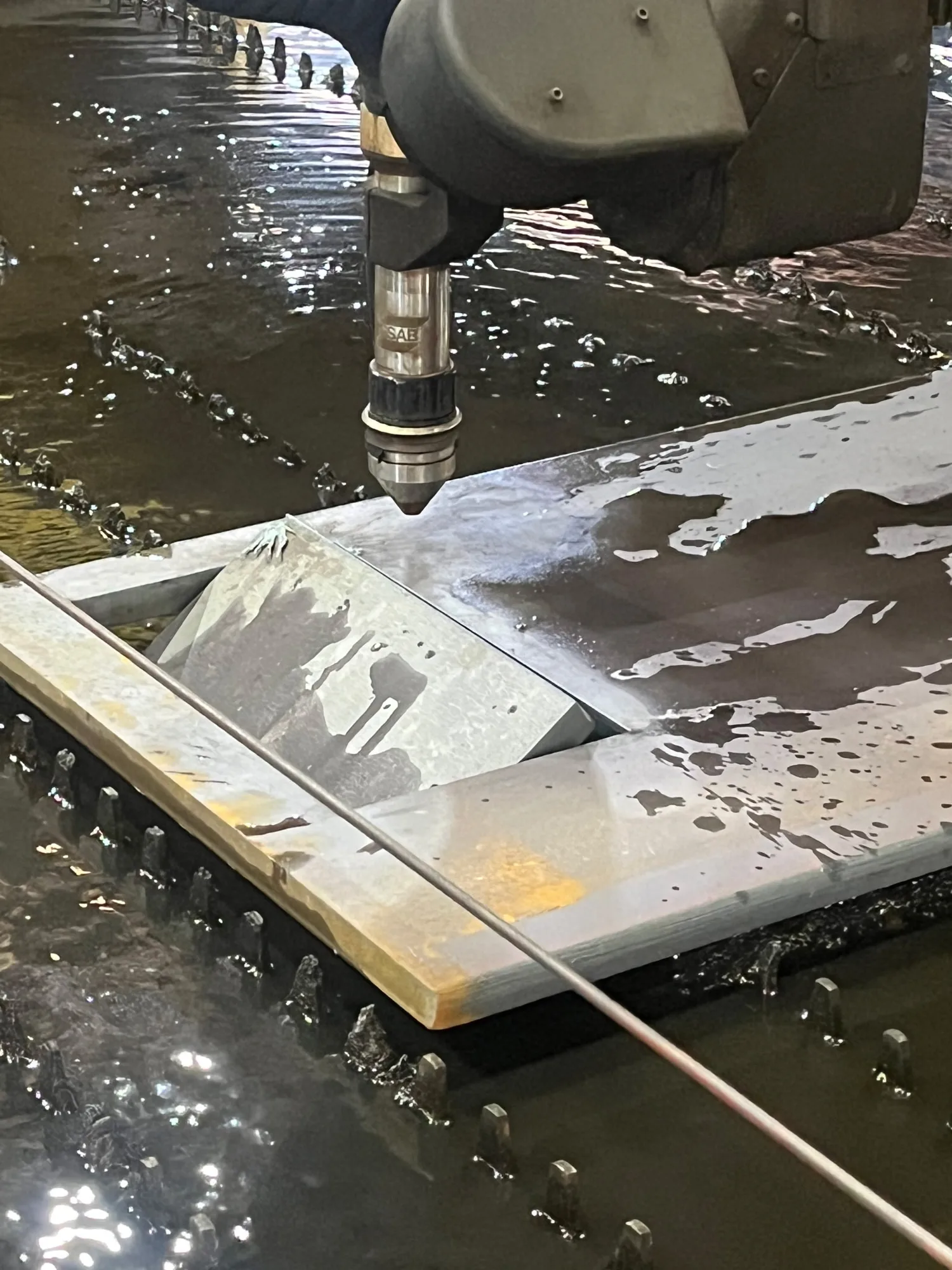

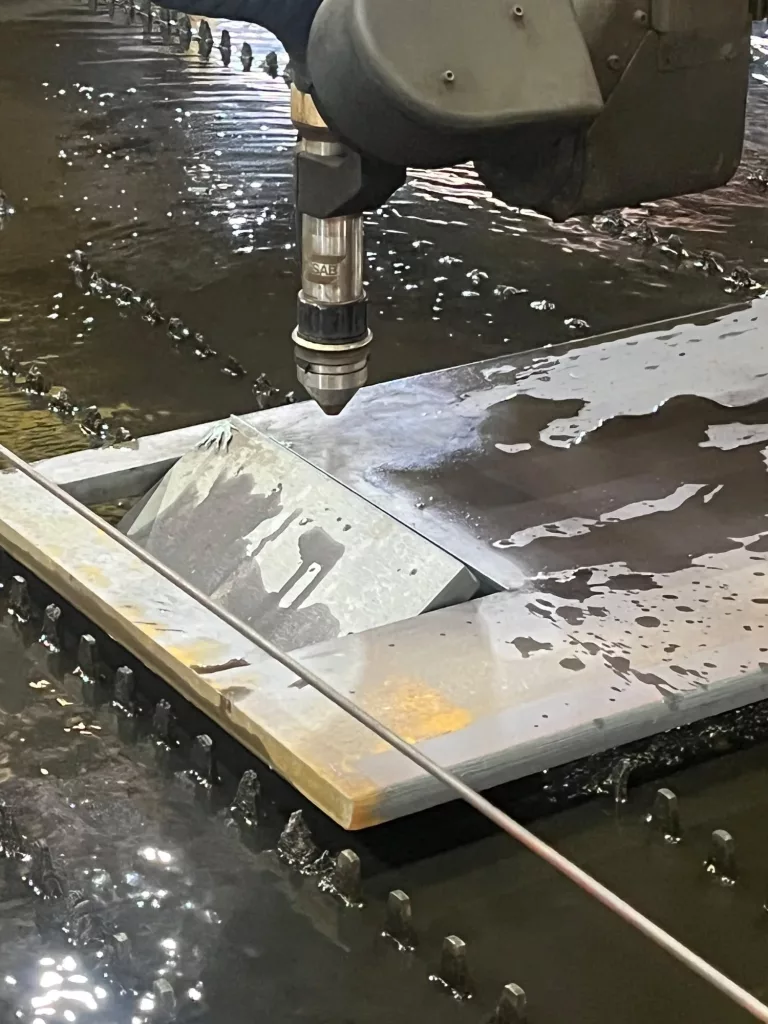

1x DMX Beveller |
Air Conditioning For Main Electrical Cabinet |
|
Columbus Programming System (2 Licences) |

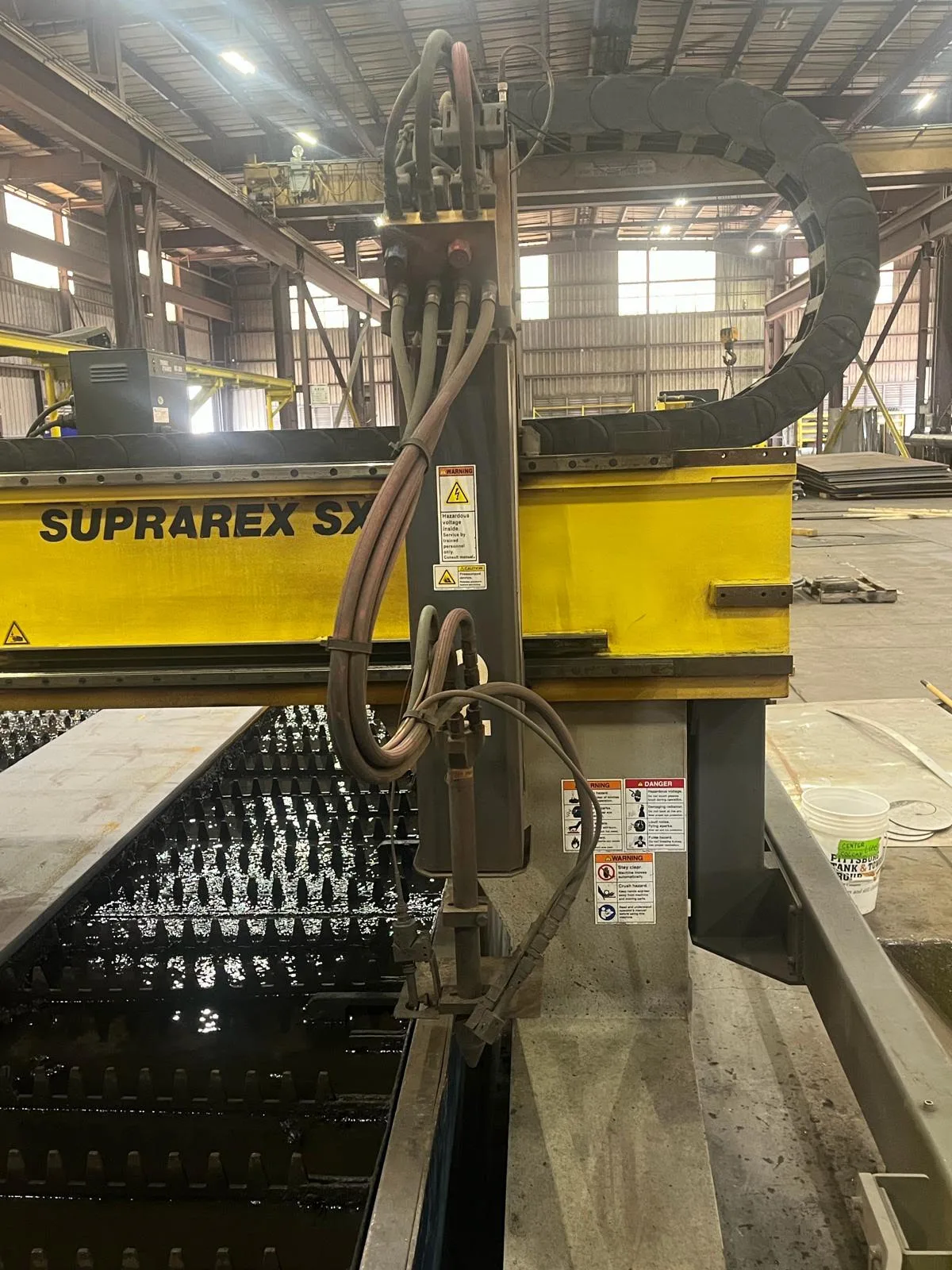

CoolJet PRO Oxy-Fuel Torch |
|
EasyNest |
Light Curtain Safety Device |
|
Optical-Manual Plate Alignment Camera |
WiFi Adaptor For Vision T5 |
