Year |
2023 |
|---|---|
Make |
LVD |
Model |
ToolCell 135/30 |
Description |
150 Ton x 10' Hydraulic Press Brake |
Reference # |
8076699 |
Price |
Activate Pricing |

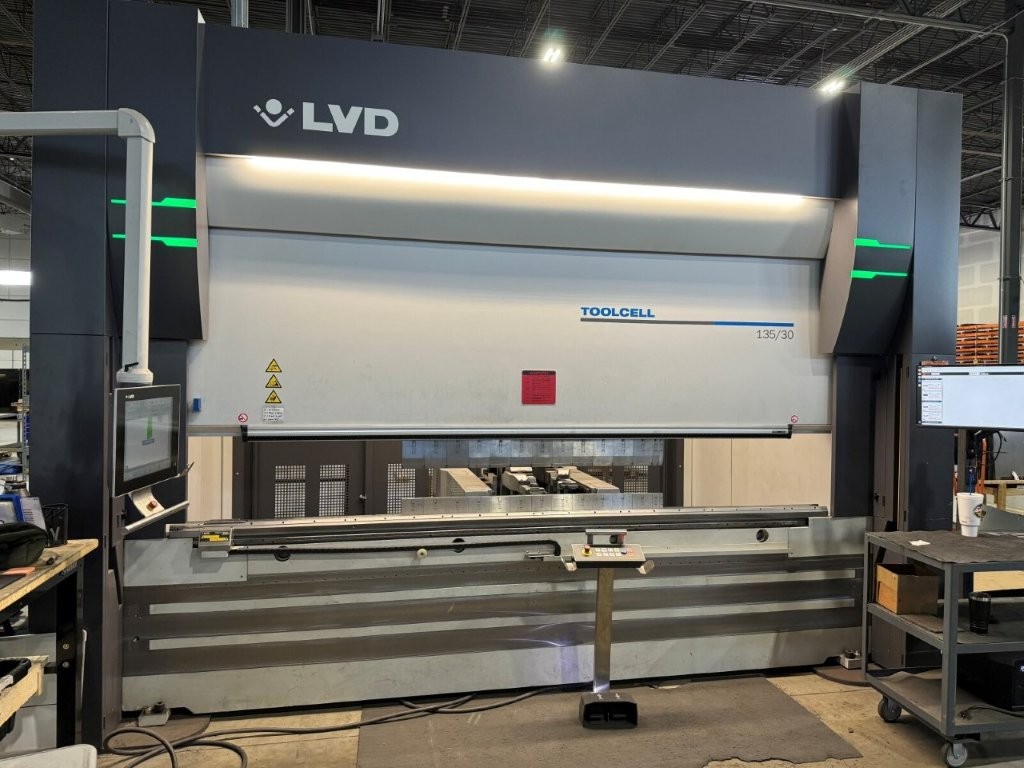

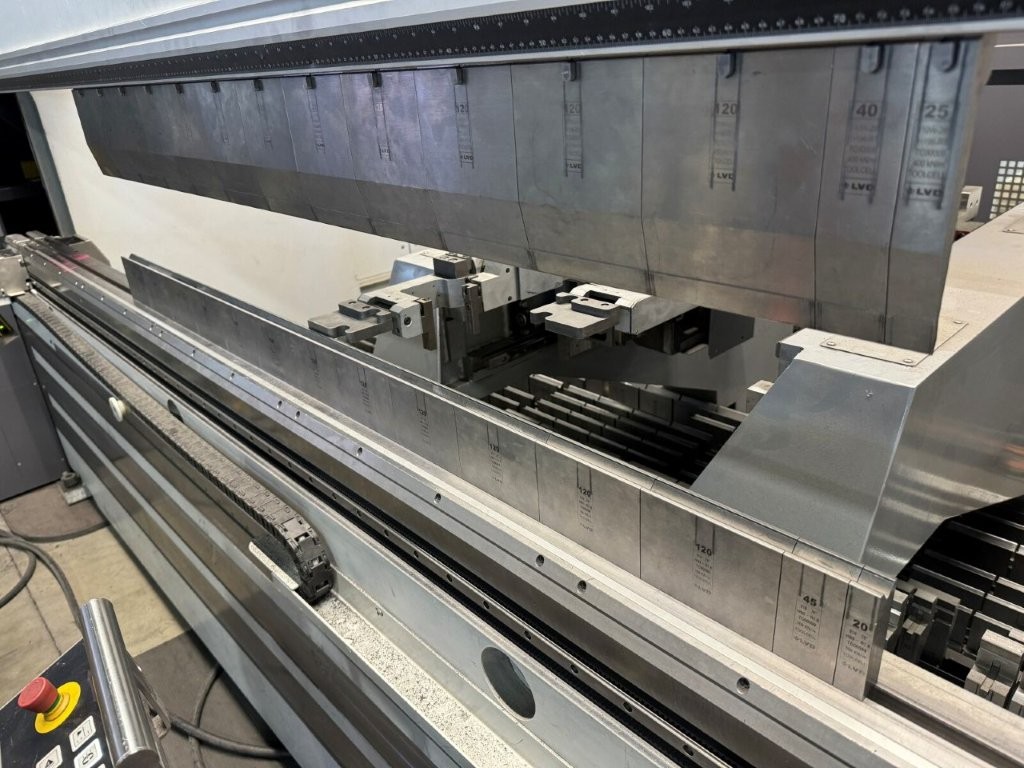

Used LVD ToolCell 135/30 (2023) Press Brake for Sale. This CNC press brake offers 150 ton capacity with a 10′ overall bed length and 157″ between housings. Stroke is 11.8″ – 15.7″, with a 38″ working height. The 30 HP main motor drives an approach speed of 425 IPM, a working speed of 51 IPM and a return speed of 472 IPM. Machine weight is 40,789 lbs. Equipped with an Intelligent Tooling Warehouse, LVD Easy-Form Laser System, 6-axis programmable back-gauge, tooling included, variable frequency drive and an automatic tool changer. The machine can be seen under power for an inspection. See more inventory on our used press brakes page, use Activate Pricing for current figures, and Request a Quote for full details.
Specifications
| Capacity |
150 Ton |
|---|---|
| Overall Length of Bed |
10' |
| Distance Between Housings |
157" |
| Stroke |
11.8" - 15.7" |
| Working Height |
38" |
| Main Motor |
30 HP |
| Approach Speed |
425 IPM |
| Working Speed |
51 IPM |
| Return Speed |
472 IPM |
| Weight |
40,789 Lbs |
Features
|

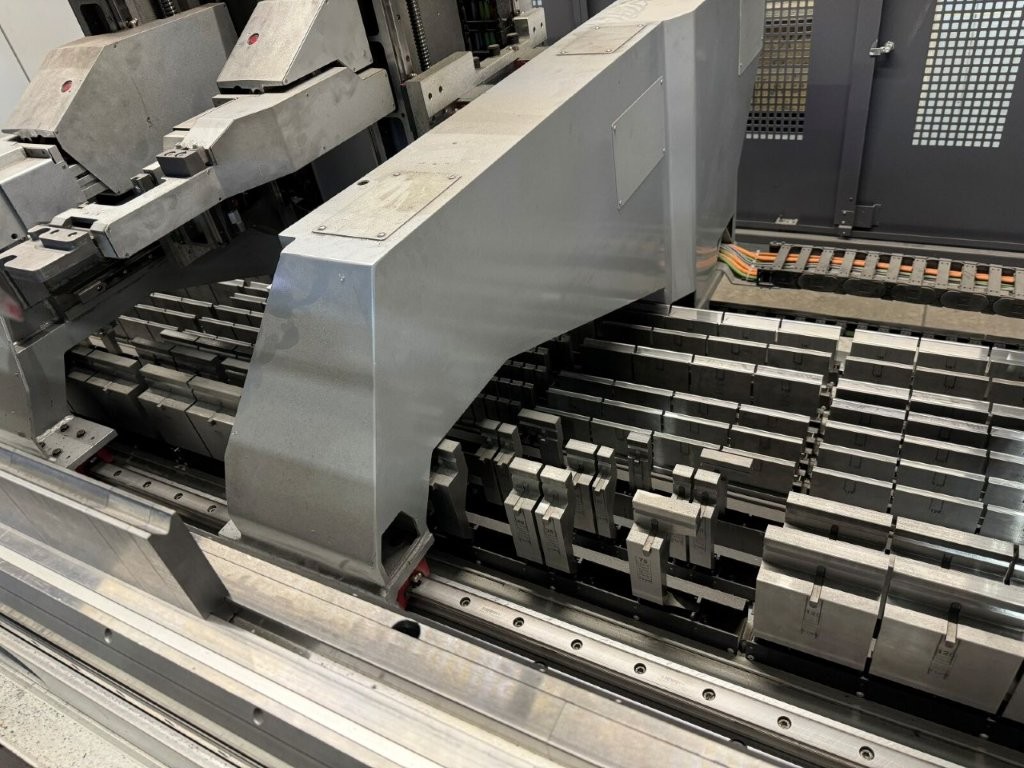

Intelligent Tooling Warehouse |
LVD Easy-Form Laser System |
|
6-Axis Programmable Back-Gauge |
Tooling Included |
|
Variable Frequency Drive |
Automatic Tool Changer |
