Make |
Primeline |
|---|---|
Model |
Comeq 100-8 |
Description |
100 Ton x 8' Hydraulic Press Brake |
Reference # |
8071177 |
Price |
Activate Pricing |

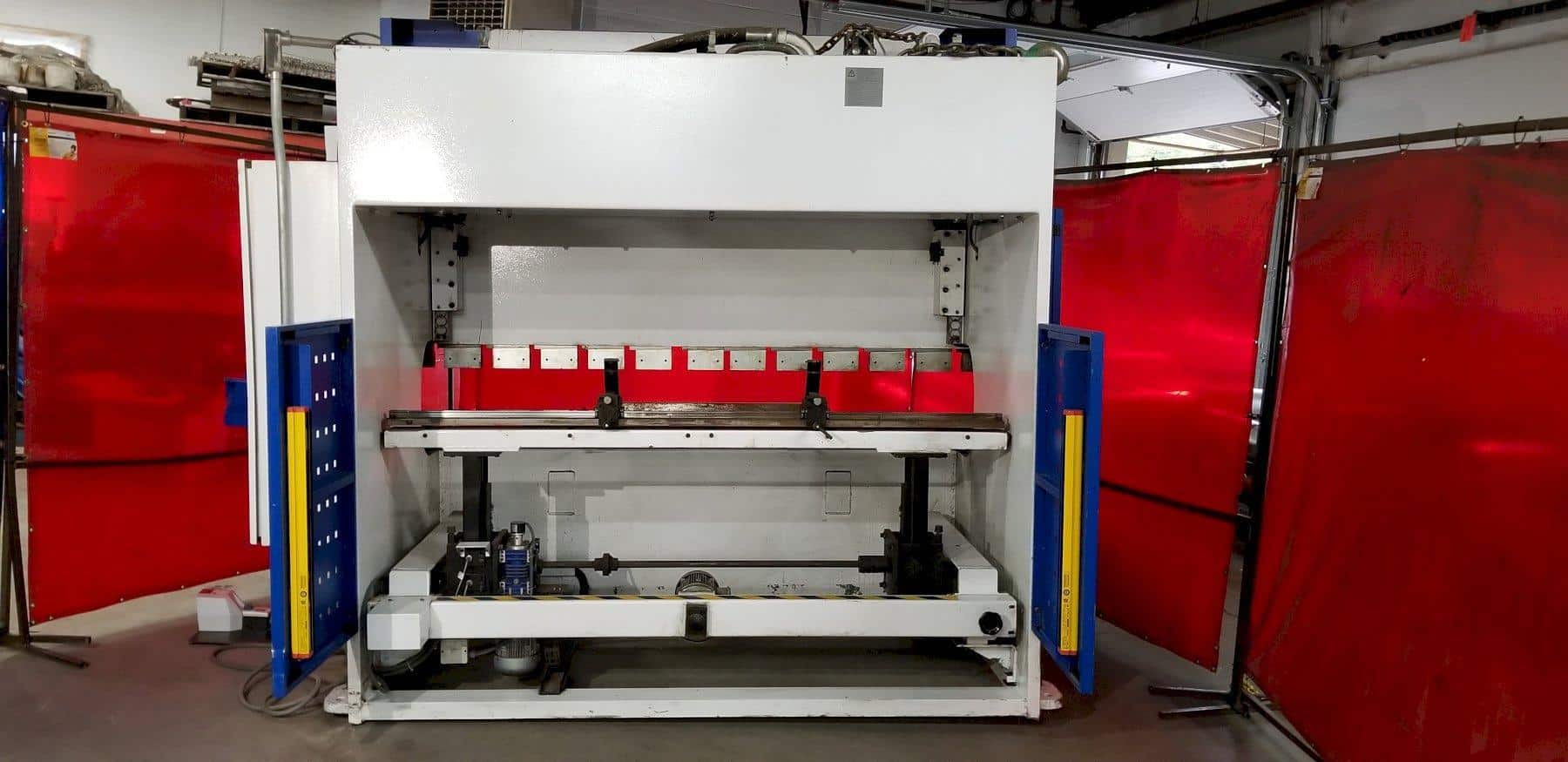

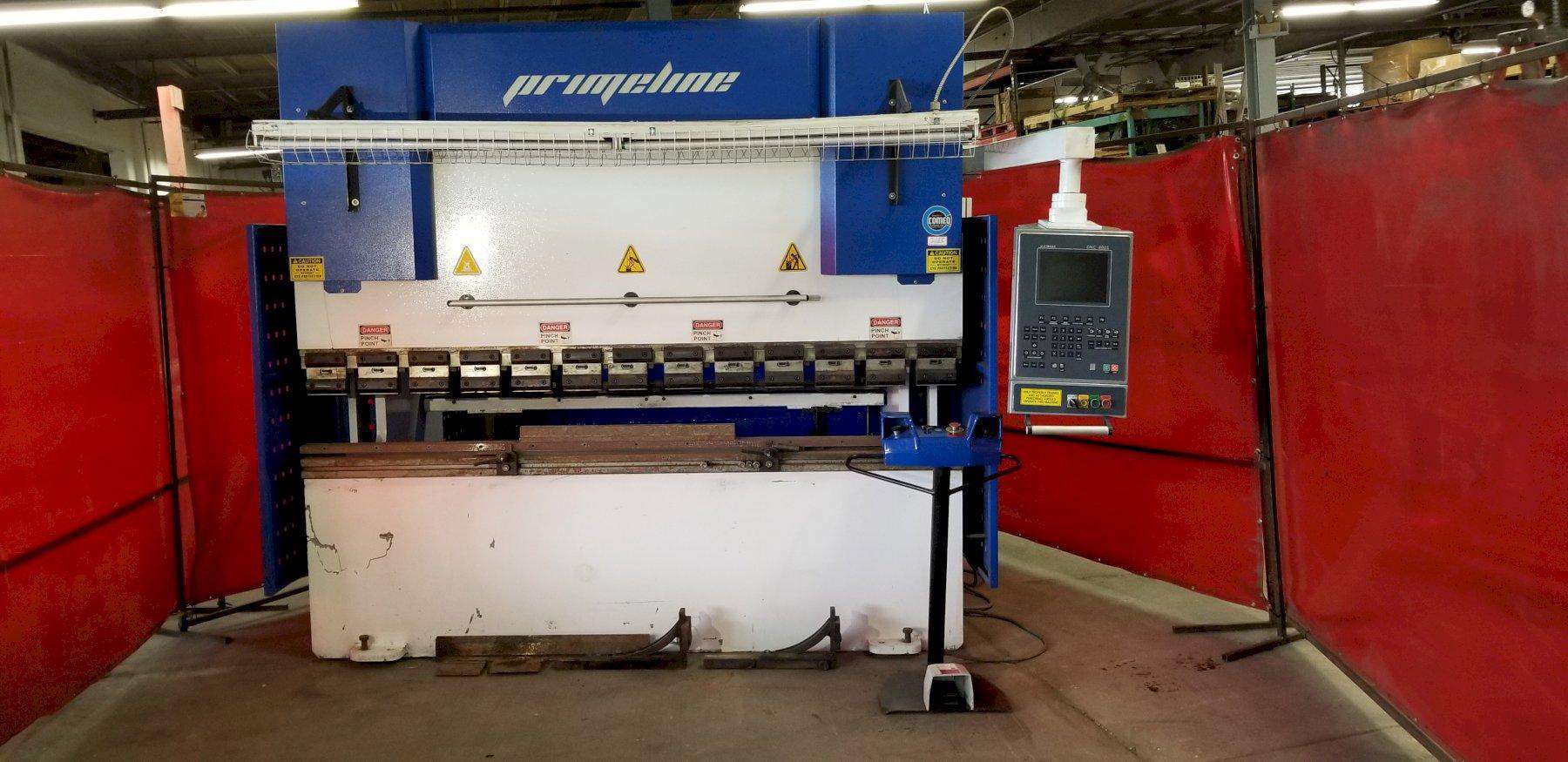

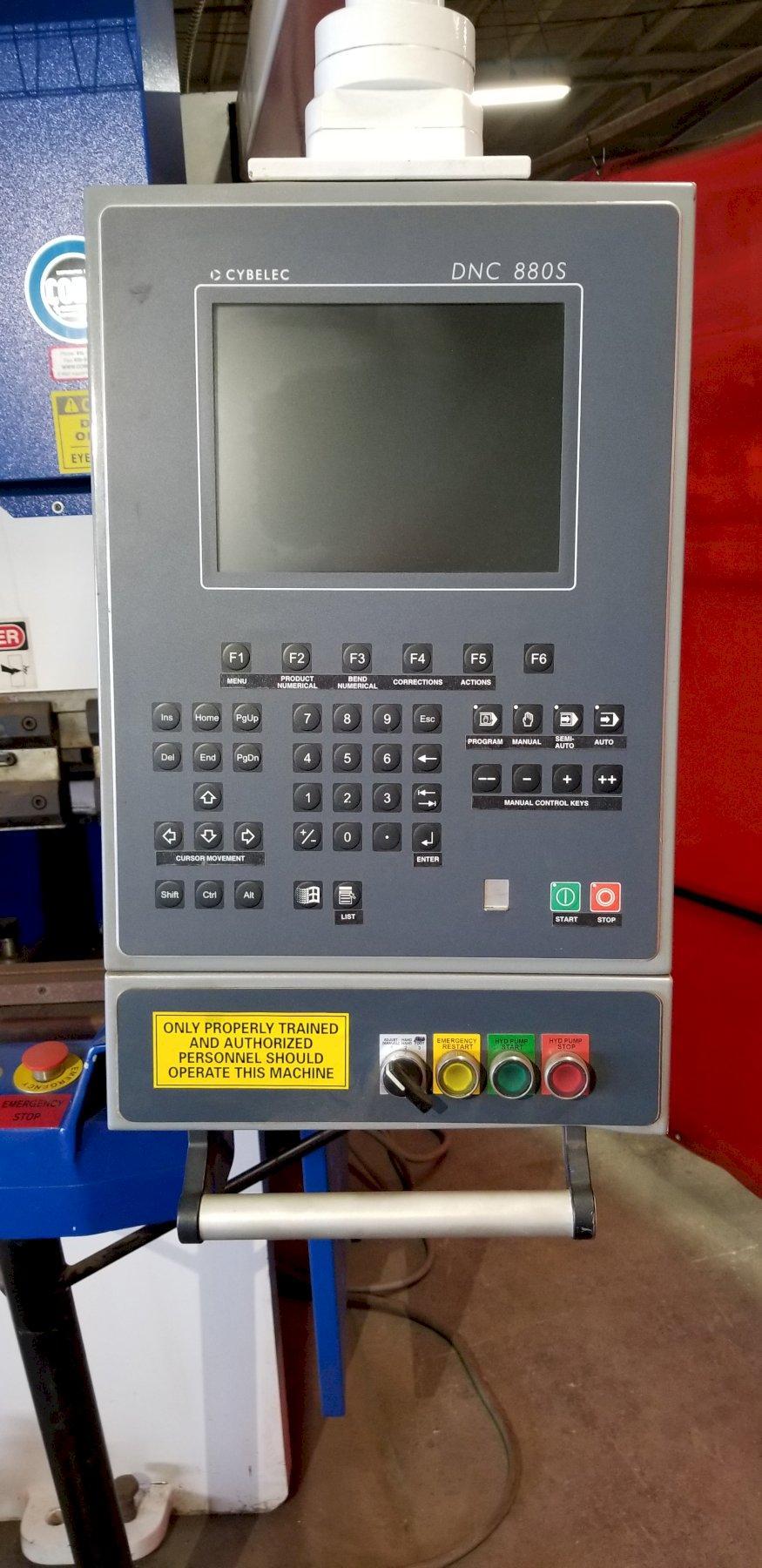

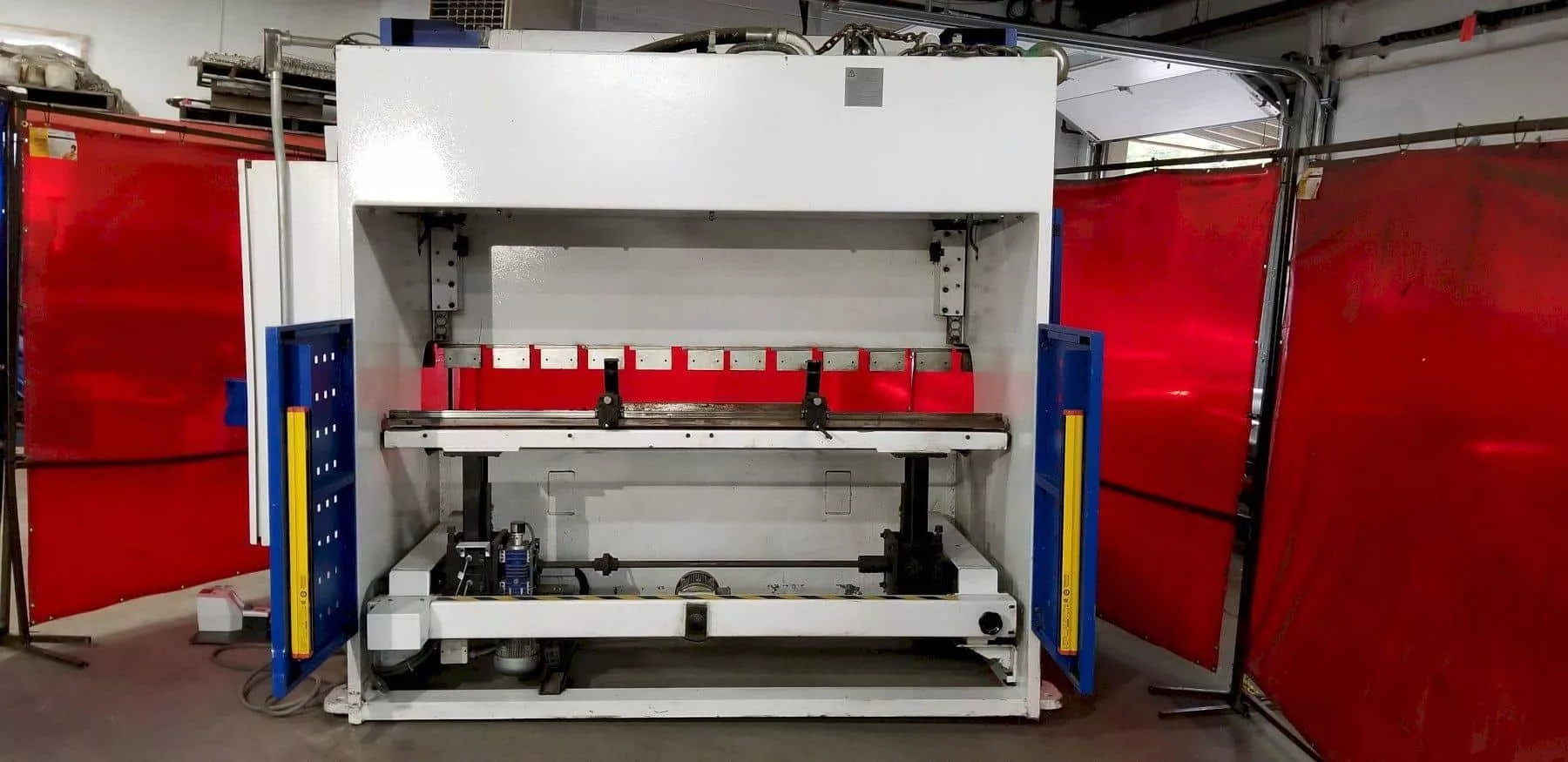

Used Primeline Comeq 100-8 Press Brake for Sale. This hydraulic press brake is rated at 100 ton capacity with an 8′ overall bed length and 85″ distance between housings. It is equipped with a Cybelec DNC 880SCNC control and a 2-axis back gauge. Stroke is 6.3″, with 13.77″ throat depth and 13.77″ open height. Speeds are listed at 5.9 IPS approach, .31 IPS bending, and 2.67 IPS return, driven by a 7.5 KW / 10 HP motor. The machine can be seen under power for an inspection by appointment. See this and other machines in our used press brakes inventory, use Activate Pricing to view current figures, and Request a Quote for freight and availability details.
Specifications
| Capacity |
100 Ton |
|---|---|
| Overall Length of Bed |
8' |
| Control |
Cybelec DNC 880SCNC |
| Distance Between Housings |
85" |
| Stroke |
6.3" |
| Throat Depth |
13.77" |
| Open Height |
13.77" |
| Back Gauge |
2-Axis |
| Approach Speed |
5.9 IPS |
| Bending Speed |
.31 IPS |
| Return Speed |
2.67 IPS |
| Motor |
7.5 KW / 10 HP |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
