Year |
2004 |
|---|---|
Make |
Amada |
Model |
HFE 1703S |
Description |
187 Ton x 10.2' Hydraulic Press Brake |
Reference # |
8078516 |
Price |
Activate Pricing |

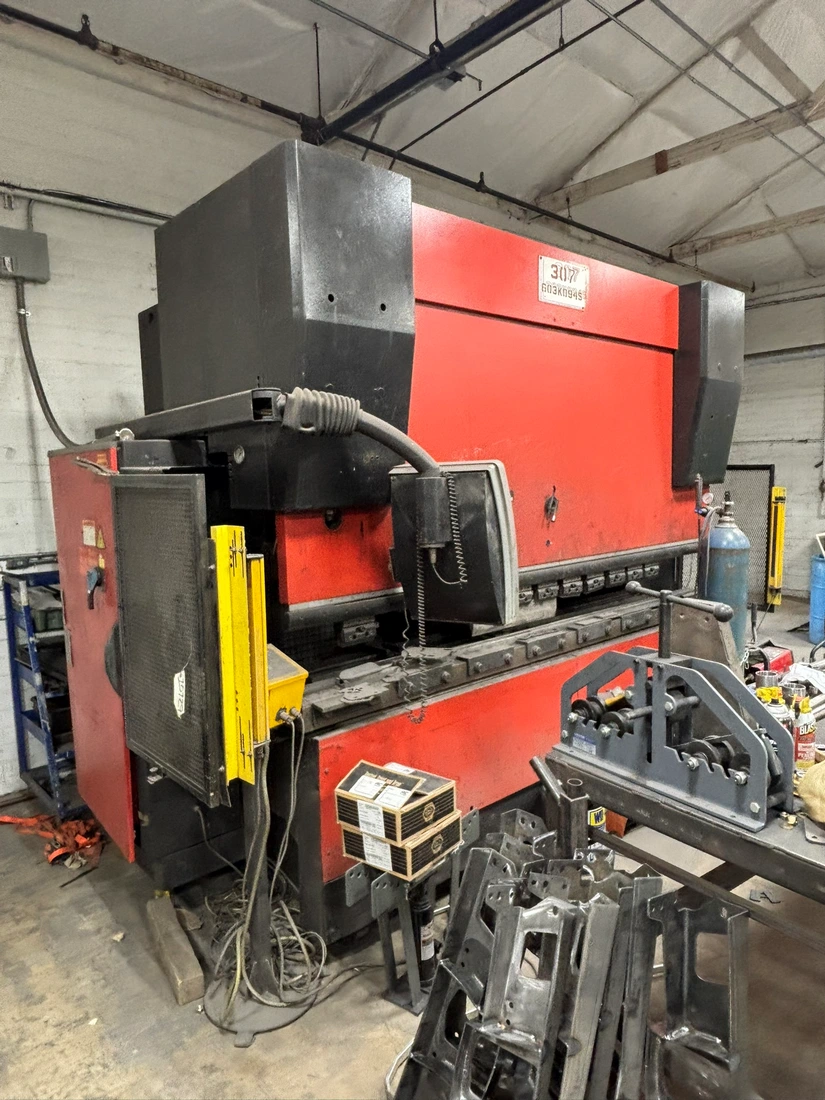

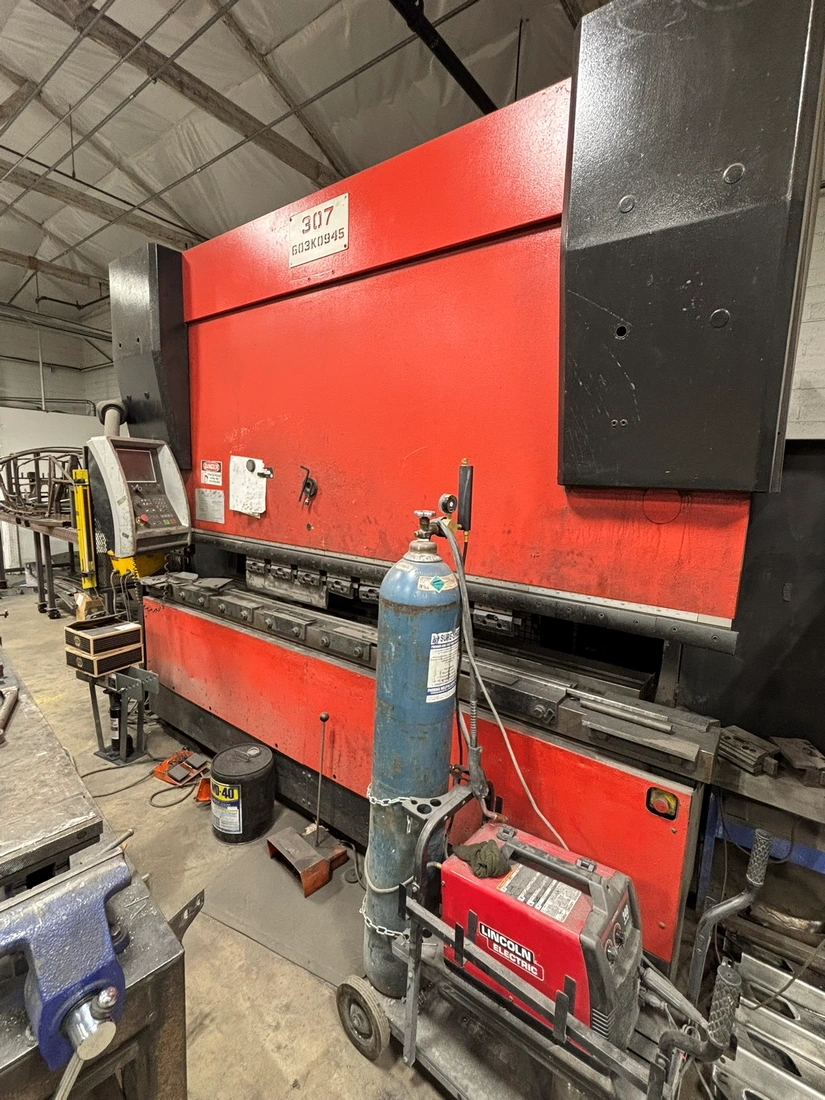

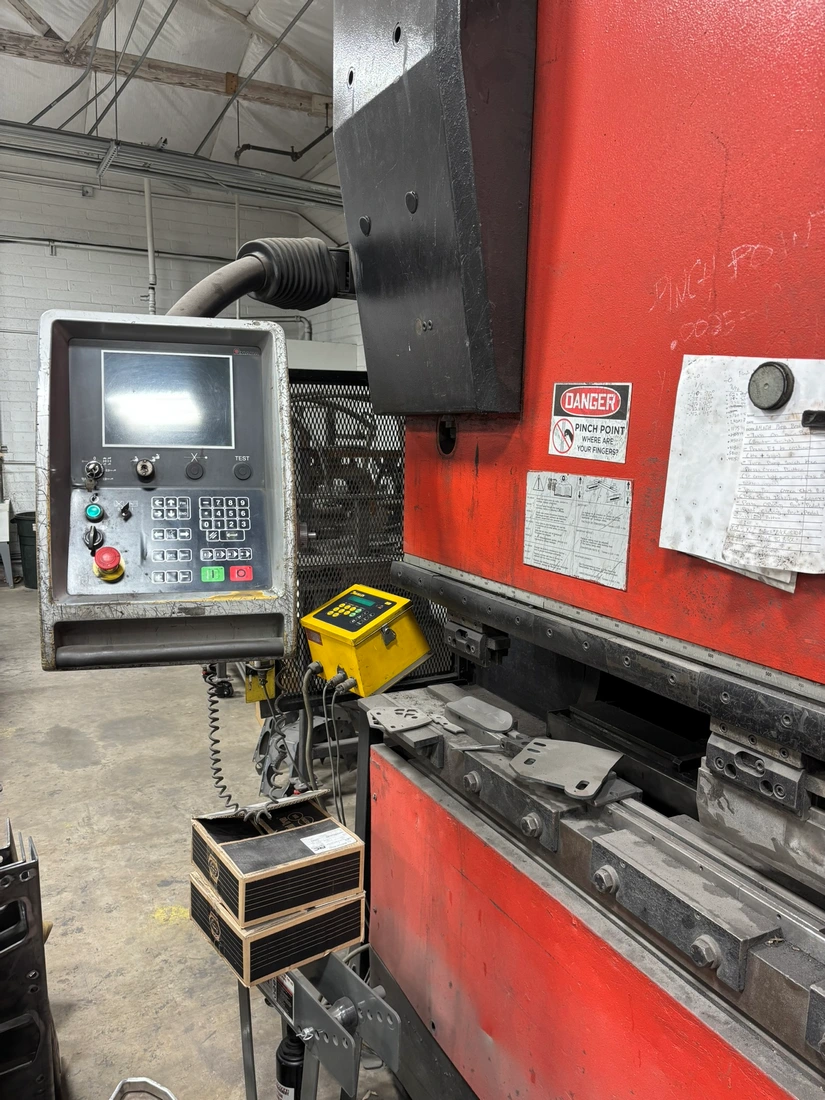

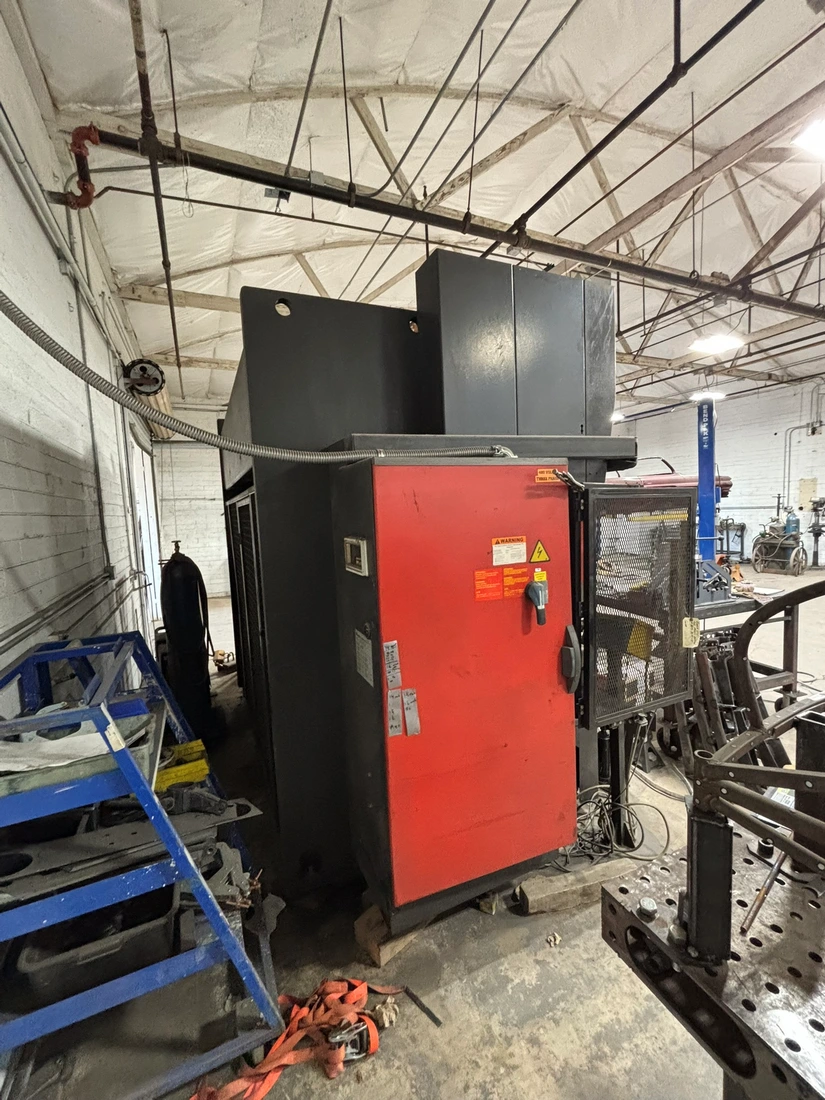

Used Amada HFE 1703S (2004) Press Brake for Sale. This CNC hydraulic press brake offers 187 tons of capacity with a 10.2′ overall bed length and 106″ between housings. Stroke is 7.8″, throat depth 16.5″, and open height 18.5″. Advance speed is 472 IPM, press speed 2 – 47 IPM, and return speed 2.4 – 472 IPM. Control is the Amada Operateur Control with a 12″ color CRT, graphical interface, self diagnostics, punch and die library, 6 axis backgauge, foot pedals, and flush floor design. Overall dimensions are 14′ x 8′ x 9’6″ with a weight of 25,520 lbs. The machine can be seen under power for an inspection. Use Activate Pricing or Request a Quote for details.
Specifications
| Capacity |
187 Ton |
|---|---|
| Overall Length of Bed |
10.2' |
| Control |
Amada Operateur Control |
| Distance Between Housings |
106" |
| Stroke |
7.8" |
| Throat Depth |
16.5" |
| Open Height |
18.5" |
| Advance Speed |
472 IPM |
| Press Speed |
2 - 47 IPM |
| Return Speed |
2.4 - 472 IPM |
| Overall Weight |
25,520 Lbs |
| Overall Dimensions |
14' x 8' x 9'6" |
Features
|
Punch & Die Library |
Flush Floor Design |
|
12" Color CRT |
Self Diagnostics |
|
6 Axis Backgauge |
Foot Pedals |
|
Graphical Interface |
