Year |
2023 |
|---|---|
Make |
Everplast Machinery Co. |
Model |
EMD-90 |
Description |
Extruder |
Reference # |
8075664 |
Price |
Activate Pricing |

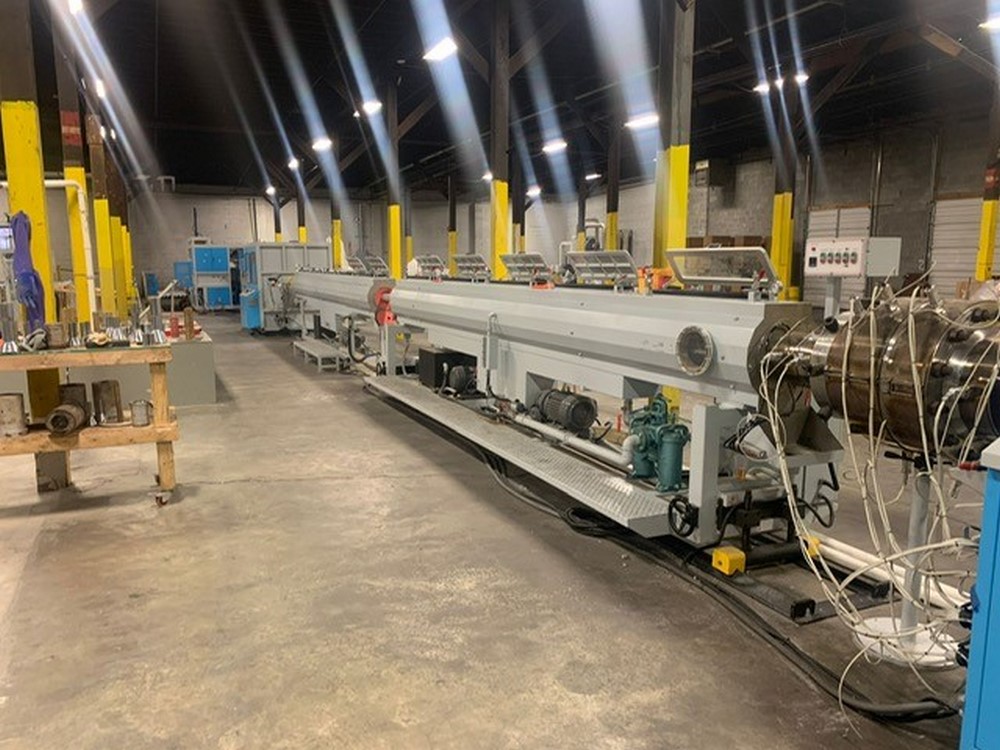

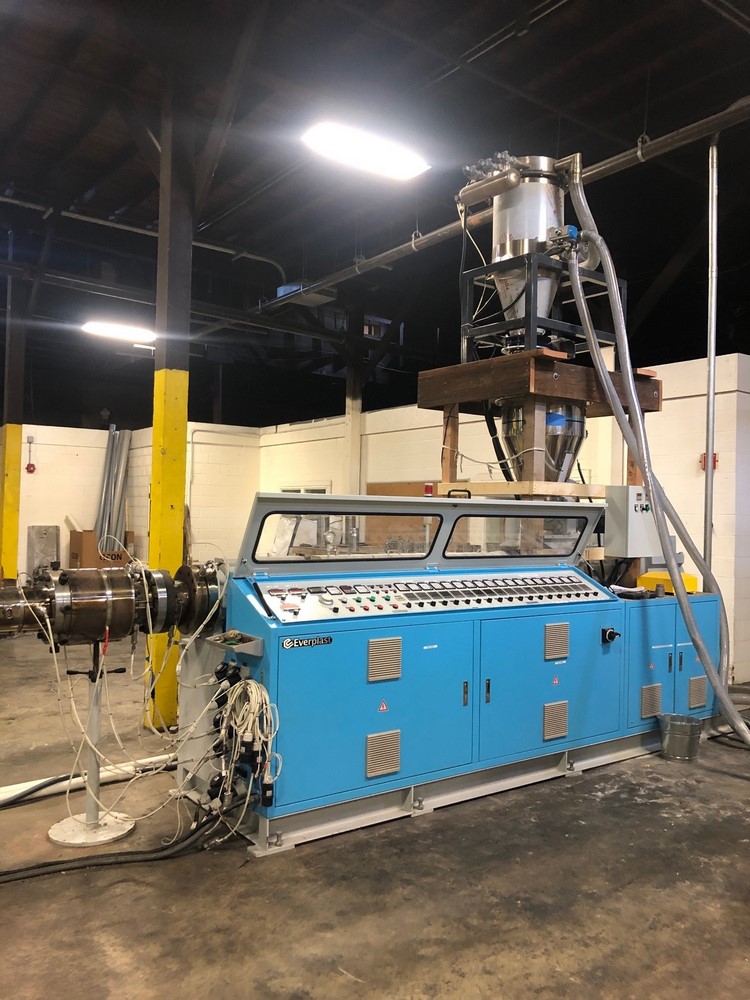

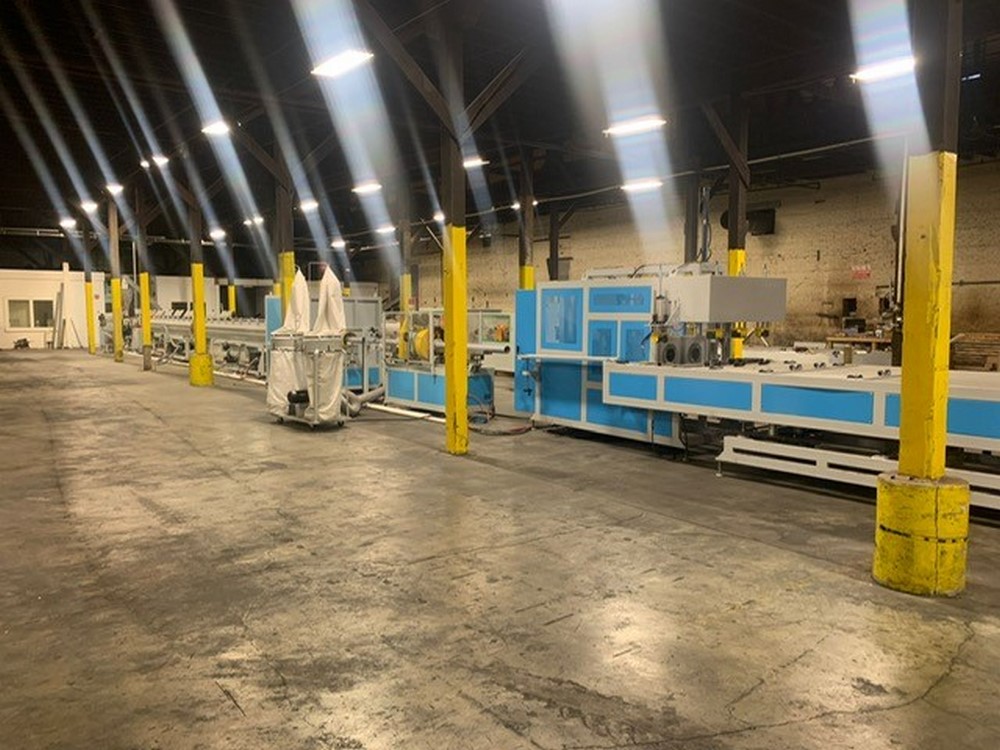

Used Everplast Machinery Co. EMD-90 (2023) Extruder for Sale. This twin screw parallel extruder has a 90mm screw size with a 25:1 L/D ratio, air cooled, with screws of SACM-645 alloy steel with nitrated surface treatment. It has run rigid PVC in powder form. Zone controls include (9) temperature, (3) barrel, (1) adaptor zone and (5) die head zones. Drive is 60 HP on 480v / 3 ph / 60hz. Die head sizes are 2.0″, 4.0″, 5.0″ and 6.0″ pipe sizes. Equipped with a belling machine for PVC pipe, EPST-606 vacuum spray water cooling tank, ERK-160 rigid pipe cutting with 2 HP and 3 HP collection motor, ETK-3C caterpillar haul-off unit, hopper crammer feeder with 2.0 HP motor, screw conveyor with loading platform, and a 2.0 HP barrel vacuum system. The machine can be seen under power for an inspection. See more used plastic extruders, Activate Pricing, or Request a Quote.
Specifications
| Screw Type |
Twin Screw Parallel |
|---|---|
| Air Cooled |
Yes |
| Screw Material |
SACM-645 Alloy Steel Nitrated Surface Treatment |
| Material Ran |
Rigid PVC (Powder) |
| Screw Size |
90mm |
| L/D Ratio |
25:1 |
| Zone Controls |
(9) Temp., (3) Barrel, (1) Adaptor Zone, (5) Die Head Zones |
| Horsepower |
60 HP |
| Power Requirement |
480v / 3 ph / 60hz |
| Die Head Sizes |
2.0", 4.0", 5.0" & 6.0" (Pipe Sizes) |
Features
|
Belling Machine (for PVC Pipe) |
EPST-606 Vacuum Spray Water Cooling Tank |
|
ERK-160 Rigid Pipe Cutting - 2 HP w/ 3 HP Collection Motor |
ETK-3C Caterpillar Haul-Off Unit |
|
Hopper Crammer Feeder w/ 2.0 HP Motor |
Screw Conveyor w/ Loading Platform |
|
Vacuum System For Barrel 2.0 HP |
