Year |
2023 |
|---|---|
Make |
Colex |
Model |
SX1732 Sharpcut Bundle OC |
Description |
CNC Router |
Reference # |
8077337 |
Price |
Activate Pricing |

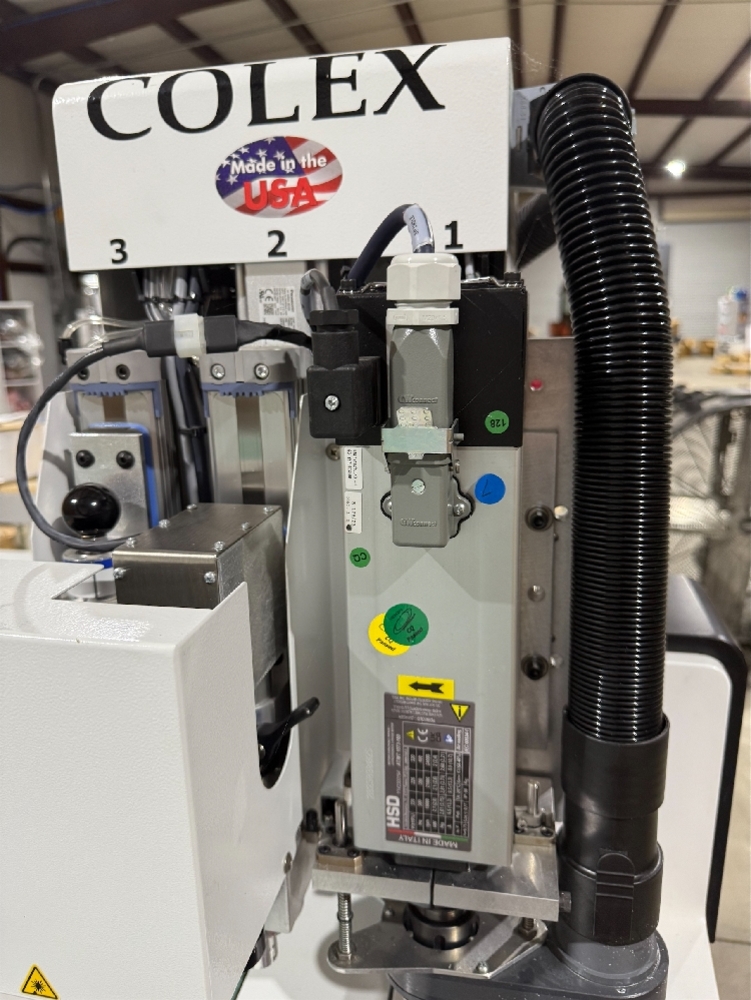

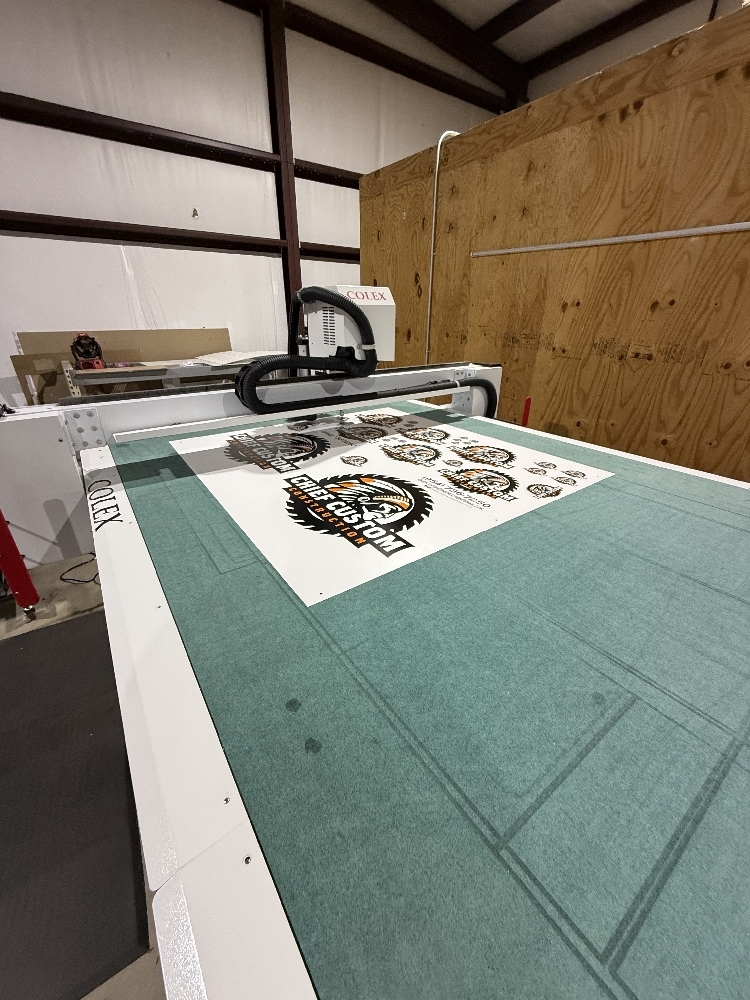

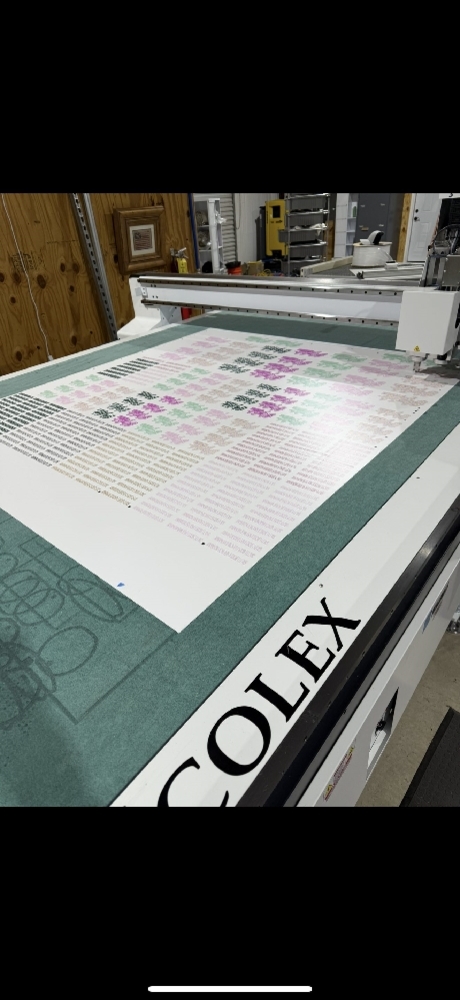

Used Colex SX1732 Sharpcut Bundle OC (2023) CNC Router for Sale. This flatbed router offers a 67″ x 126″ work area with a triple interchangeable tool head and an HSD spindle, supported by an industrial 3.1MP camera for registration work. Material is held down by a six-zone, 7.5 kW vacuum system. Rapid speed is rated at 80 IPS/122 m/min with .86 G acceleration, bridge clearance is 4.0″, and maximum cutting thickness is 2.5″. Machine dimensions are 98″ x 148″ at 3,500 lbs, with recommended floor space of 14′ x 118′. The unit can be seen under power for an inspection, and videos of it in operation are available. See more equipment in our used CNC routers listings, then Request a Quote for details.
Specifications
| Work Area |
67" x 126" |
|---|---|
| Tool Head |
Triple Interchangeable Tool Head |
| Camera |
Industrial 3.1MP |

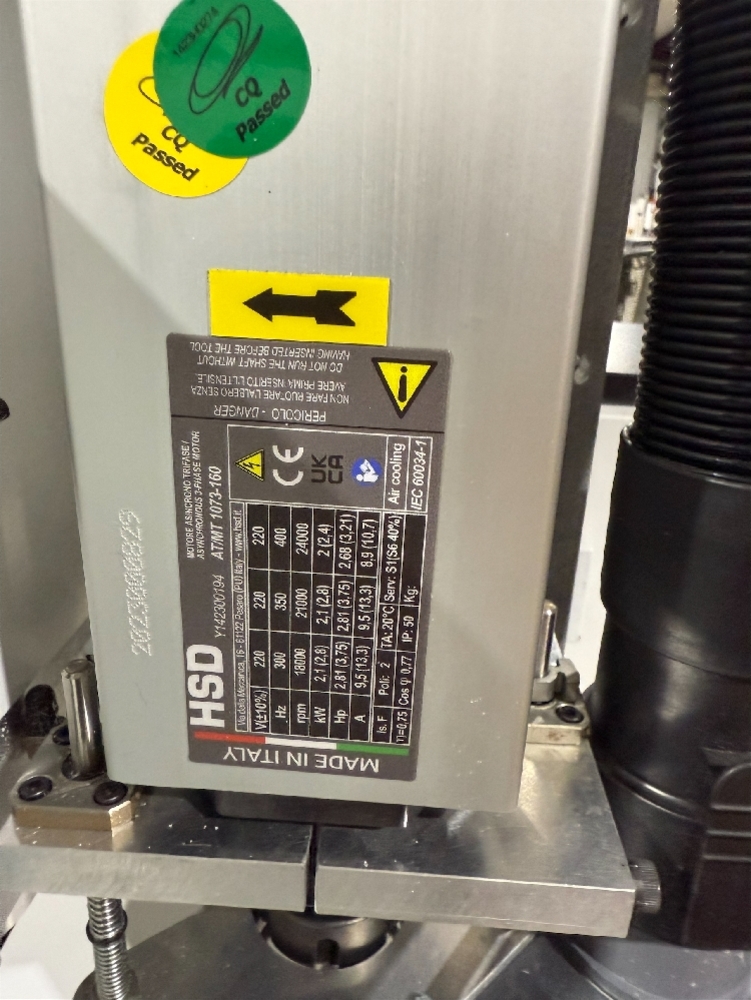

| Spindle Mfg |
HSD |
| Vacuum System |
(6) Zone (7.5 kW) |
| Rapid Speed |
80 IPS/122 m/min |
| Acceleration |
.86 G |
| Bridge Clearance |
4.0" |
| Max Cutting Thickness |
2.5" |
| Recommended Floor Space |
14' x 118' |
| Machine Dimensions & Weight |
98" x 148" at 3,500 Lbs |
Features
|
Under Power Inspections |
Videos for unit in operation |
