Year |
2023 |
|---|---|
Make |
AXYZ |
Model |
Infinite PanelBuilder 5018 |
Description |
CNC Router |
Reference # |
8078588 |
Price |
Activate Pricing |

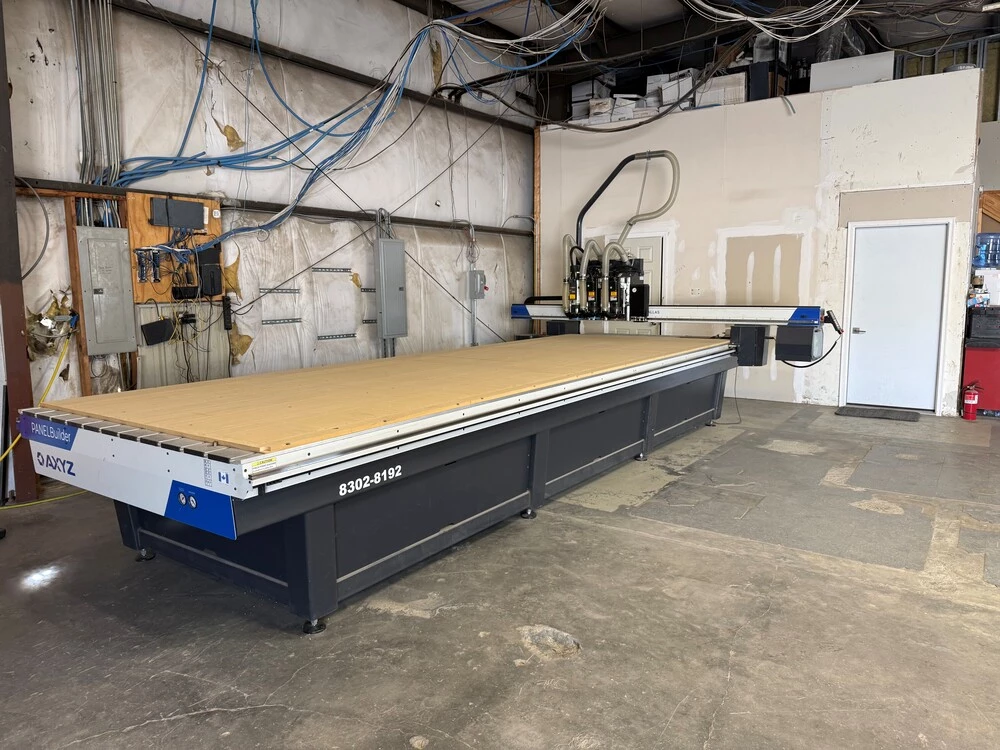

Used AXYZ Infinite PanelBuilder 5018 (2023) CNC Router for Sale. This 3-axis machine has a 72″ x 216″ table with vacuum hold down across (2) zones, served by a 12 HP Becker dry-vane pump with auto-start device. It carries HSD and Elite collet spindles rated 10.8 HP at 24000 RPM and 10 HP, a (10) position carousel style automatic tool changer, and ISO30 ER 32 toolholders. Control is the AXYZ Smart Console with E-Stop, and power requirement is 208v/3ph/60amps. Also equipped with six drive servo (X/Y/Z), pop-up material locating pins, high capacity pressure foot with nose rider, high pressure dust extraction system with stand, Vortex cold gun, Unist mister, ALP and Sugino pneumatic drill ready kits, plus a selection of cutters and collets. Available for inspection under power. See more CNC routers, Activate Pricing, or Request a Quote.
Specifications
| Number of Axis |
3 |
|---|---|
| Table Width |
72" |
| Table Length |
216" |
| Table Hold Down |
Vacuum Hold Down |
| Vacuum Zones |
(2) Zones |
| Spindle Mfg |

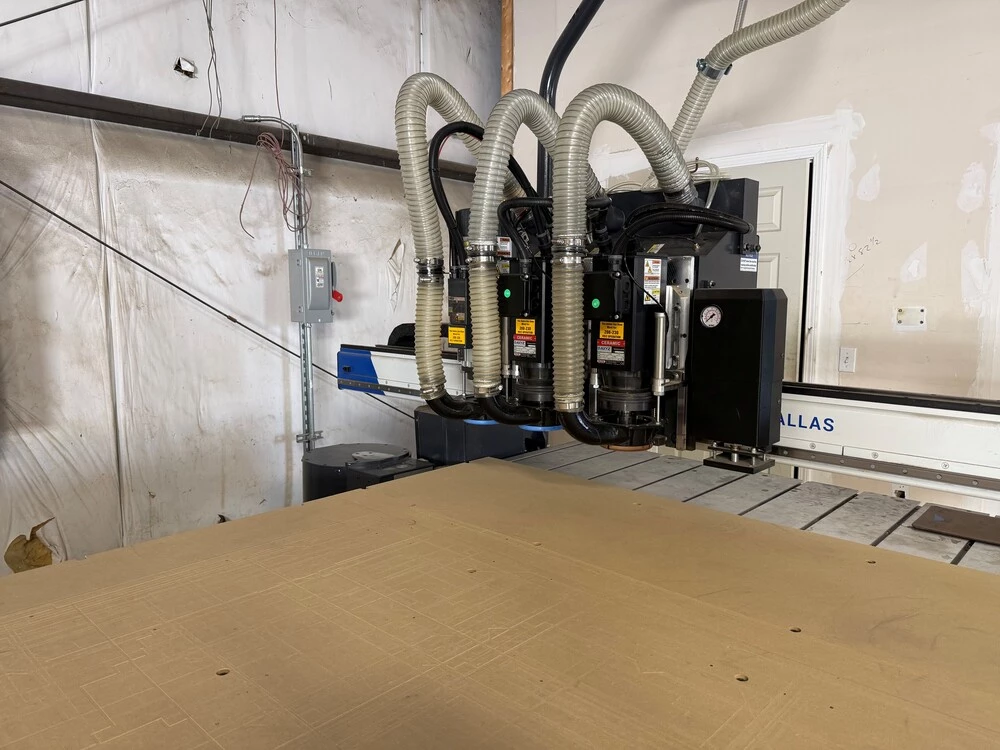

HSD & Elite Collet Spindle |
| Spindle Horsepower |
10.8 HP at 24000 RPM & 10 HP |
| Tool Changer |
(10) Position Carousel Style Auto Tool Changer |
| Toolholder |
ISO30 ER 32 |
| Control |
AXYZ Smart Console w/ E-Stop |
| Power Requirement |
208v/3ph/60amps |
Features
|

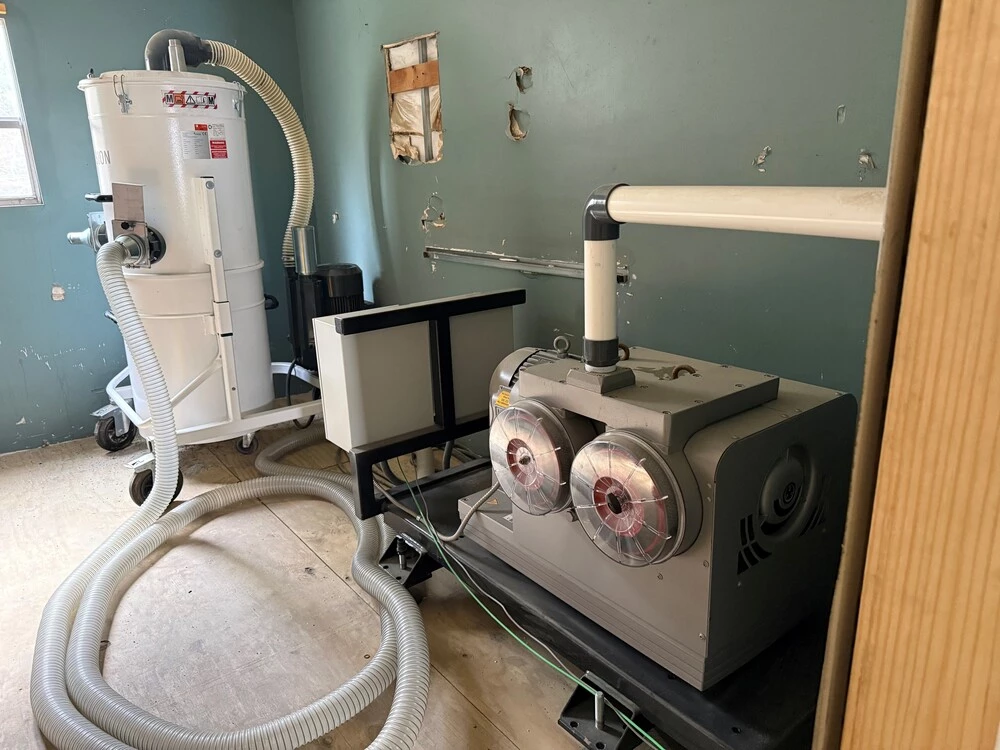

12 HP Becker Dry-Vane Pump with Auto-Start Device |
A Selection of Cutters and Collets - ACM (Imperial) |
|
ALP - Automated Label Printer - Ready |
Automatic Feed Sugino Pneumatic Drill Ready Kit |
|
Bellows Seal for High Capacity or Universal 5Y Pressure Foot |
High Capacity Pressure Foot with Nose Rider and Blue Glide Donut |
|
High Pressure Dust Extraction System with Stand (208-480 Volt) |
In operation for inspections |
|
Pop-Up Material Locating Pins |
Six Drive Servo (X/Y/Z) |
|
Standard Length Tool Cup for All ATC Systems |
The Vortex Cold Gun Reduces Heat Generated by the Cutting Tool During the Machining |
|
Unist Mister for Cutting Non Ferrous Metals |
