Year |
2022 |
|---|---|
Make |
Senfang |
Model |
SF3015H |
Description |
5' x 10' 12kW CNC Fiber Laser |
Reference # |
8077555 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

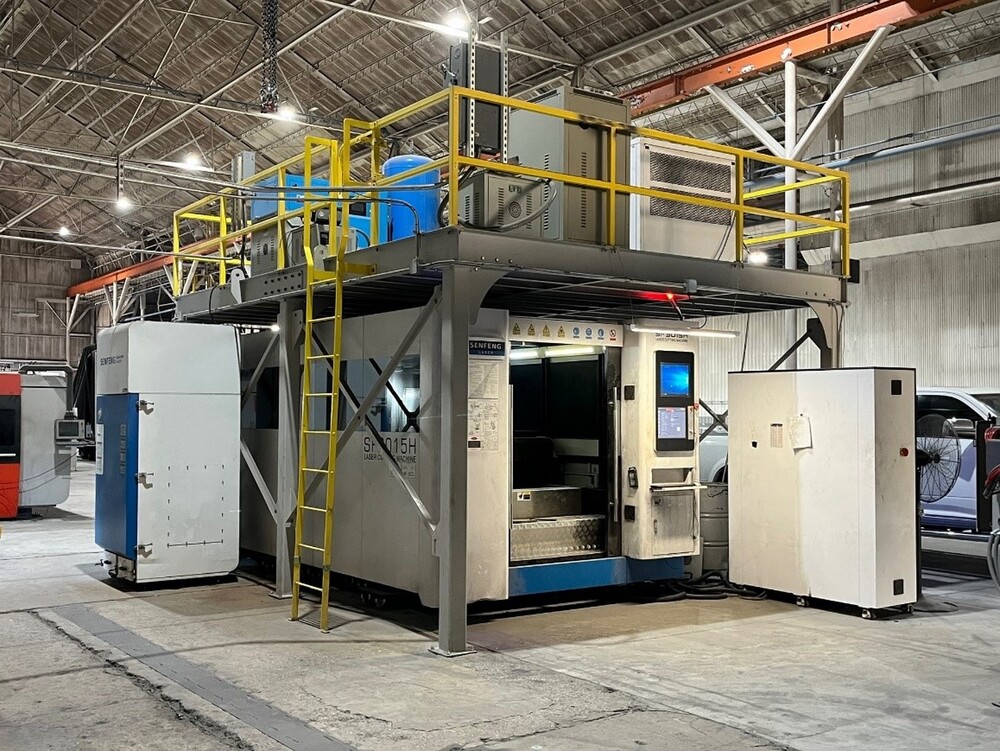

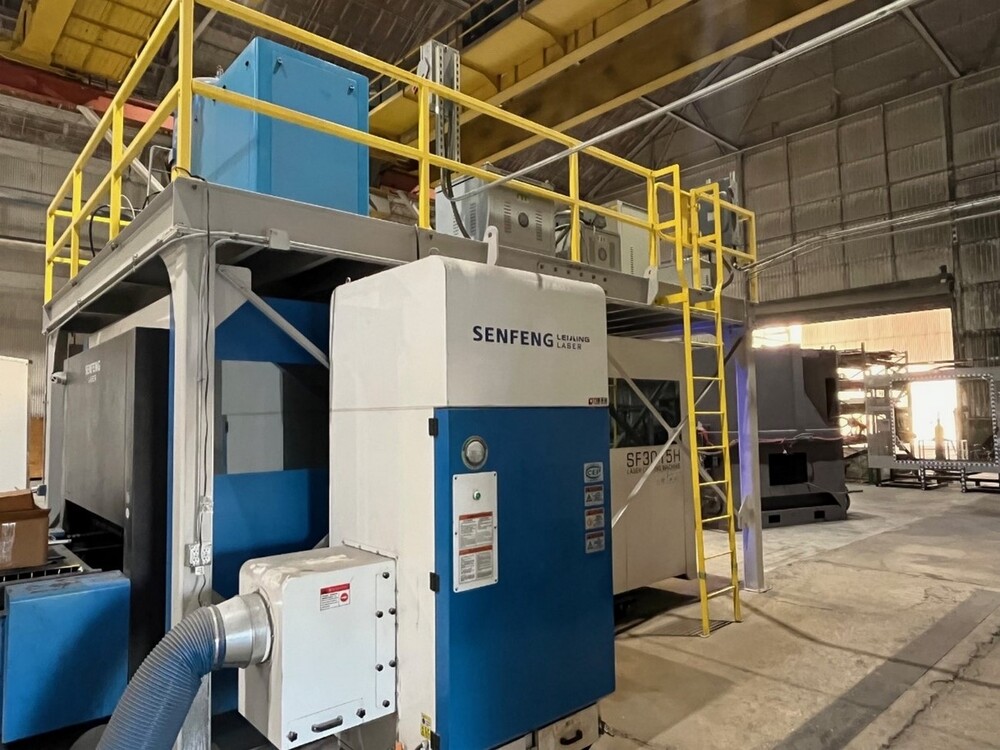

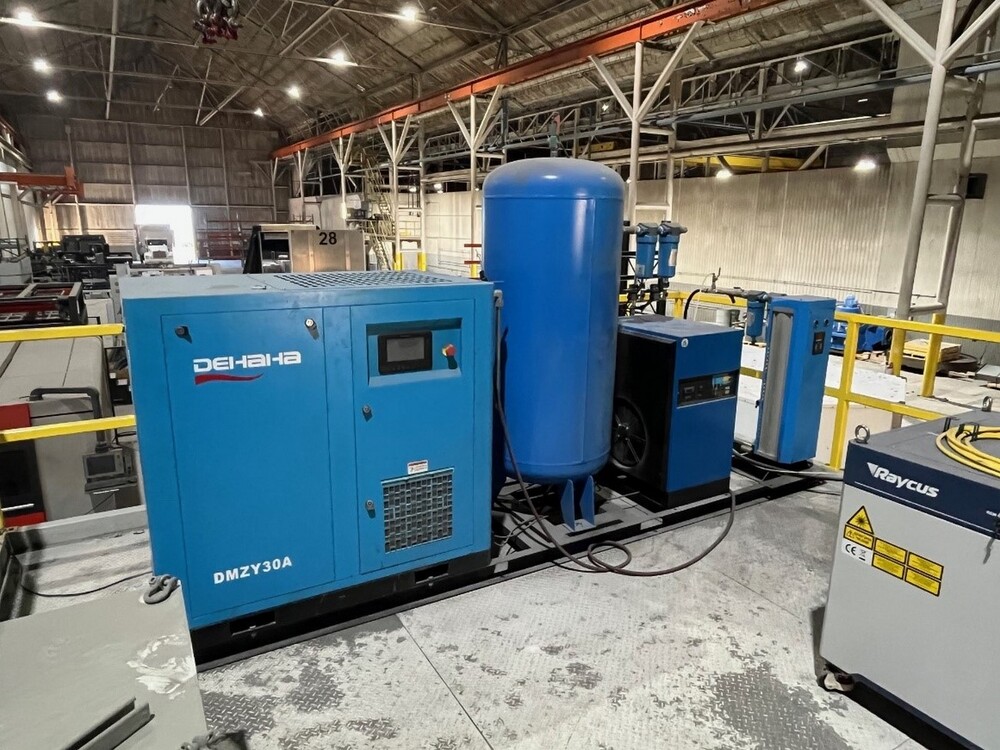

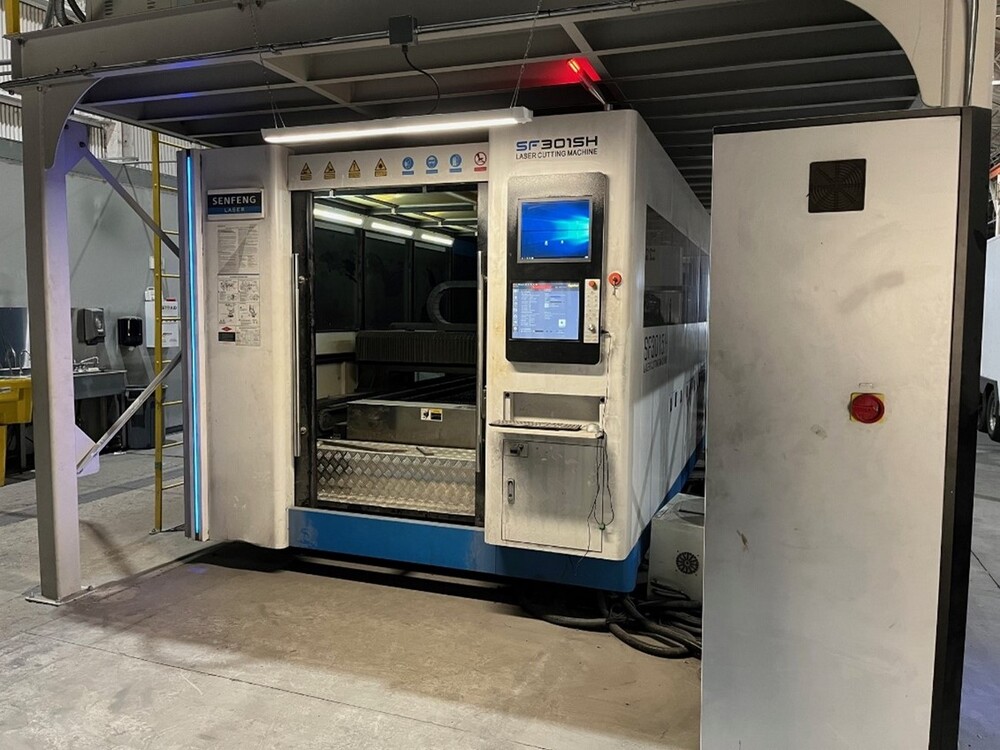

Used Senfang SF3015H (2022) Laser for Sale. This fiber laser cutting system has a 5′ x 10′ table with a maximum load of 700 kg and a 12,000 watt maximum wattage supplied by an RFL-C12000 Raycus power source. X/Y-axis positioning accuracy is +/- 0.05mm with repeated positioning accuracy of +/- 0.02mm, and maximum no-load speed is 426 FPM. Equipped with compressed air cutting, a high strength machine bed, an intelligent CNC operating system, mezzanine, chiller unit, dual pallet shuttle tables and a dust collector. Overall dimensions are 335″ x 89″ x 86″. The machine can be seen under power for an inspection. See more of our used laser cutting machines, use Activate Pricing, and Request a Quote for details.
Specifications
| Table Width |
5' |
|---|---|
| Table Length |
10' |
| Max Wattage |
12,000 |
| X/Y-Axis Positioning Accuracy |
+/- 0.05mm |
| X/Y-Axis Repeated Positioning Accuracy |
+/- 0.02mm |
| Max No-load Speed |
426 FPM |
| Max Load of Platforms |
700 kg |
| Overall Dimensions |
335″ x 89″ x 86″ |
Features
|
Compressed Air Cutting |
High Strength Machine Bed |
|
Intelligent CNC Operating System |
Mezzanine |
|

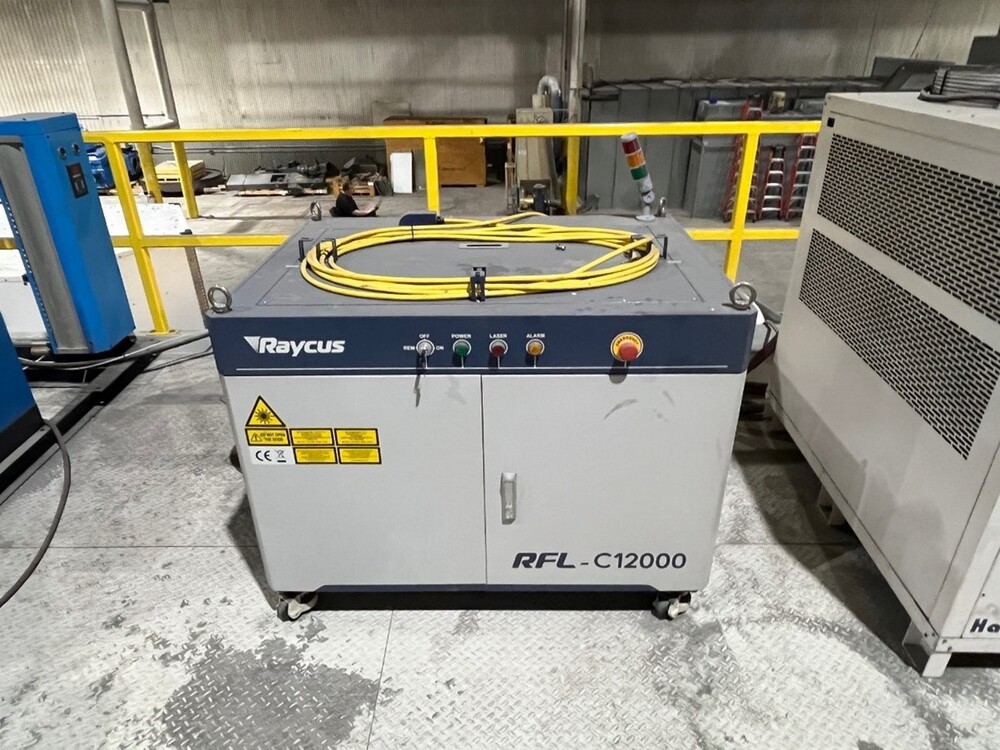

RFL-C12000 Raycus Power Source |
Chiller Unit |
|
Dual Pallet Shuttle Tables |
Dust Collector |
