Year |
2022 |
|---|---|
Make |
Peddinghaus |
Model |
Peddibot-1200 |
Description |
CNC Beam Drill |
Reference # |
8078701 |
Price |
Activate Pricing |

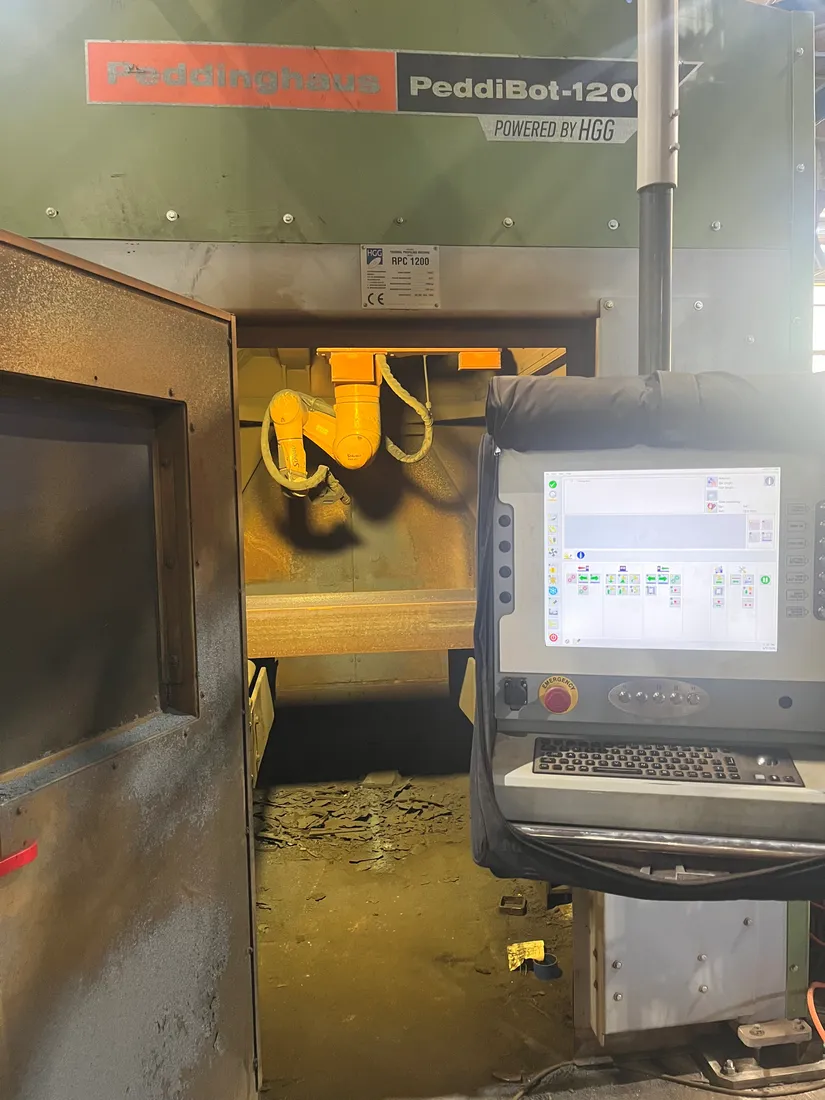

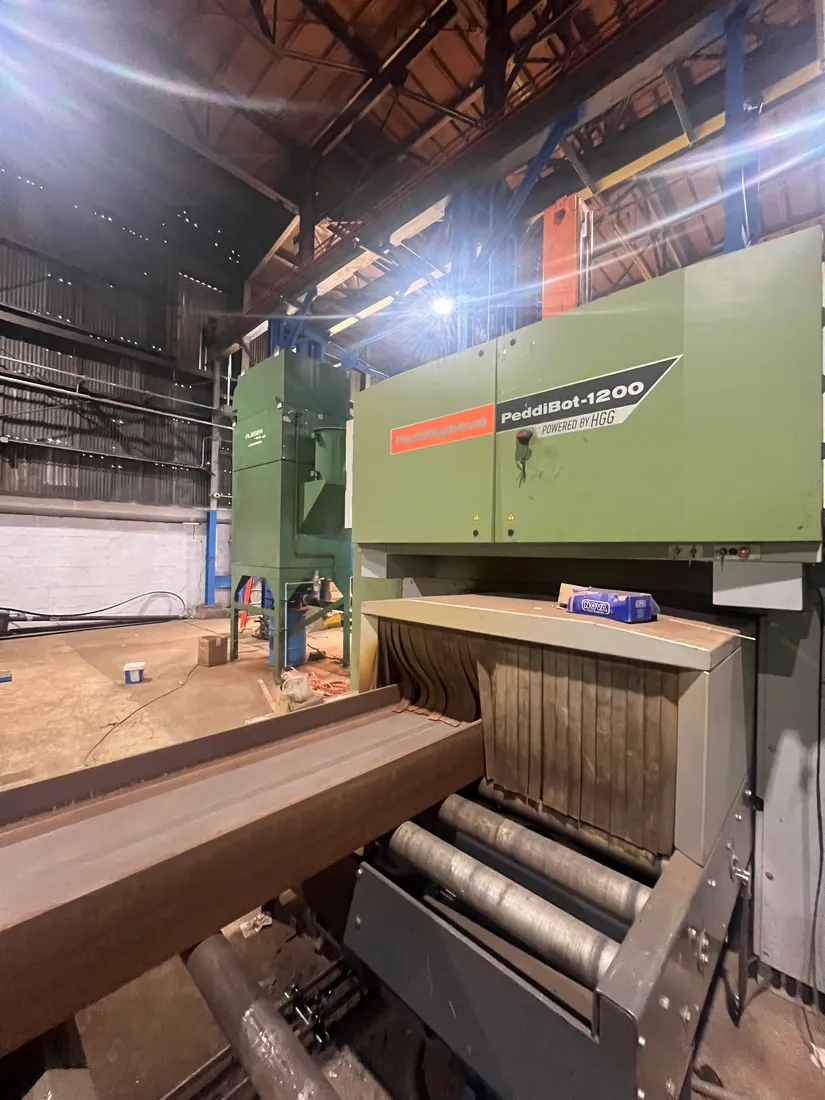

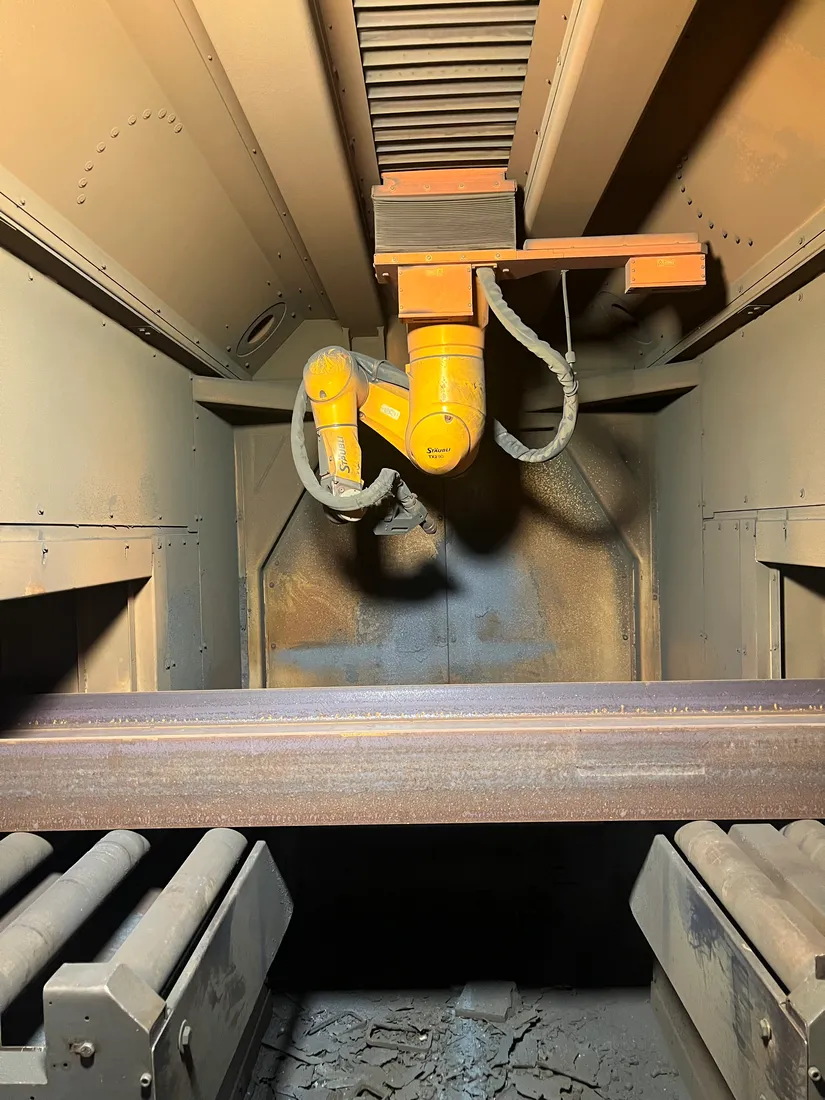

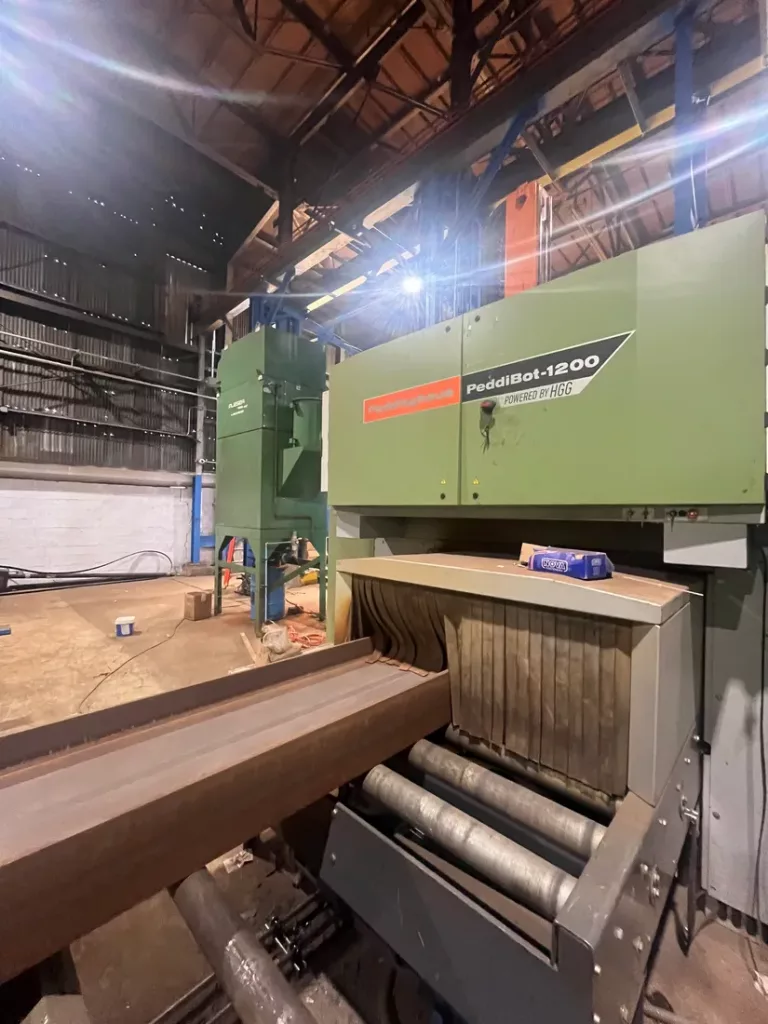

Used Peddinghaus Peddibot-1200 (2022) Beam/Drill Line for Sale. This robotic plasma coping system handles beam, tube, channel and angle, with a 48″ beam capacity and 1-5/8″ plate capacity. It processes material on four sides and includes 4-sided layout marking. The 6-axis robotic arm torch cuts bevels up to 45 degrees, with a maximum edge start thickness of 2″ and maximum piercing thickness of 2″. Plasma processing speed runs 20″/min at 2″ and 70″/min at 1/4″. Equipped with a Kjellberg Smart Focus 400 plasma torch and standard duty roller conveyors, including a 90′ infeed. The machine can be seen under power for an inspection. See more listings in our beam and drill lines category, use Activate Pricing, or Request a Quote for full details.
Specifications
| Beam Capacity |
48" |
|---|---|
| Plate Capacity |
1-5/8" |
| Max Bevel Angle |
45 degree |
| Max Edge Start Thickness |
2" |
| Max Piercing Thickness |
2" |
| Plasma Processing Speed |
20"/min @ 2" -- 70"/min@ 1/4"130' |
| Acceptable Material Types |
Beam, Tube, Channel, Angle |
Features
|
4-Sided Layout Marking |
Material Processing 4 Sides |
|

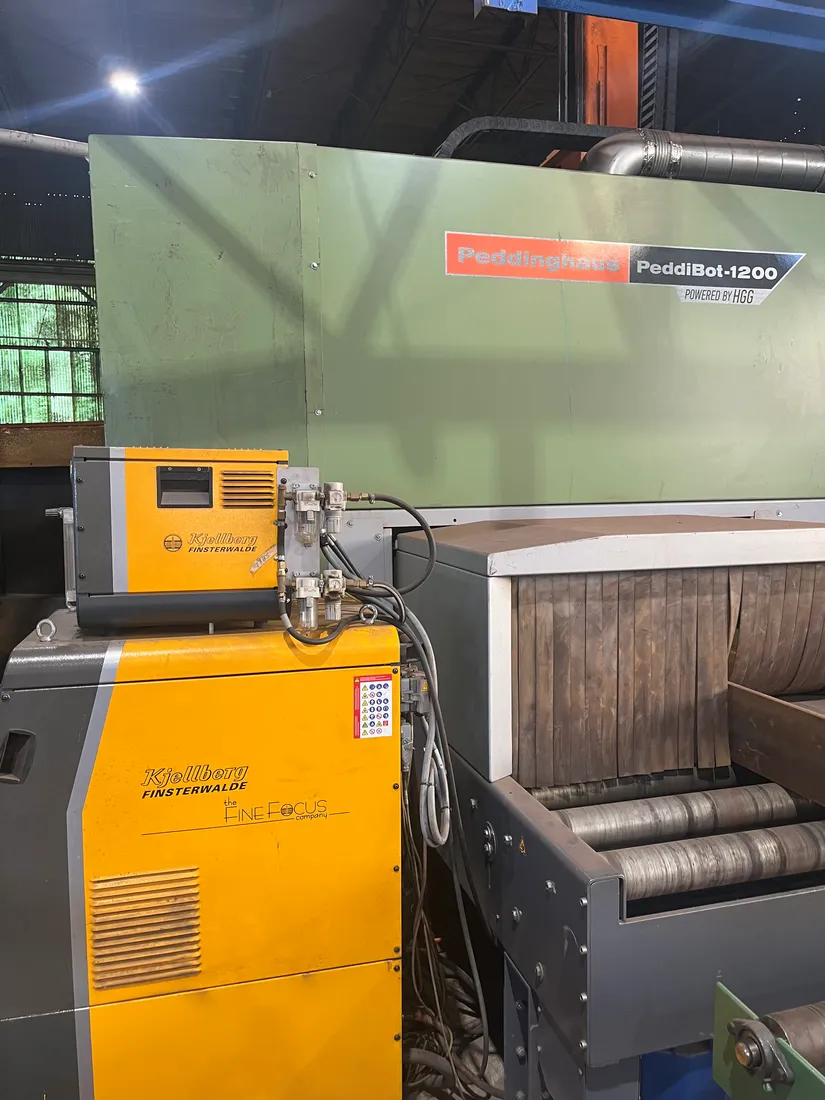

Plasma Torch Kjellberg Smart Focus 400 |
Robotic Arm 6-AxisTorch |
|
Standard Duty Roller Conveyors Included (90' Infeed) |
