Year |
2015 |
|---|---|
Make |
Peddinghaus |
Model |
Peddiwriter PW1250 |
Description |
CNC Plasma Marker |
Reference # |
8071137 |
Price |
Activate Pricing |

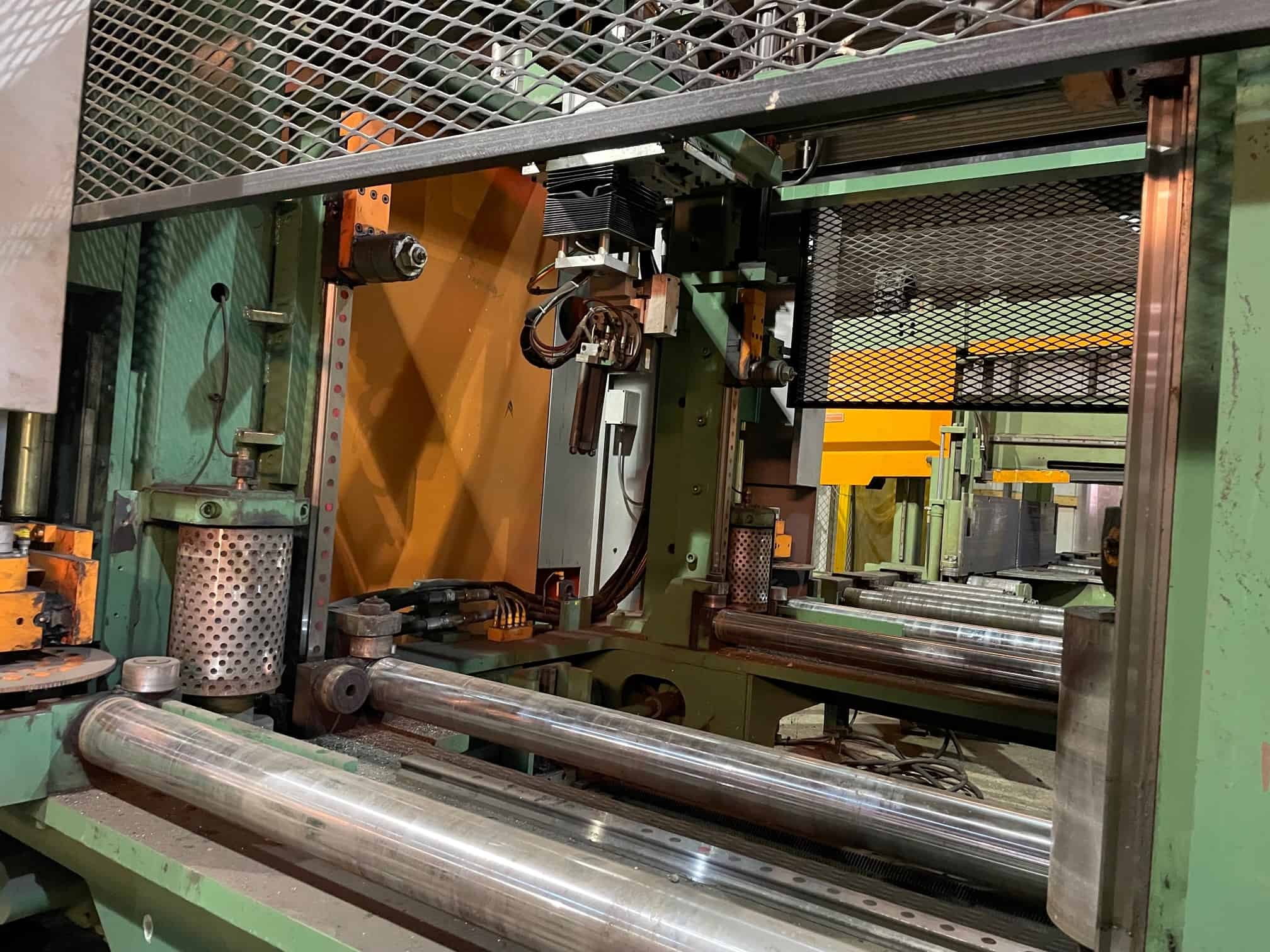

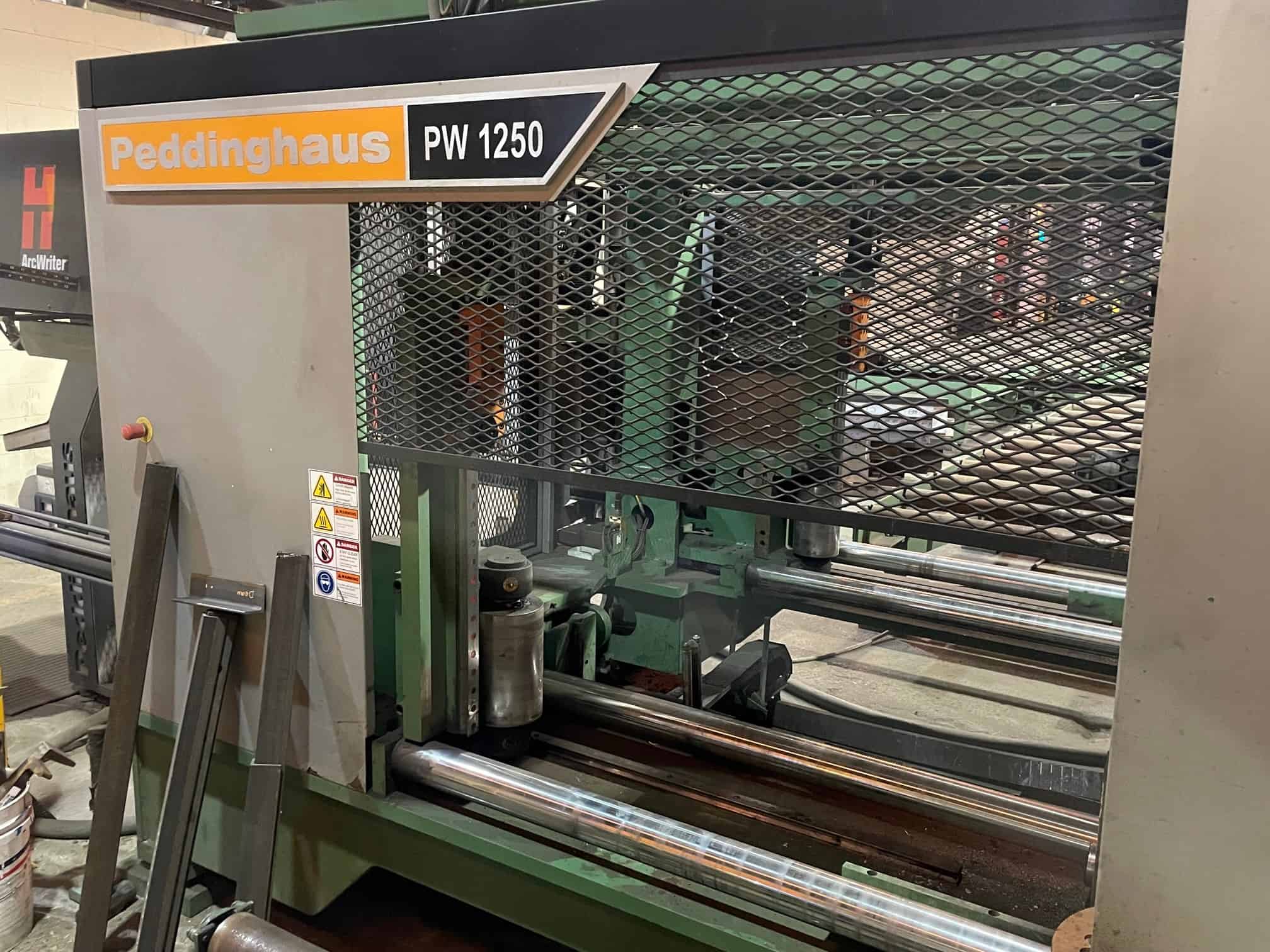

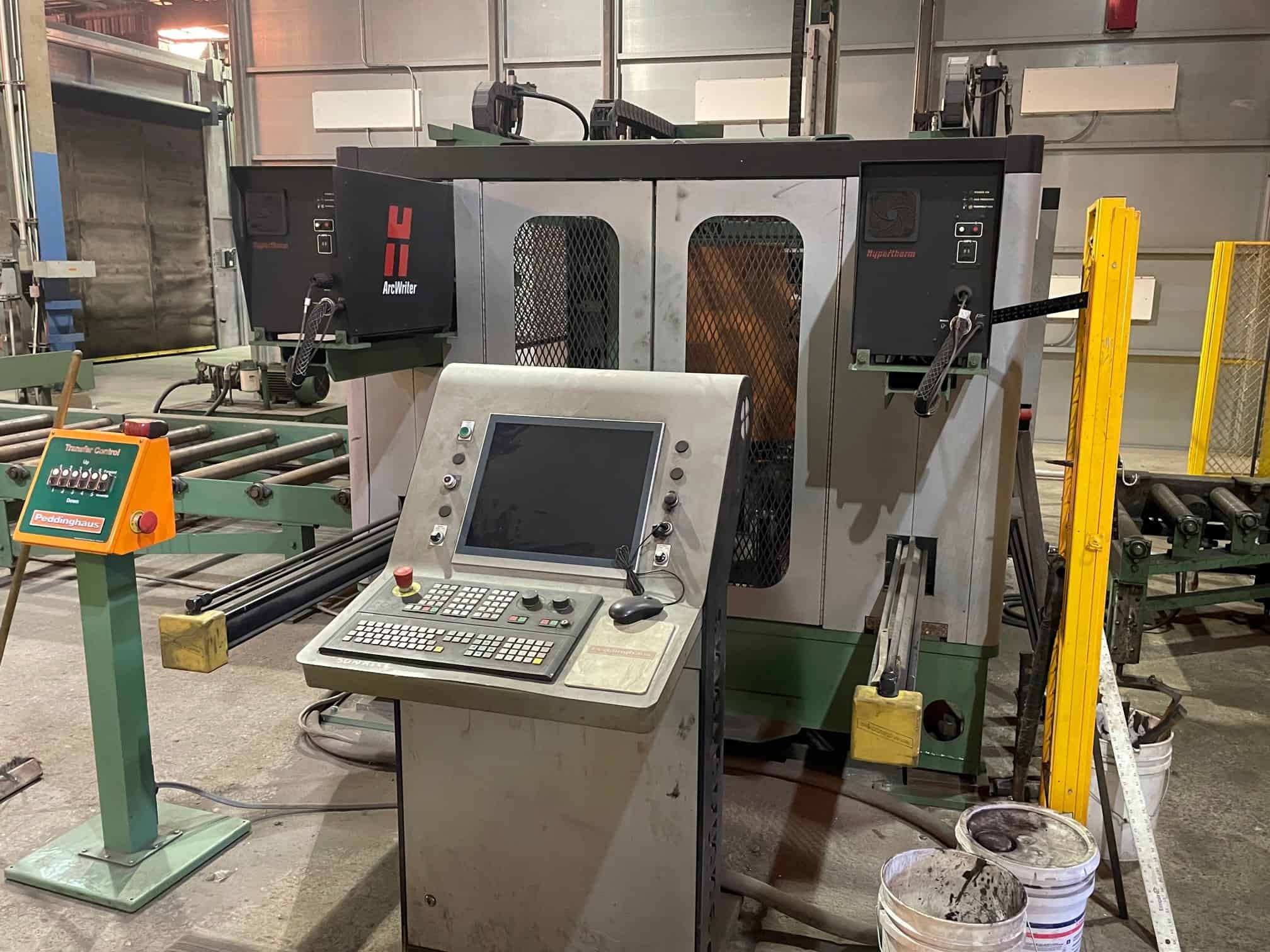

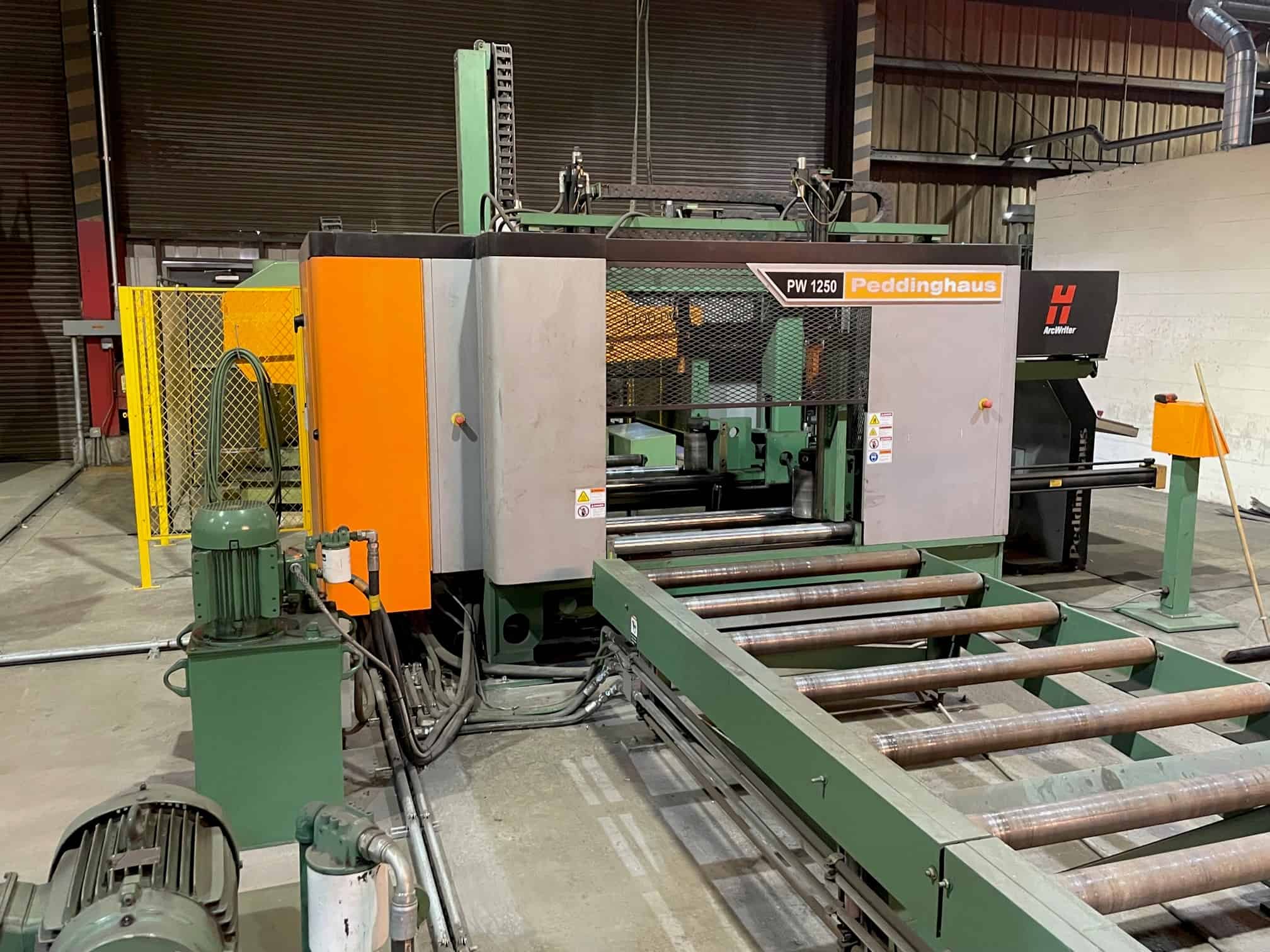

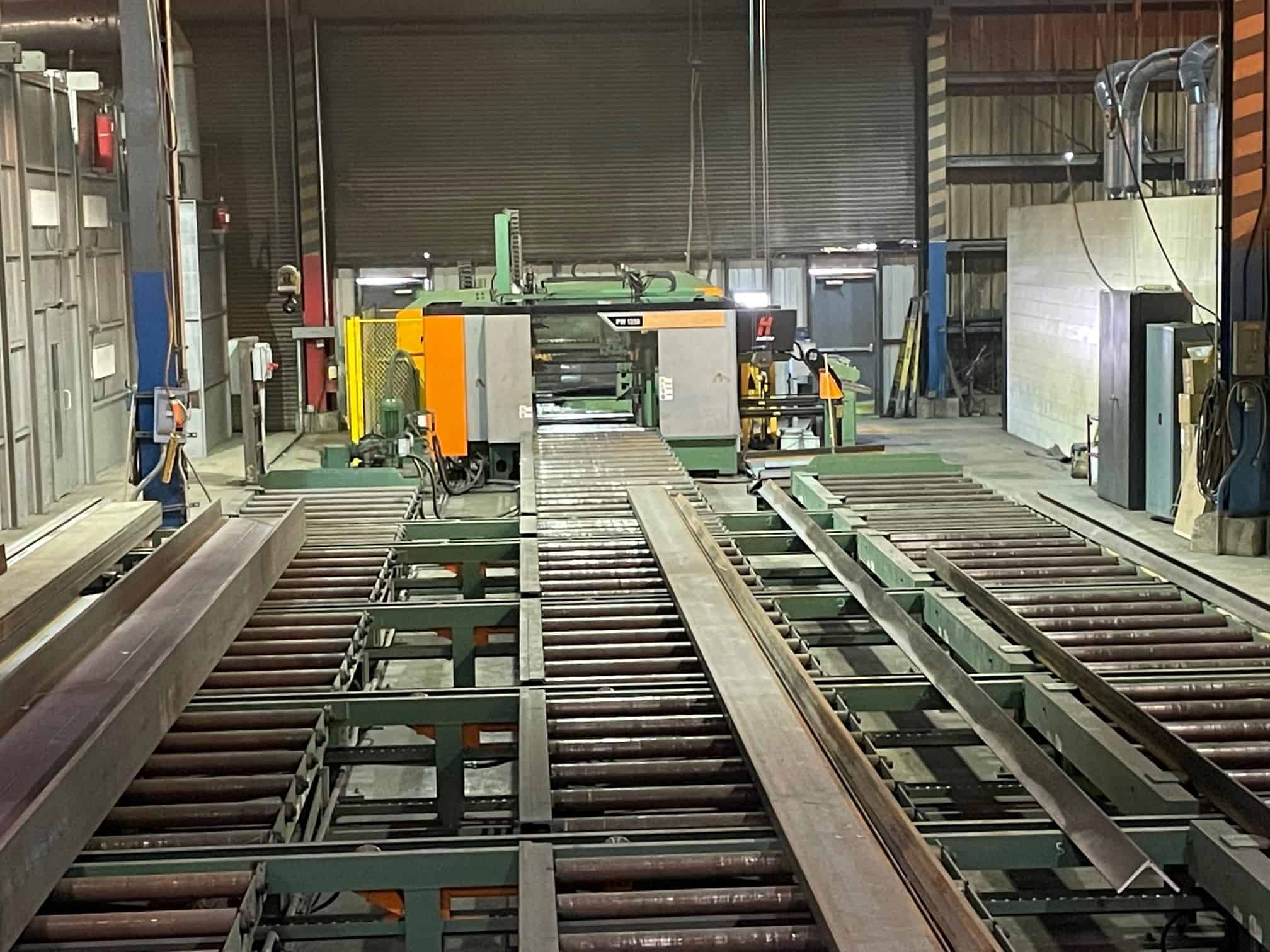

Used Peddinghaus Peddiwriter PW1250 (2015) Beam/Drill Line for Sale. This CNC plasma arc marking system runs a Siemens CNC control and carries (2) Hypertherm ArcWriter torches, marking top and bottom web and flange with 2 surfaces marked simultaneously. Acceptable profiles include beams, channel, square and rectangular tubing, angle and flat stock. Maximum profile dimensions are 55″ x 24″ for beam and channel, 24″ x 16″ for tube, 12″ x 12″ for angle and 50″ x 4″ for flat, with a maximum profile weight of 43,800 lbs. Machine weight is 13,650 lbs. Equipped with Raptor Software and entry and exit conveyor. The machine can be seen under power for an inspection. See more used beam/drill lines, Activate Pricing, or Request a Quote.
Specifications
| Type of Marking |
Plasma ArcWriting |
|---|---|
| Number of Marking Assemblies |
(2) Hypertherm ArcWriter Torches |
| Surfaces That Can Be Marked |
Top/Bottom Web & Flange |
| Surfaces Marked Simultaneously |
2 Surfaces |
| Max Profile Dimensions (Beam, Channel) |
55" x 24" |
| Max Profile Dimensions (Tube) |
24" x 16" |
| Max Profile Dimensions (Angle) |
12" x 12" |
| Max Profile Dimensions (Flat) |
50" x 4" |
| Max Profile Dimensions (Beam, Angle) |
3" x 3" |
| Max Profile Dimensions (Tube, Channel) |
2" x 2" |
| Acceptable Profiles |
Beams, Channel, Square/Rectangular, Tubing, Angle, Flat Stock |
| Control |
Siemens CNC |
| Max Profile Weight |
43,800 Lbs |
| Machine Weight |
13,650 Lbs |
Features
|
Raptor Software |
Entry & Exit Conveyor |
