Year |
2008 |
|---|---|
Make |
Ficep |
Model |
1101DX |
Description |
Drill Line |
Reference # |
8077919 |
Price |
Activate Pricing |

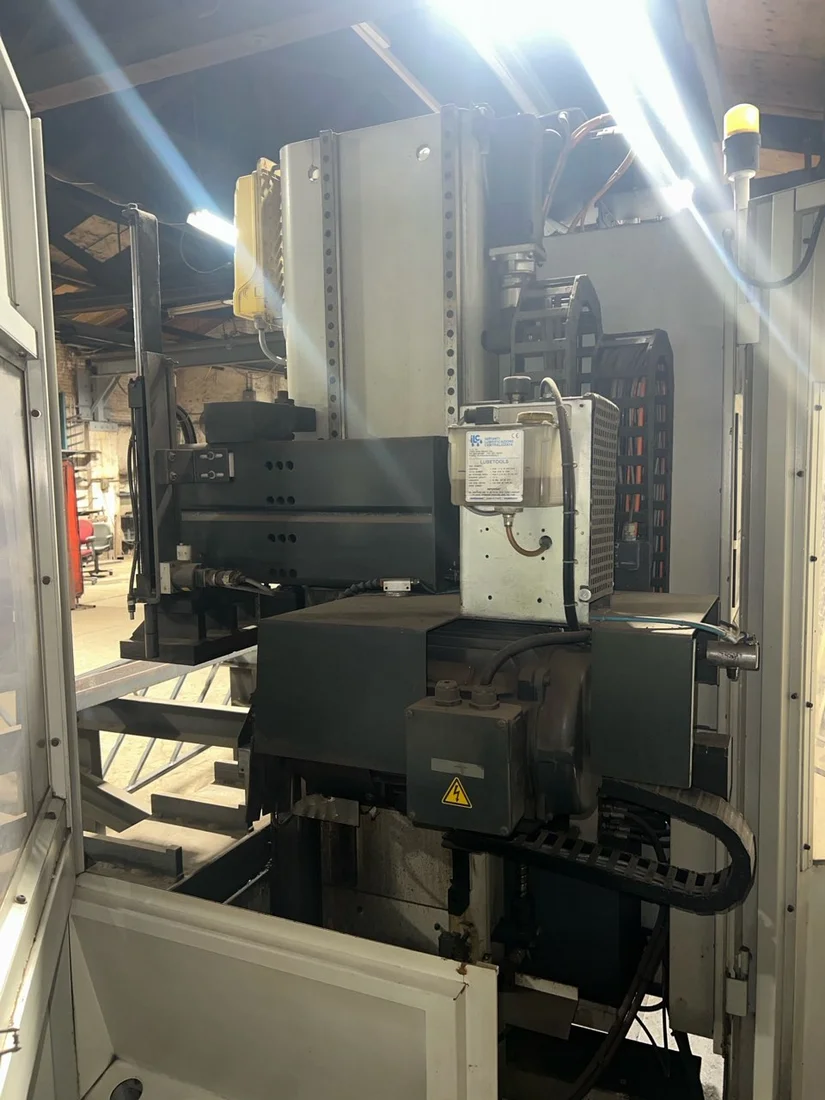

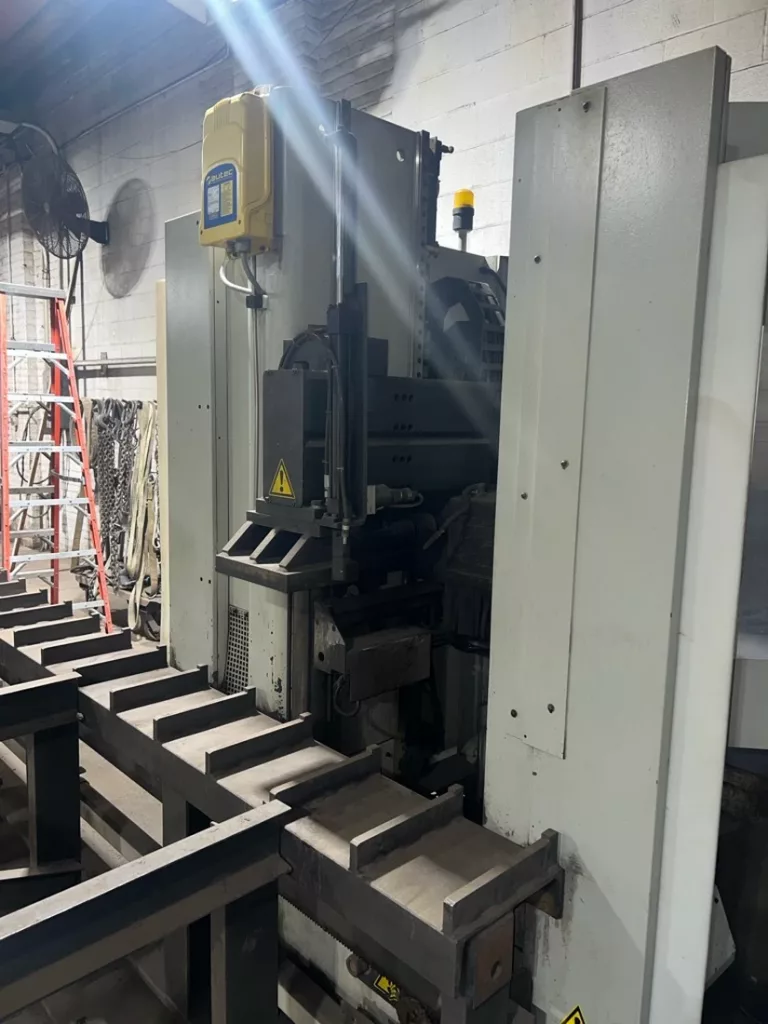

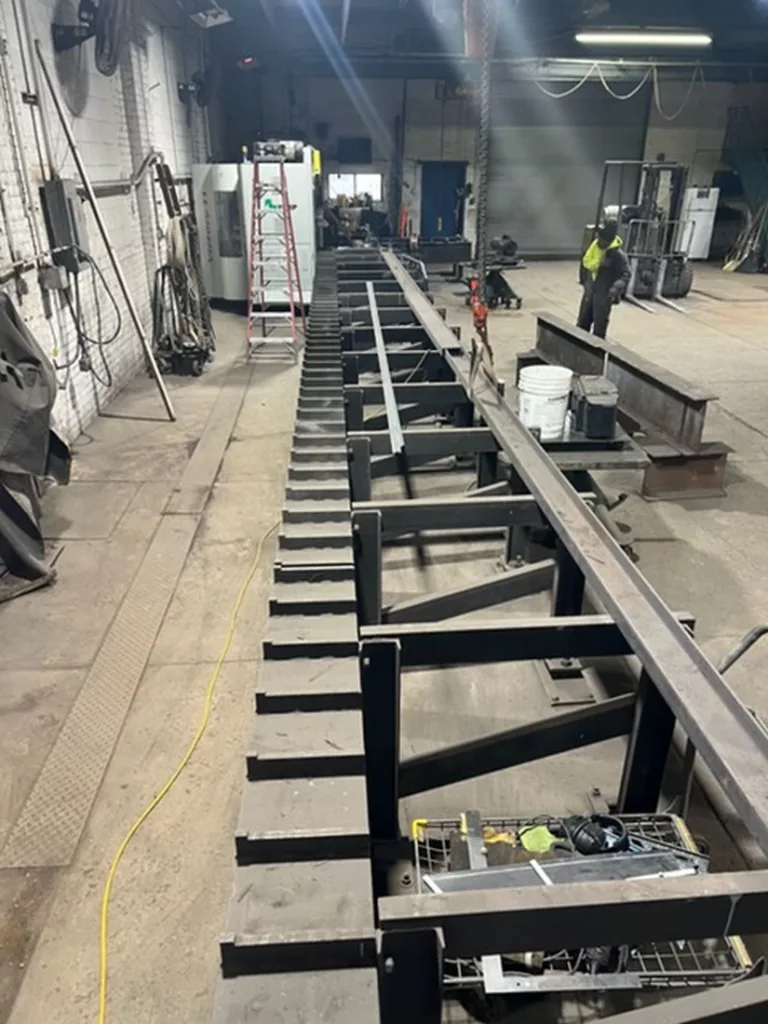

Used Ficep 1101DX (2008) Beam/Drill Line for Sale. This CNC beam drill line is configured with a single drill head carrying one spindle, with drilling capacity to 1-11/16″ diameter and a 12″ spindle stroke. Maximum beam size is 44″, and the head is driven by a 7.5 HP AC motor with programmable spindle speed to 1,000 RPM. Overall machine length is 46′, giving 40′ of actual processing capability. The 1101DX is suited to structural steel fabrication where single-spindle vertical drilling on wide sections is required. The machine can be seen under power for an inspection so you can verify operation and control functions before committing. For availability and further details on this Ficep 1101DX, Request a Quote and we will follow up promptly.
Specifications
| Number of Drill Heads |
1 |
|---|---|
| Spindles per Vertical Drill Head |
1 |
| Drilling Diameter |
1-11/16" |
| Maximum Beam Size |
44" |
| Spindle Stroke |
12" |
| Power per Head (AC) |
7.5 HP |
| Programmable Spindle Speed |
1,000 RPM |
| Machine Length |
46' Length with 40' Actual Processing Capability |
