Year |
2011 |
|---|---|
Make |
Burlington Automation |
Model |
Python X |
Description |
Robotic Beam Coping Machine |
Reference # |
8078358 |
Price |
Activate Pricing |

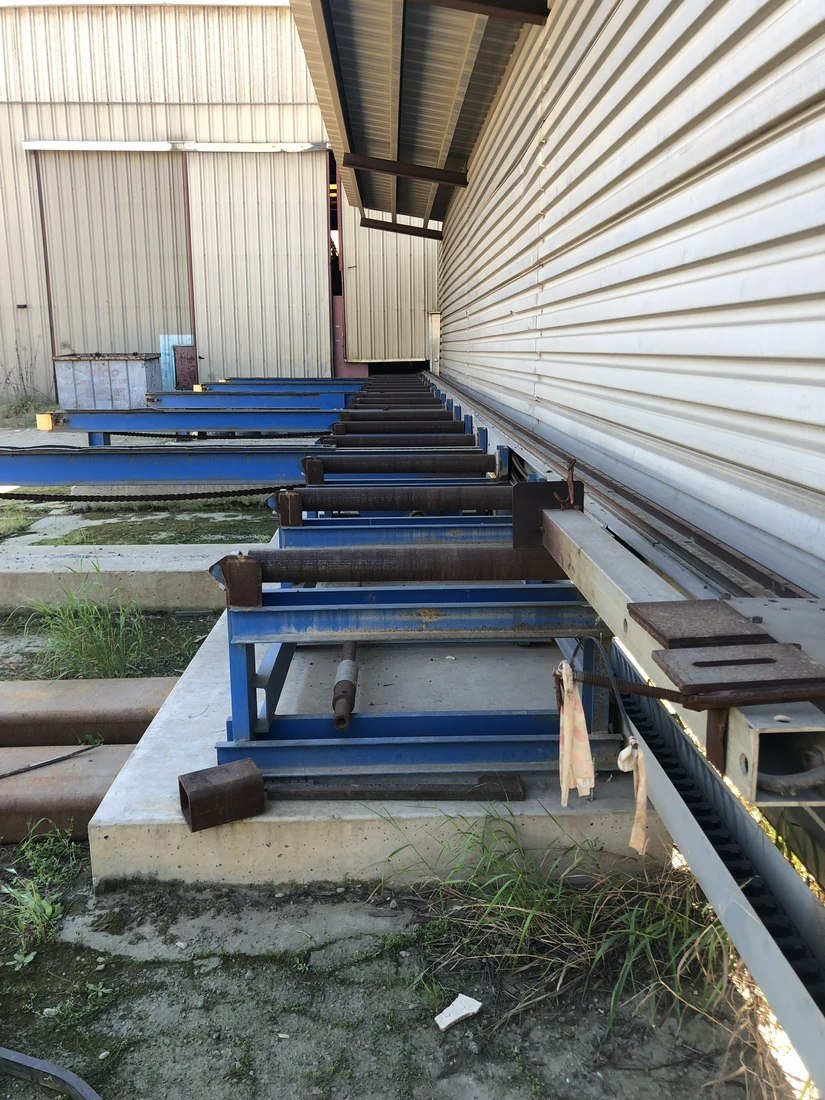

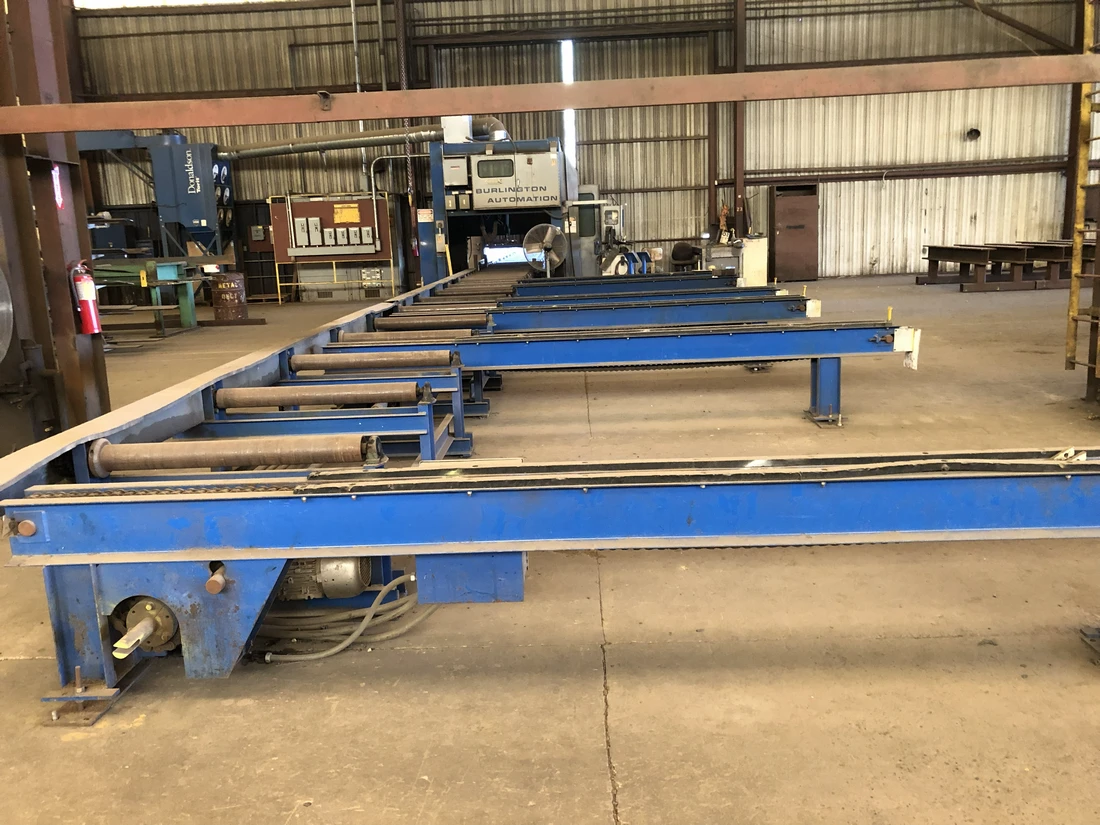

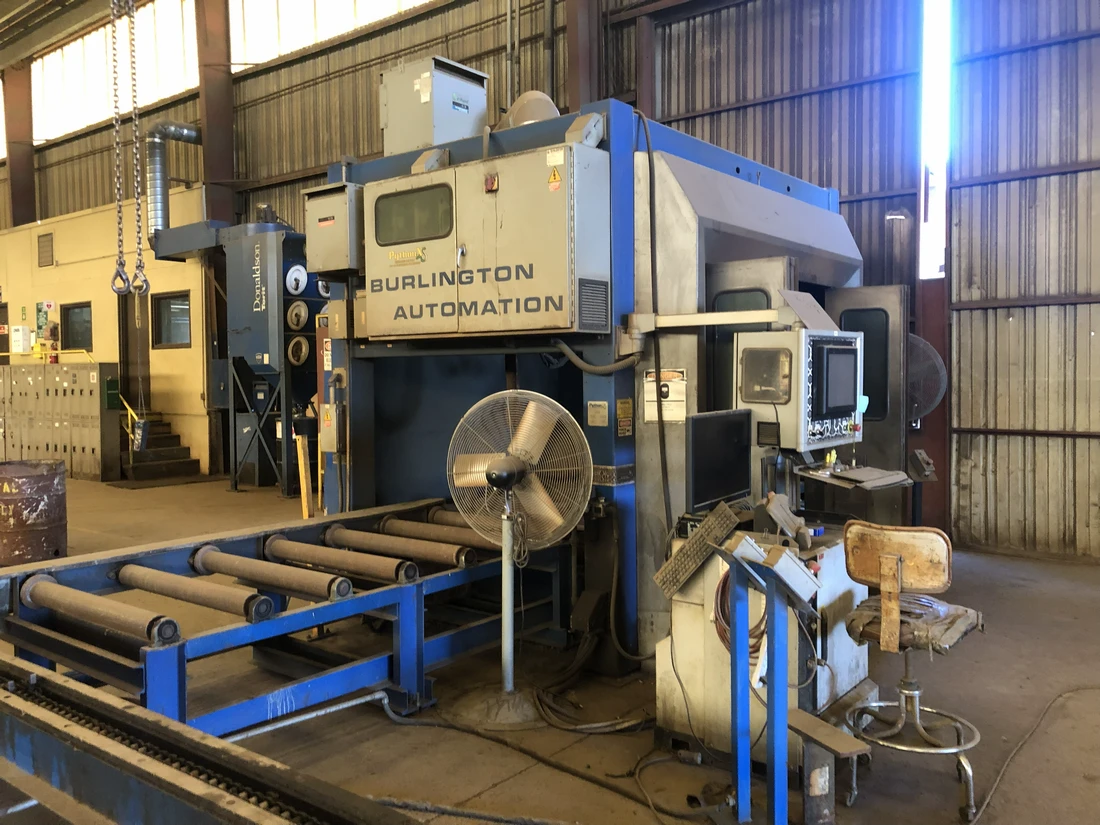

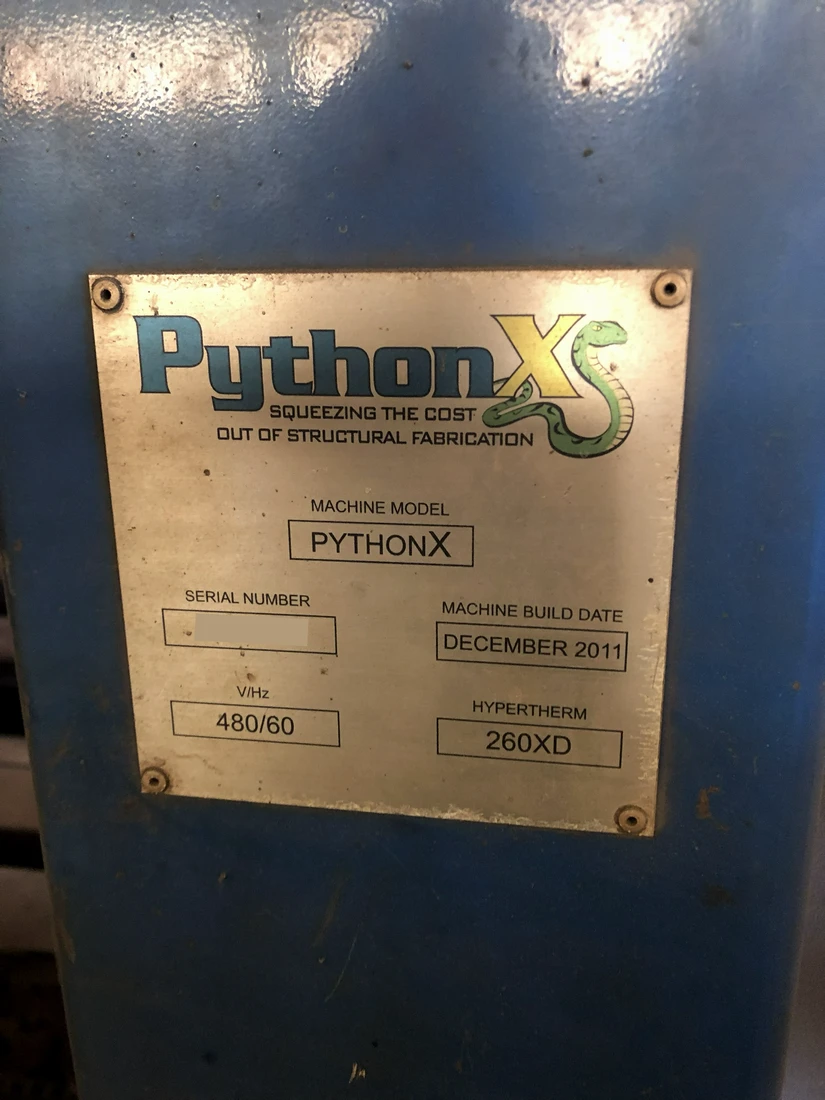

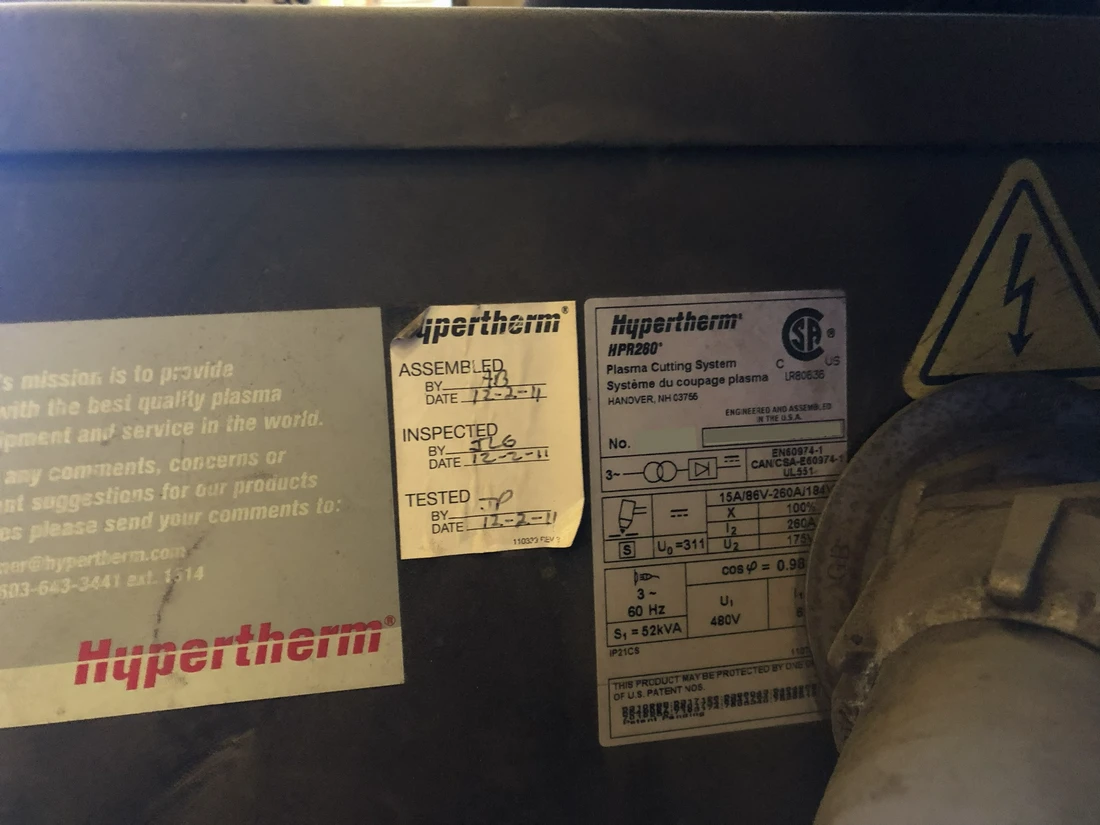

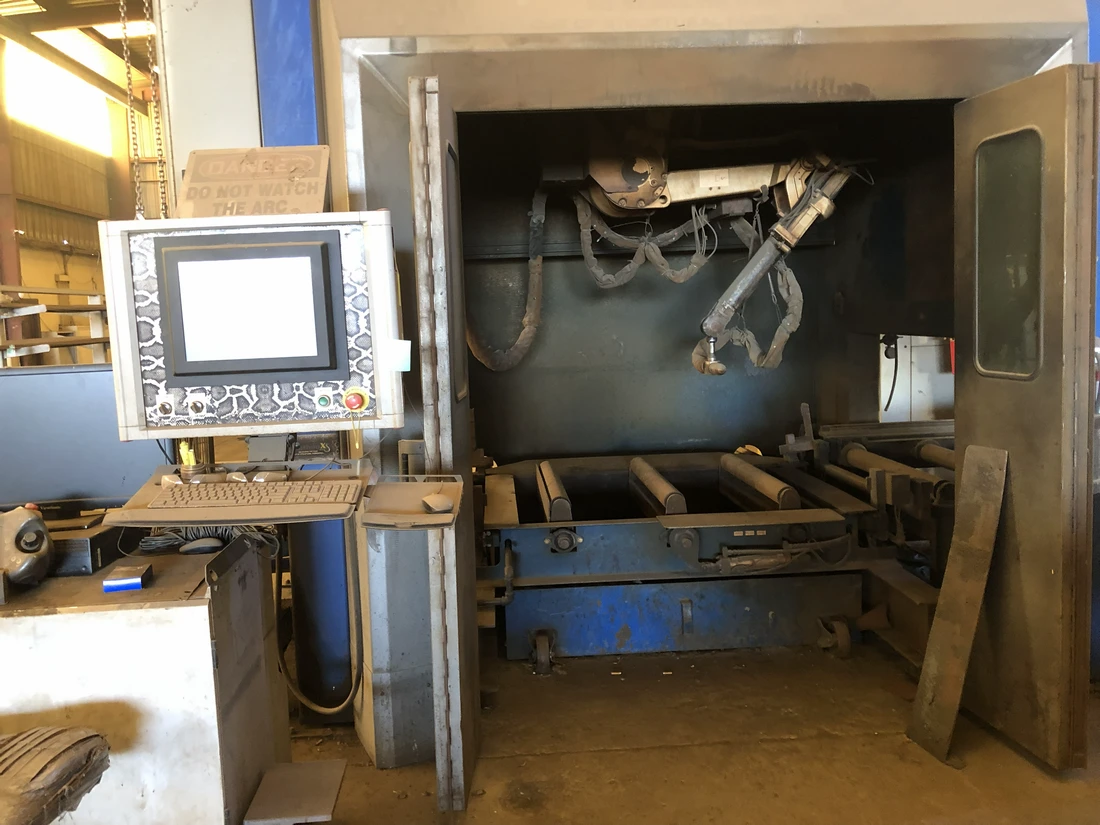

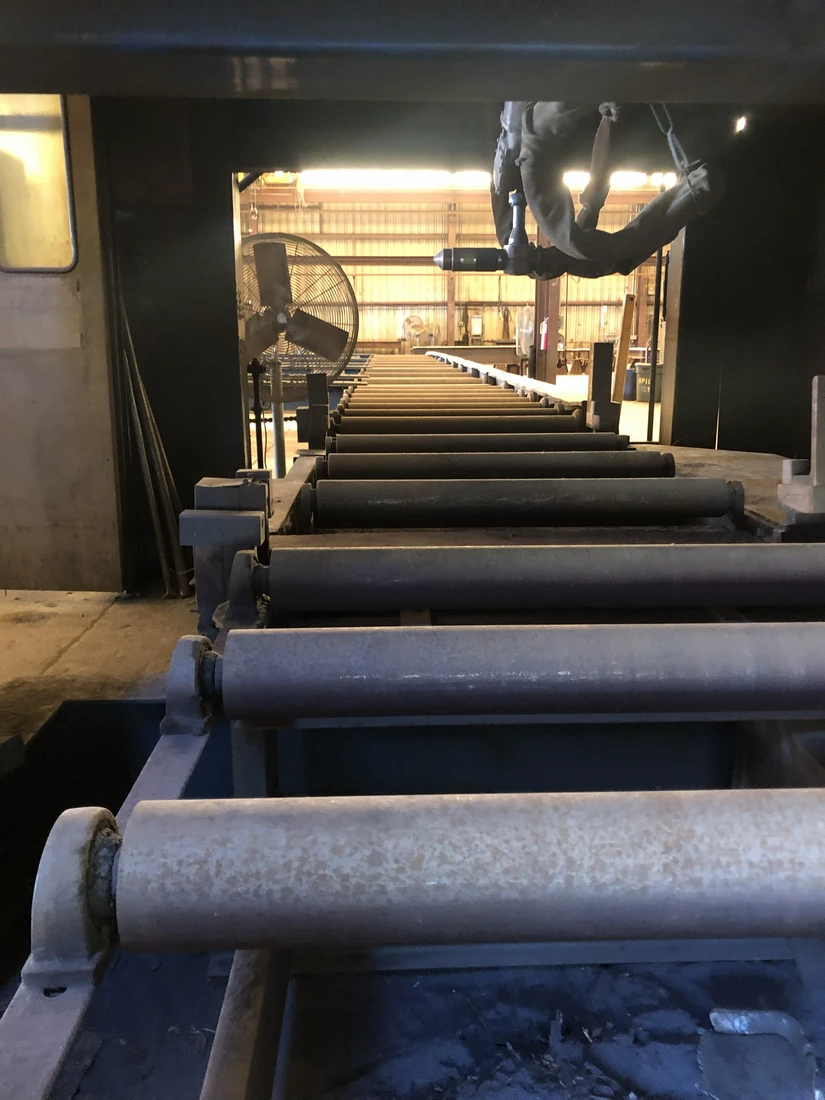

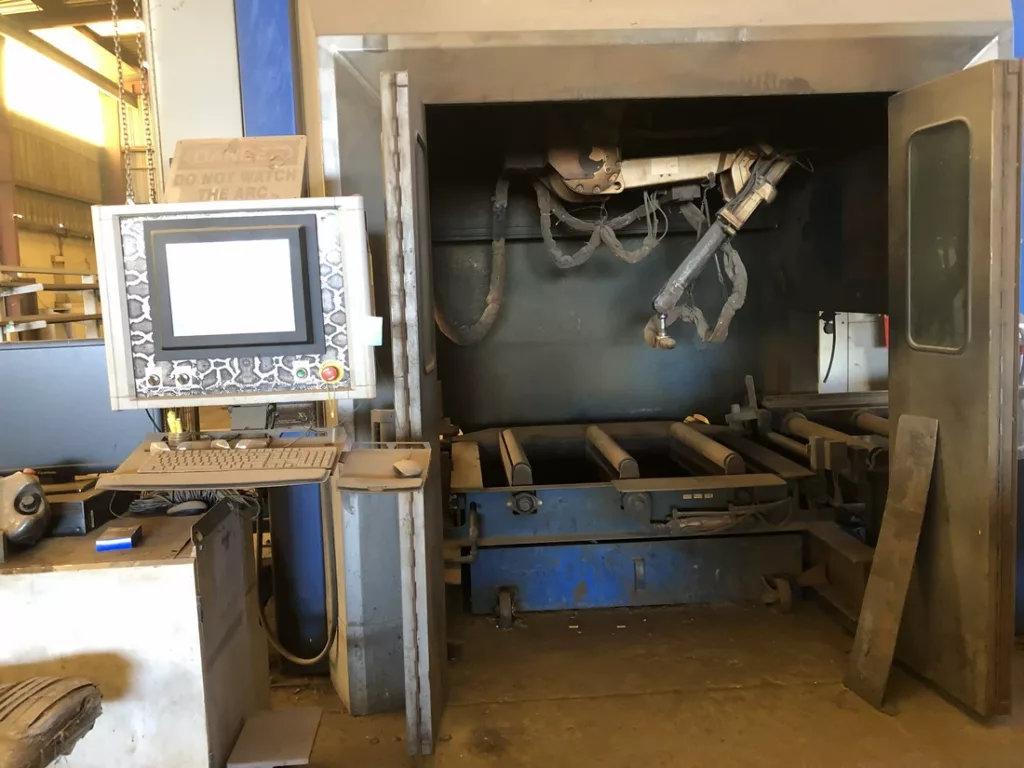

Used Burlington Automation Python X (2011) Beam/Drill Line for Sale. This structural plasma processing line runs on a Hypertherm 260XD power source rated at 260 amps, with a 7.5 HP motor and travel speed of 170 FPM. Profile capacity runs 4″ to 36″ wide and 4″ to 6″ high, with channel from 3″ to 36″ wide and 1.25″ to 4″ high, and angle from 3″ x 3″ up to 8″ x 8″. KSS tube capacity is 2″ x 2″ minimum to 24″ x 16″ maximum, and strip processing covers 4″ to 36″ widths at 0.25″ to 1.25″ thickness. Material length is 40′, served by 68′ of in-feed and 46′ of out-feed conveyors. Equipped with a Donaldson Torit DF0 3-6 dust collector and KSS tube attachment. Power requirement is 480V/60Hz. The machine can be seen under power for an inspection. Request a Quote for further details.
Specifications
| Min/Max Profile Width |
4" / 36" |
|---|---|
| Min/Max Profile Height |
4" / 6" |

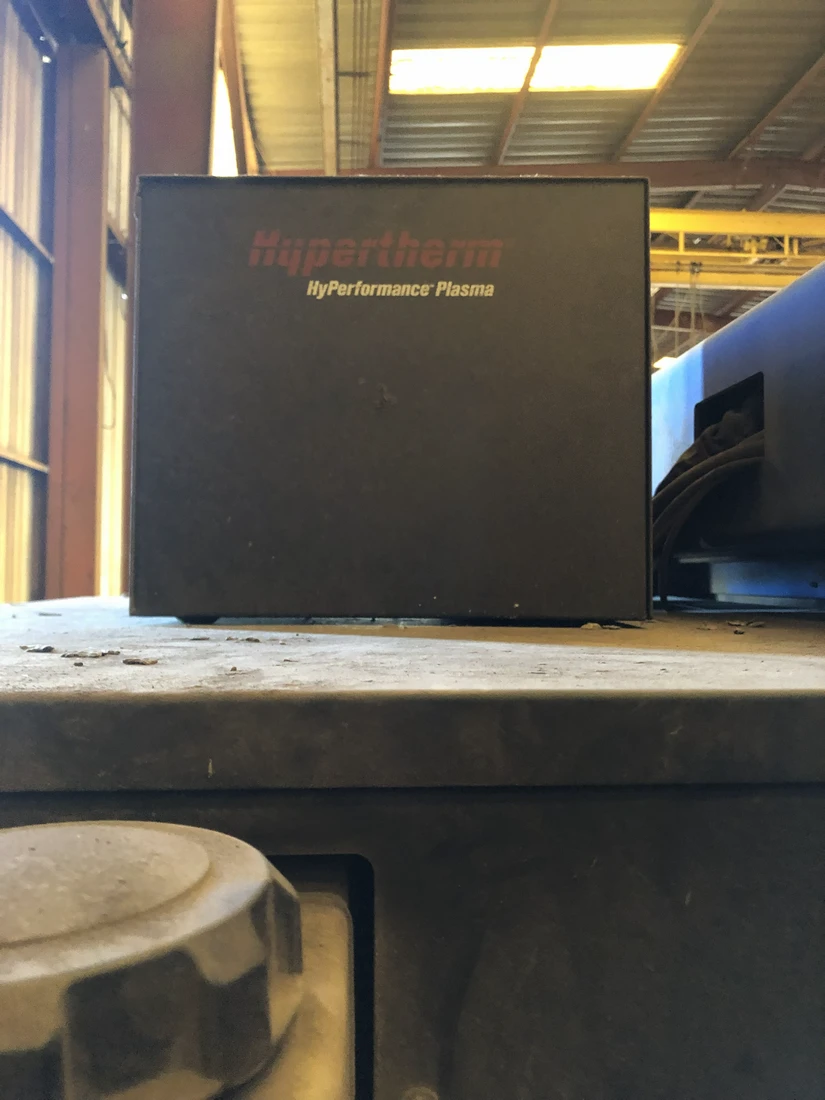

| Power Source |
Hypertherm 260XD |
| Amps |
260 |
| Min. KSS Tube Capacity |
2" x 2" |
| Max. KSS Tube Capacity |
24" x 16" |
| Channel Width |
3" - 36" |
| Channel Height |
1.25" - 4" |
| Min. Angle Capacity |
3" x 3" |
| Max. Angle Capacity |
8" x 8" |
| Strip Processing Width |
4" - 36" |
| Strip Processing Thickness |
0.25" - 1.25" |
| Material Length |
40' |
| Travel Speed |
170 FPM |
| Motor |
7.5 HP |
| In-feed Conveyors |
68' |
| Out-Feed Conveyors |
46' |
| Power Requirement |
480V/60Hz |
Features
|

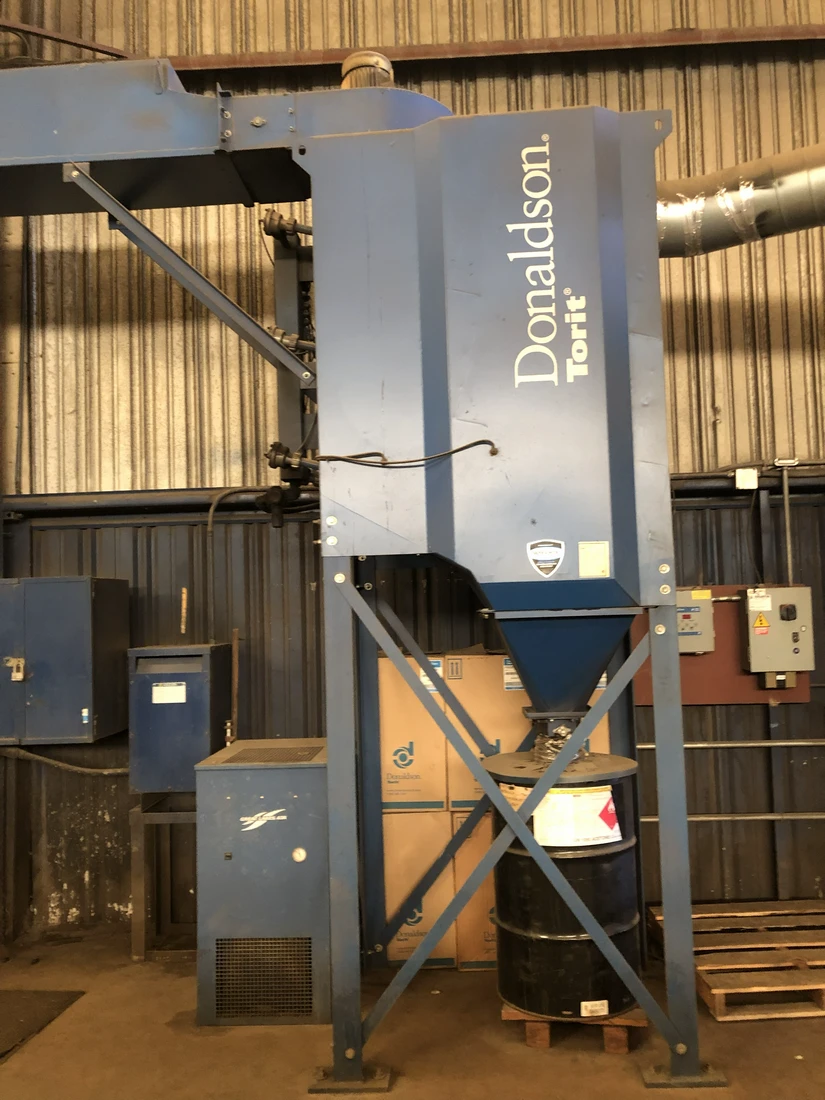

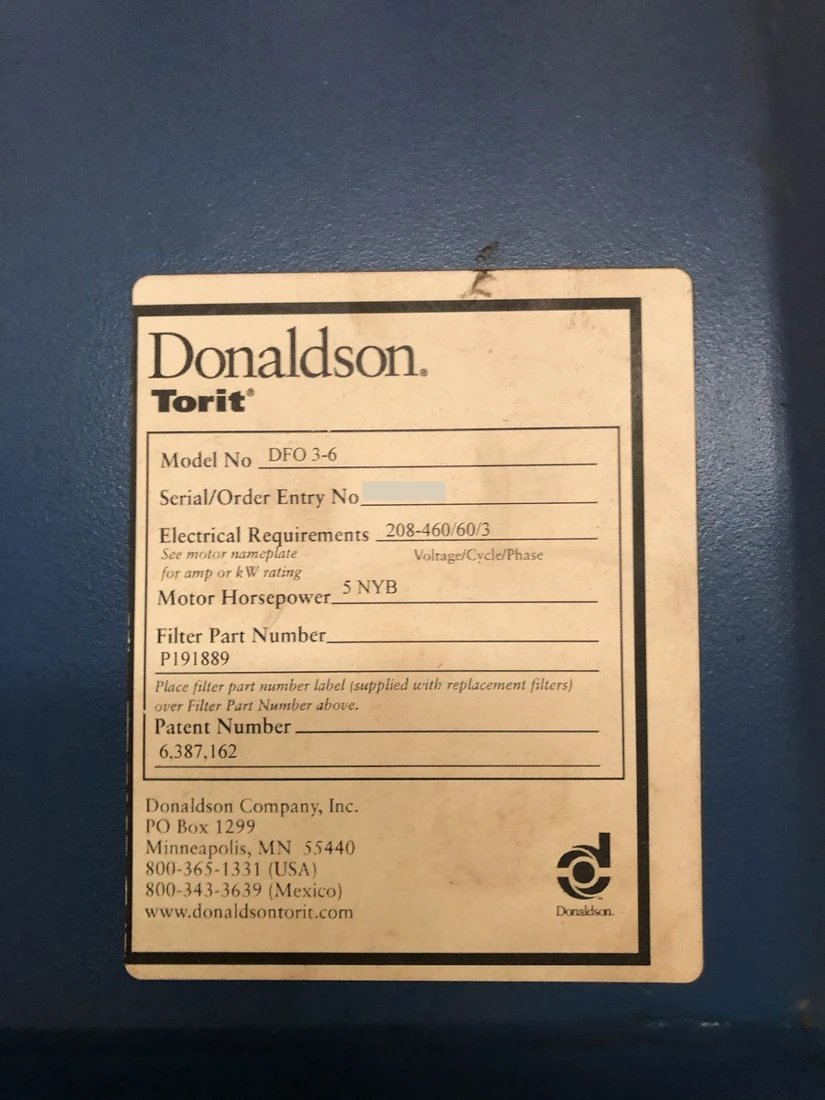

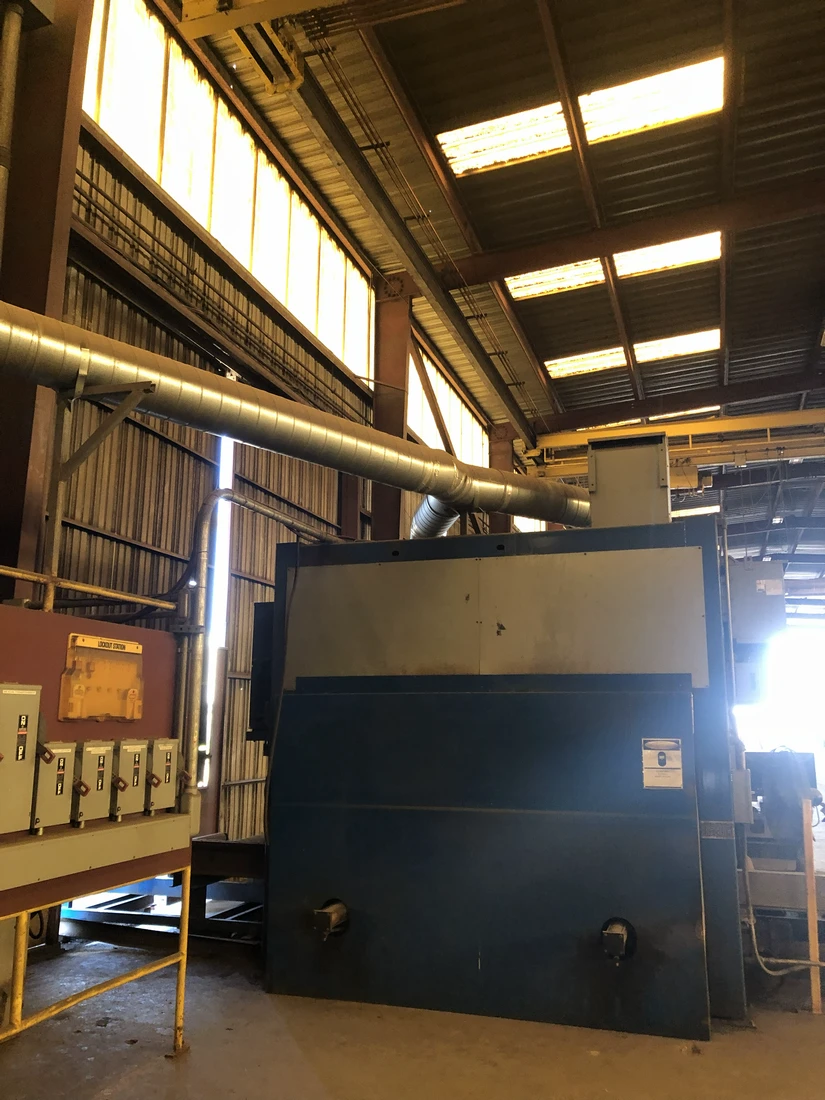

Dust Collector Donaldson Torit DF0 3-6 |
KSS Tube |
