Year |
2022 |
|---|---|
Make |
Makino |
Model |
A61NX |
Description |
CNC Horizontal Machining Center |
Reference # |
8079160 |
Price |
Activate Pricing |

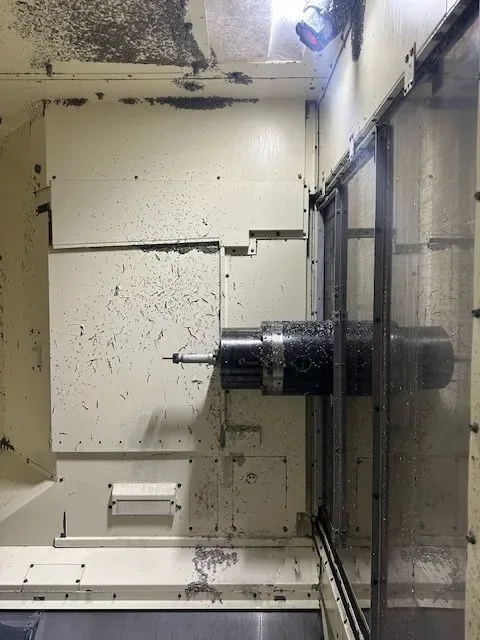

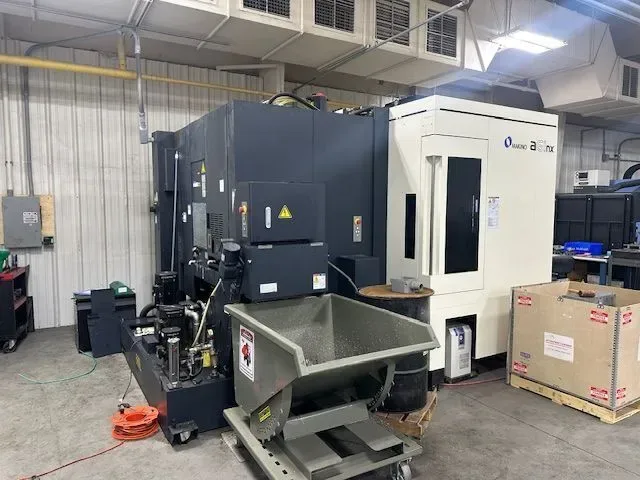

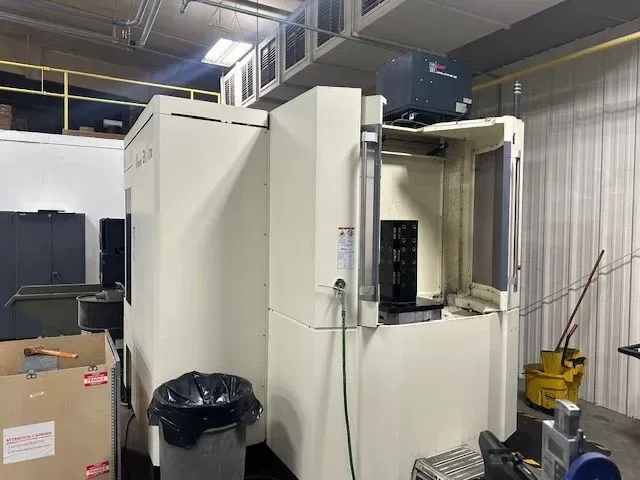

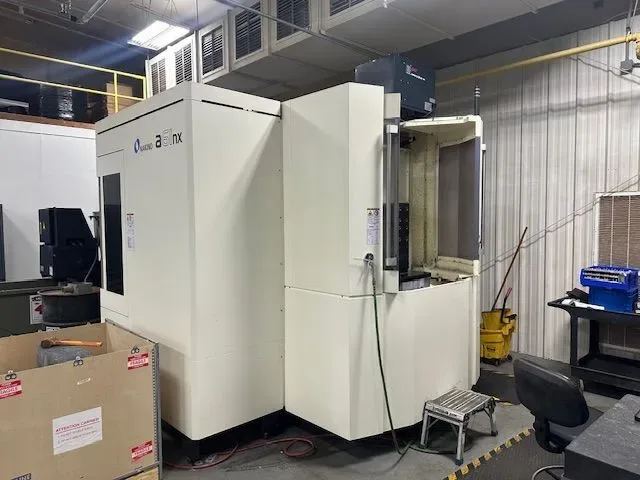

Used Makino A61NX (2022) CNC Horizontal Machining Center for Sale. This twin-pallet machine has 19.7″ x 19.7″ pallets with direct drive DD motor table indexing, a full 4th axis N/C rotary table at .0001 resolution, and travels of 28.7″ X, 25.6″ Y and 31.5″ Z. The 14,000 RPM spindle uses a BIG PLUS 40 CT taper, driven by a 49.6 HP main motor, with 300 PSI coolant through spindle and overhead shower coolant. The 60-position ATC changes tool to tool in 0.9 sec., handling tools to 20″ long and 26.4 lb. Table load capacity is 1,200 lb. Control is a FANUC 310i B with Pro 6. Listed among our used CNC horizontal machining centers and used Makino machines, it can be seen under power for an inspection. Activate Pricing or use the Inquire Now button.
Specifications
| Pallet Size (Millimeters) |
500 |
|---|---|
| Pallet Size |
19.7" x 19.7" |
| X-Axis Travel |
28.7" |
| Y-Axis Travel |
25.6" |
| Z-Axis Travel |
31.5" |

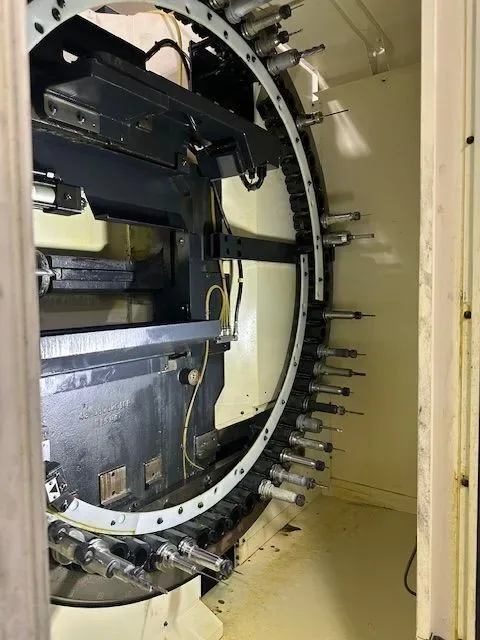

| Tool Magazine Capacity |
60 ATC |
| Spindle Speed |
14,000 RPM |
| Spindle Taper |
CAT 40 |

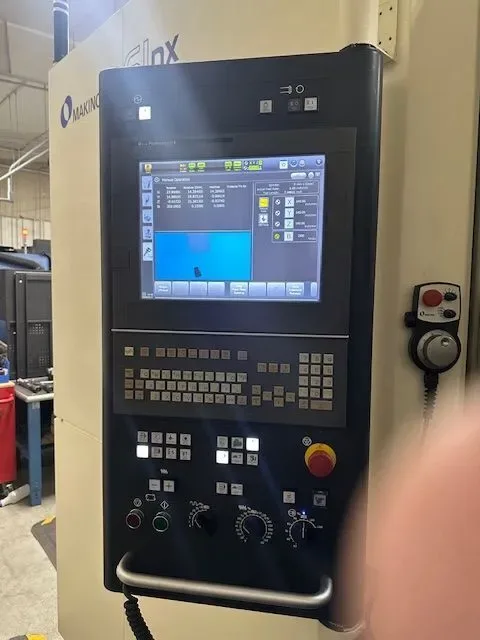

| Control |
Makino Pro 6 Control |
| Pallet Indexing |
Full 4th Axis |
| Chip Removal |
Chip Conveyor |
| Coolant |

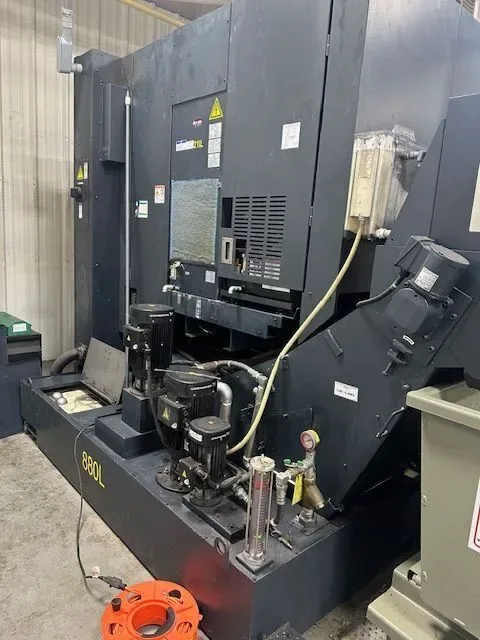

Shower Coolant, 300 PSI Through Spindle Coolant |
| Main Motor |
49.6 HP |
Features
|

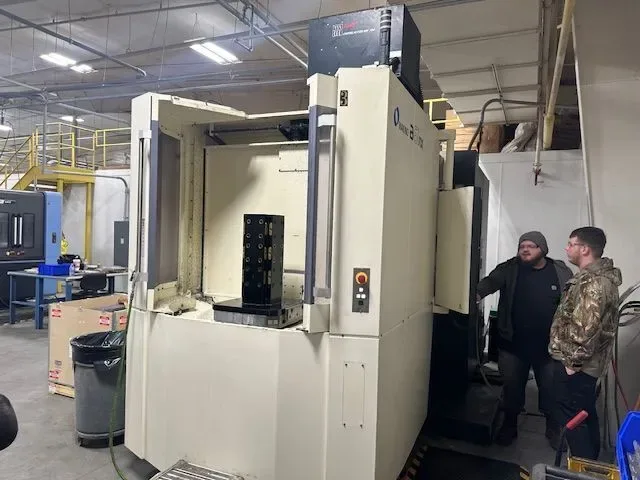

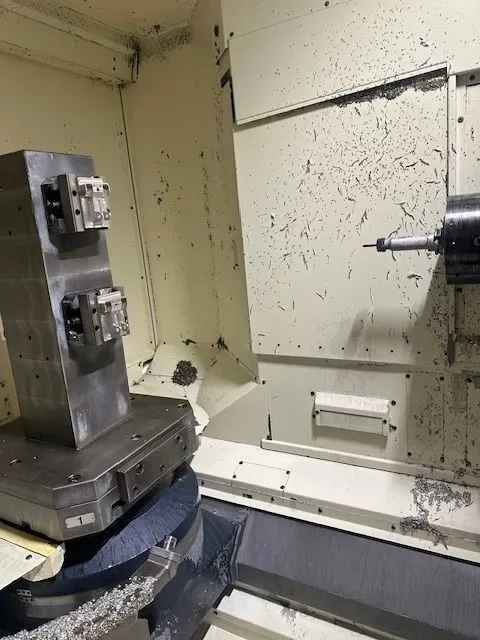

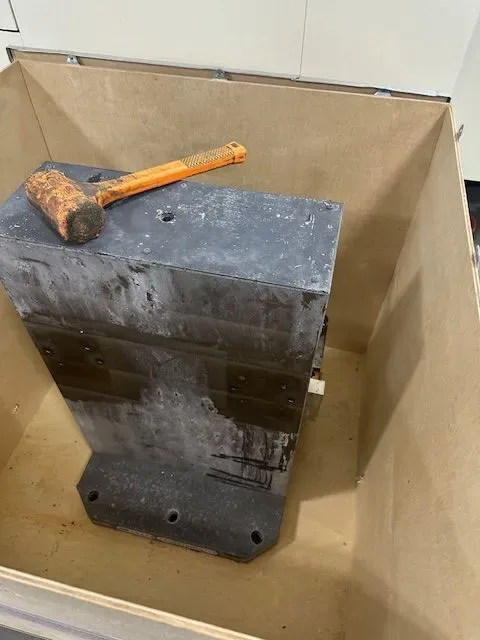

(1) Spare Pallet And 2 Sided Tombstone |
3 Point Level System |
|
3GB Program Storage |
4 MB Data Center |
|
54 Pairs Work Coordinates |

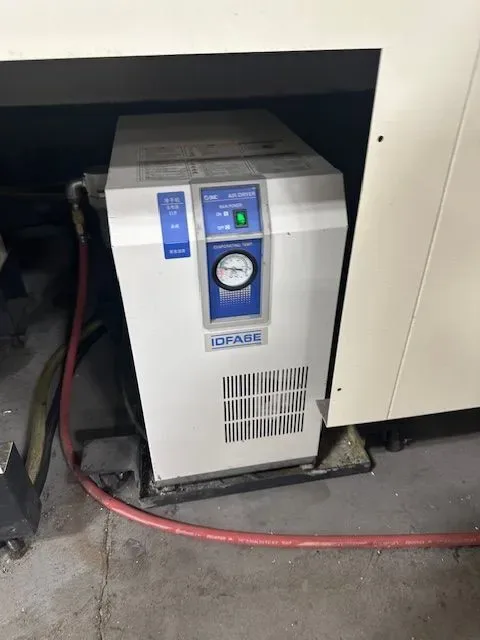

Air Dryer System IDFA6E |
|
BTSOMA Broken Tool Sensor ATC |
Climate Controlled Machining Area |
|
Hi Speed Skip |
Marposs Tool Length Measurement Laser System |
|
Pro 6 Control |
Renishaw OMP 600 Part Probe System |
|
Spindle Table Crash Avoidance |
400 Pairs Tool Offsets |
|
Ball Screw Core Cooling |
GI Control |
