Year |
2021 |
|---|---|
Make |
Haitian |
Model |
ZEIII 4500/3350 |
Description |
506 Ton 59.68 oz Shot Size Electric Injection Molding Machine |
Reference # |
8076994 |
Price |
Activate Pricing |

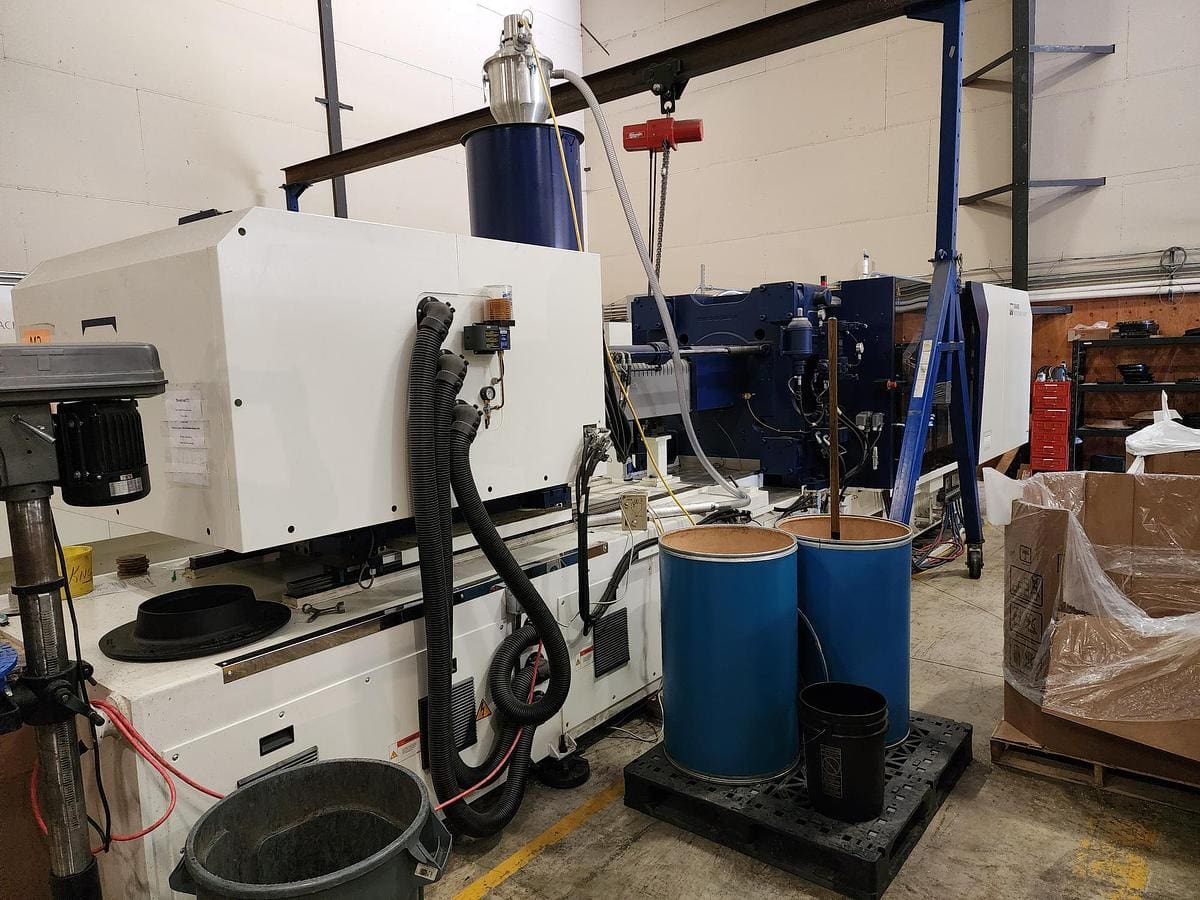

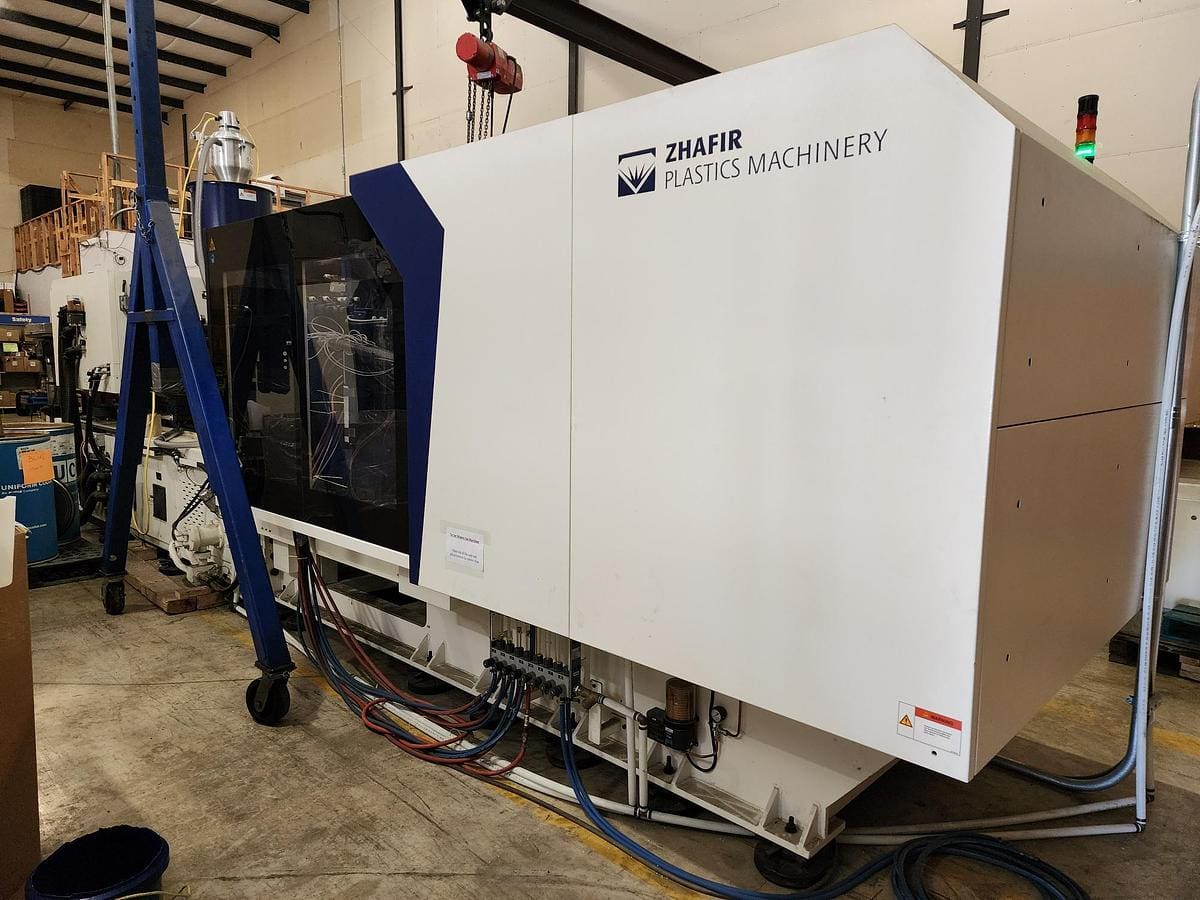

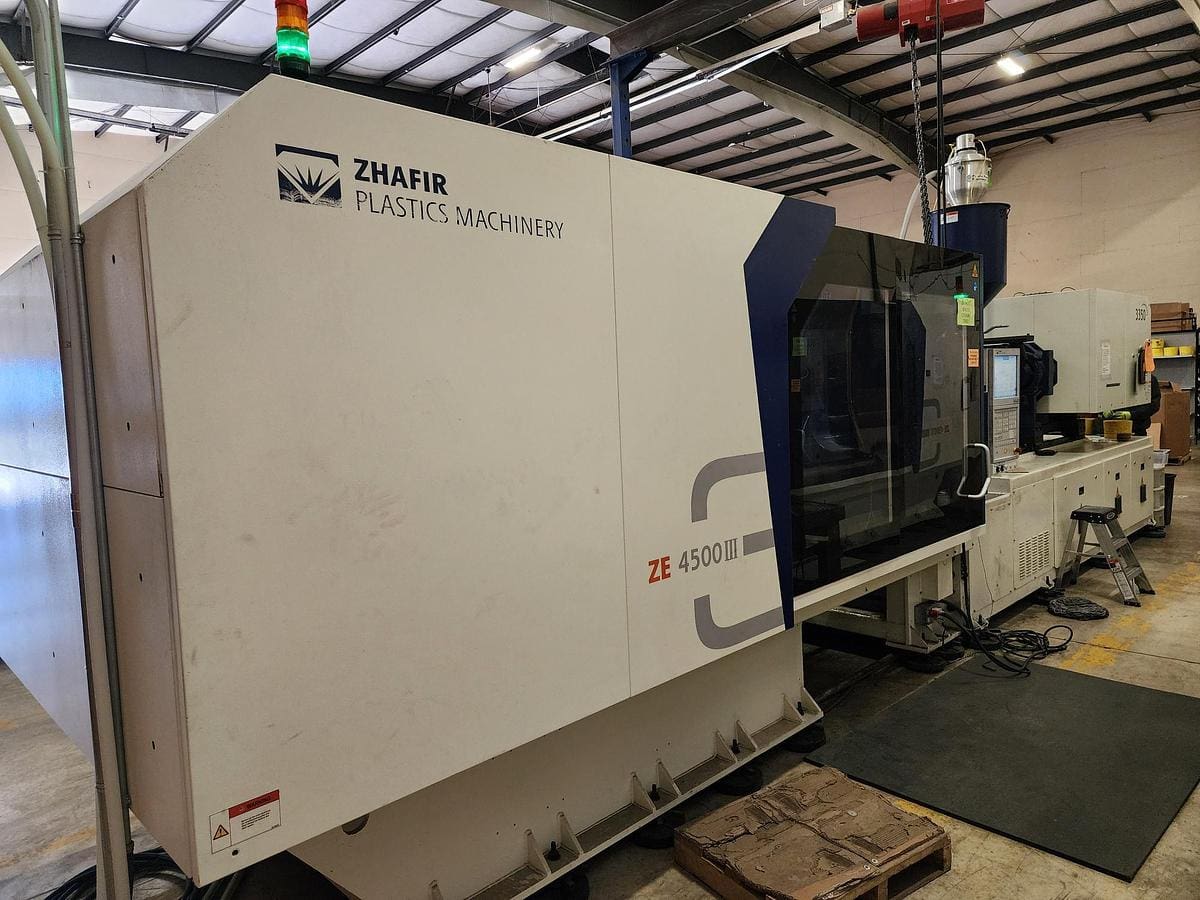

Used Haitian ZEIII 4500/3350 (2021) Injection Molding Machine for Sale. This press is rated at 506 Ton clamp force with a 59.68 oz shot size. Tie bar spacing measures 35.83″ x 35.83″ and platens are 51.18″ x 51.18″, with 63.39″ maximum daylight and a minimum/maximum mold height of 13.78″ to 31.89″. Ejector stroke is 7.09″. The machine runs a Sigmatek control and requires 460/3/60 power. Equipped with core pull, air blast, and a robot interface. The machine is under power and can be run and inspected before purchase. See more of our plastic injection molding machines or [Activate Pricing](#activate-pricing) to view the figure on this unit. Request a Quote and we will follow up with details and availability.
Specifications
| Capacity |
506 Ton |
|---|---|
| Shot Size |
59.68 oz |
| Tie Bar Spacing |
35.83" x 35.83" |
| Platen Size |
51.18" x 51.18" |
| Max Daylight |
63.39" |
| Min /Max Mold Height |
13.78" / 31.89" |
| Ejector Stroke |
7.09" |
| Control |
Sigmatek |
| Power Requirement |
460/3/60 |
Features
|
Core Pull |
Air Blast |
|
Robot Interface |
Under Power |
