Year |
2021 |
|---|---|
Make |
Flow |
Model |
Mach 500 4020 XD |
Description |
6.5′ x 13′ XD Head CNC Waterjet |
Reference # |
8079151 |
Price |
Activate Pricing |

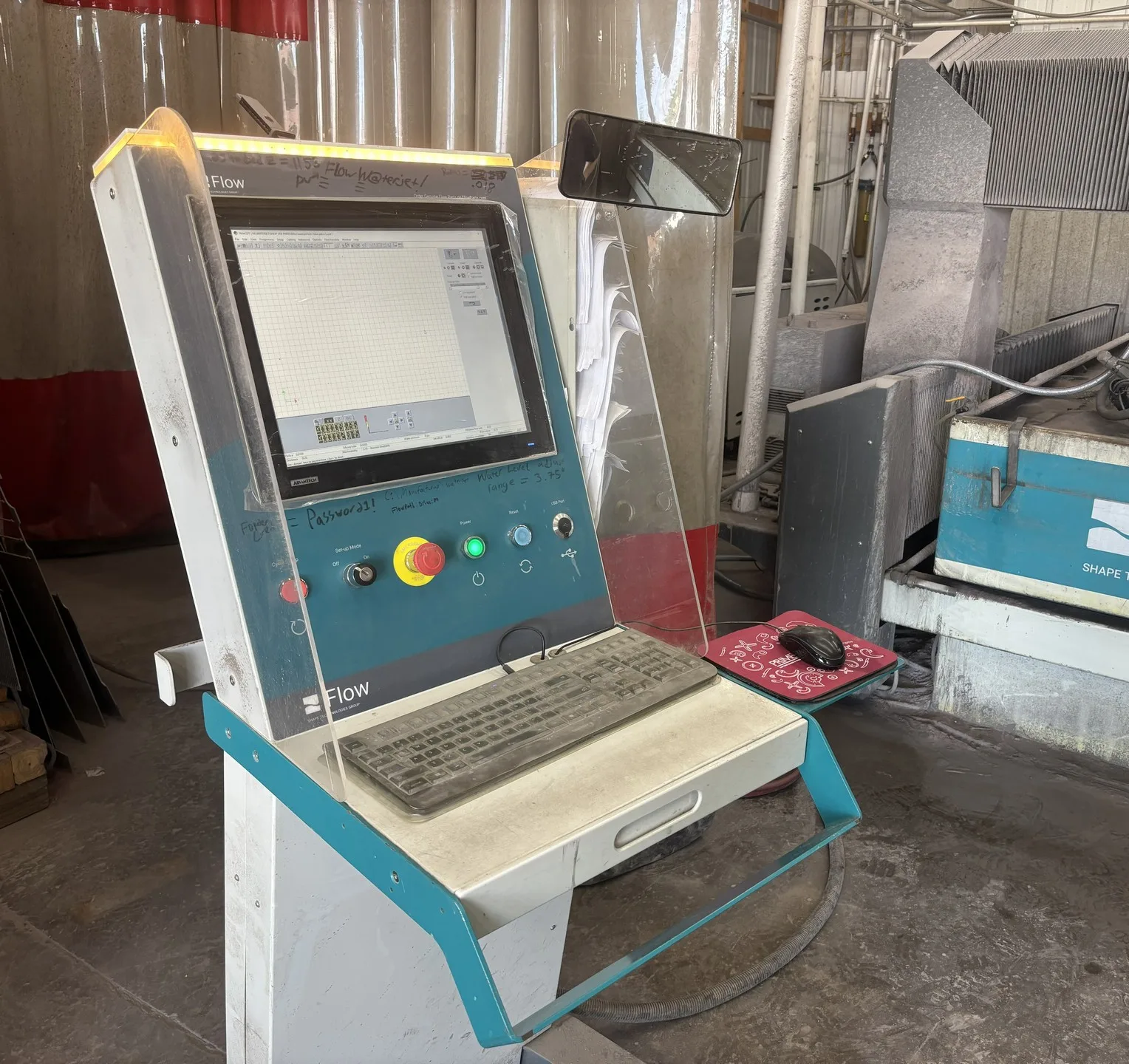

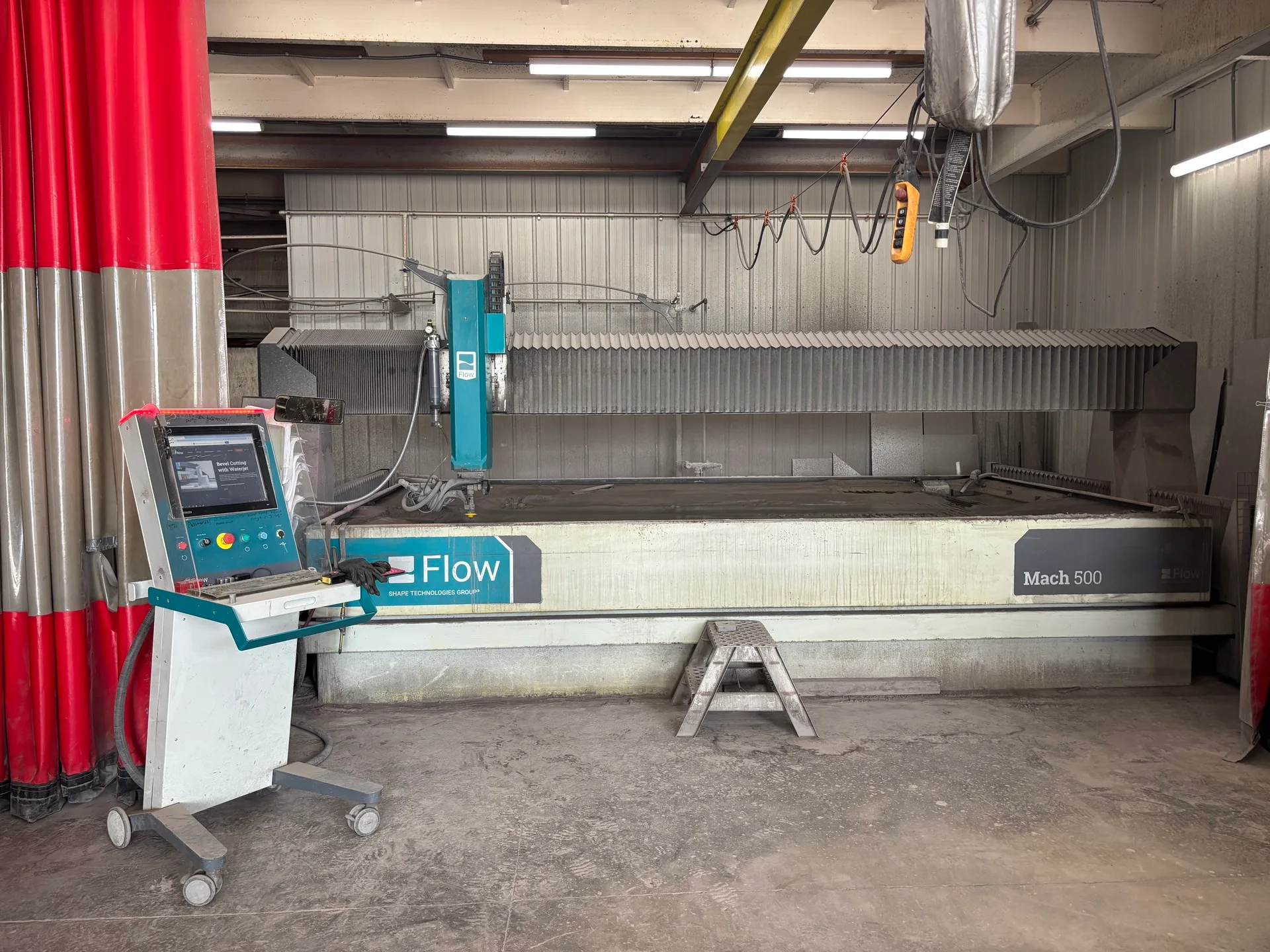

Used Flow Mach 500 4020 XD (2021) Waterjet for Sale. This 5-axis waterjet has a 6.5′ x 13′ table and runs a Flow PC based control with FlowXpert Infinity software. The 50 HP Flow Hyperjet intensifier pump delivers a maximum cutting pressure of 94,000 PSI, with 0.007″/0.010″ orifice sizes and flow rates of 0.44/0.73/1.46 GPM. Rapid traverse reaches 700 IPM, with linear positional accuracy of +/- 0.0005″, repeatability of +/- 0.0008″, ballbar circularity of +/- 0.0025″ and acceleration of 0.1 G. Z-axis travel is 12″ standard, 24″ optional, and the Flow Dynamic XD cutting head offers 89 degrees of motion with 12″ of vertical travel. Equipped with abrasive storage hopper, filtration system and integrated water level control. Available for inspection under power. See our other used waterjets and used Flow machines, then Activate Pricing or use the Inquire Now button.
Specifications
| Table Width |
6.5' |
|---|---|
| Table Length |
13' |

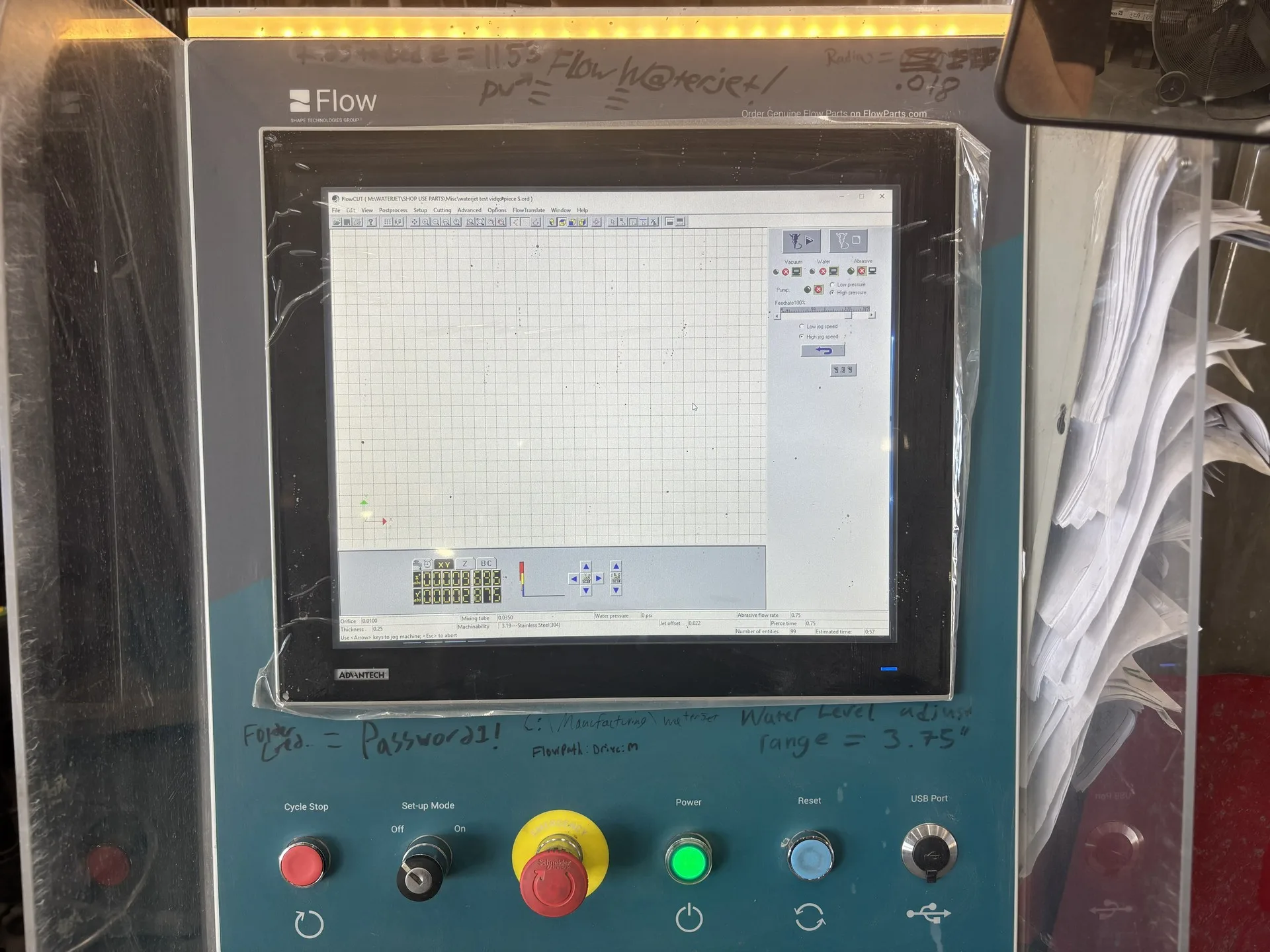

| Control |
Flow PC Based |
| Pump |
50 HP |
| Max Cutting Pressure |
94,000 PSI |
| Orifice Size |
0.007"/0.010" |
| Flow Rate |
0.44/0.73/1.46 GPM |
| Max. Rapid Traverse Rate |
700 IPM |
| Linear Positional Accuracy |
+/- 0.0005” |
| Repeatability |
+/- 0.0008” |
| Z-Axis Travel |
12” Standard / 24” Optional |
| Acceleration |
0.1 G |
| Ballbar Circularity |
+/- 0.0025” |
| Cutting Head Articulation |
≤89° Of Motion |
| Cutting Head Vertical Travel |
12" |
Features
|

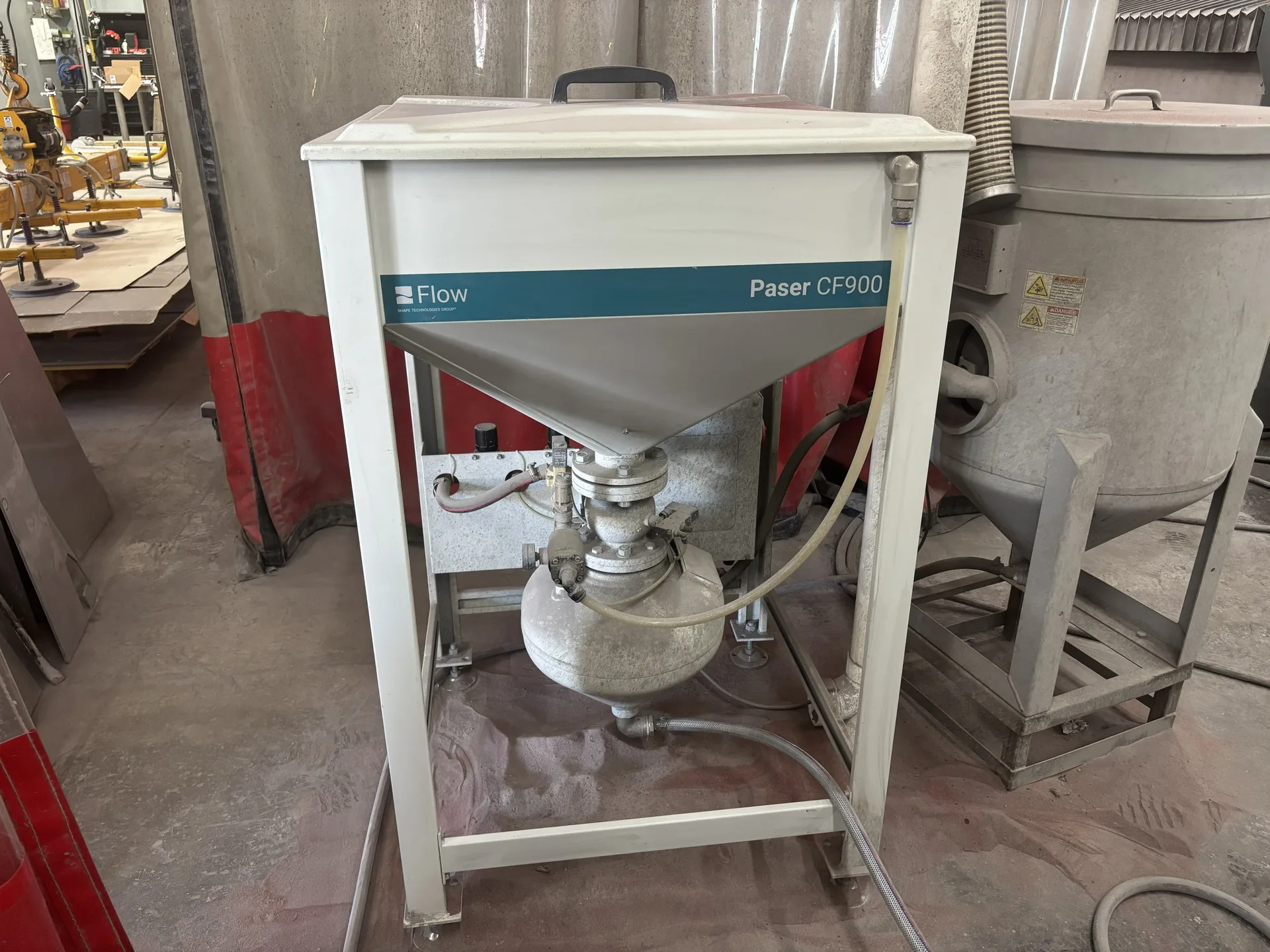

Abrasive Storage Hopper |

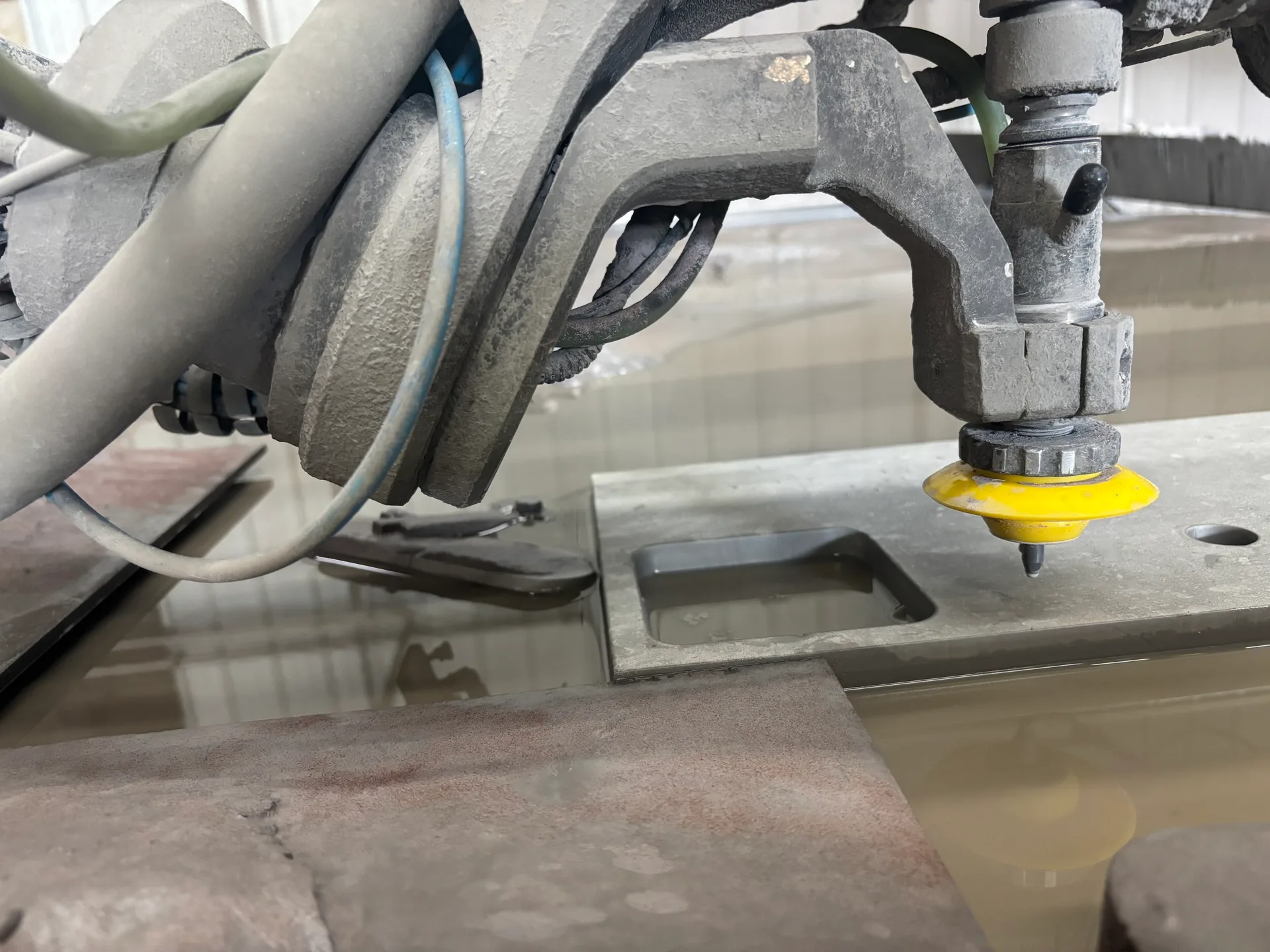

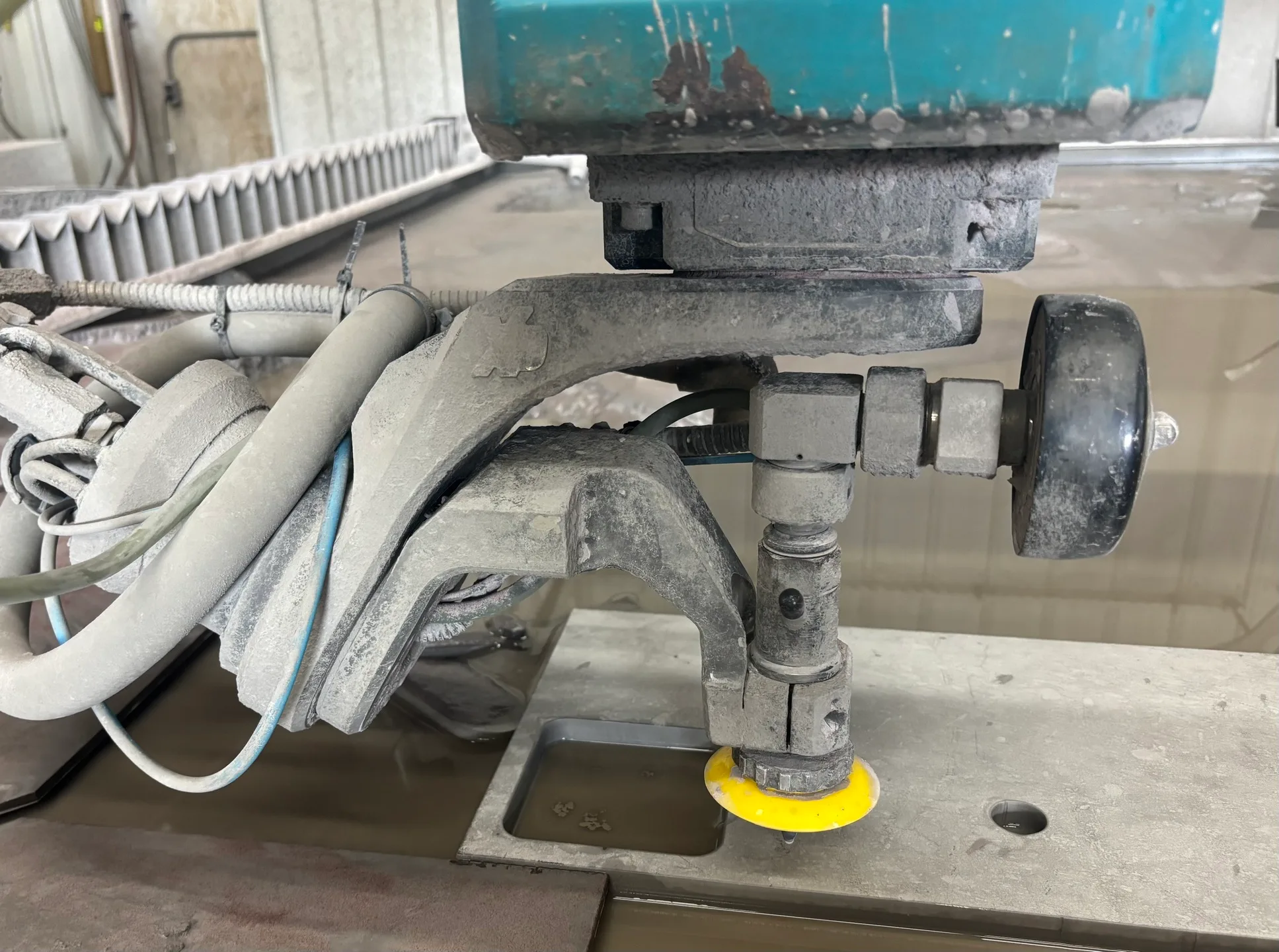

Flow Dynamic XD 5-Axis Cutting Head |
|
FlowXpert Infinity Software |

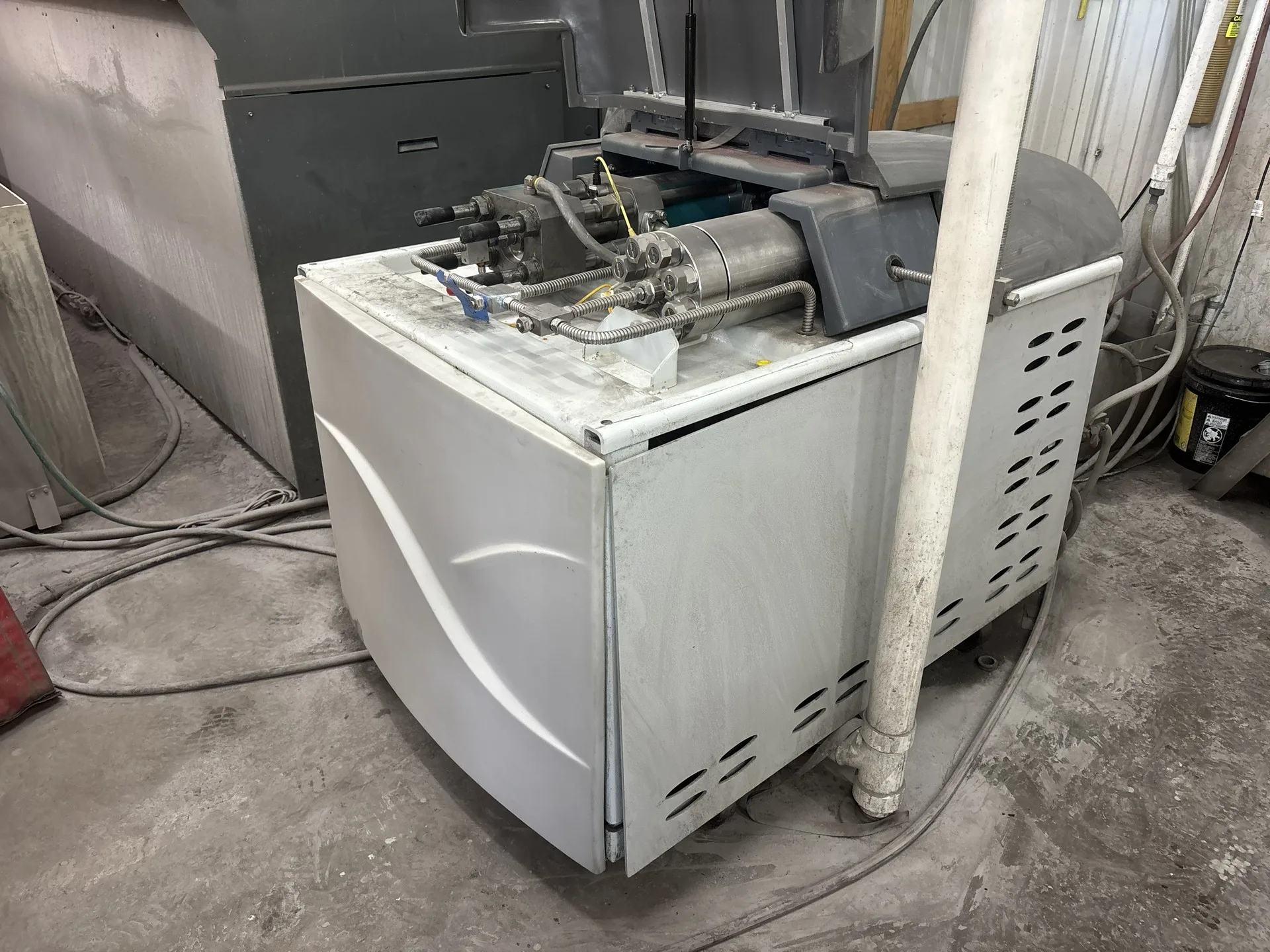

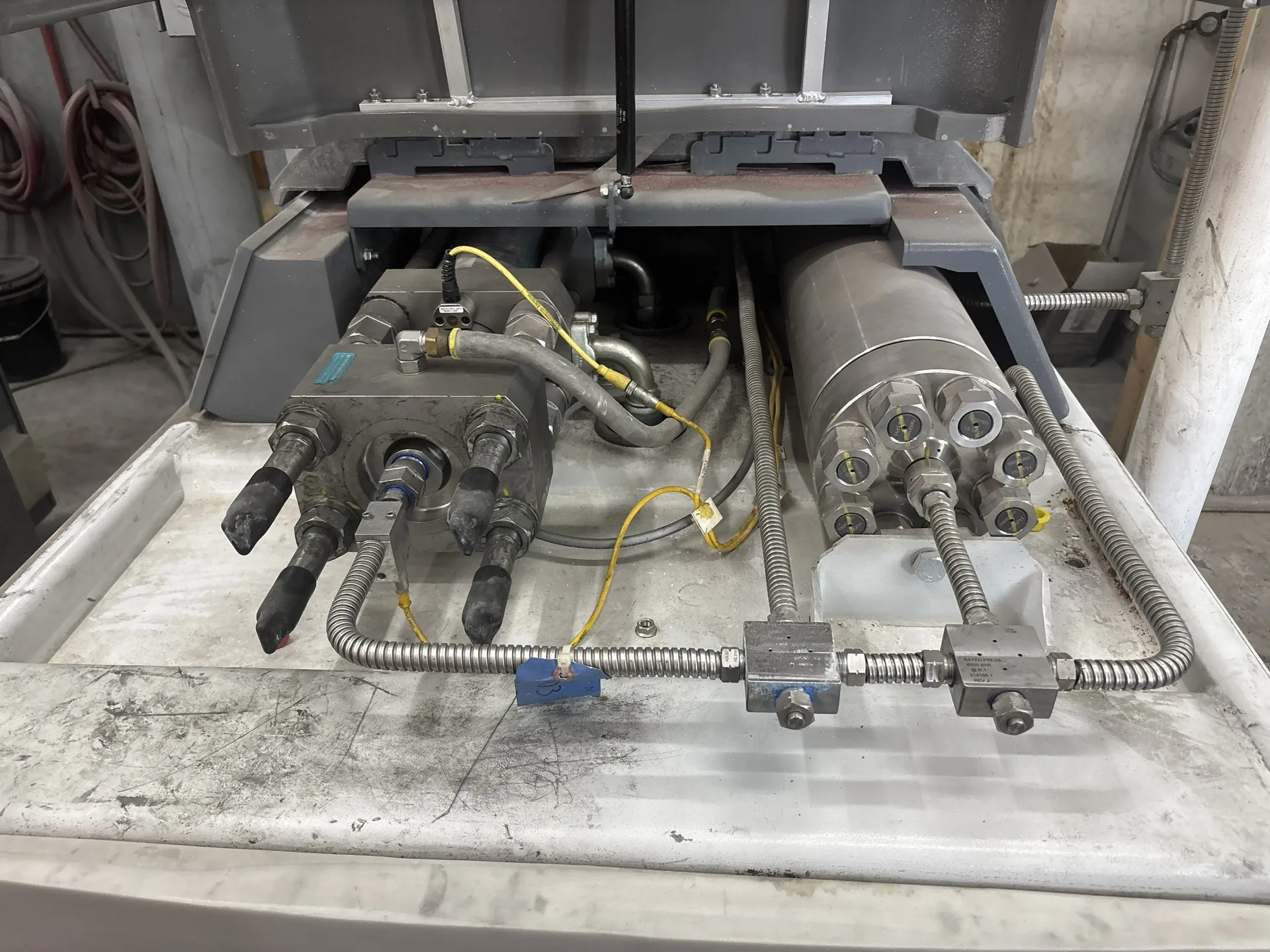

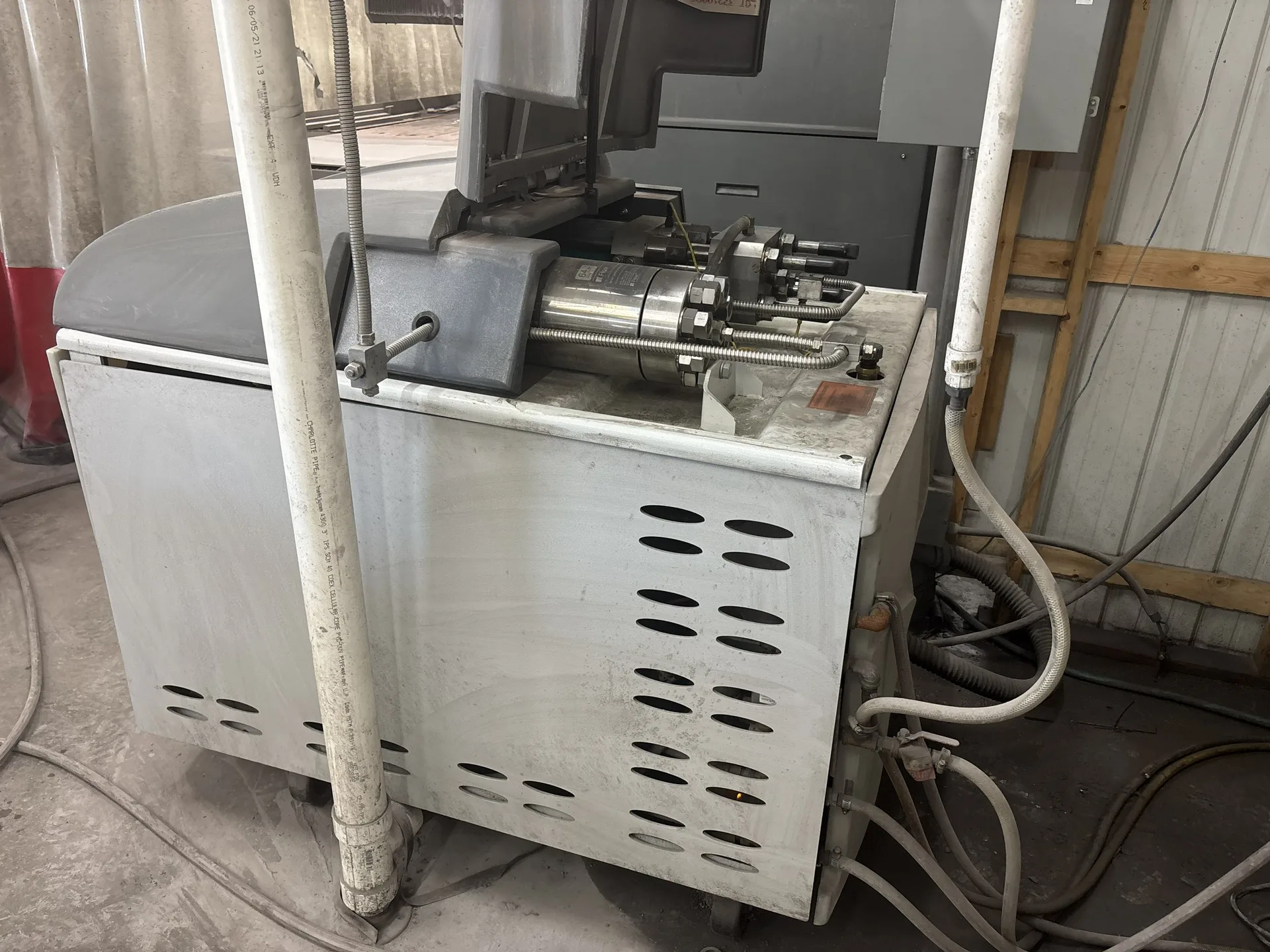

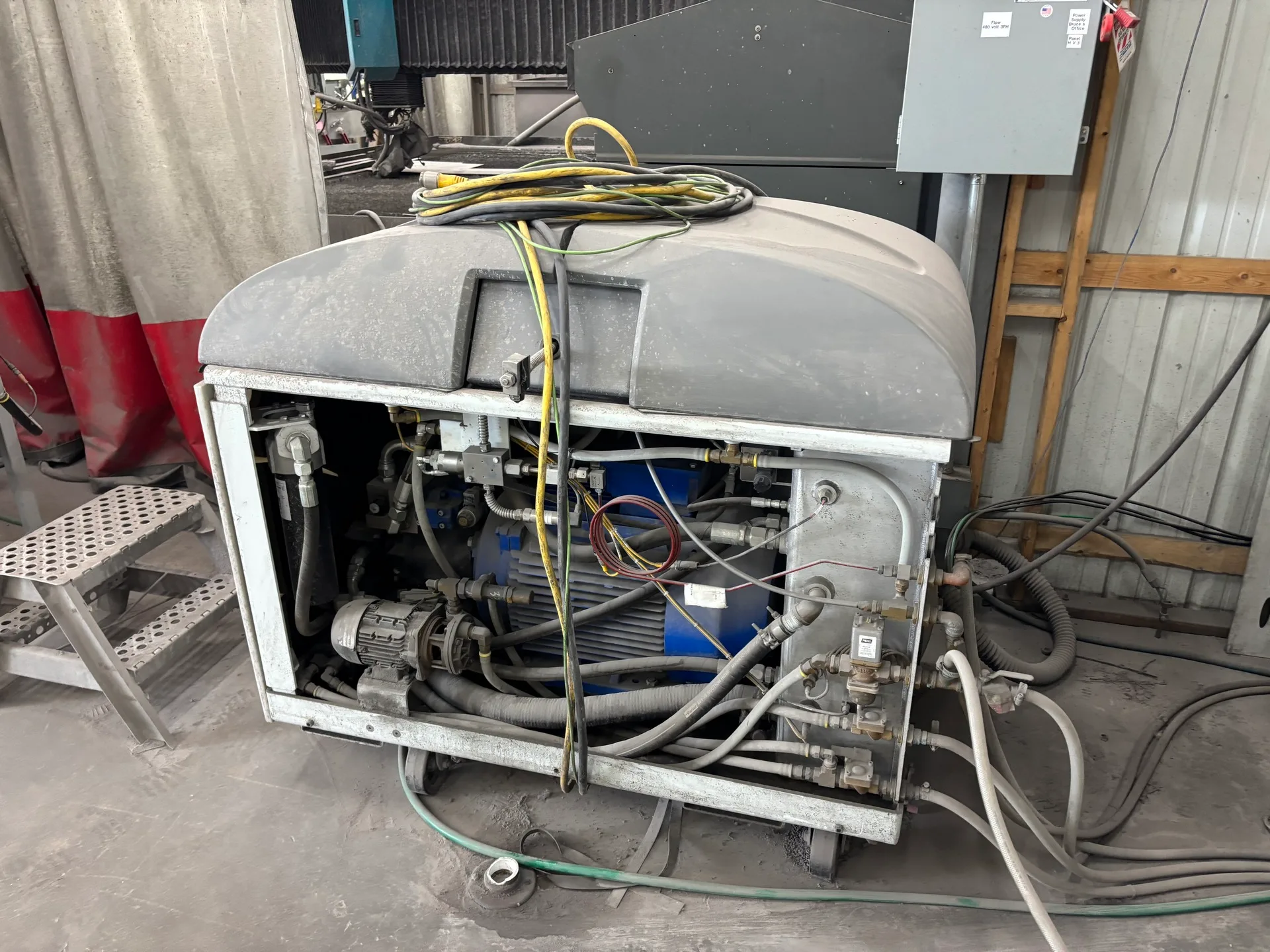

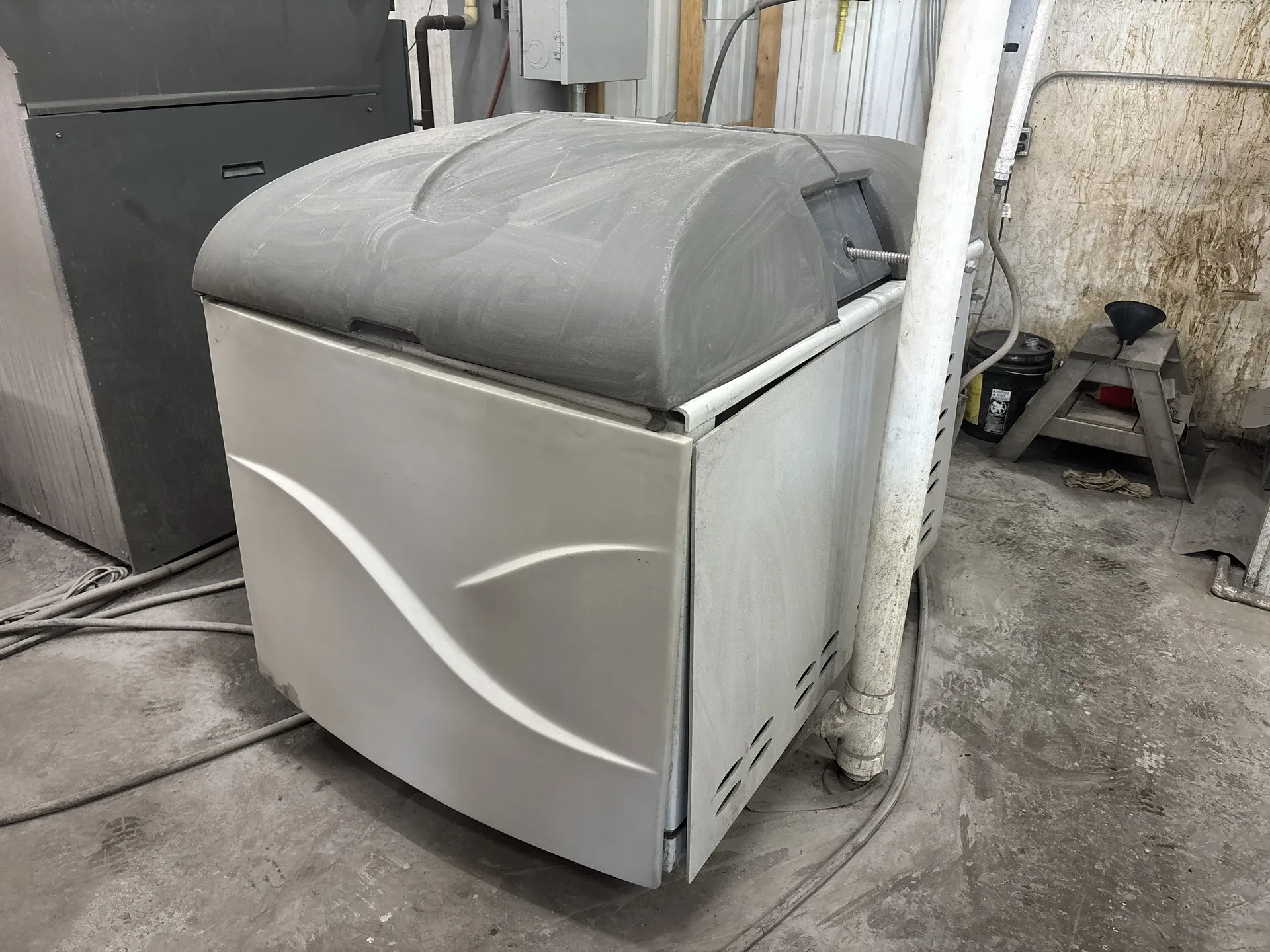

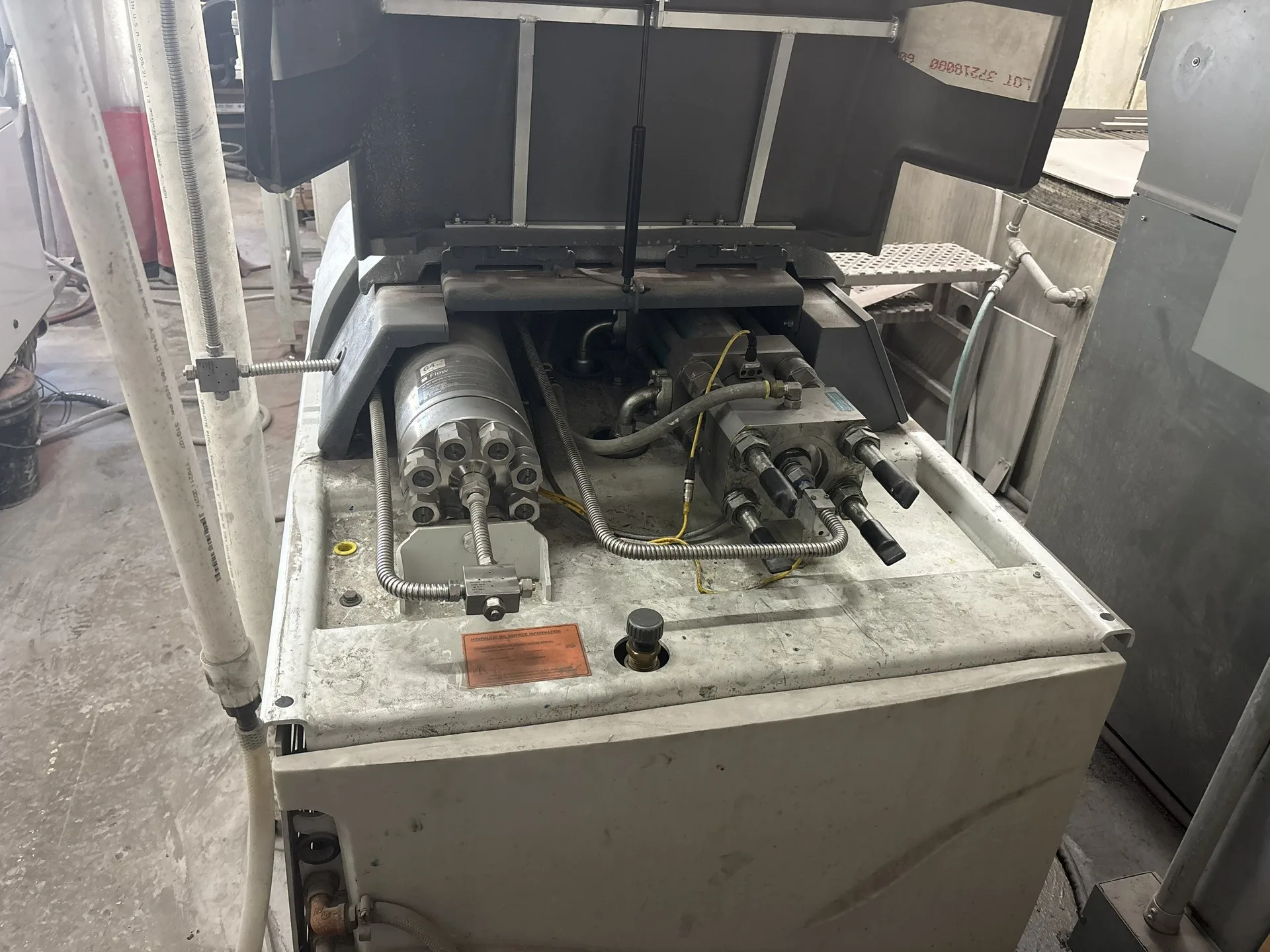

Flow Hyperjet Intensifier Pump |
|
Filtration System |
Integrated Water Level Control |
