Year |
2013 |
|---|---|
Make |
Omax |
Model |
Maxiem 2040 |
Description |
6.5' x 13.1' CNC Waterjet |
Reference # |
8076833 |
Price |
Activate Pricing |

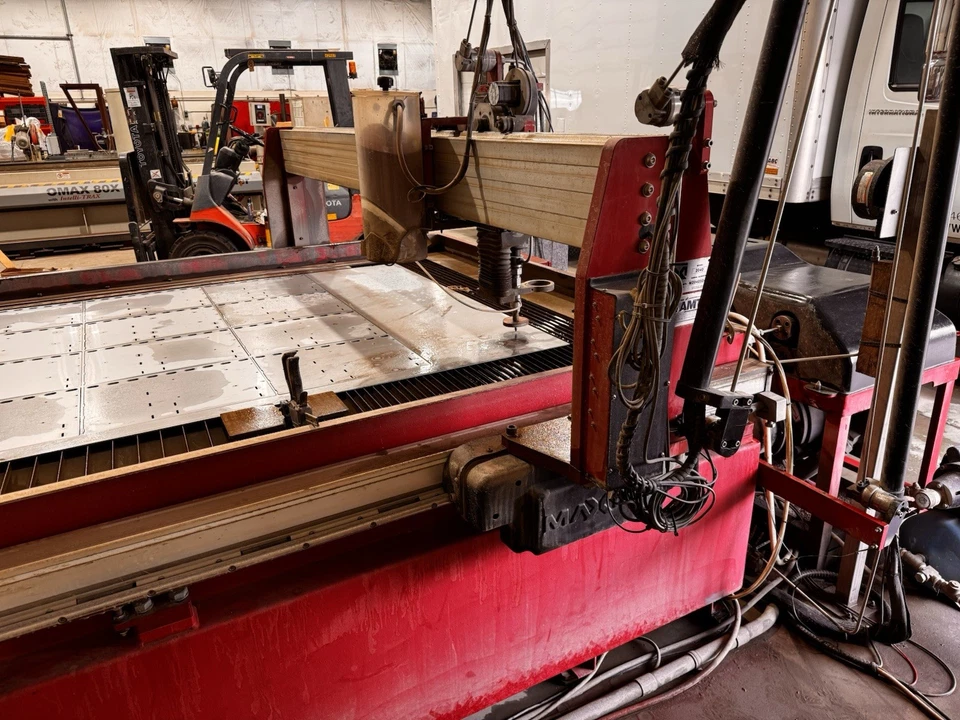

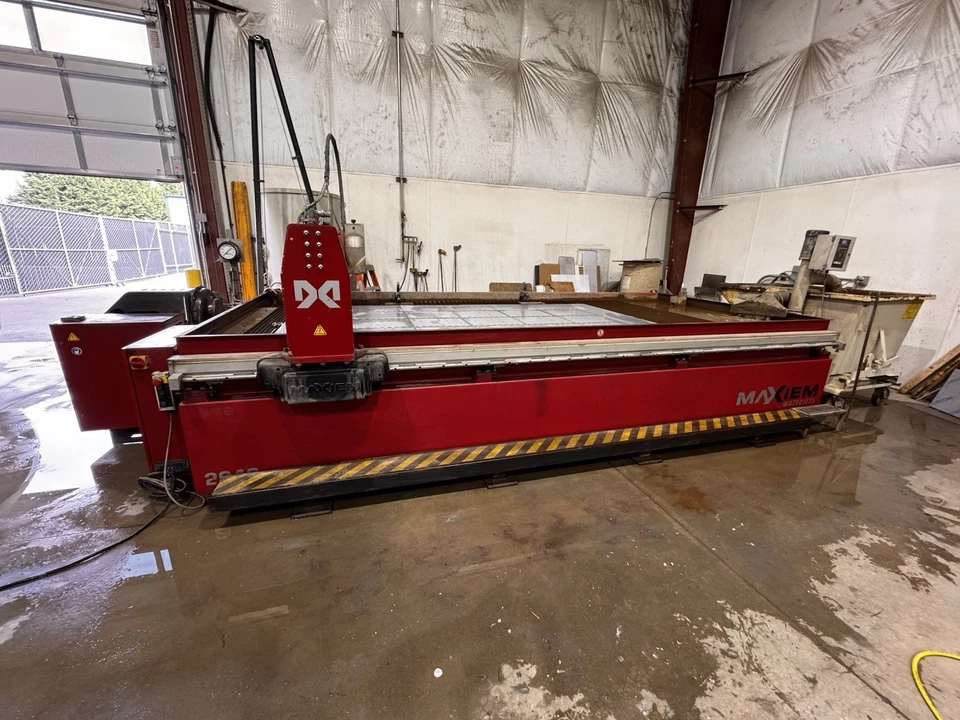

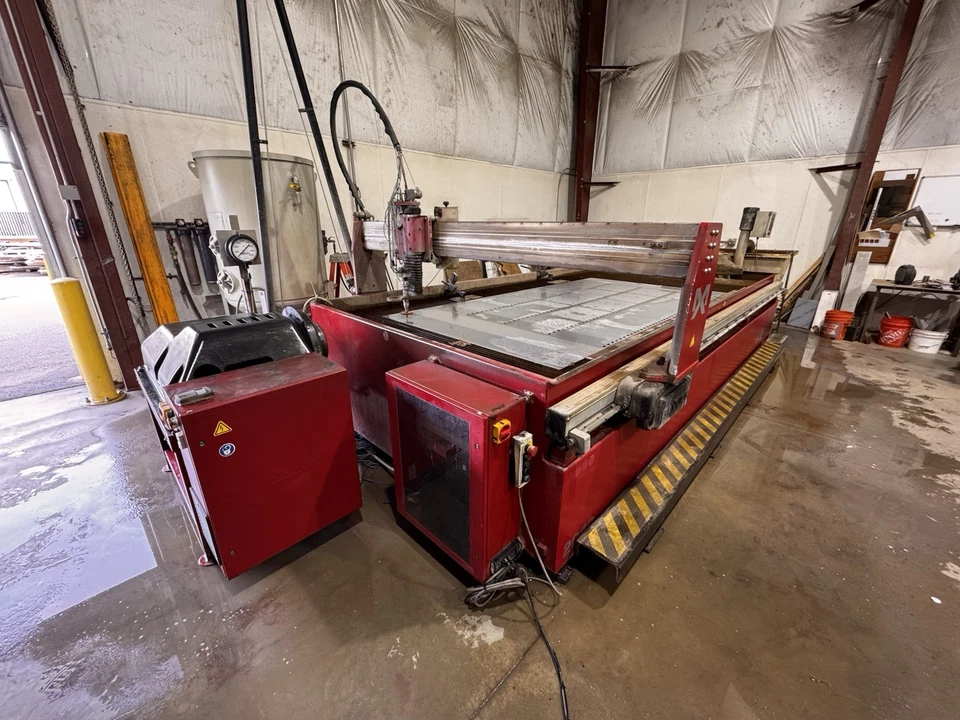

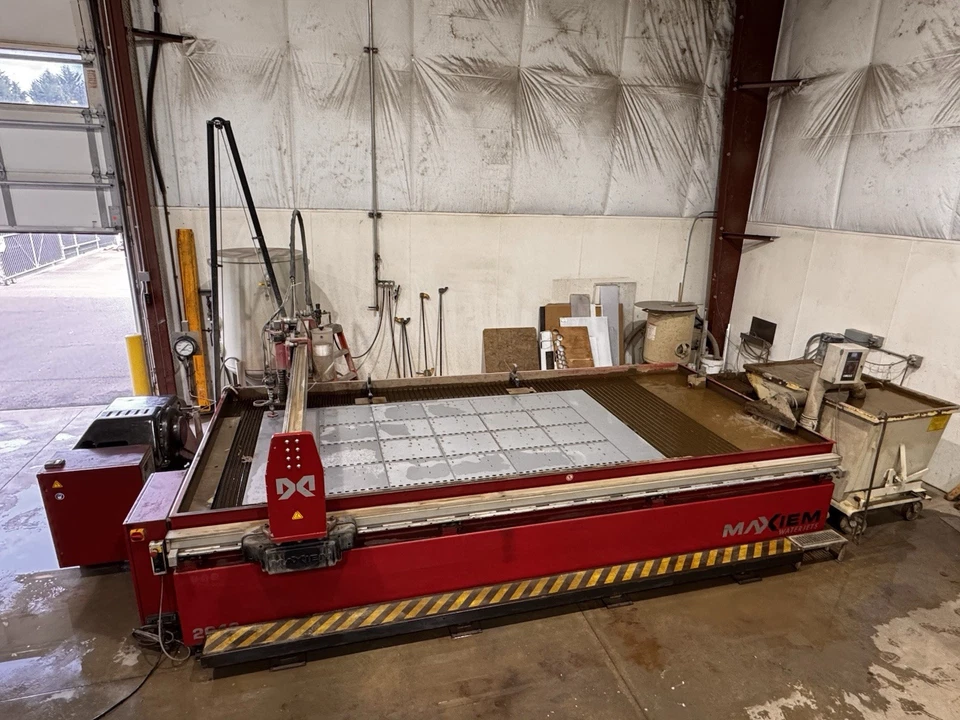

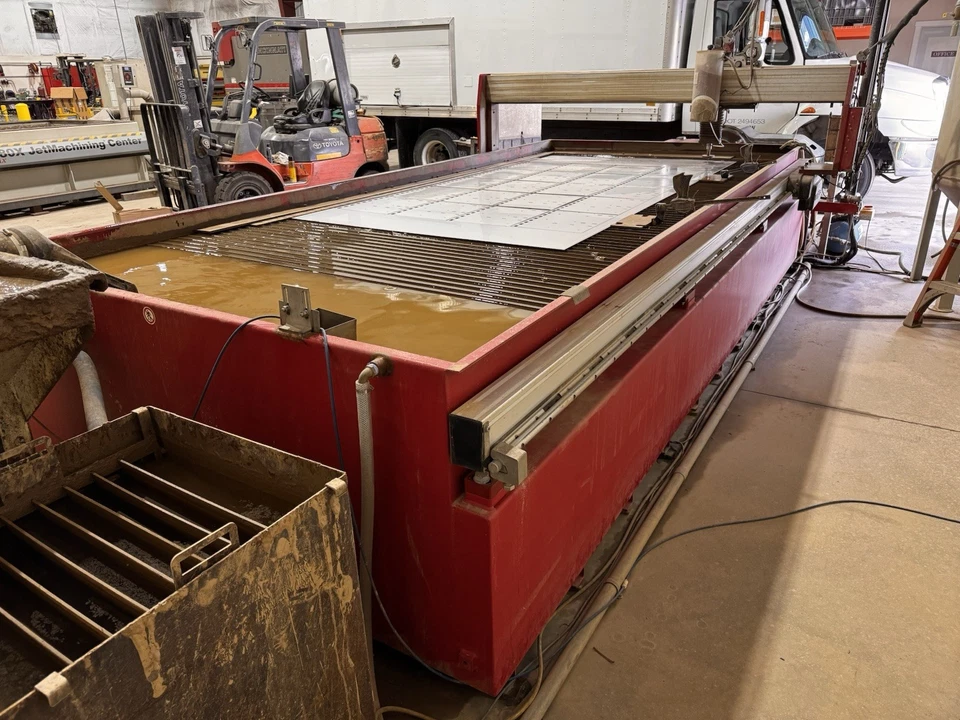

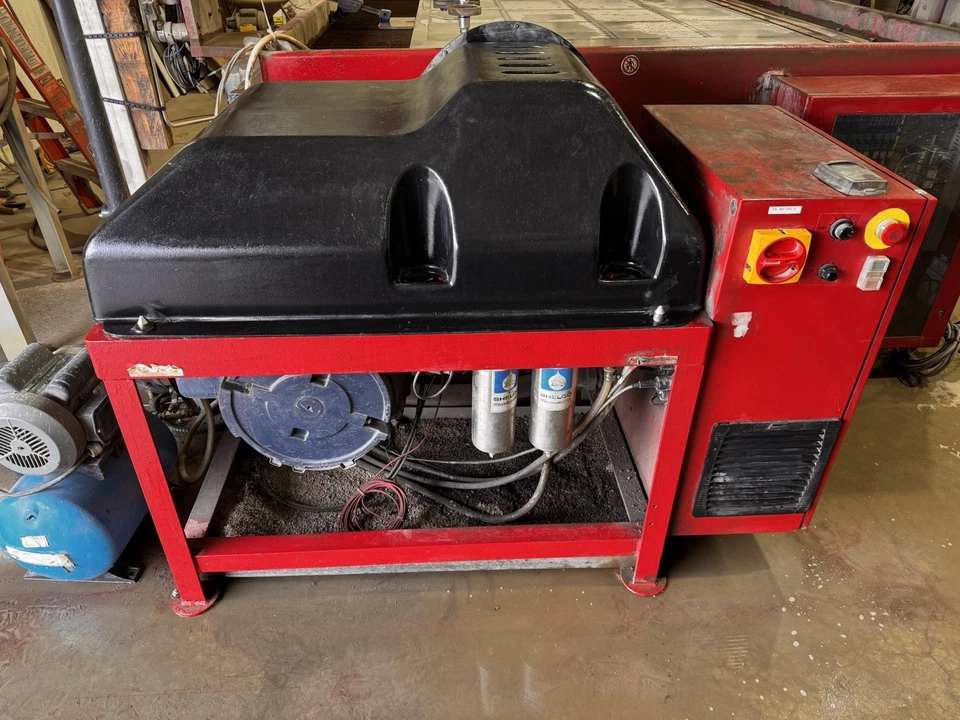

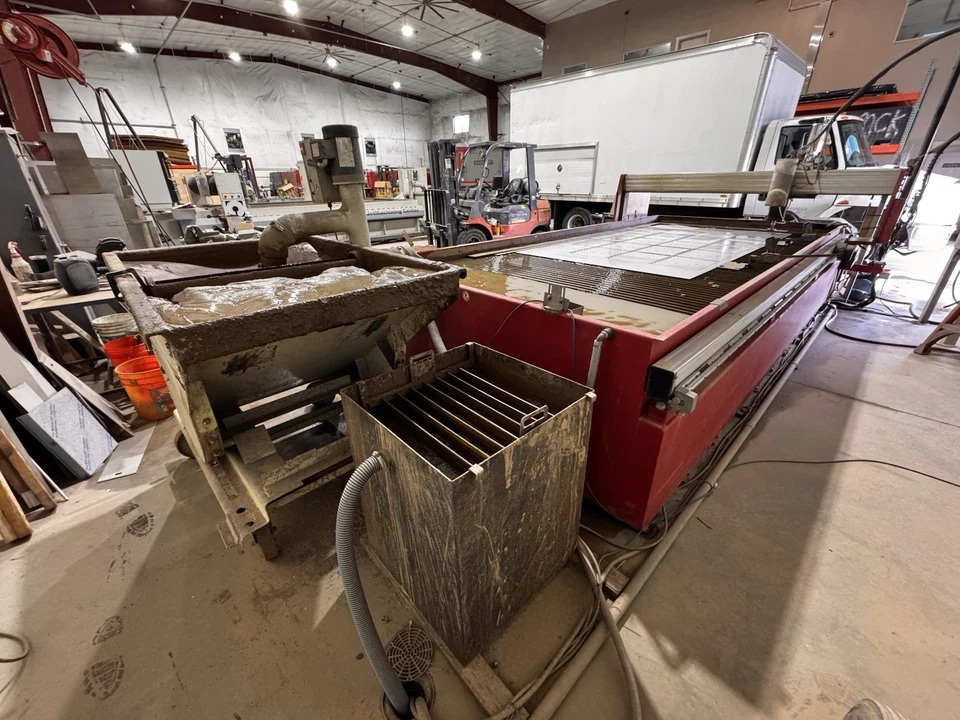

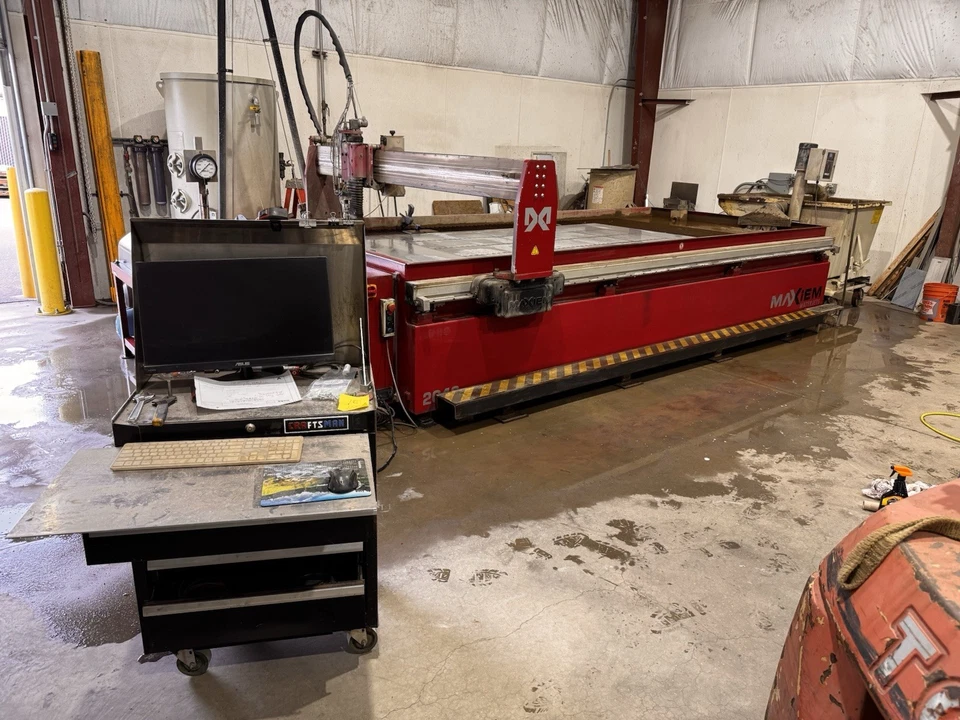

Used Omax Maxiem 2040 (2013) Waterjet for Sale. This machine has a 6.5′ wide by 13.1′ long table, Omax Control, and a 40 HP pump rated to a maximum cutting pressure of 50,000 PSI. Cutting speed is 500 IPM, with linear accuracy of +/- 0.0030″, repeatability of +/- 0.0010″, and ballbar circularity of +/- 0.0050″. Power requirement is 480/3/60. Weight is 5,000 lbs with the tank empty, 26,400 lbs with water in the tank, and 28,283 lbs with pump and controller. Footprint measures 18’0″ x 12’2″ without the controller, or 21’9″ x 12’11” with pump and controller. Equipped with a 2200 lb garnet hopper and garnet removal system. Available to be seen under power for an inspection. See more used waterjets and other Omax equipment. Activate Pricing or Request a Quote.
Specifications
| Table Width |
6.5' |
|---|---|
| Table Length |
13.1' |
| Control |

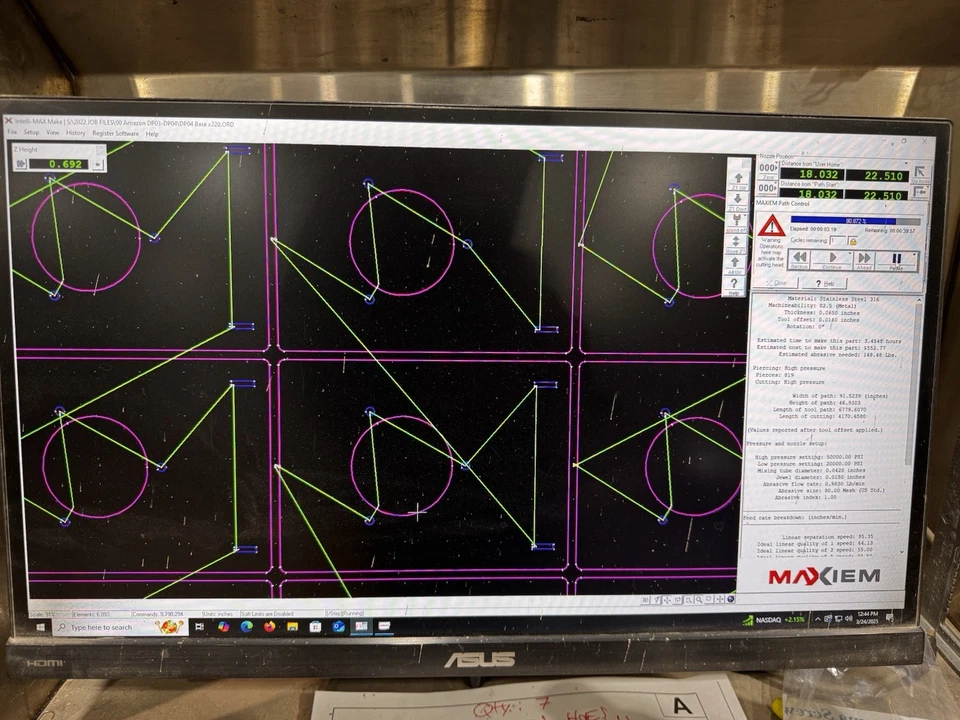

Omax Control |
| Pump |
40 HP |
| Max Cutting Pressure |
50,000 PSI |
| Power Requirement |
480/3/60 |
| Cutting Speed |
500 IPM |
| Linear Accuracy |
+/- 0.0030" |
| Repeatability |
+/- 0.0010" |
| Ballbar Circularity |
+/- 0.0050" |
| Weight (Tank Empty) |
5,000 Lbs |
| Footprint |
18'0” x 12'2” (without controller) / 21'9" x 12'11" (with pump & controller) |
| Operating Weight |
26,400 Lbs (with water in tank) / 28,283 Lbs (with pump & controller) |
Features
|

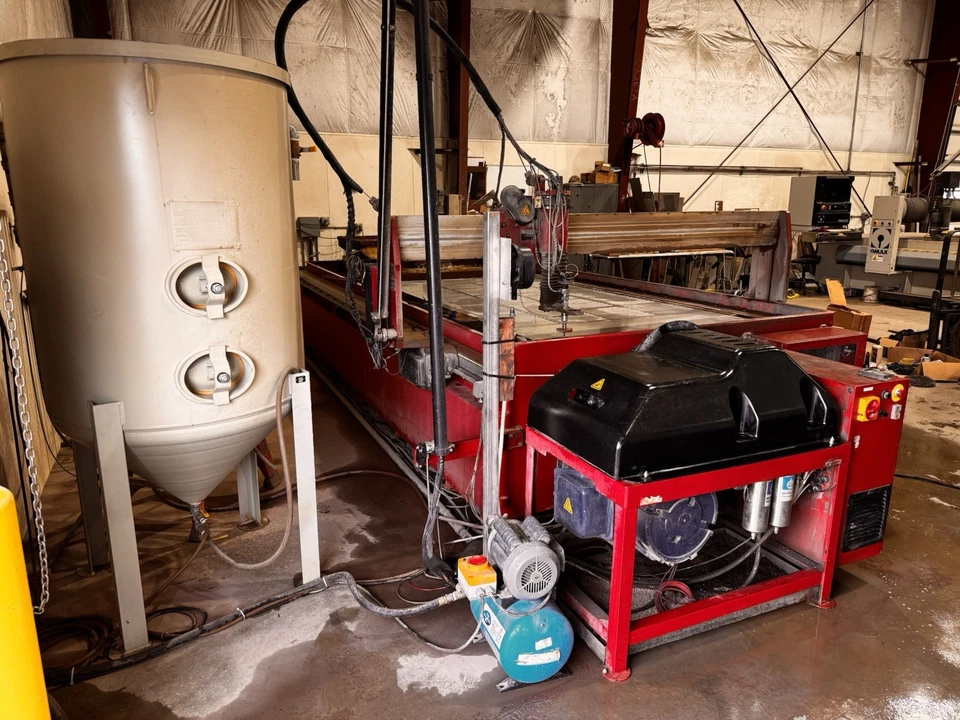

2200 Lb Garnet Hopper |

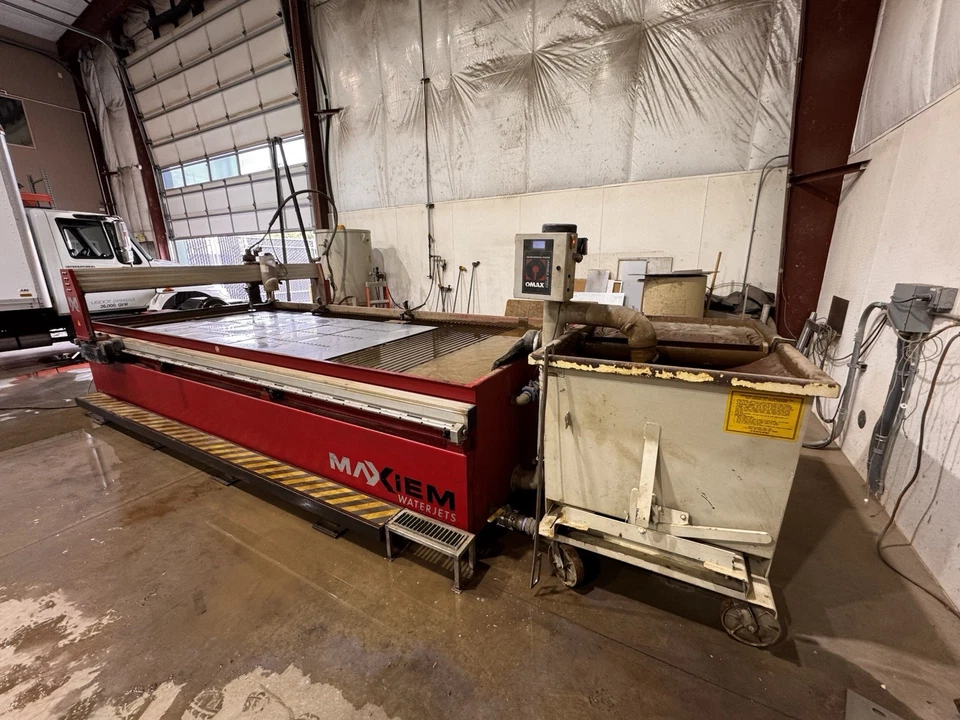

Garnet Removal System |
