Year

2021

Make

Ficep

Model

Valiant 453 VLB

Description

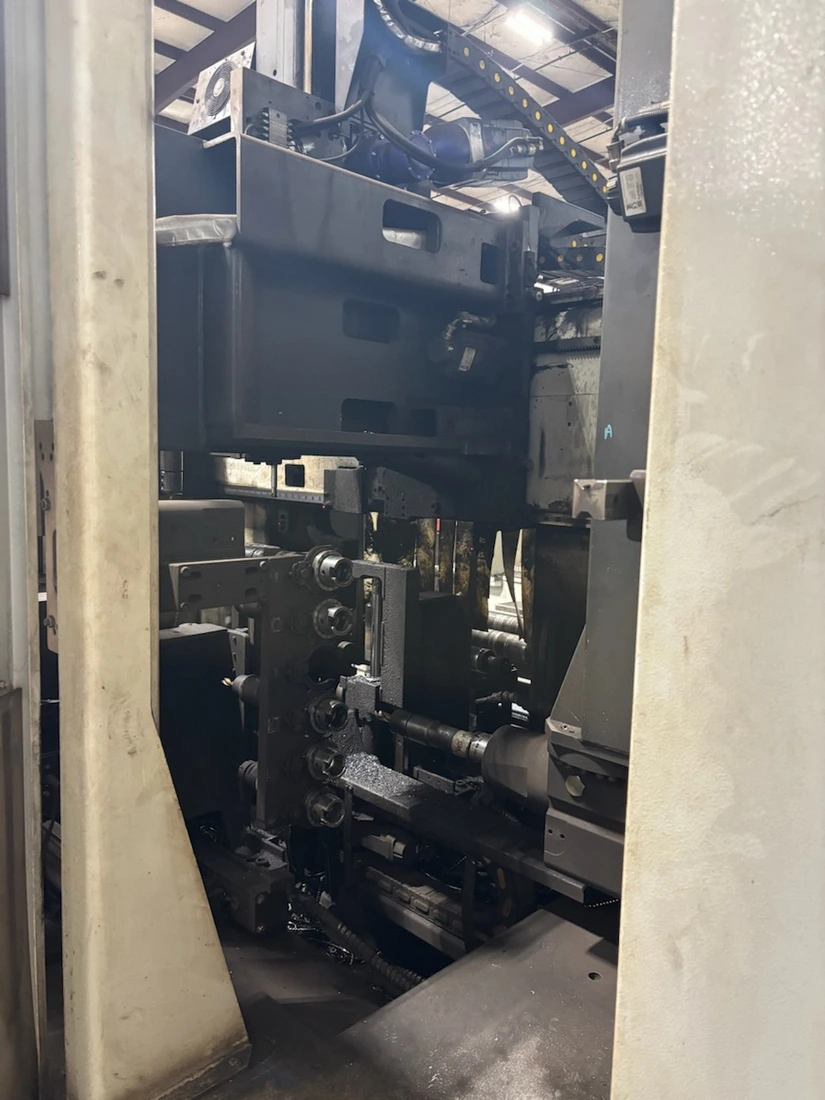

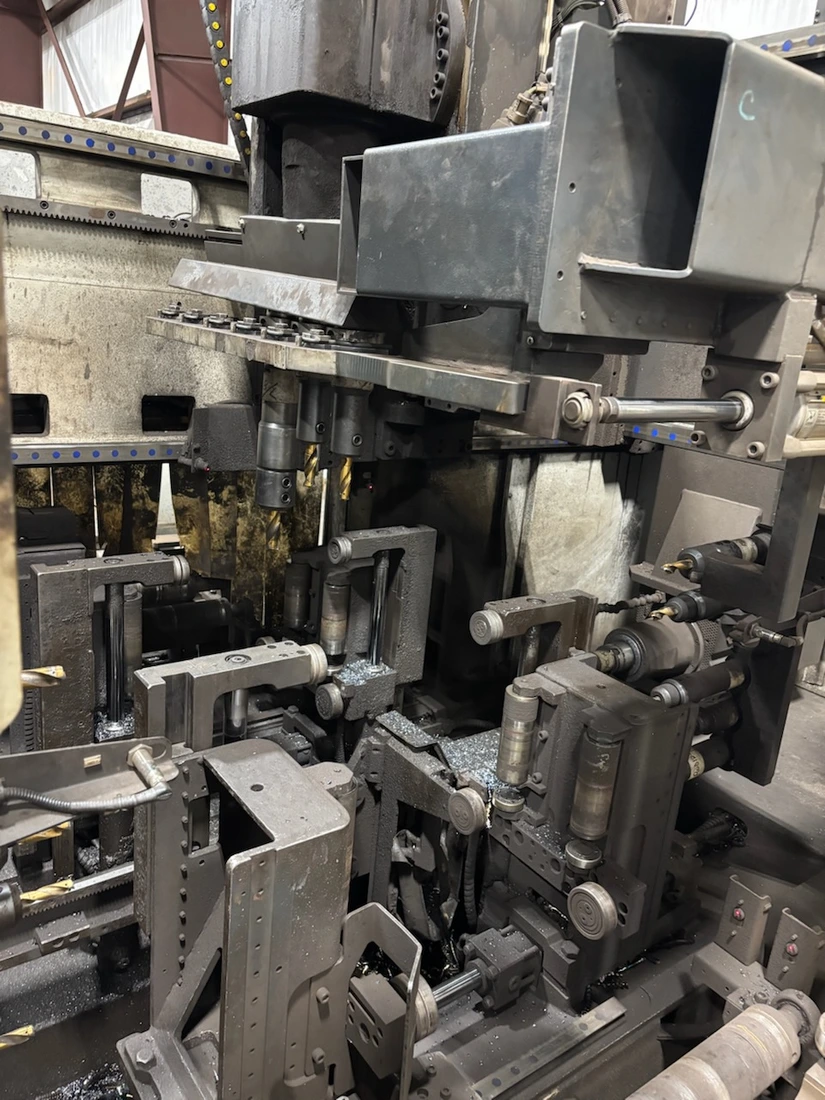

3-Spindle CNC Beam Drill and Saw Line

Reference #

8078512

Price

Activate Pricing

This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you.

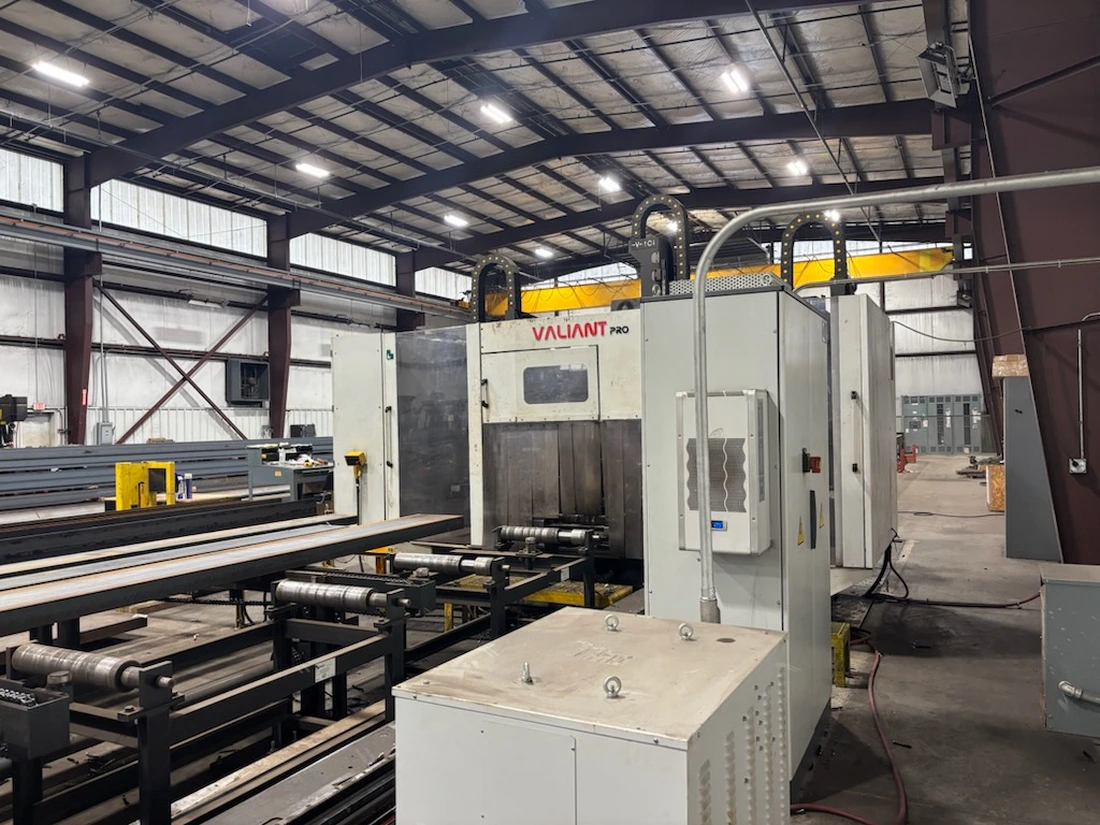

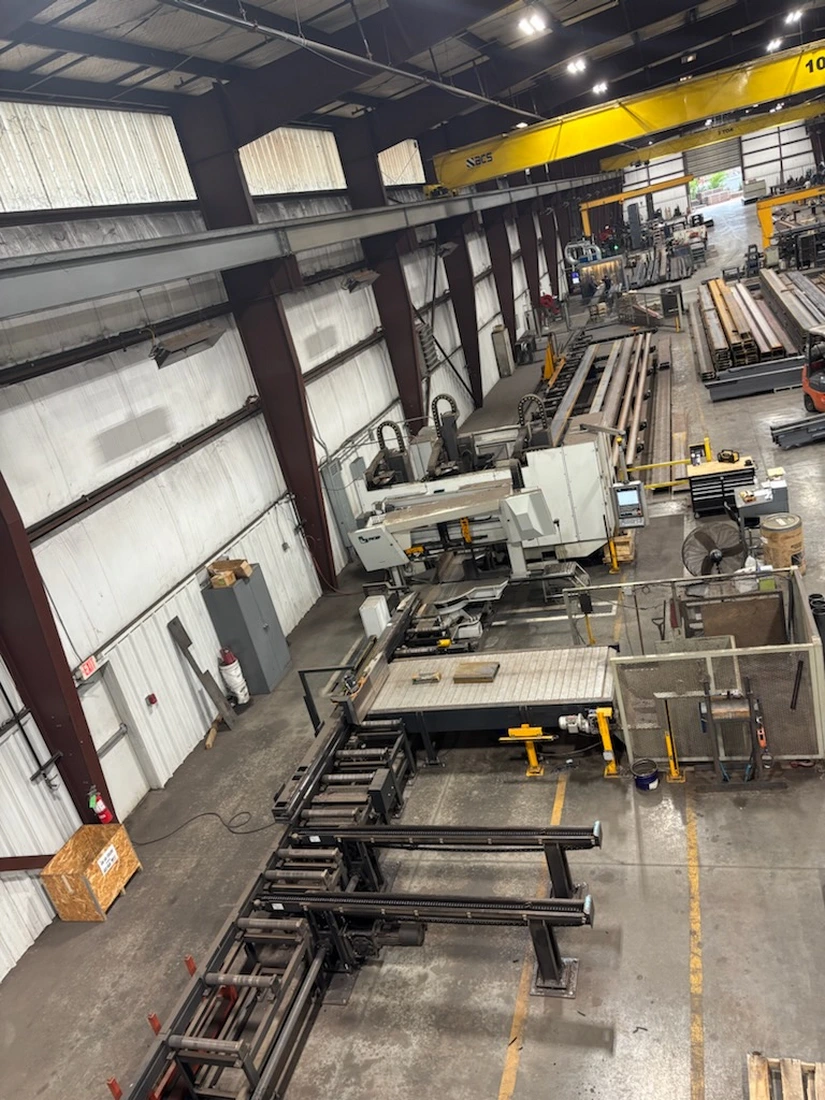

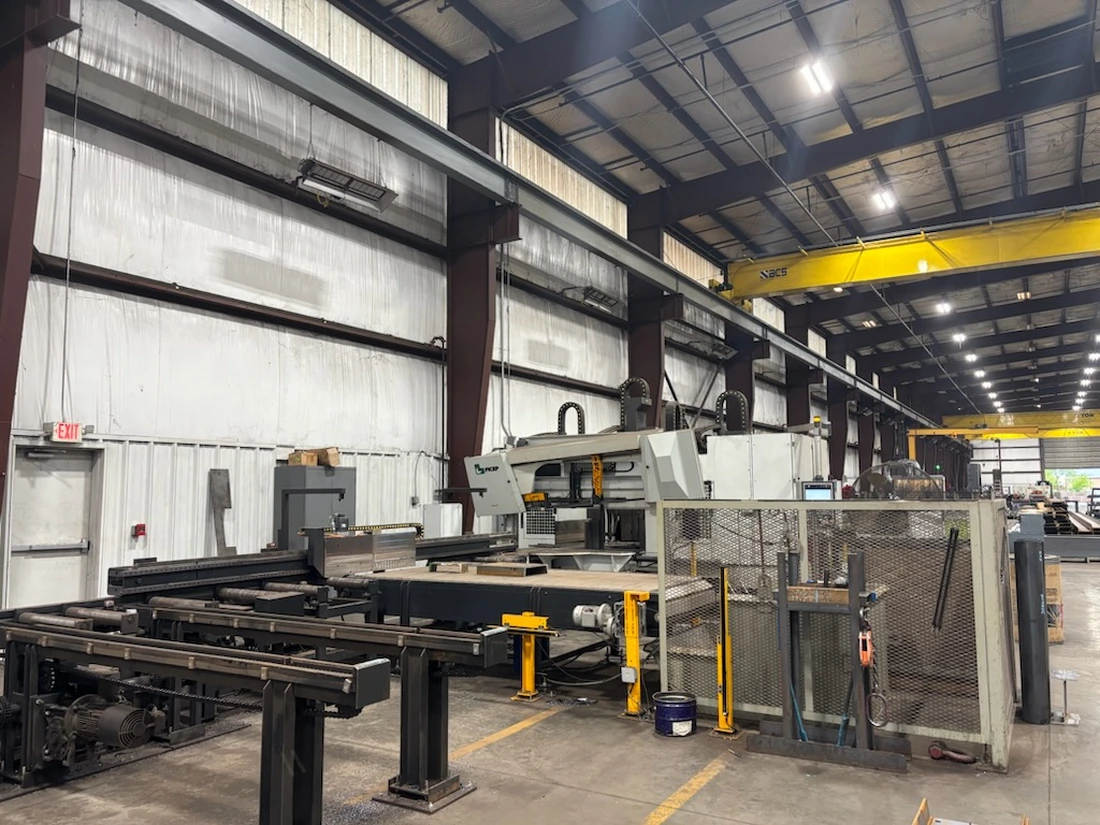

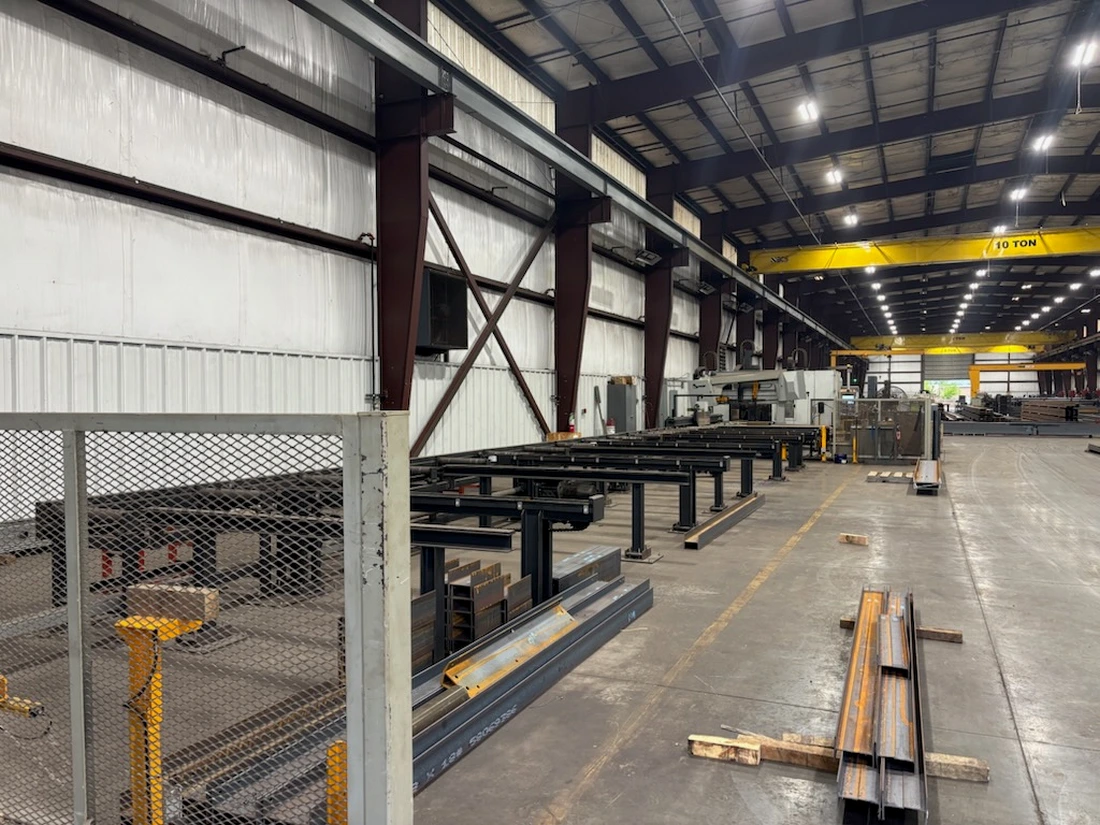

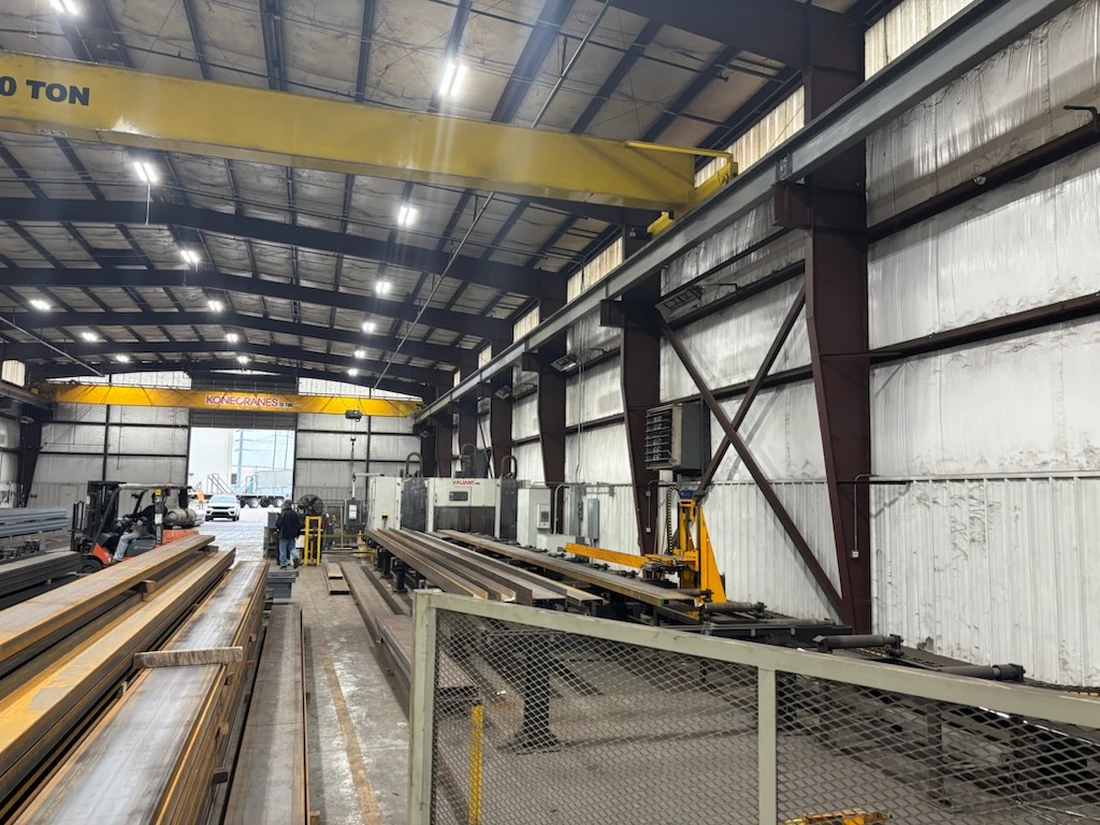

Used Ficep Valiant 453 VLB (2021) Beam/Drill Line for Sale. This line handles beam widths from 10mm to 450mm and beam heights from 80mm to 450mm, with a minimum length to be transferred of 2,500mm. I-beam flange width capacity runs 42mm to 450mm, UPN channel flange width 45mm to 300mm (web downward), and flats from 100mm to 450mm. Angle capacity spans 63 x 50 x 5mm up to 300 x 300 x 35mm. Square pipe is processed from 63 x 63mm to 450 x 450mm, and rectangular pipe from 63 x 50mm to 450 x 300mm. The saw was updated to a 2024 KATANA K100E band saw. See photos for more specs and features. Request a Quote for further details.

Specifications

Beam Width

10mm - 450mm

Beam Height

80mm - 450mm

Min Length to Transferred

2,500 mm

I-Beams Flange Width

42mm - 450mm

UPN Channels Flange Width

45mm - 300mm

Min Angle Flange Height

63 x 50 x 5mm

Max Angle Flange Height

300 x 300 x 35mm

Flat Width

100 - 450mm

Square Pipe Min Size

63 x 63mm

Square Pipe Max Size

450 x 450mm

Rectangular Pipe Min Size

63 x 50mm

Rectangular Pipe Max Size

450 x 300mm

Note

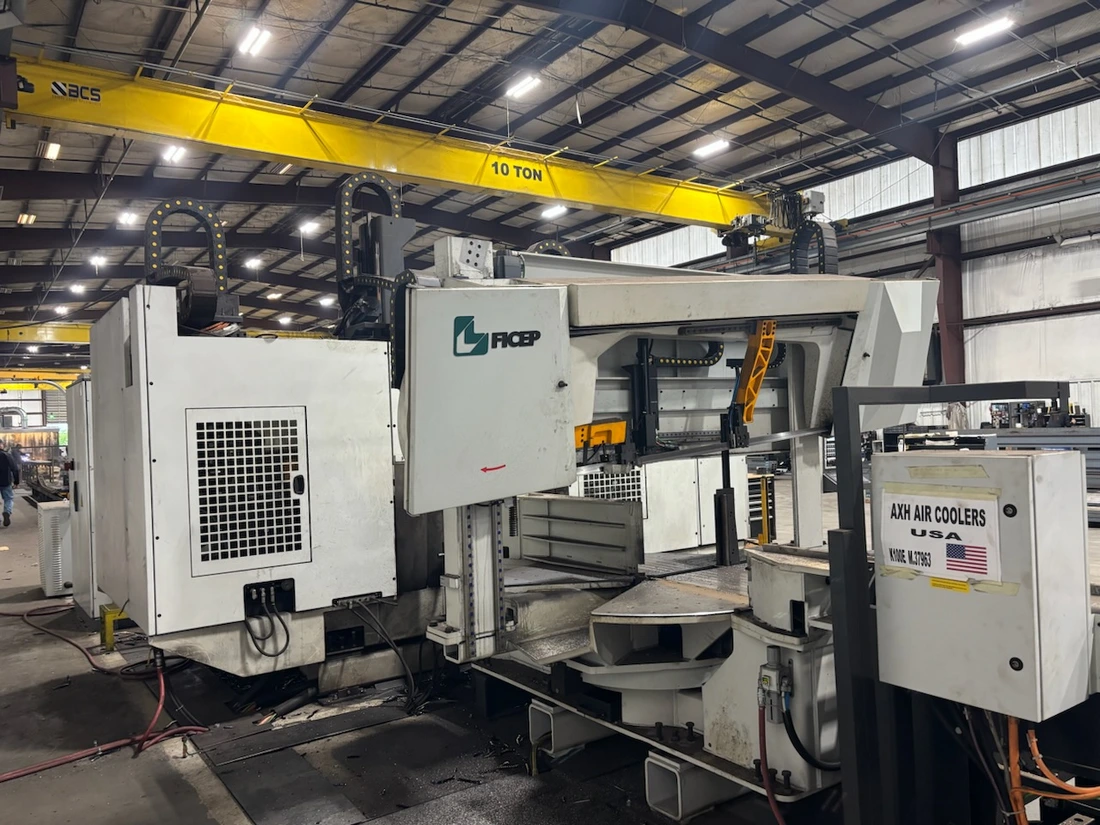

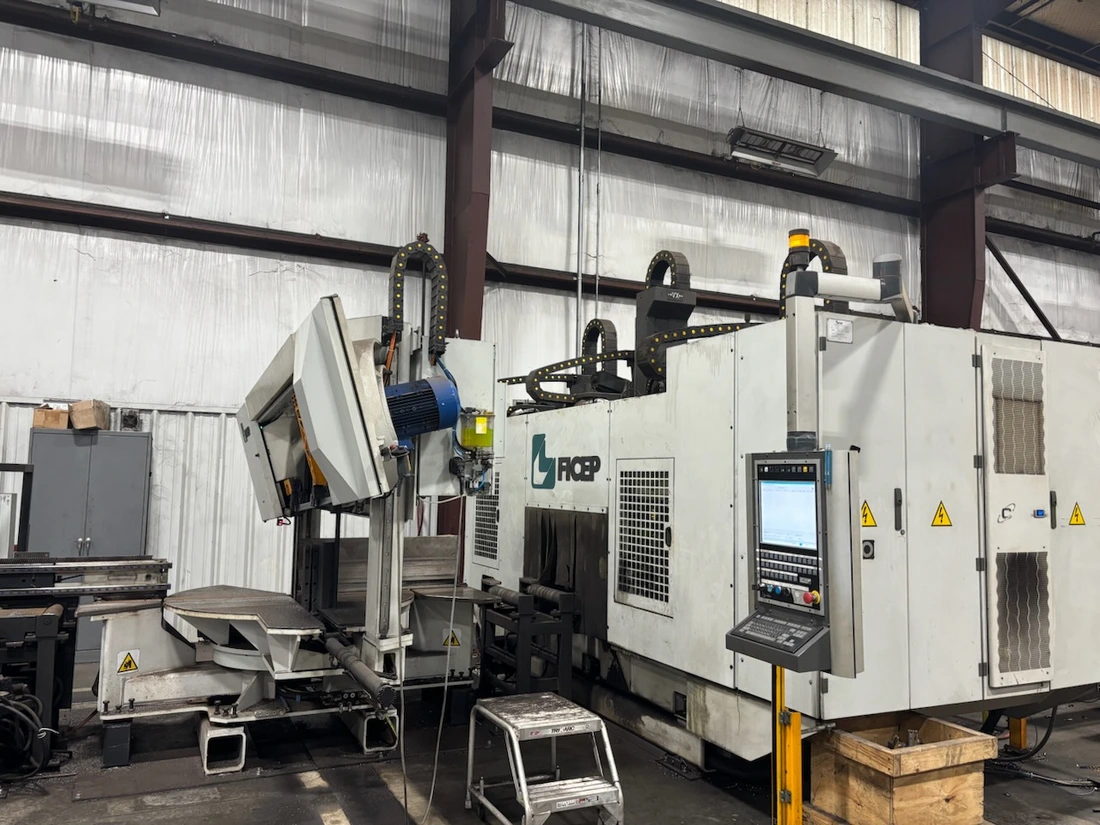

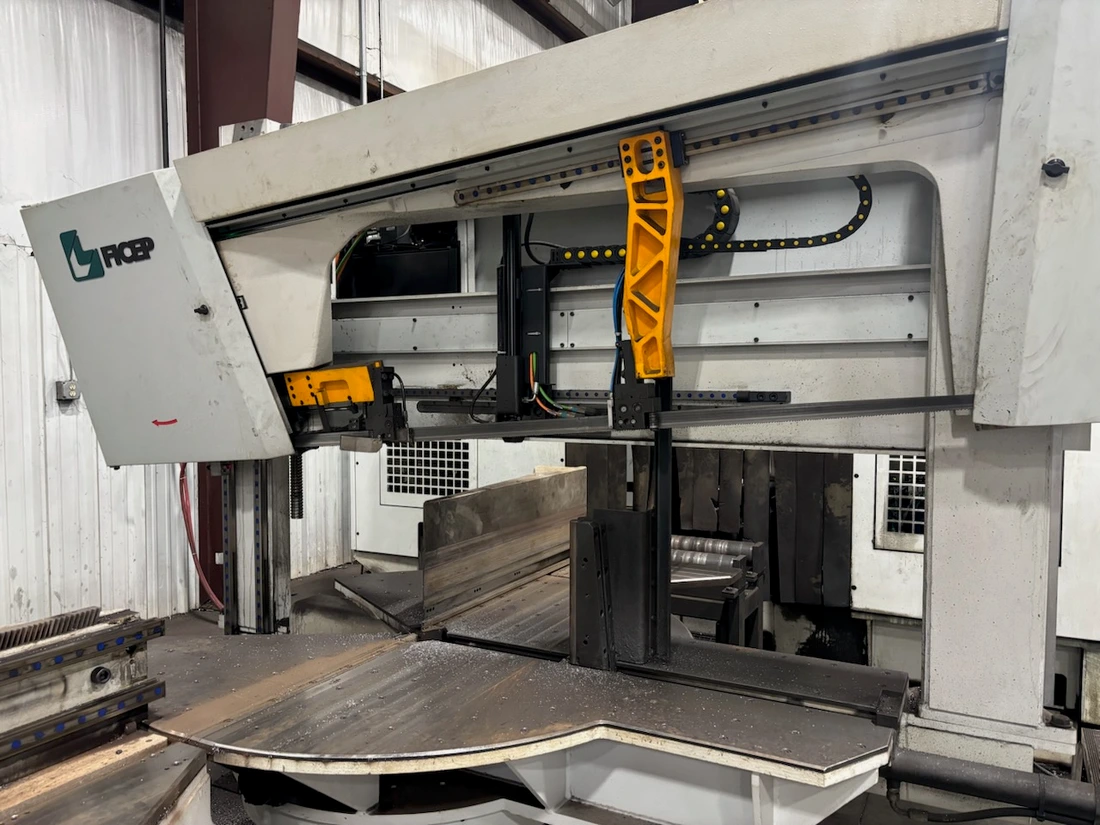

Saw was updated to a 2024 KATANA K100E Band Saw

Features

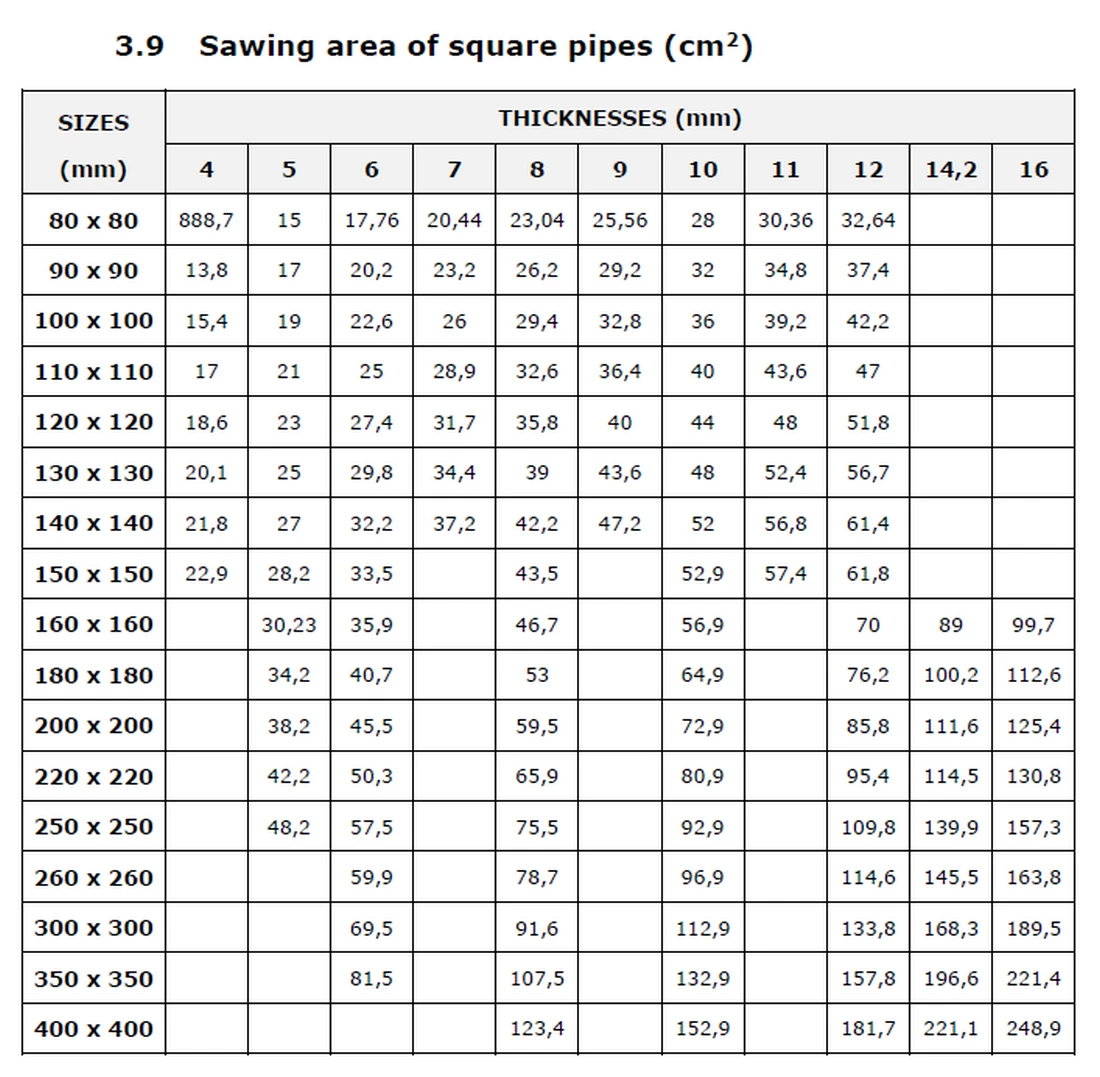

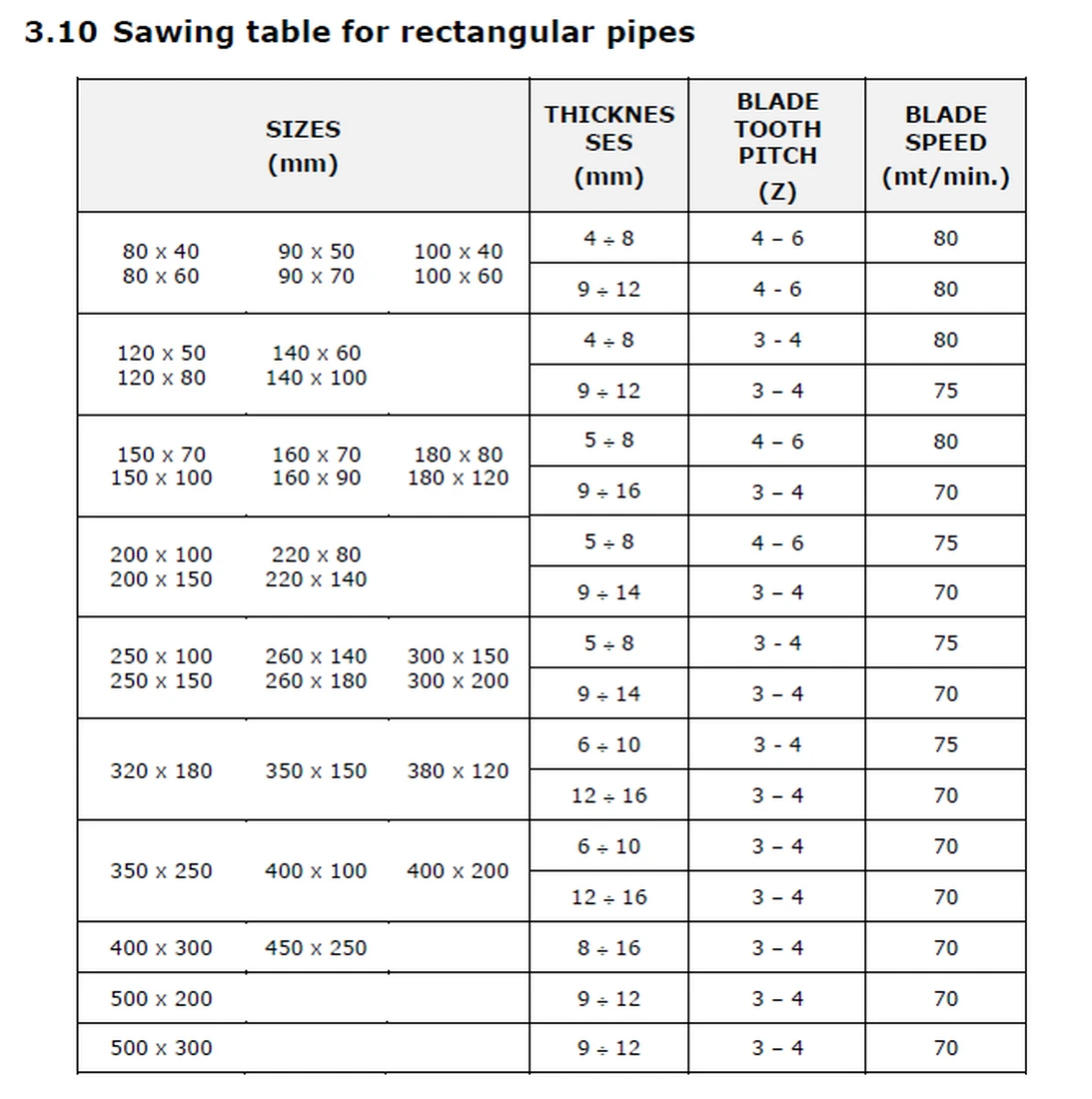

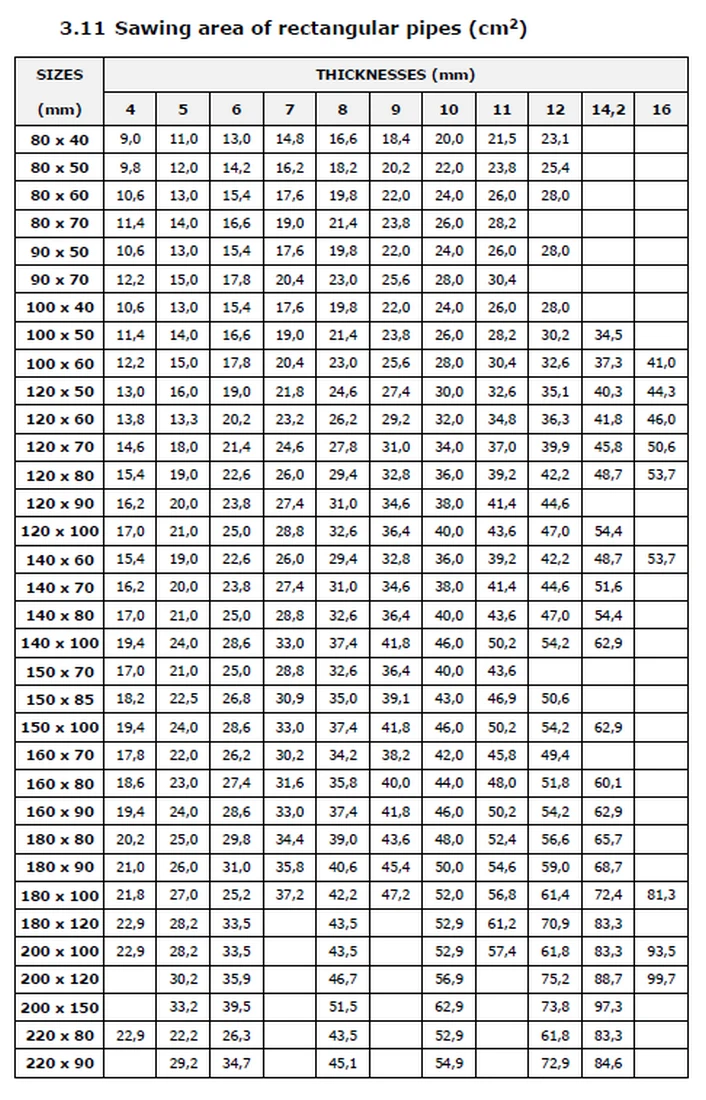

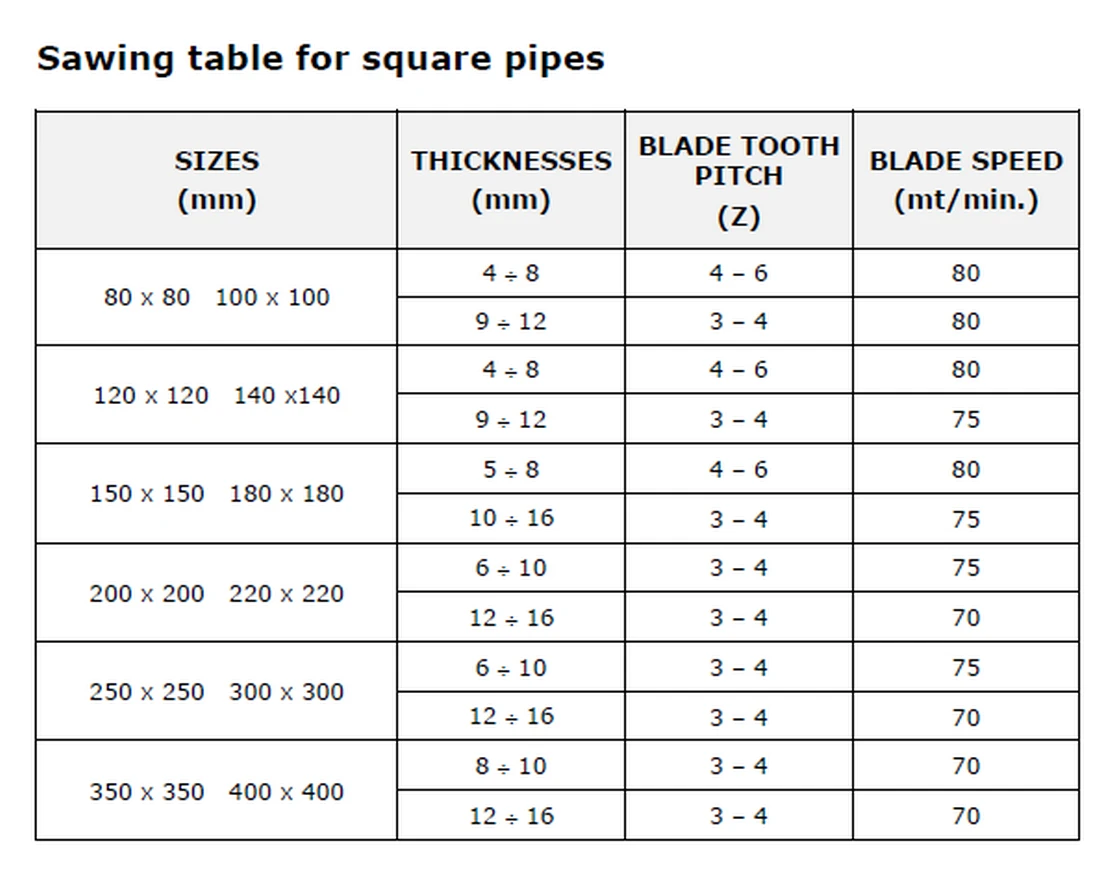

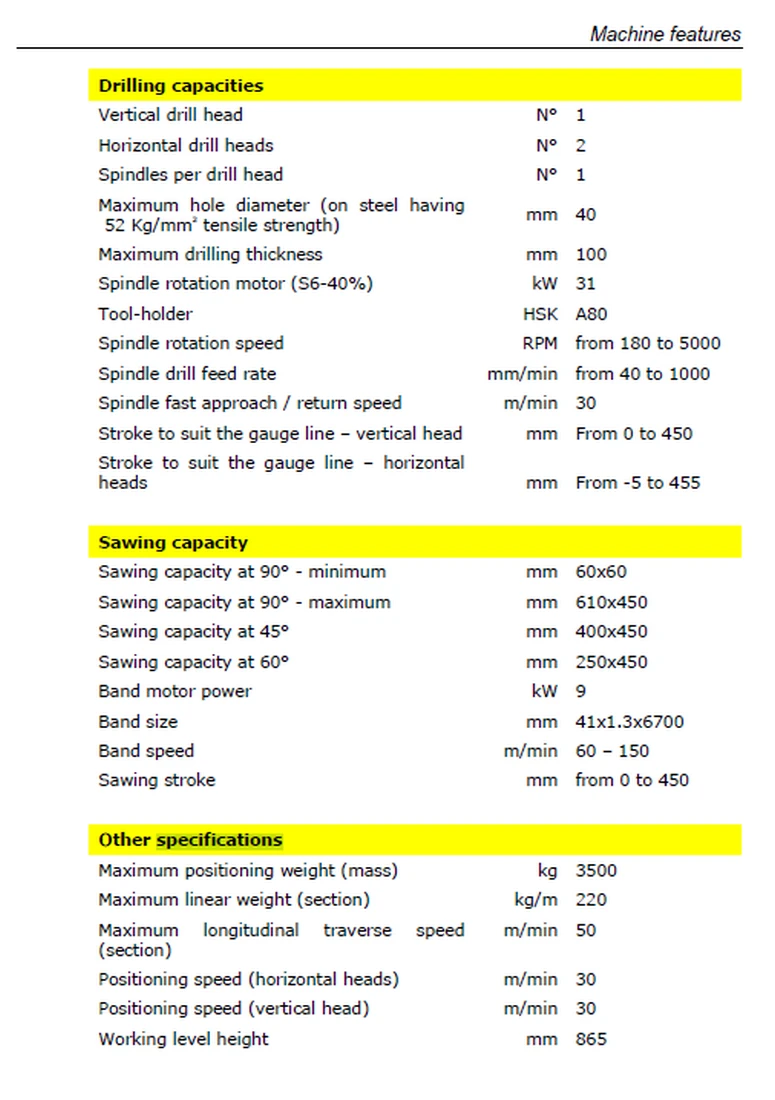

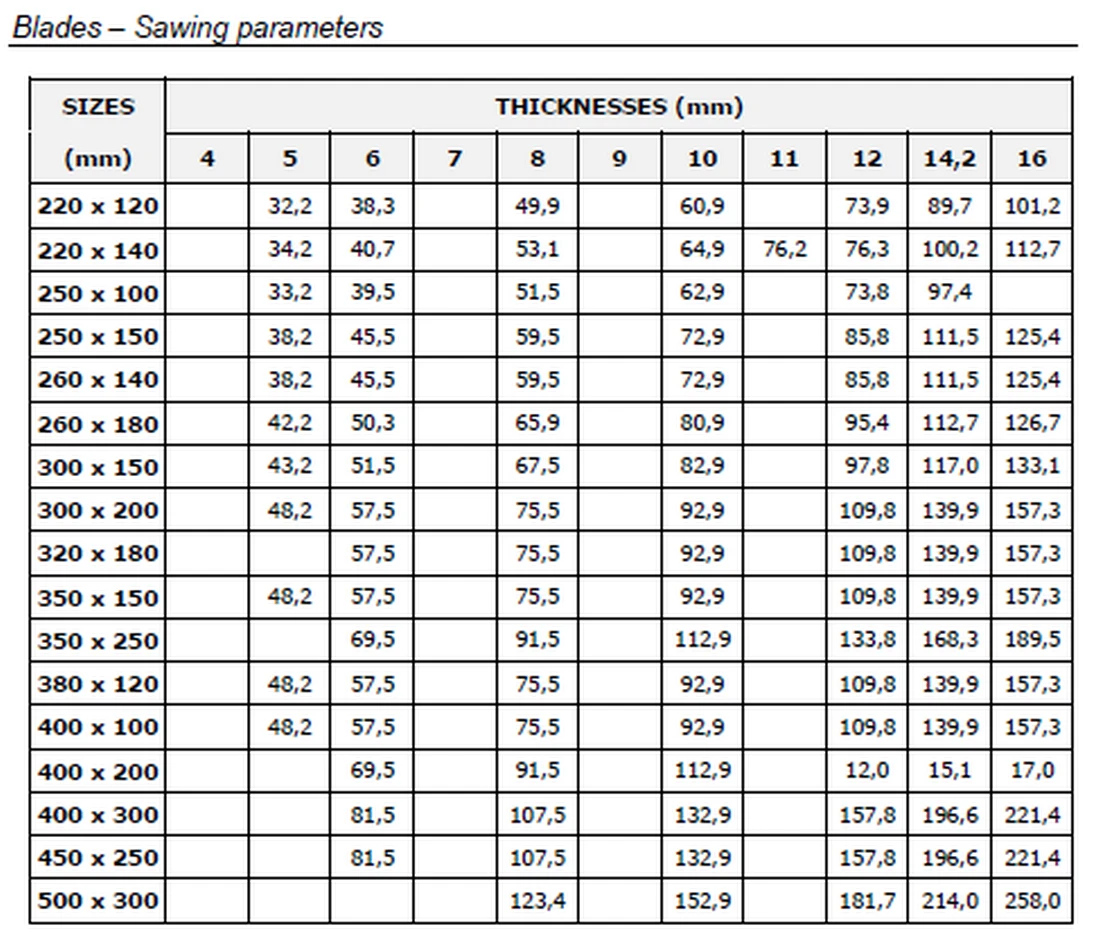

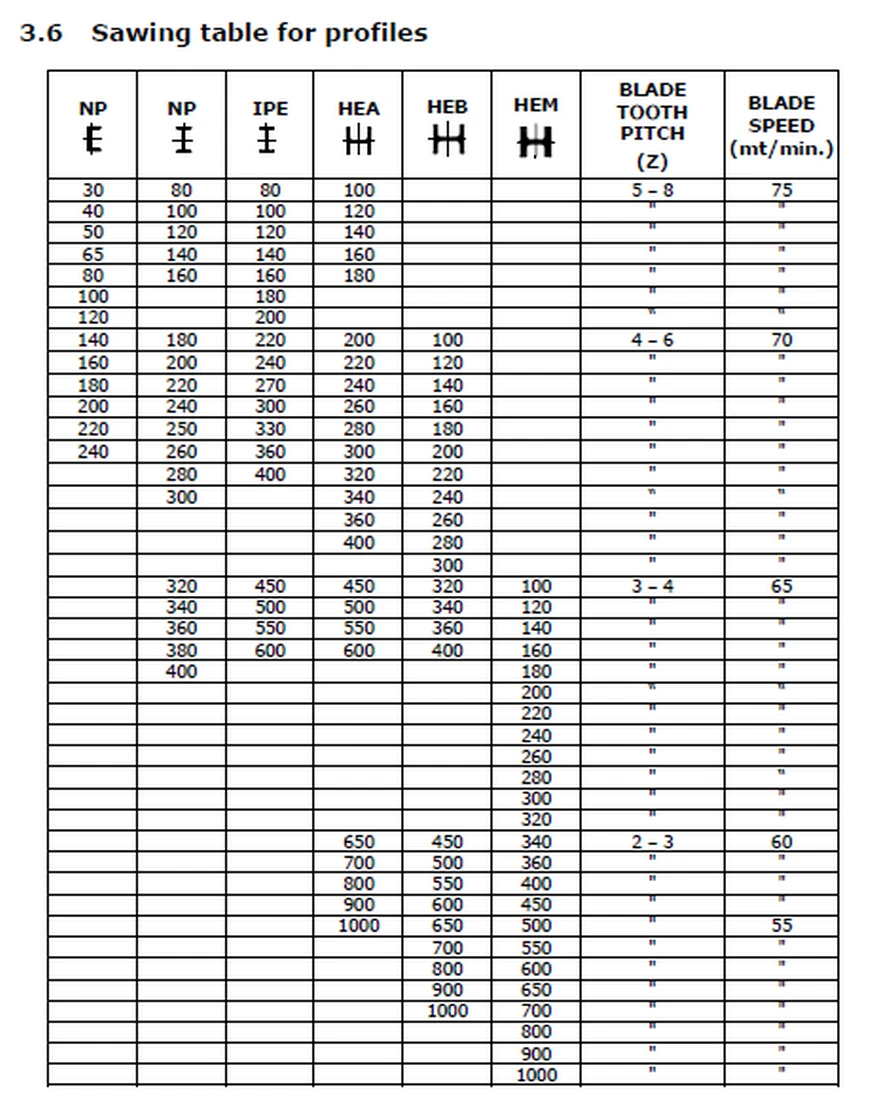

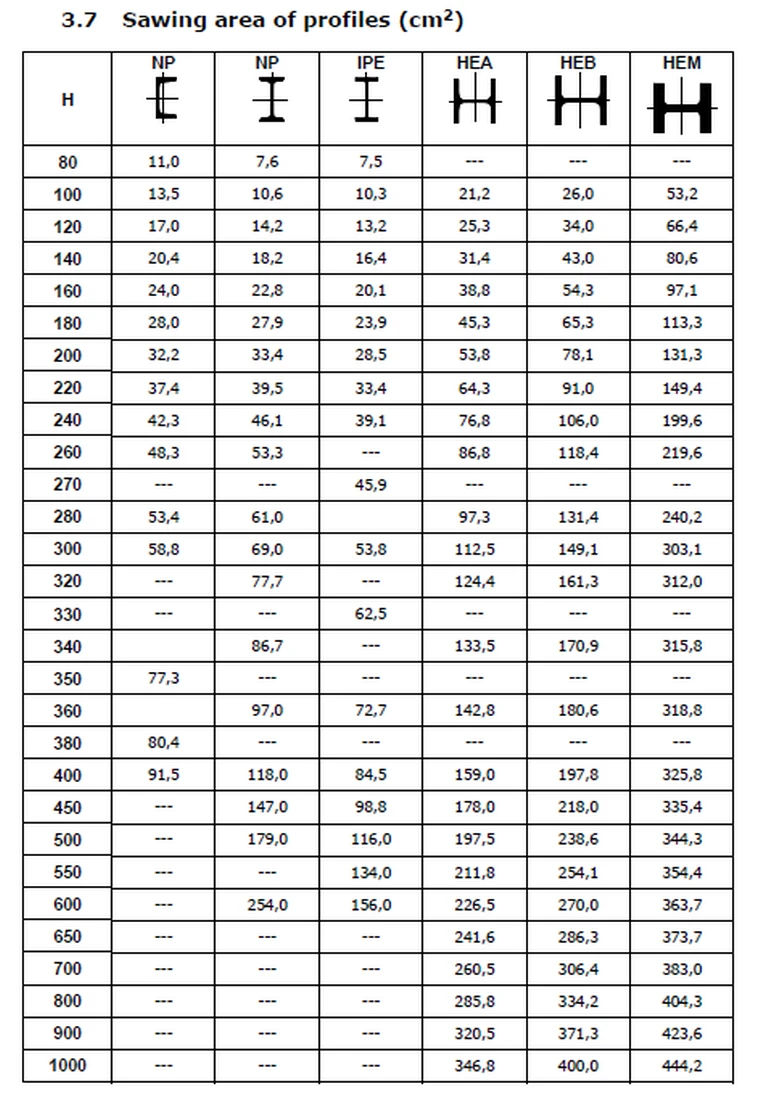

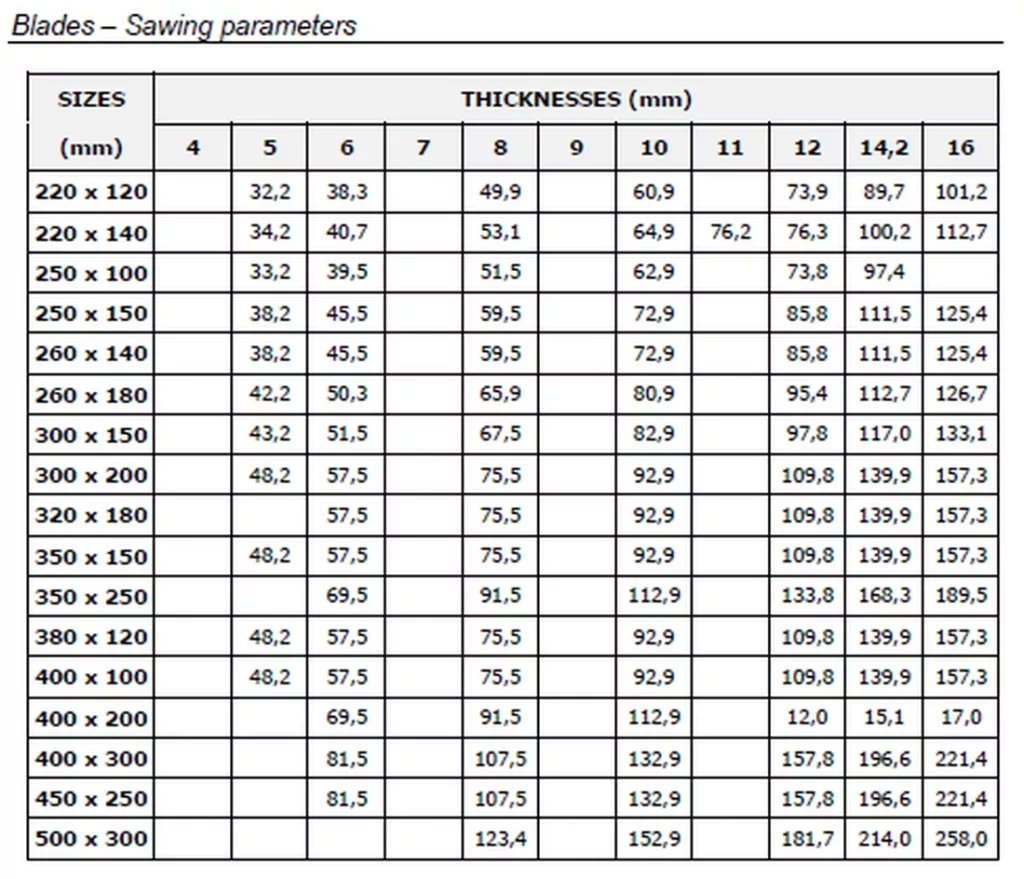

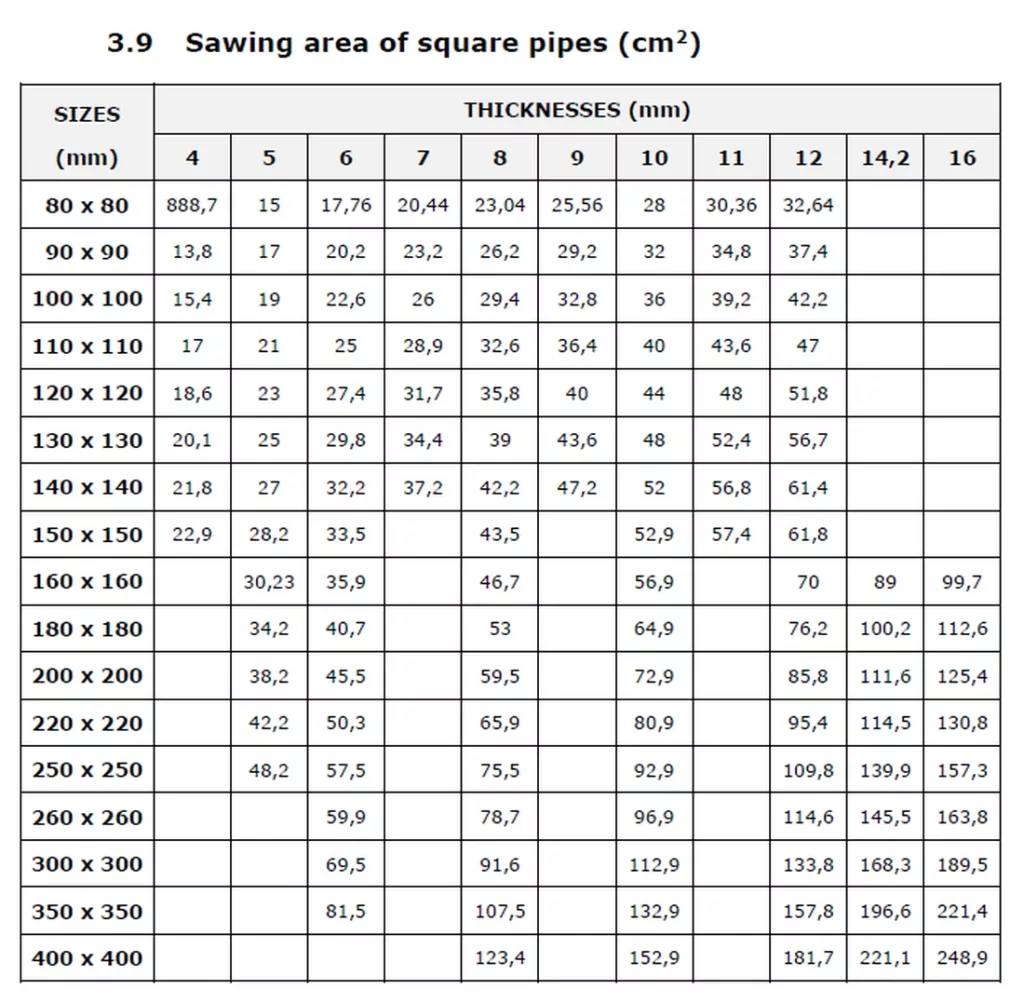

See Photos for More Specs and Features

UPN Channels (Web Downward)

* Important: All machinery specifications must be independently verified by buyer. All machinery sales are subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
