Year |
2016 |
|---|---|
Make |
Ficep |
Model |
TIPO D8 |
Description |
CNC Flats Processing Line |
Reference # |
8078853 |
Price |
Activate Pricing |

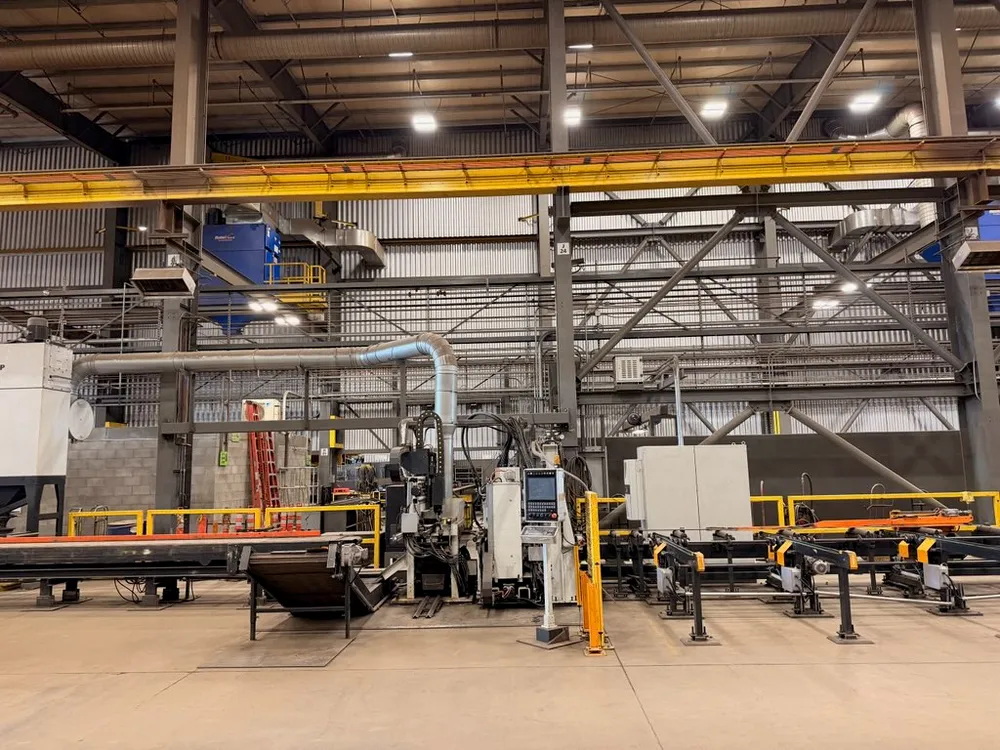

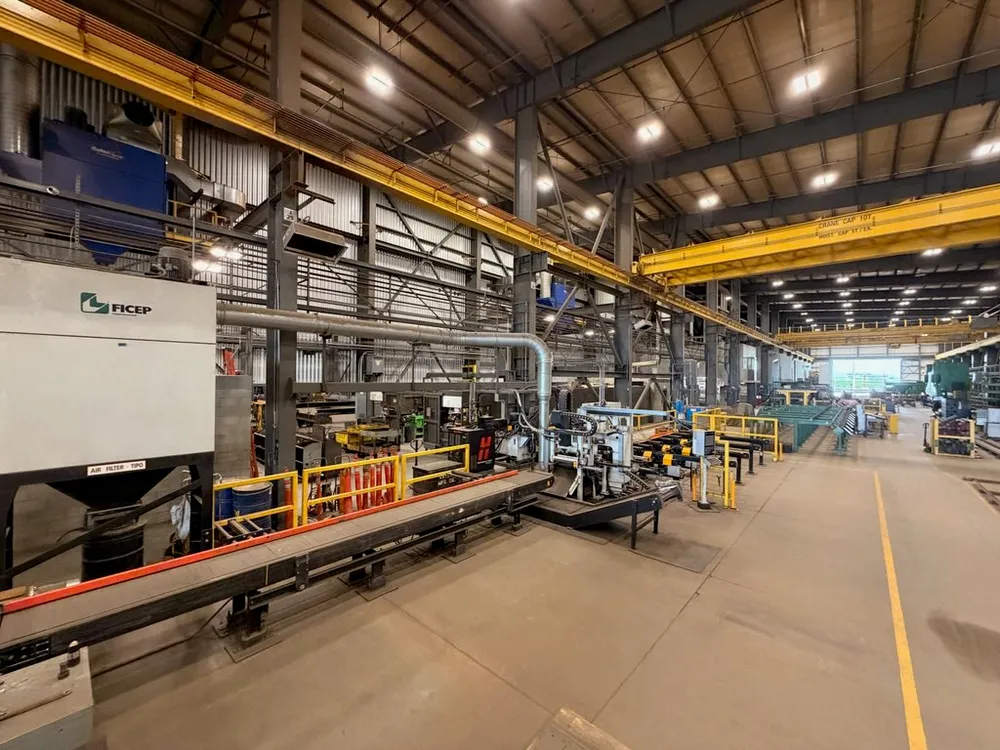

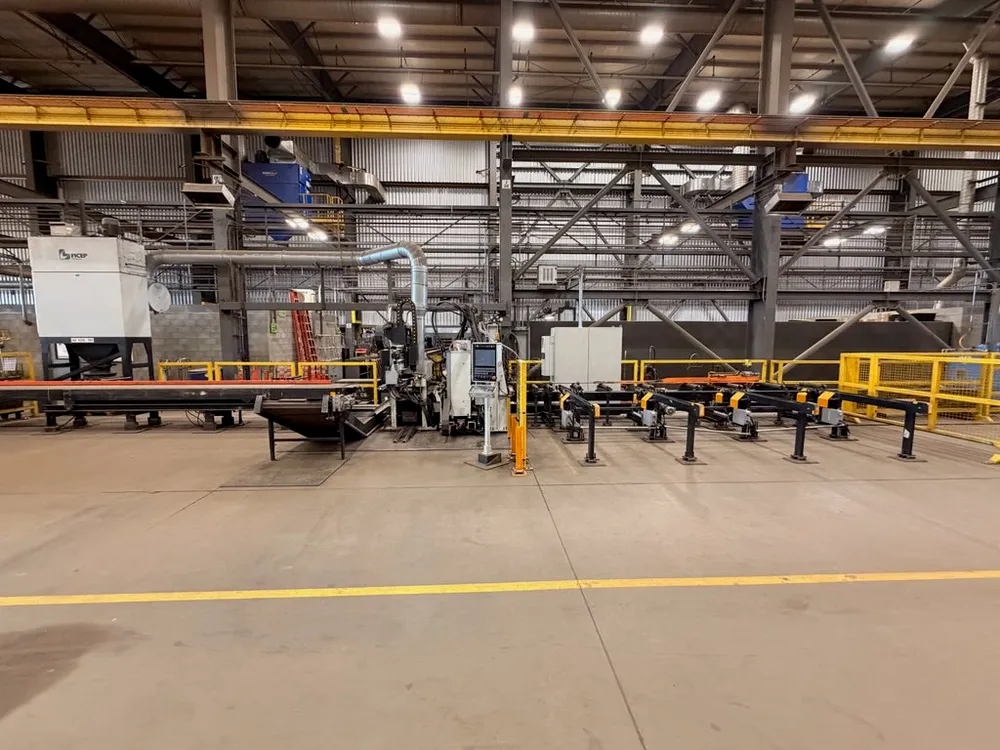

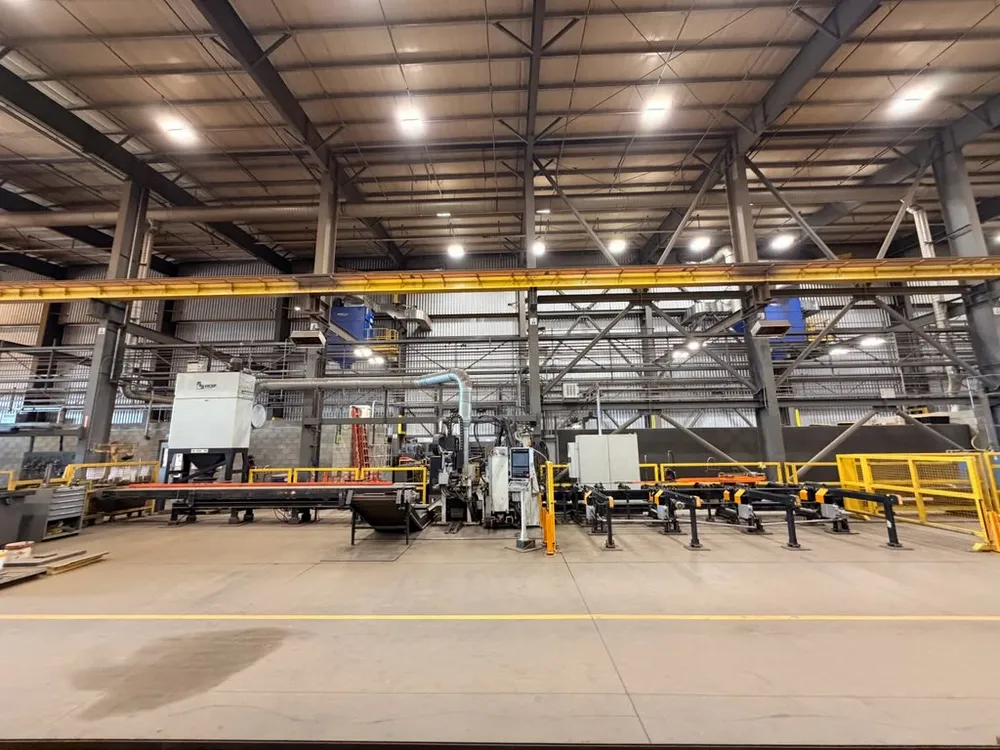

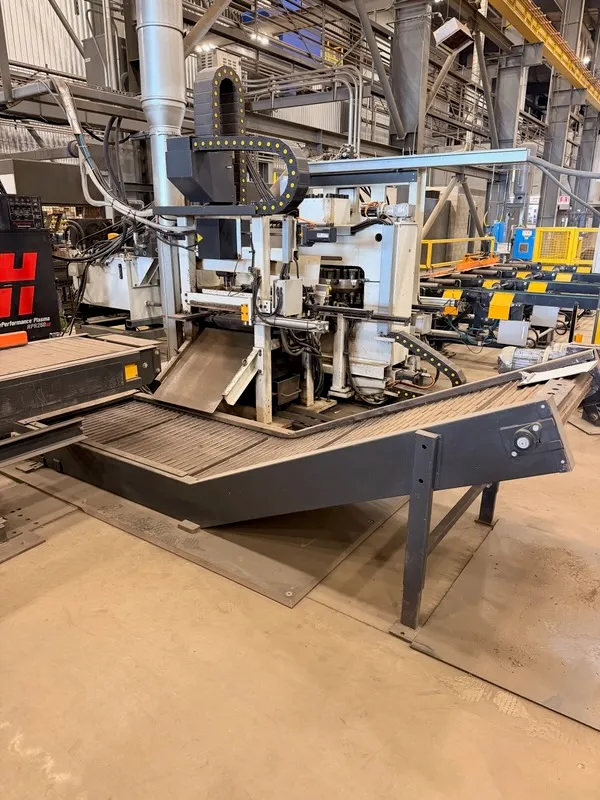

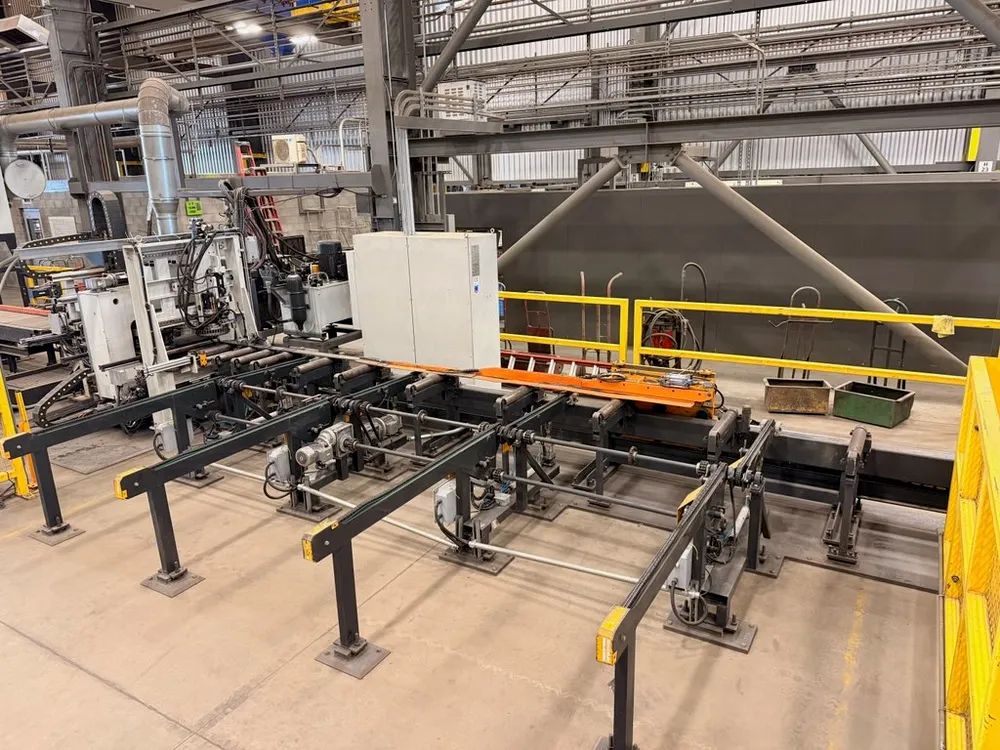

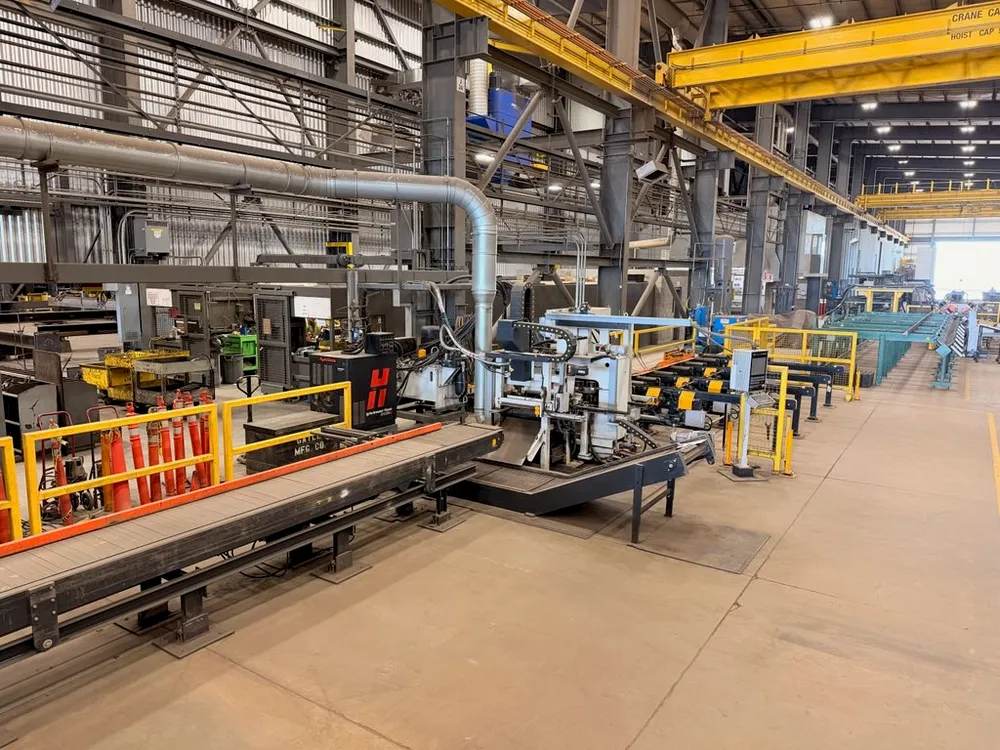

Used Ficep TIPO D8 (2016) Plasma Cutter for Sale. This CNC plate and angle processing line runs a Ficep control with a 15″ touchscreen color LCD, Windows 7 Embedded, 2D/3D graphics, automatic nesting and optimization, automatic tool assignment, and CANopen fieldbus. Capacity covers flats from 50 x 6 mm to 510 x 25 mm and angles from 50 x 50 x 6 mm to 200 x 200 x 16 mm, with a 2,500 mm minimum profile length. It includes a 1,100 kN flats punching unit with 8-position CNC rotating tool changer, 600 kN horizontal punching, drilling to 40 mm with a 5.5 kW spindle at 180 to 800 RPM, 2,200 kN flats shear with mitering base, 3,000 kN angle shear, 36-position marking disk, and a Hypertherm HPR 260 plasma unit. Available for inspection under power. See more used plasma cutters or Request a Quote.
Specifications

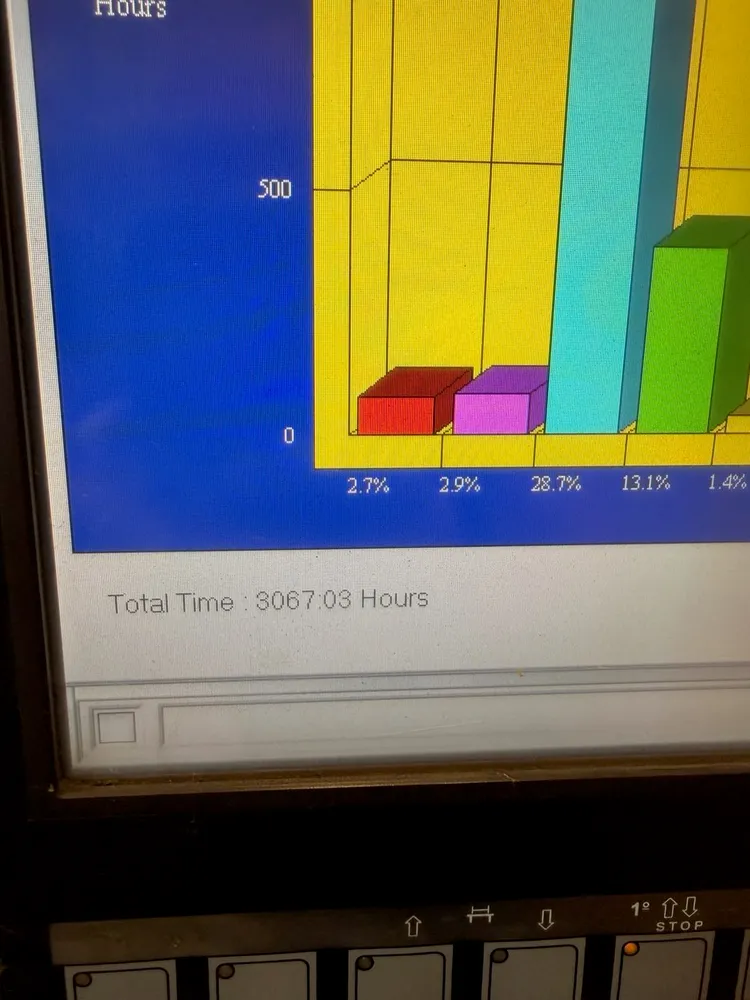

| Control |
Ficep |
|---|---|
| Flats |
50 x 6 mm (min) – 510 x 25 mm (max) |
| Angles |
50 x 50 x 6 mm – 200 x 200 x 16 mm |
| Min Profile Length |
2,500 mm |

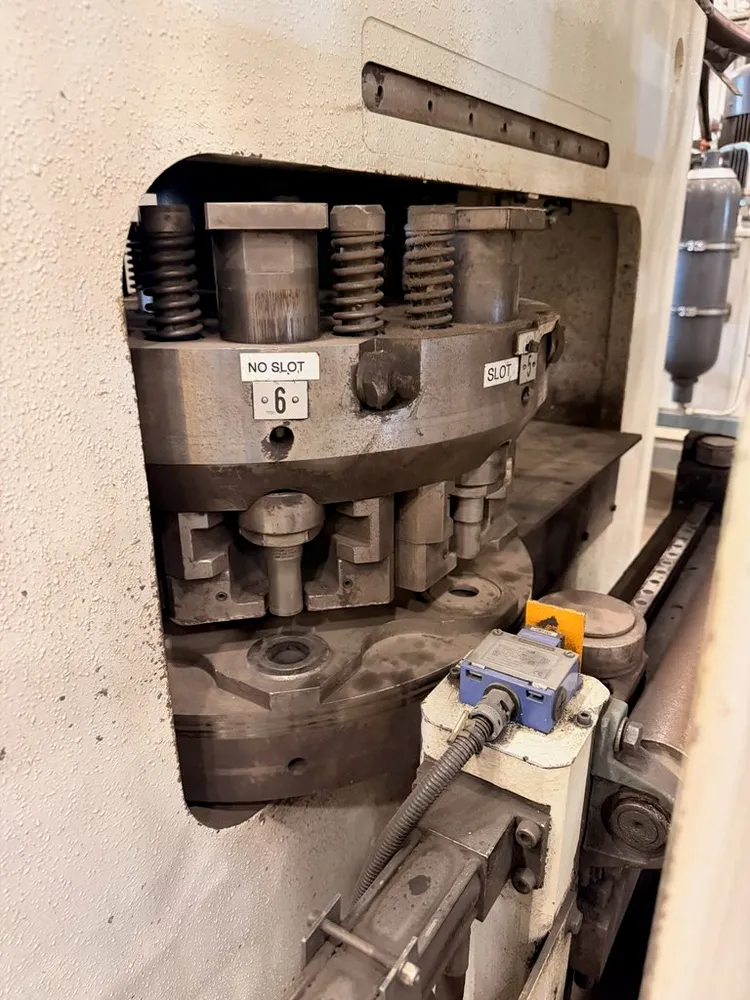

| Flats Punching Unit |

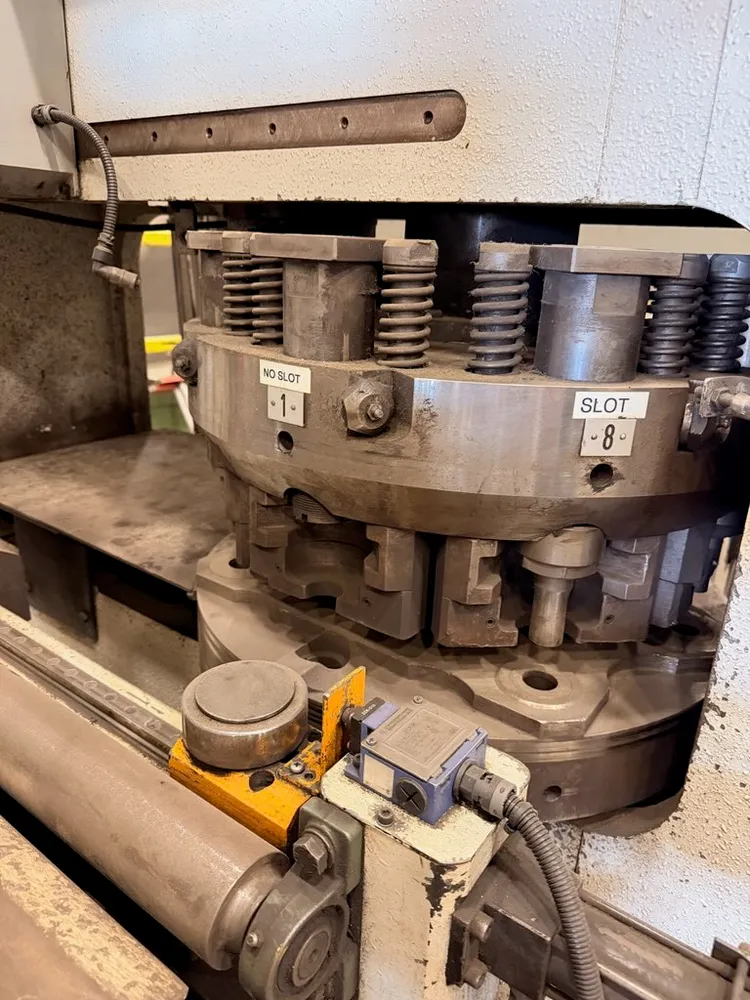

1,100 kN, 8-Position CNC Rotating Tool Changer, Max Punch Ø 46 mm, Max Thickness 25 mm |
| Horizontal Punching |
600 kN per Punch, 160 mm Throat, Max Ø 30 mm, Max Thickness 16 mm |
| Max Drilling Diameter/Thickness |
40 mm / 40 mm |

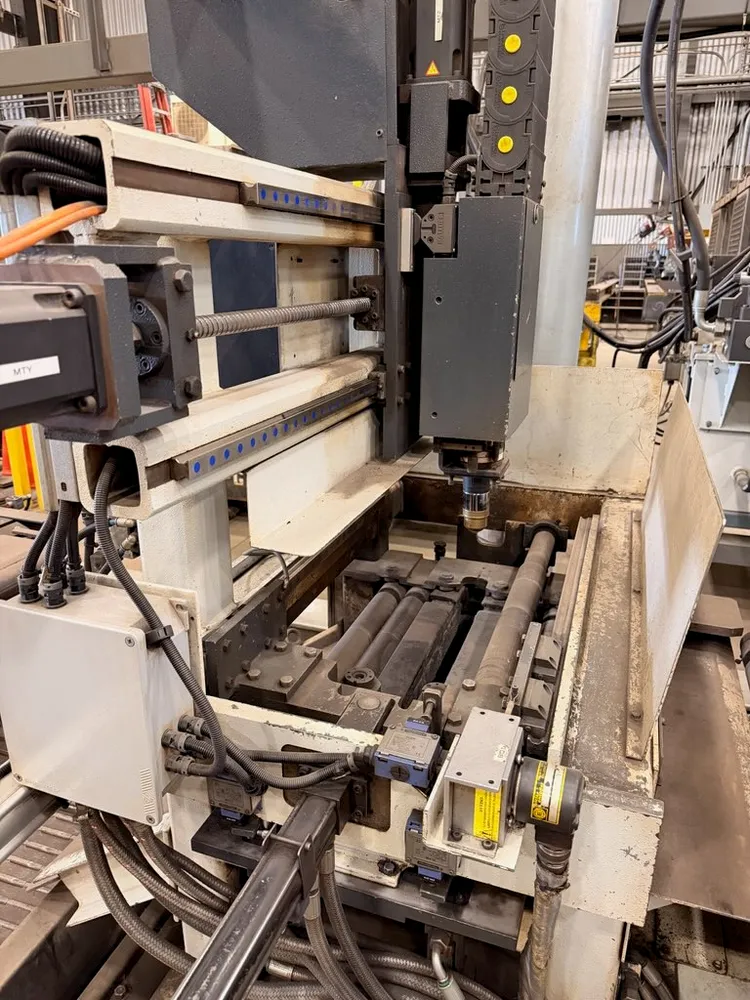

| Drilling Spindle |

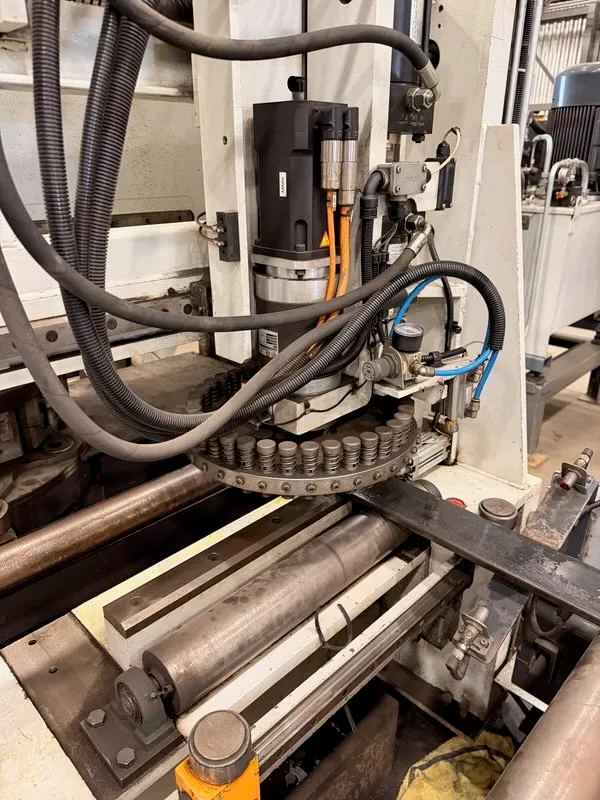

5.5 kW Spindle Motor, CNC-Controlled Speed 180–800 RPM |
| Flats Shear |
2,200 kN, up to 510 x 25 mm; Rotating Base for +/- 45° Mitered Cuts (up to 350 mm width) |
| Angle Shear |
: 3,000 kN, up to 200 x 200 x 20 mm |

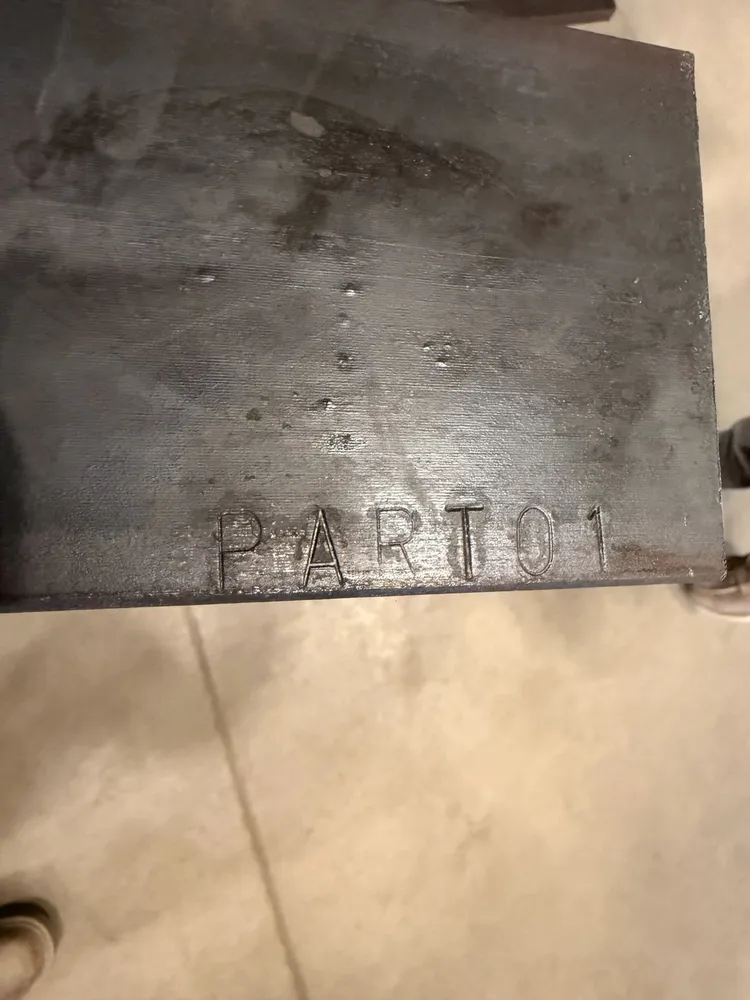

| Marking Unit |
36-Position CNC-Controlled Marking Disk, 80 kN Force per Character |

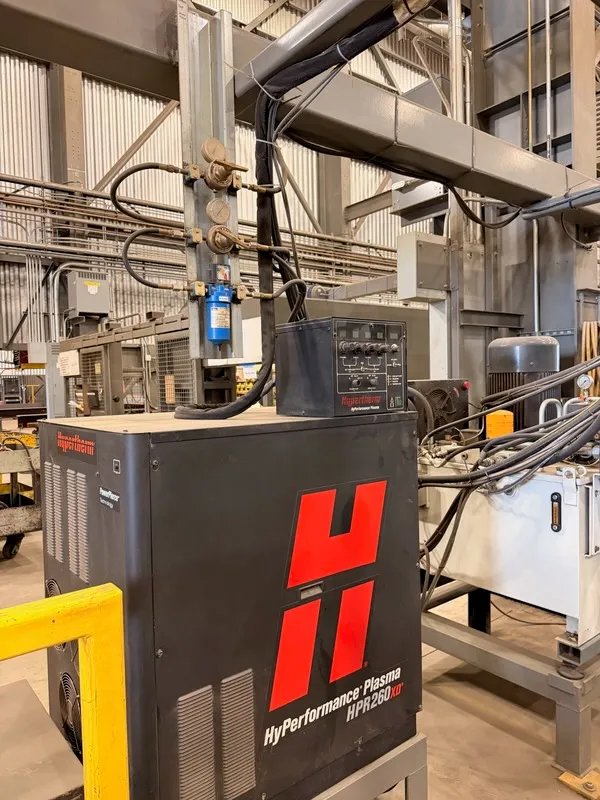

| Plasma Unit |
Hypertherm HPR 260 (260A), Max Thickness 25 mm, CNC-Controlled Torch Positioning |

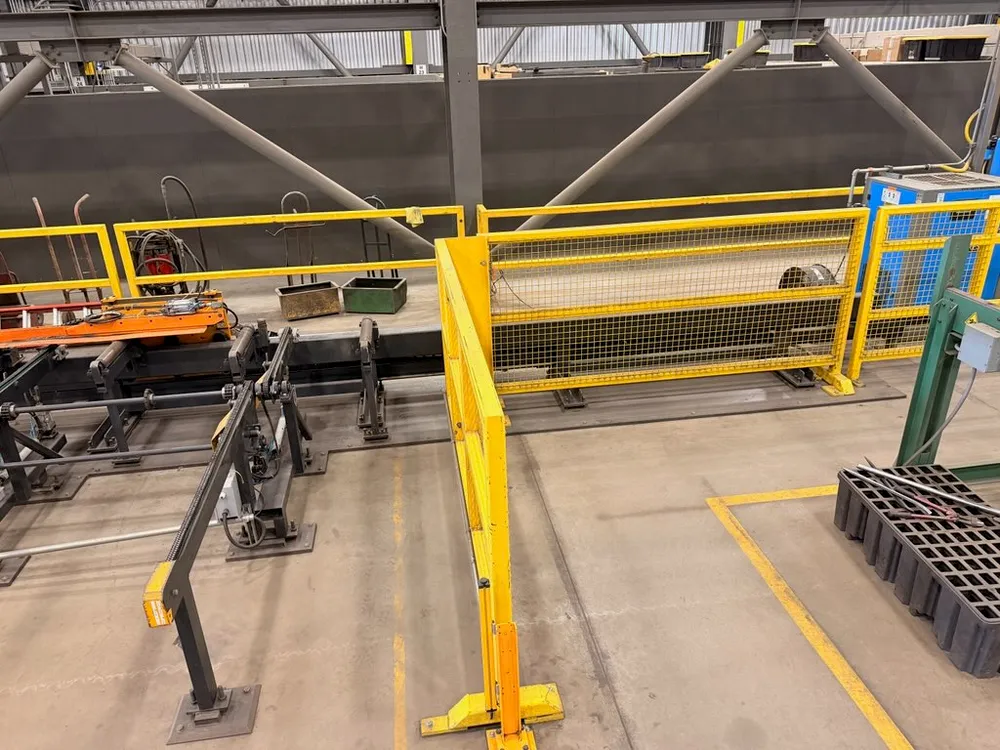

| Outfeed Conveyor |

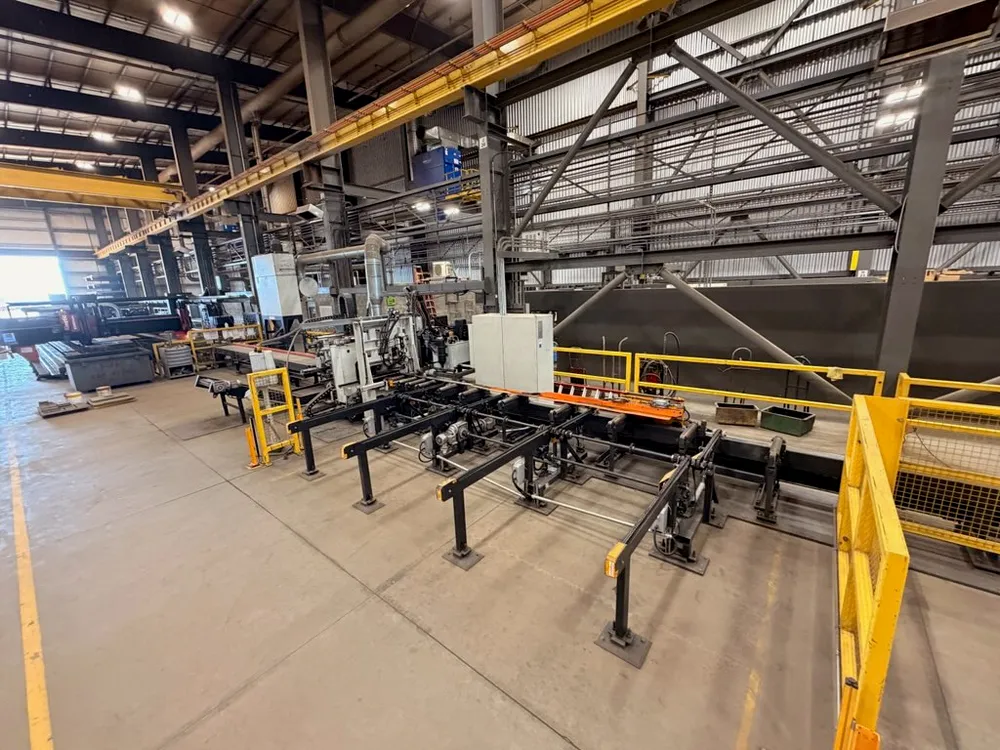

600–6,000 mm Transferable Length Range |
| Hydraulic Unit |

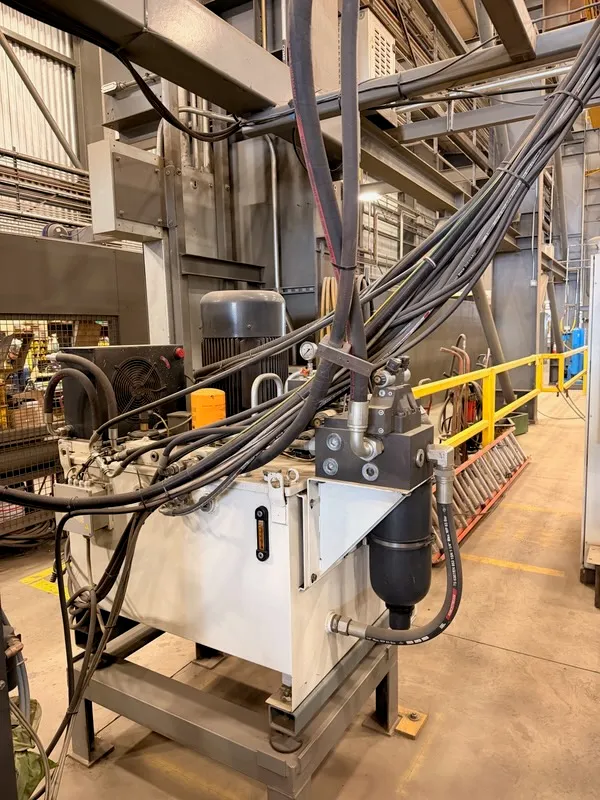

320 Bar High Pressure / 65 Bar Low Pressure, 335 L Tank |
| Power Requirement |
: 3-Phase, 480V ±10%, 60 Hz, 80 kW Total Installed Power |
Features
|
2D/3D Graphics |
Automatic Nesting/Optimization |
|
Automatic Tool Assignment |

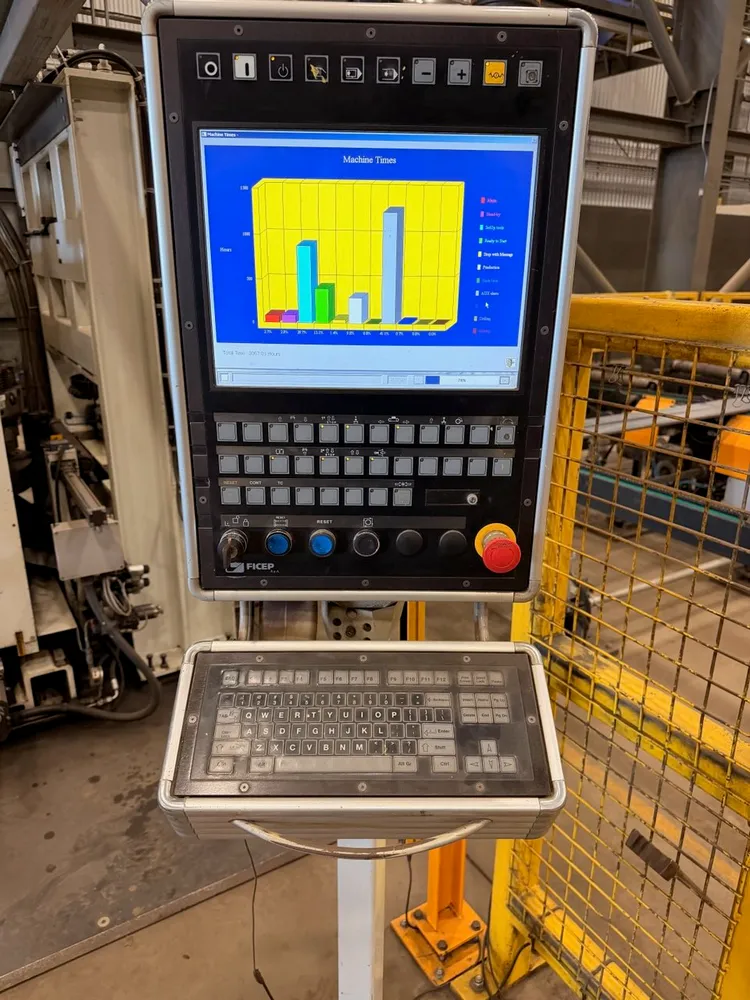

CANopen Fieldbus 15" Touchscreen Color LCD Windows 7 Embedded |
|
Flats Punching Unit |
Horizontal Punching Unit |
|
Optional Drilling/Shearing/Marking/Plasma Cutting |
