Year |
2020 |
|---|---|
Make |
Maac |
Model |
C85S |
Description |
Single Station Thick Gauge Thermoformer |
Reference # |
8071956 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

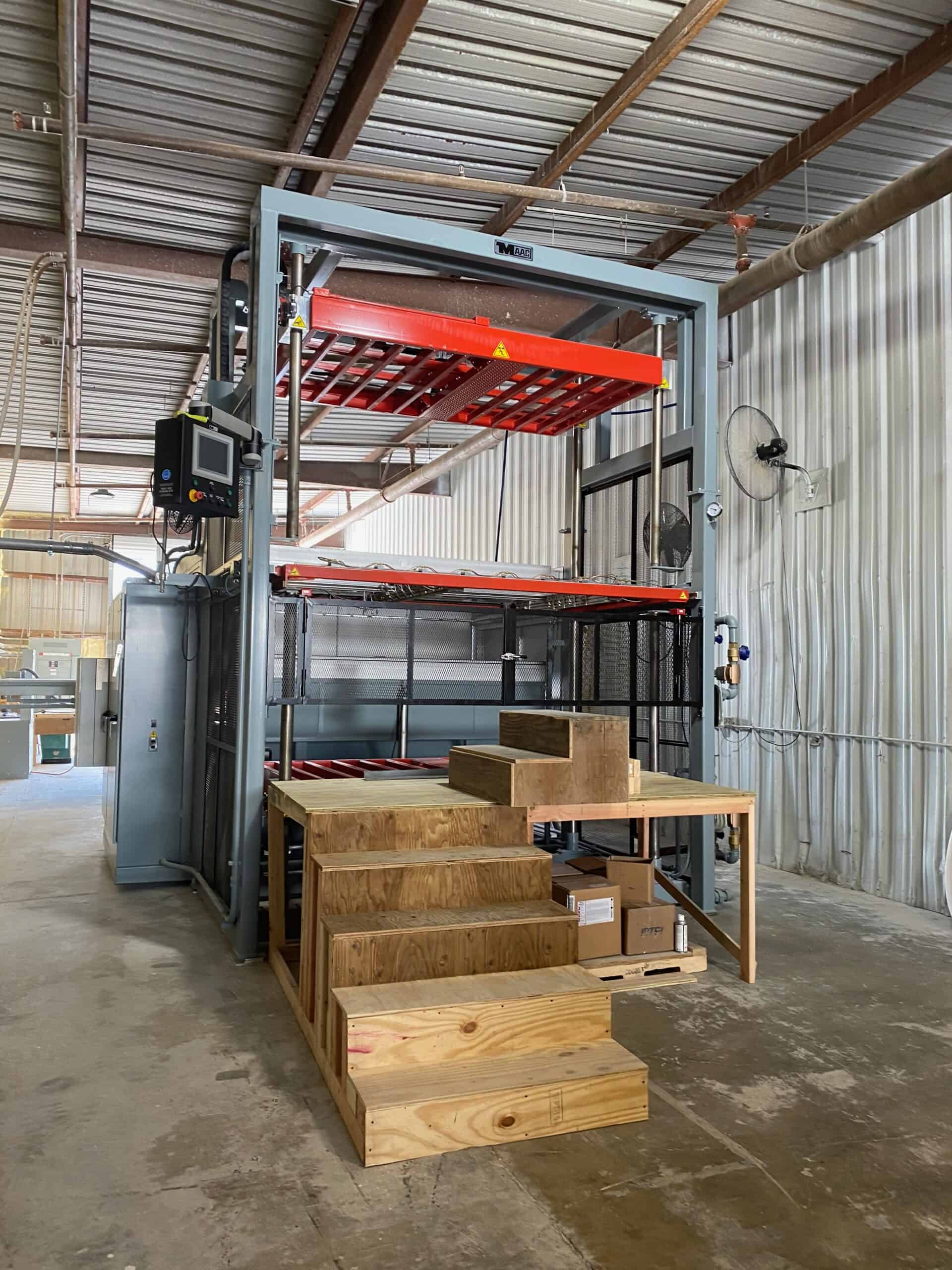

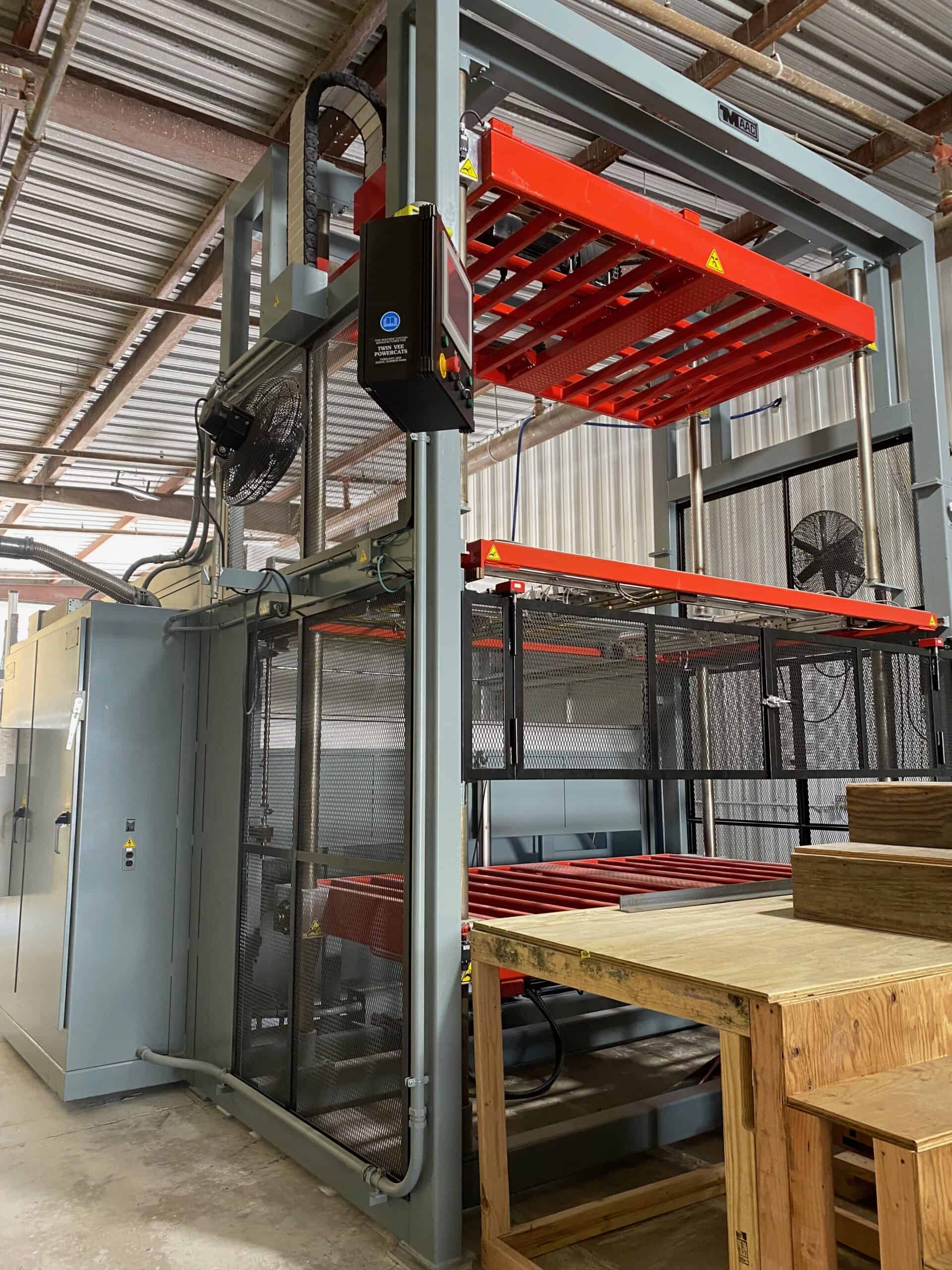

Used Maac C85S (2020) Thermo Former for Sale. This pre-owned Maac thermoformer machine is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Maac Thermo Former, please feel free to contact us. You may Activate Pricing to view the price of this Plastic Forming Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Max Mold Size |
96" x 60" |
|---|---|
| Top Oven |
Ceramic |
| Bottom Oven |
Ceramic |
| Multiple Zone Control |
27 Top and Bottom |
| Top Platen Stroke |
60" |
| Bottom Platen Stroke |
60" |
| Platen Drives |
Servo (Electric Motors) |
| Max Clamp Frame Opening |
98" x 62" |
| Daylight Stroke |
7" Top and Bottom |
| Sheetline to the Floor |
86" |
| Lower Oven (Adjustable) |
8-24" |
| Control |
Allen Bradley CompactLogix 5370 Series (Programmable Logic Controller) |
| Electrical Requirements |
287 Amps (Full Load) @ 480v - 3 ph - 60 hz |
| Machine Dimensions |
217" (246" with 60" Platform) x 179" x 171" |
| Note |
Machine is Equipped with 400 Amp Fused Disconnect |
Features
|
Quick Change Clamping Frames |
700 Gallon Carbon Steel Vacuum Tank |
|
Cooling Fans |
