Year |
2019 |
|---|---|
Make |
Pinacho |
Model |
SH400-3000 |
Description |
CNC Lathe |
Reference # |
8071425 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

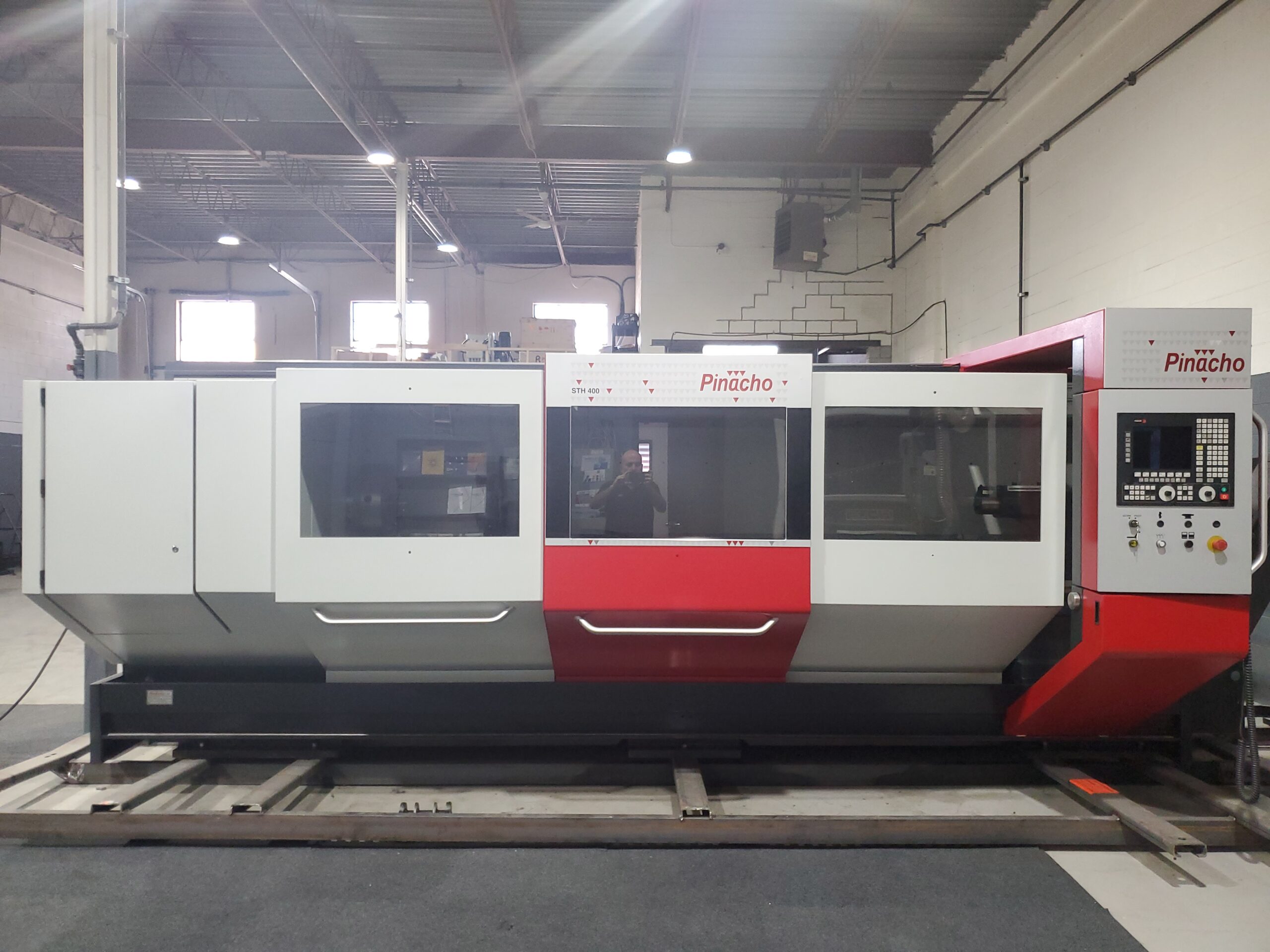

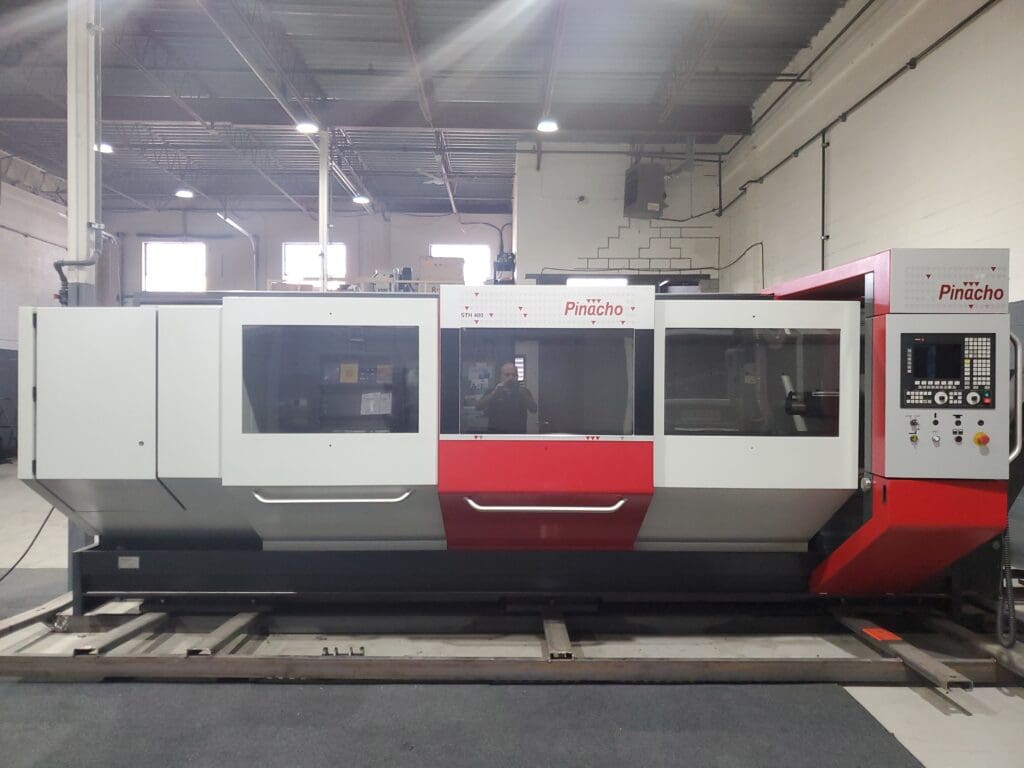

Used Pinacho SH400-3000 (2019) CNC Lathe for Sale. This pre-owned Pinacho CNC lathe is located in Canada and available to be seen under power for an inspection. If you have any questions regarding this Pinacho Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Chuck Size |
16" |
|---|---|
| Swing |
31.75" |
| Turning Diameter |
20.25" |
| Spindle Speed |
1,700 RPM |
| Control |
Fagor 8055i/FL-TC |
| Distance Between Centers |
118" |
| Turret |
8 Station |
| Chip Removal |
Chip Conveyor |
| Tailstock Quill Travel |
8.25" |
| Spindle Motor |
30 HP |
| Spindle Bore |
4" |
| Swing Over Cross Slide |
20.25" |
| Center Height |
15.75" |
| Steady Rest |
90-300mm |
| Follow Rest |
70-290mm |
| Width of Bed |
16.75" |
| Floor Space |
258" x 85.4" |
| Machine Height |
82" |
| Machine Weight |
14,212 Lbs |
Features
|
Conversational Programming |
11" Color Display |
|
A2-8 Spindle Nose |
Ethernet Communication |
|
Gear Box Spindle |
MT-6 Tailstock |
