Year |
2019 |
|---|---|
Make |
Haitian |
Model |
MA3800/2250II |
Description |
420 Ton 65 oz Shot Size Injection Molding Machine |
Reference # |
8078961 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

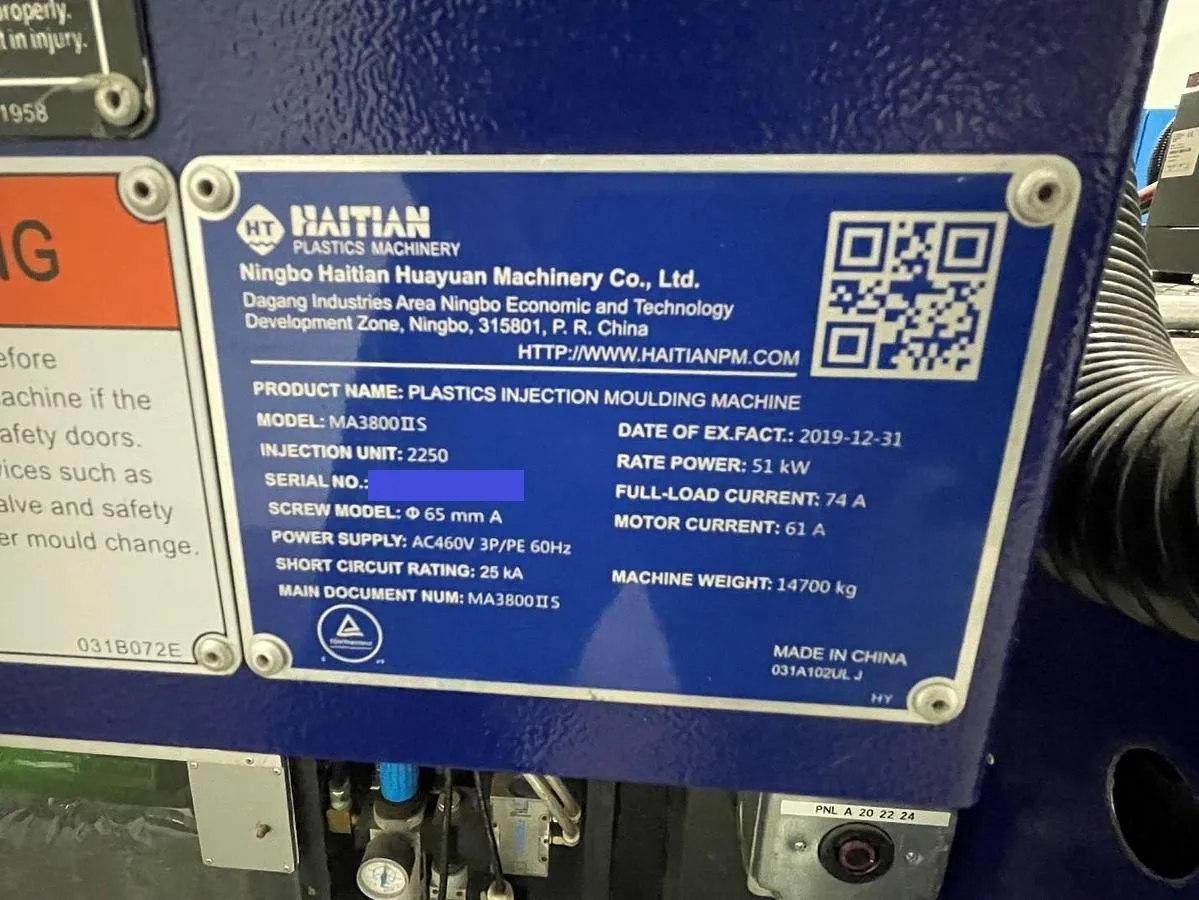

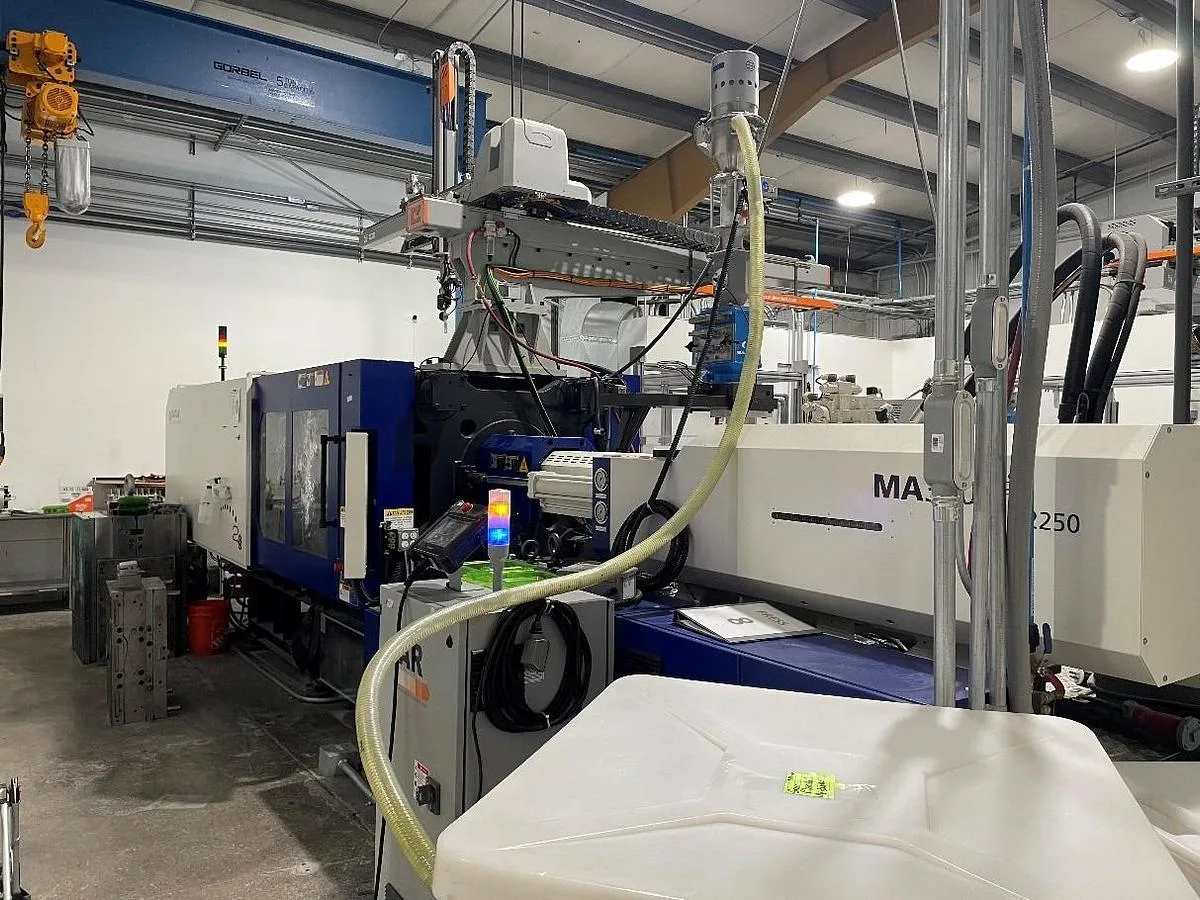

Used Haitian MA3800/2250II (2019) Injection Molding Machine for Sale. This 420 ton press has a 65 oz shot size and a 65mm screw diameter, with platens measuring 41.18″ x 41.18″ and tie bar spacing of 28.74″ x 28.74″. Open daylight is 56.30″, with minimum and maximum mold heights of 11.02″ and 28.74″, and a 7.09″ ejector stroke. Controls are Keba, and power requirement is 460/3/60. Machine dimensions are 294″ x 70″ x 92″ with a weight of 32,408 lbs. Equipped with hydraulic knockout, core pull, and robot interface. The machine is under power and can be seen running for an inspection. See it alongside our other used plastic injection molding machines, then Activate Pricing or use the Inquire Now button.
Specifications
| Capacity |
420 Ton |
|---|---|
| Shot Size |
65 oz |
| Platen Size |
41.18" X 41.18" |
| Tie Bar Spacing |
28.74" x 28.74" |
| Open Daylight |
56.30" |
| Min /Max Mold Height |
11.02"/28.74" |
| Ejector Stroke |
7.09" |
| Screw Diameter |
65mm |
| Control |
Keba |
| Power Requirement |
460/3/60 |
| Machine Dimensions |
294" x 70" x 92" |
| Machine Weight |
32,408 Lbs |
Features
|
Core Pull |
Hydraulic Knockout |
|

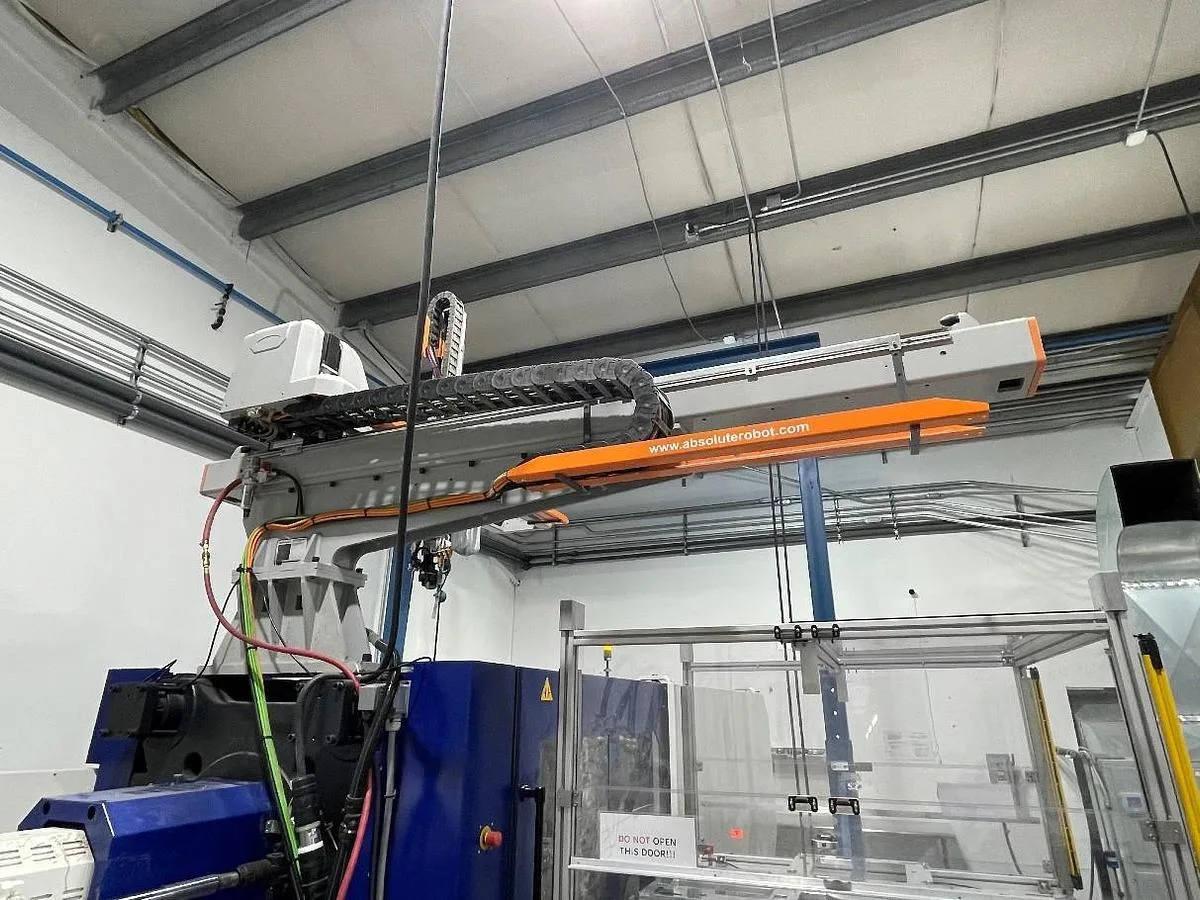

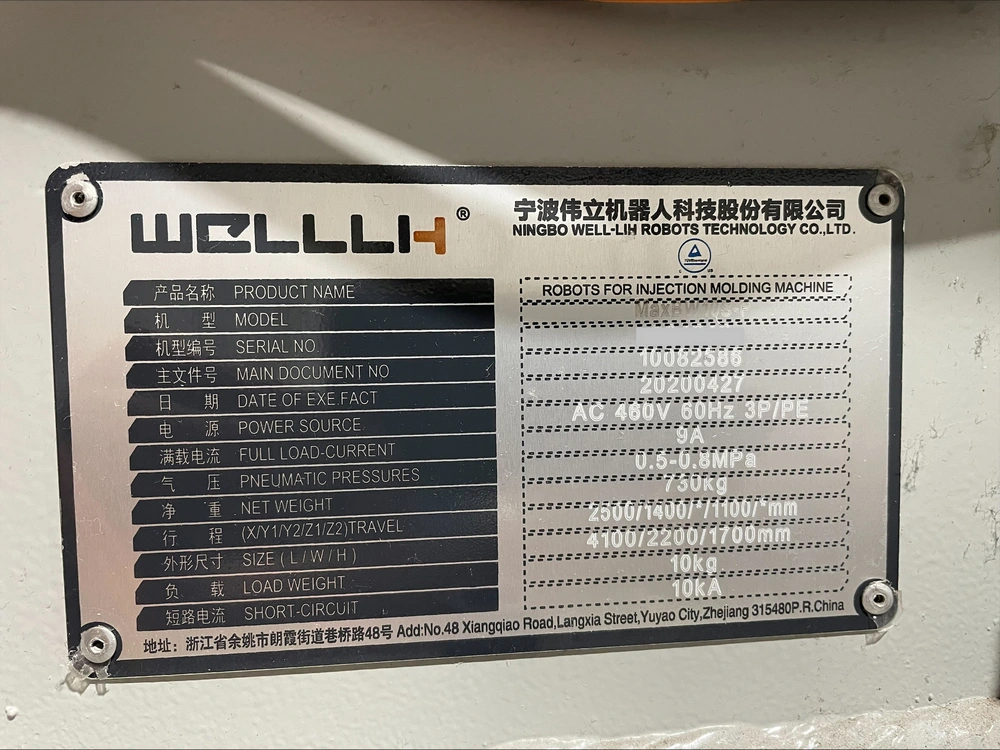

Robot Interface |
Under Power |
