Year |
2019 |
|---|---|
Make |
Doosan |
Model |
Puma 400B |
Description |
CNC Lathe |
Reference # |
8077777 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

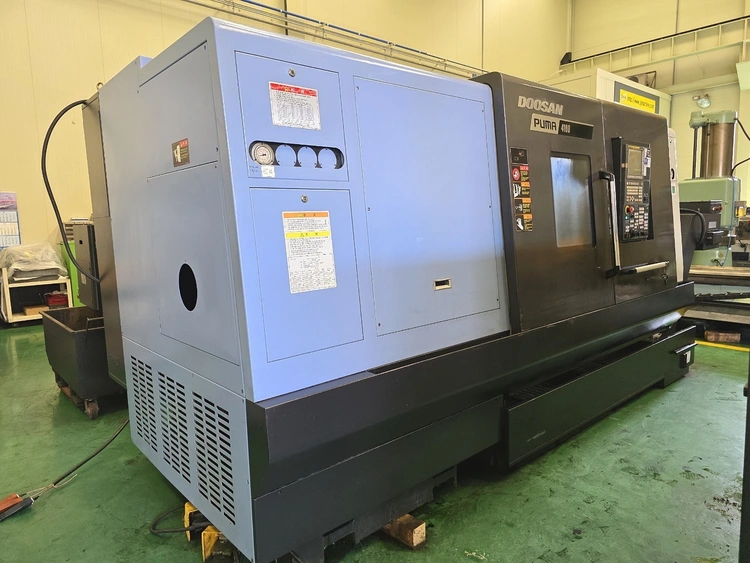

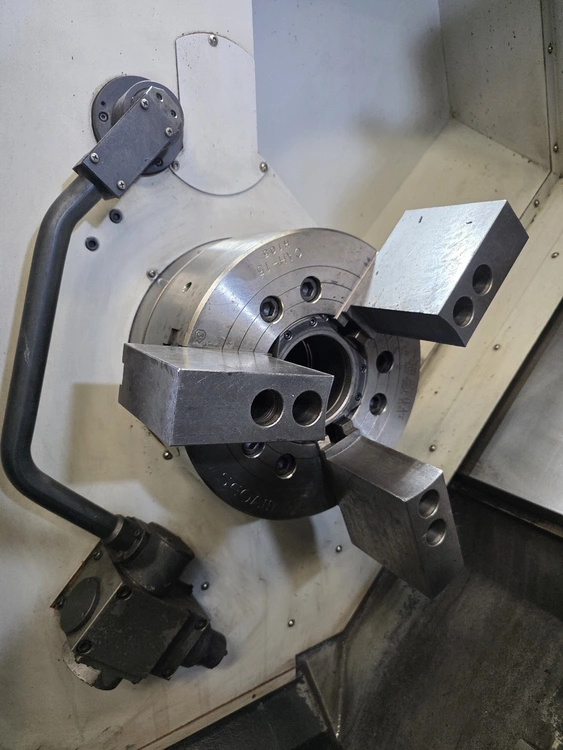

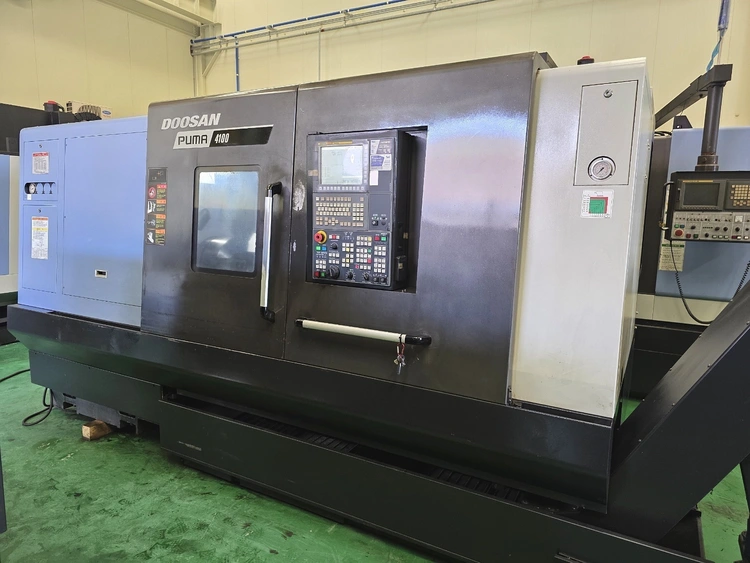

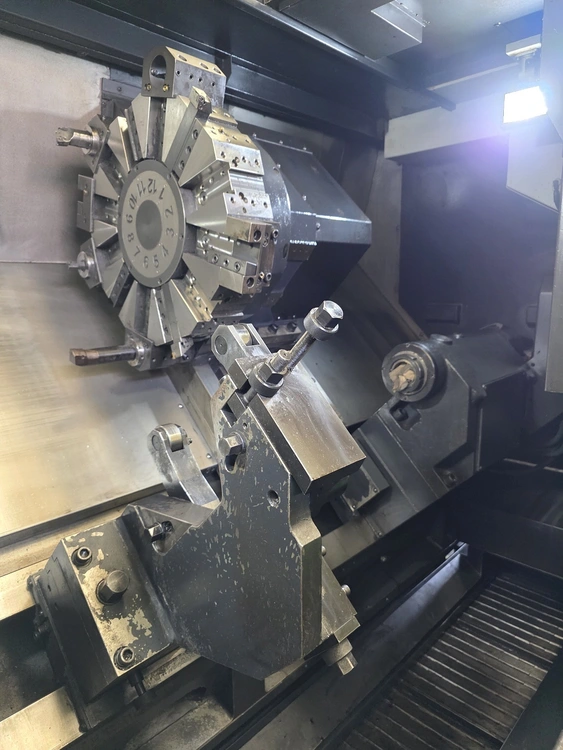

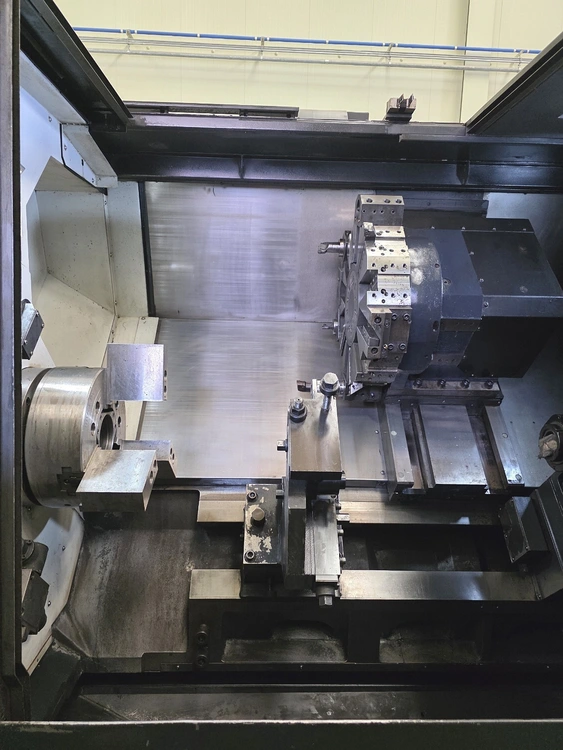

Used Doosan Puma 400B (2019) CNC Lathe for Sale. This 2-axis machine has a 15″ chuck, 4.58″ bar capacity, 30.3″ swing and 22.4″ turning diameter, with 44.7″ between centers. The 50 HP spindle turns to 2,000 RPM under Fanuc Series i control. A 12-station turret, tailstock, auto tool presetter, manual steady rest (2″-10.2″) and chip conveyor are included. Rapid traverse is 590 IPM on X and 710 IPM on Z. Machine weight is 22,800 lbs. It can be seen under power for an inspection by appointment. Browse more used CNC lathes or view other Doosan machines in stock. Use Activate Pricing to see the current figure, then Request a Quote and we will follow up with details.
Specifications
| Chuck Size |
15" |
|---|---|
| Bar Capacity |
4.58" |
| Swing |
30.3" |
| Turning Diameter |
22.4" |
| Spindle Speed |
2,000 RPM |
| Control |
Fanuc Series i |
| Distance Between Centers |
44.7" |
| Rapid Traverse X-Axis |
590 IPM |
| Rapid Traverse Z-Axis |
710 IPM |
| Turret |
12 Station |
| Spindle Motor |
50 HP |
| Chip Removal |
Chip Conveyor |
| Weight |
22,800 Lbs |
Features
|
Manual Steady Rest 2"-10.2" |
Tailstock |
|
Auto Tool Presetter |
2-Axis |
