Year |
2019 |
|---|---|
Make |
Brother |
Model |
Speedio M140X2 |
Description |
CNC Vertical Machining Center |
Reference # |
8079282 |
Price |
Activate Pricing |

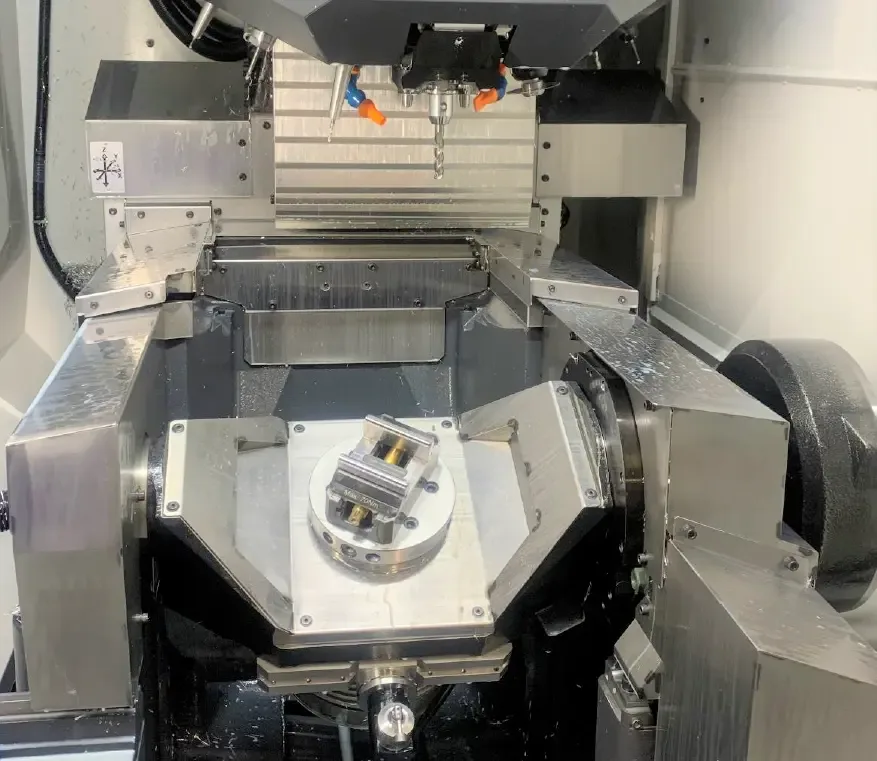

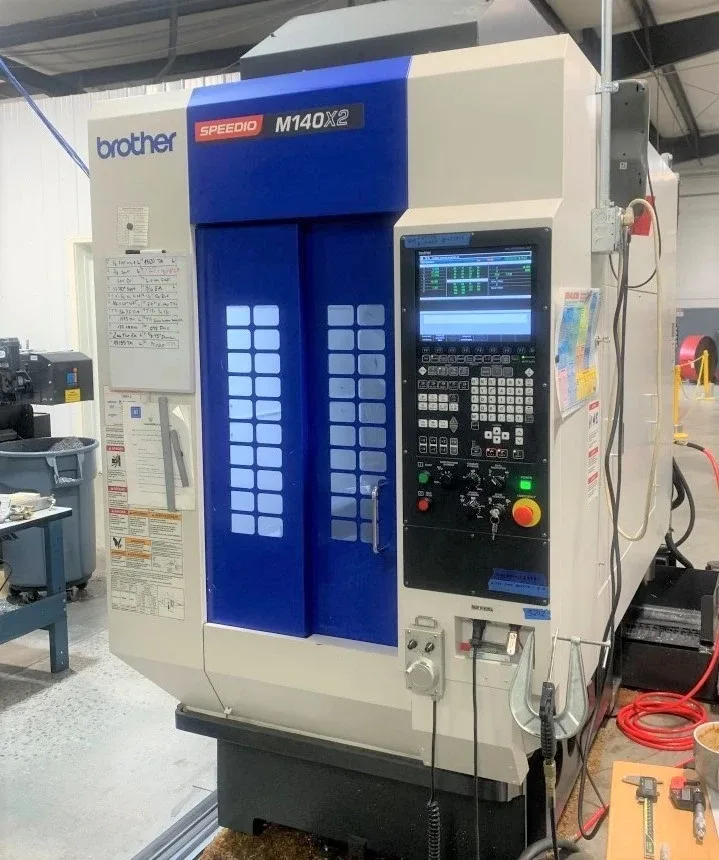

Used Brother Speedio M140X2 (2019) CNC Vertical Machining Center for Sale. This 5-axis machine offers 7.9″ of X-axis travel, 17″ in Y and 12″ in Z, with a 5th axis trunnion table providing A-axis travel of 120 to -30 degrees and full 360-degree C-axis rotation, rated for a 24 lb max load. The BT 30 spindle turns to 16,000 RPM on a 5.5 HP motor with coolant through spindle interface (no pump) and a 150L coolant tank. The 22-station ATC changes tool to tool in 0.9 seconds, handling tools to 7.9″ long, 3.1″ diameter and 6.6 lbs. Rapids reach 1969 IPM, cutting feedrates 1181 IPM. Operation time 1247 hours, power on time 5026 hours. Mayfran chip conveyor, automatic grease lubrication and safety door interlock included. Available for inspection under power. Browse our other used CNC vertical machining centers, Activate Pricing or use the Inquire Now button.
Specifications
| X-Axis Travel |
7.9" |
|---|---|
| Y-Axis Travel |
17" |
| Z-Axis Travel |
12" |
| Tool Magazine Capacity |
22 ATC |
| Spindle Speed |
16,000 RPM |
| Spindle Taper |
BT 30 |
| Chip Removal |
Mayfran Chip Conveyor |
| Number of Axis |
5 |
| Spindle Motor |
5.5 HP |
| Control |
CNC (Brother C00 CNC Control) |
| A - Axis Travels |
120 - -30 |
| C - Axis Travels |
360 |
| Max Load Capacity |
24 Lbs |
| Rapid Traverse Rate |
1969 IPM |
| Cutting Feedrates |
1181 IPM |
| Tool Shank Size |
MAS-BT30 |
| Max Tool Length |
7.9" |
| Max Tool Diameter |
3.1" |
| Max Tool Weight |
6.6 lbs. |
| Tool to Tool Change Time |
0.9 Seconds |
| Approx Machine Weight |
5,979 Lbs |
| Hours |
Operation Time: 1247 Hours, Power On Time: 5026 Hours |
| Coolant |
Coolant Through Spindle |
| Coolant Tank |
150L Coolant Tank |
Features
|

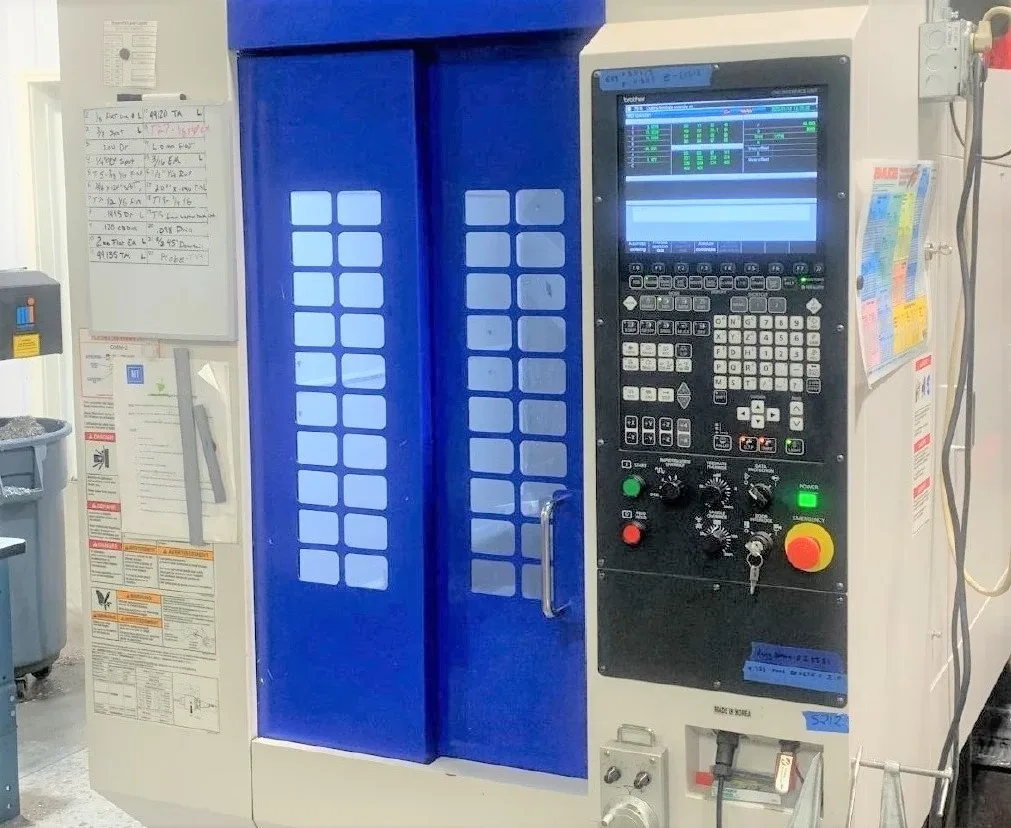

Brother C00 CNC Control With Built In Interface |
Chip Power System |
|
Complete Covers Witih Ceiling Cover And Safety Door Interlock |
Coolant Through Spindle Interface (No Pump) |
|

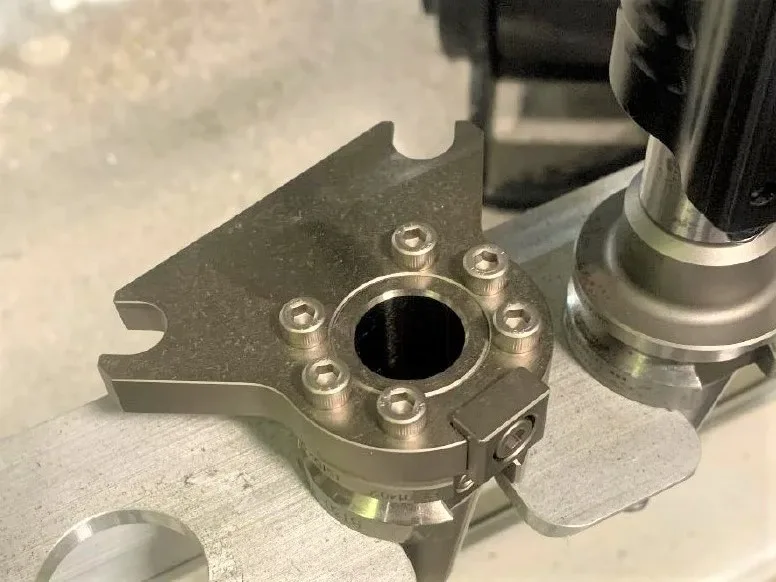

NK Brand Turning Tool Holder |
150L Coolant Tank |
|
Air Assisted Tool Wash and Back Washing System |
5th Axis Trunnion Table |
|
Automatic Grease Lubrication System |
