Year |
2018 |
|---|---|
Make |
Haco |
Model |
EN43200 Pressmaster |
Description |
223 Ton x 13.94' Hydraulic Press Brake |
Reference # |
8076265 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

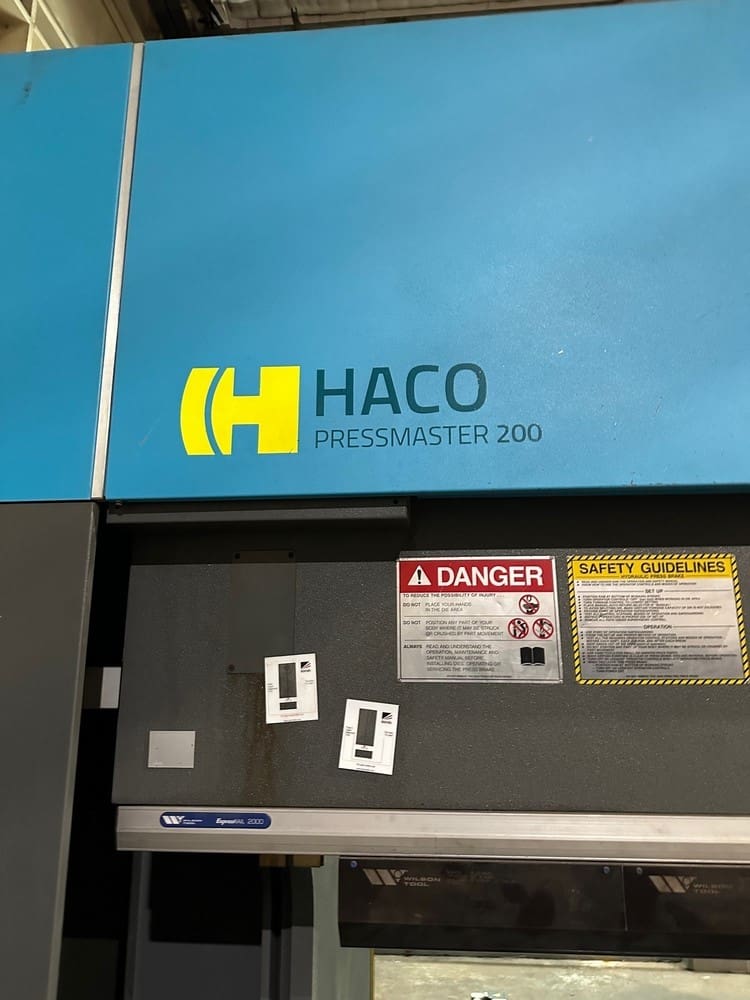

Used Haco EN43200 Pressmaster (2018) CNC Press Brake for Sale. This pre-owned Haco CNC press brake is located in The United States. If you have any questions regarding this Haco Press Brake, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Capacity |
223 Ton |
|---|---|
| Overall Length of Bed |
13.94' |
| Control |

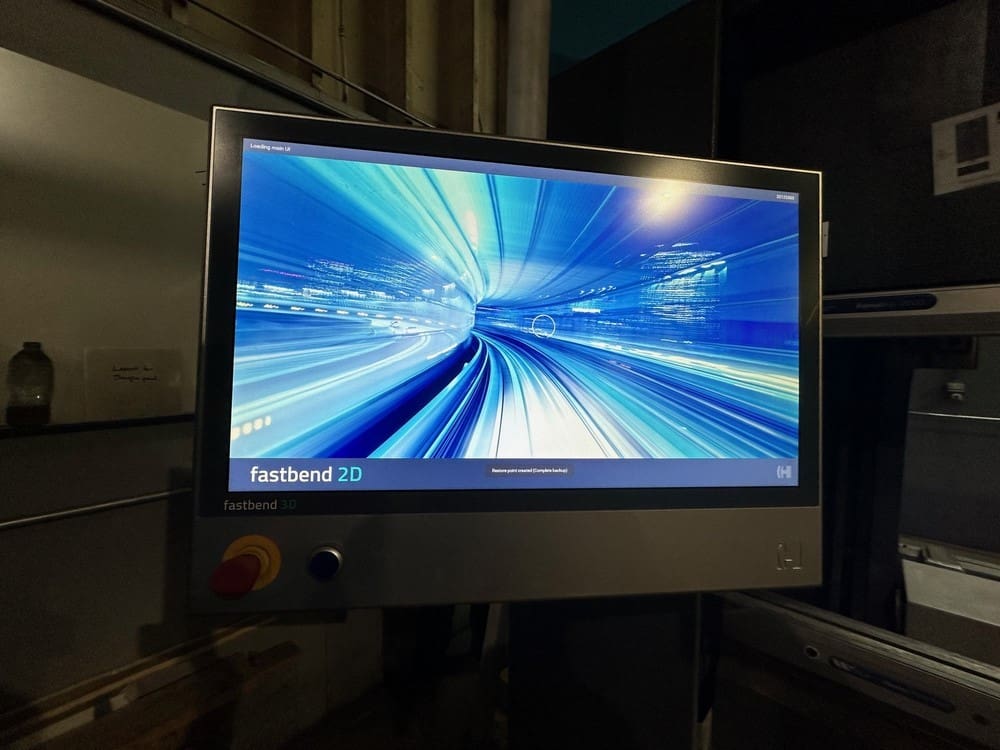

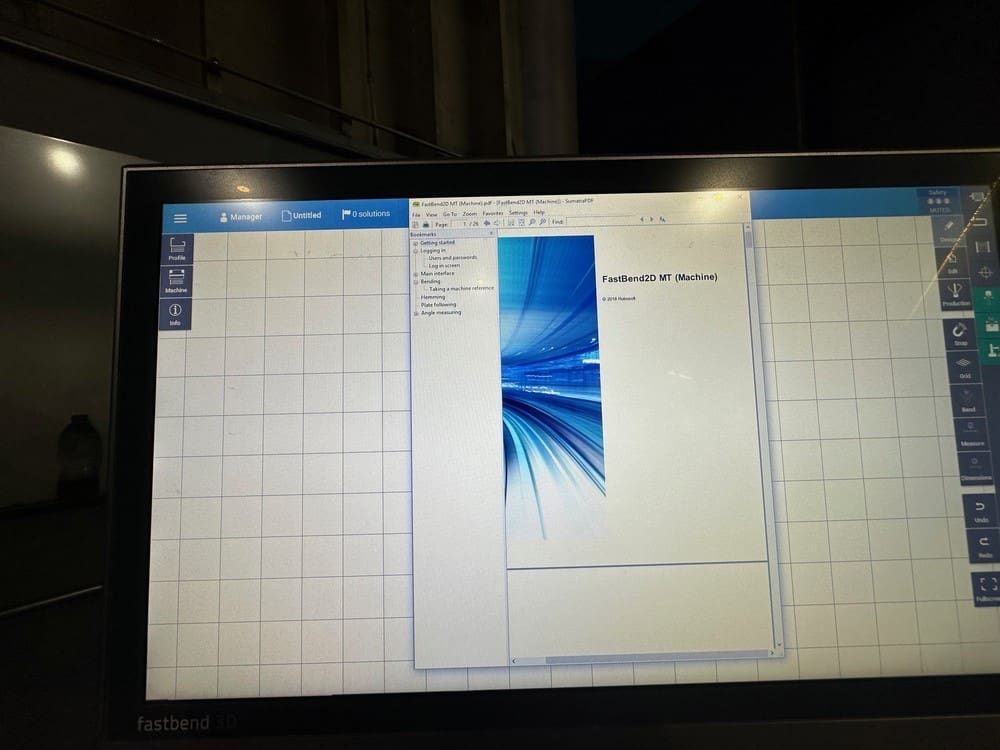

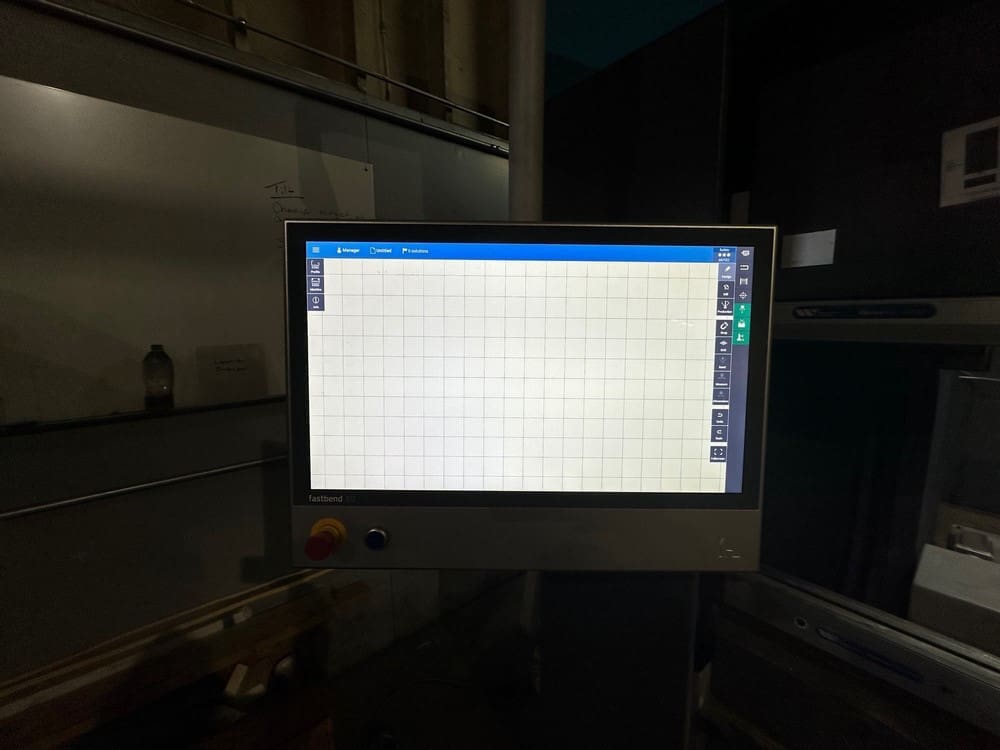

FastBEND-3D MT Premium CNC Control |
| Back Gauge |
4-Axis |
| Distance Between Housings |
167.3" |
| Stroke |
14.56" |
| Throat Depth |
15.75" |
| Open Height |
21.26" |
| Fast Approach Speed |
6.3″/Sec (160mm/S) |
| Max. Bending Speed |
.31″/Sec (8mm/S) |
| Fast Return Speed |
6.7″/Sec (170mm/S) |
| Motor |
25HP |
| Approx. Shipping Weight |
40,000 Lbs. |
| Approx. Shipping Dimensions |
216″ L x 106″ W x 120″ H |
| Power Requirement |
480v/3PH |
Features
|

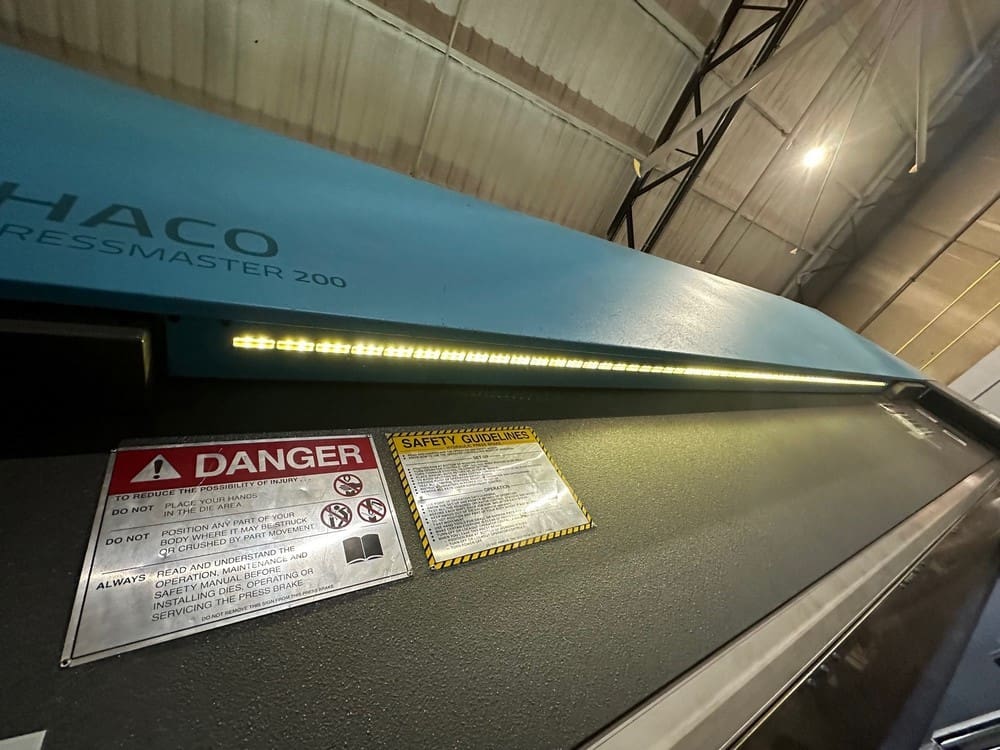

2 Manual Sheet Supports - LED Illumination of the Bending Area |
CNC Controlled Anti Deflection Table Wilson Tool Express |
|
High Speed X-R-Z1-Z2 Backgauge |
Iris Plus Integrated Angle Measuring System |
|
SICK Rear Mounted Light Curtains |

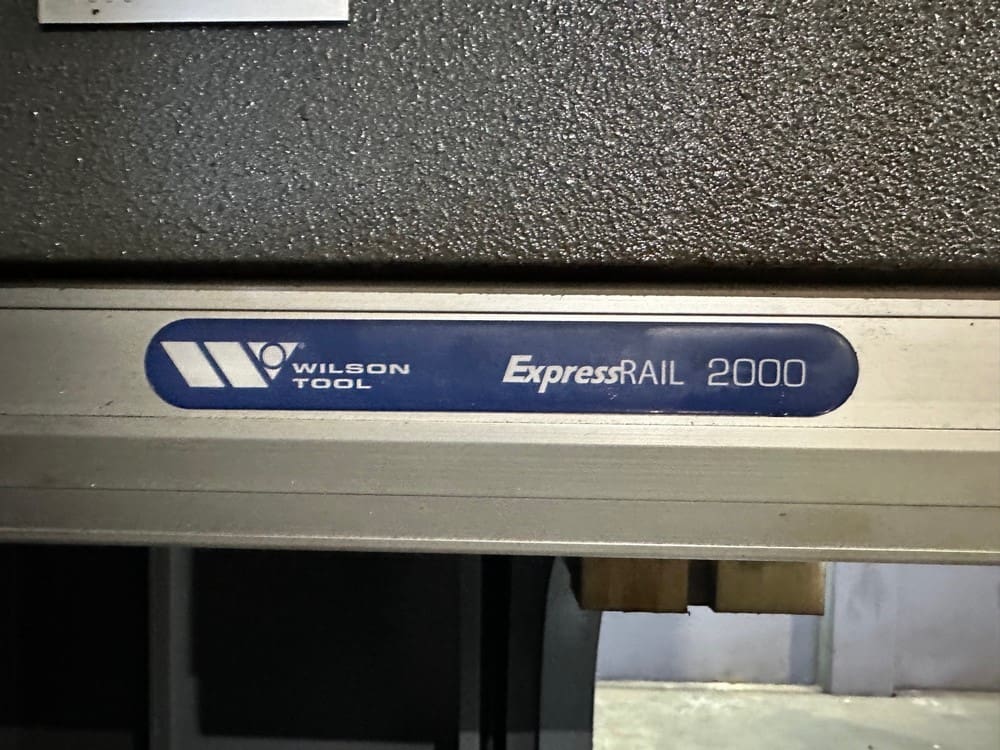

Wilson Tool Express RAIL 2000 Top Tool Clamping |
|
CNC Crowning |
