Year |
2016 |
|---|---|
Make |
Dener |
Model |
DEXL 22040 ACZL |
Description |
242 Ton x 13.2′ Hydraulic Press Brake |
Reference # |
8079012 |
Price |
Activate Pricing |

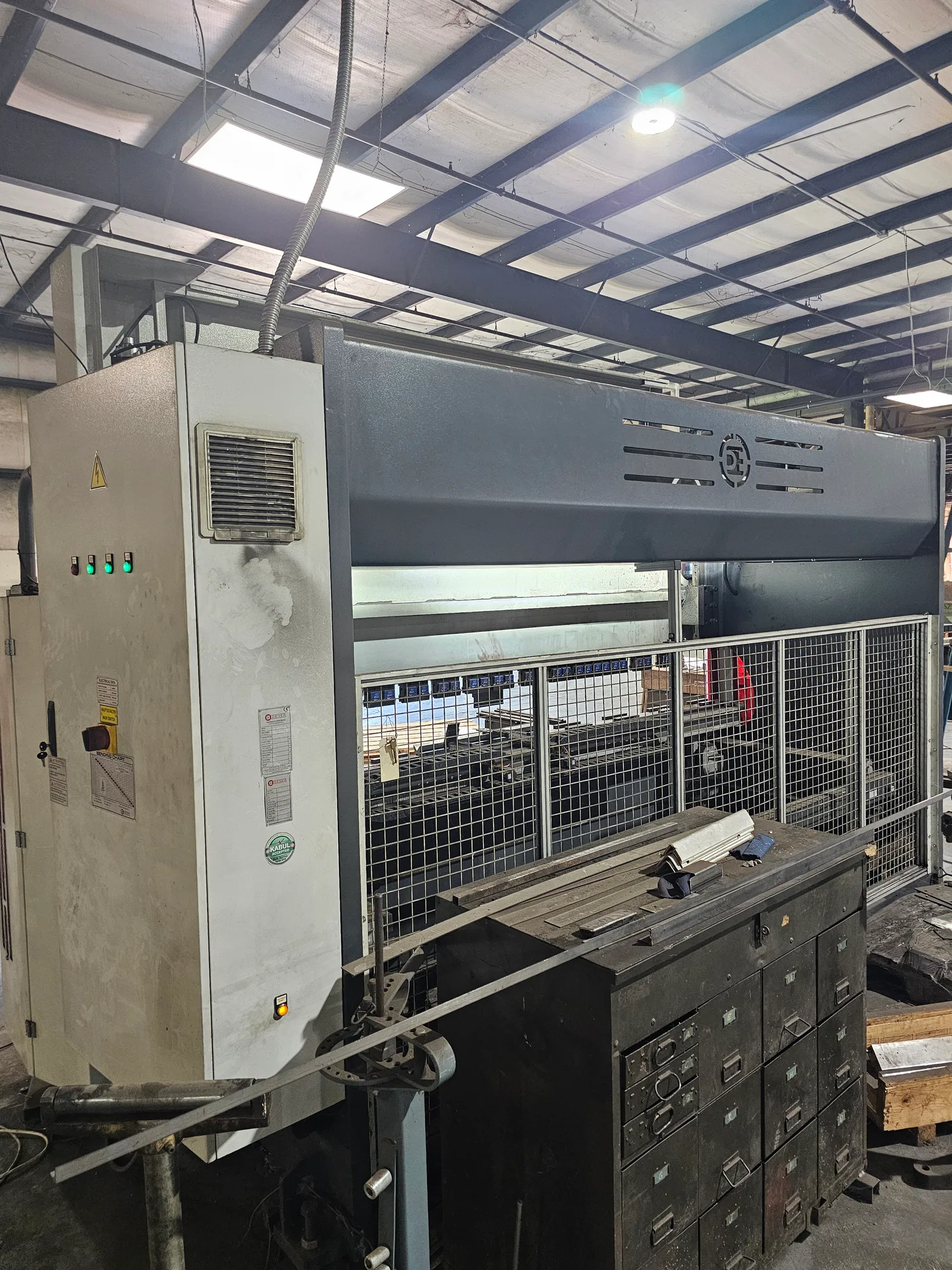

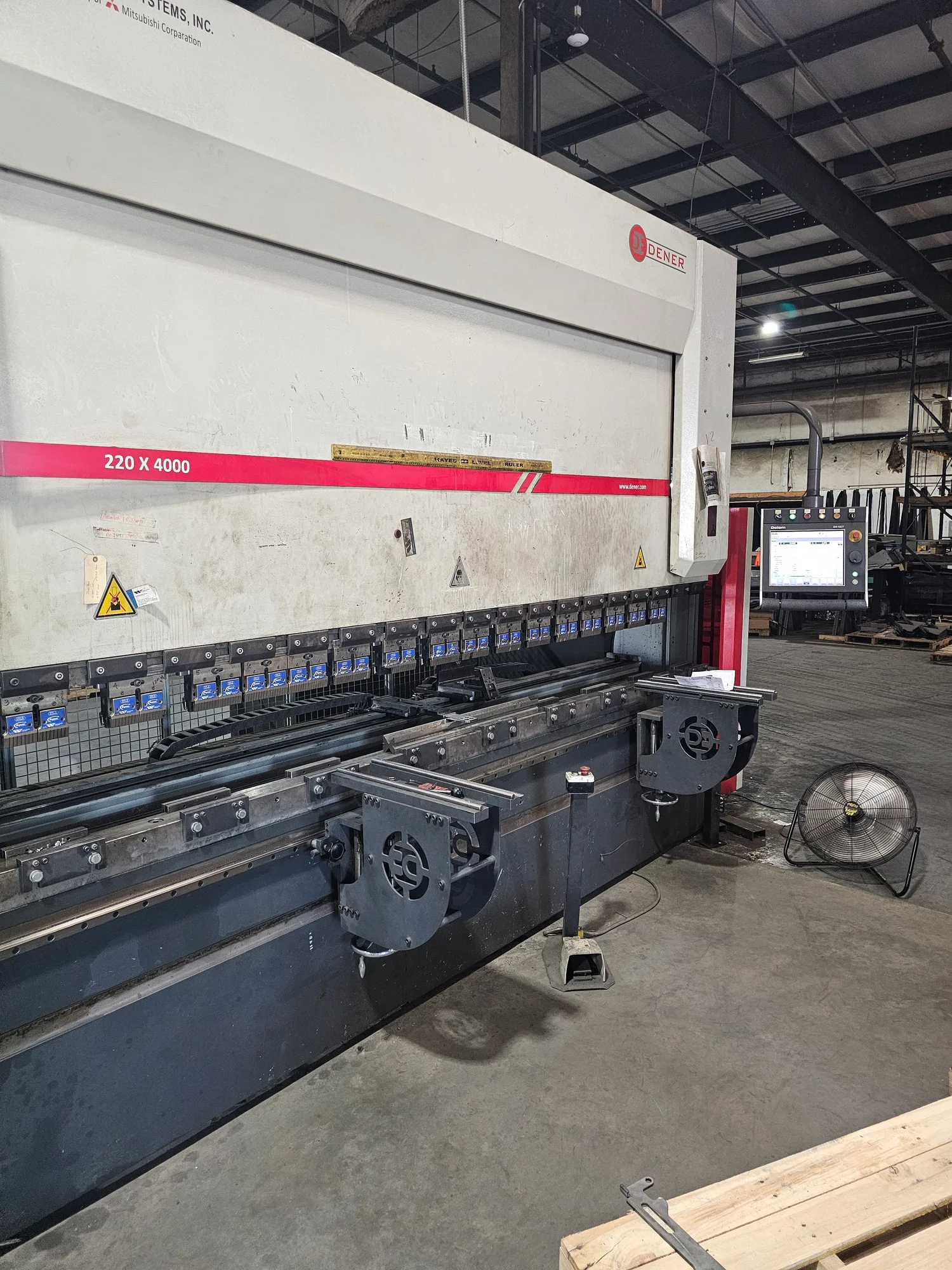

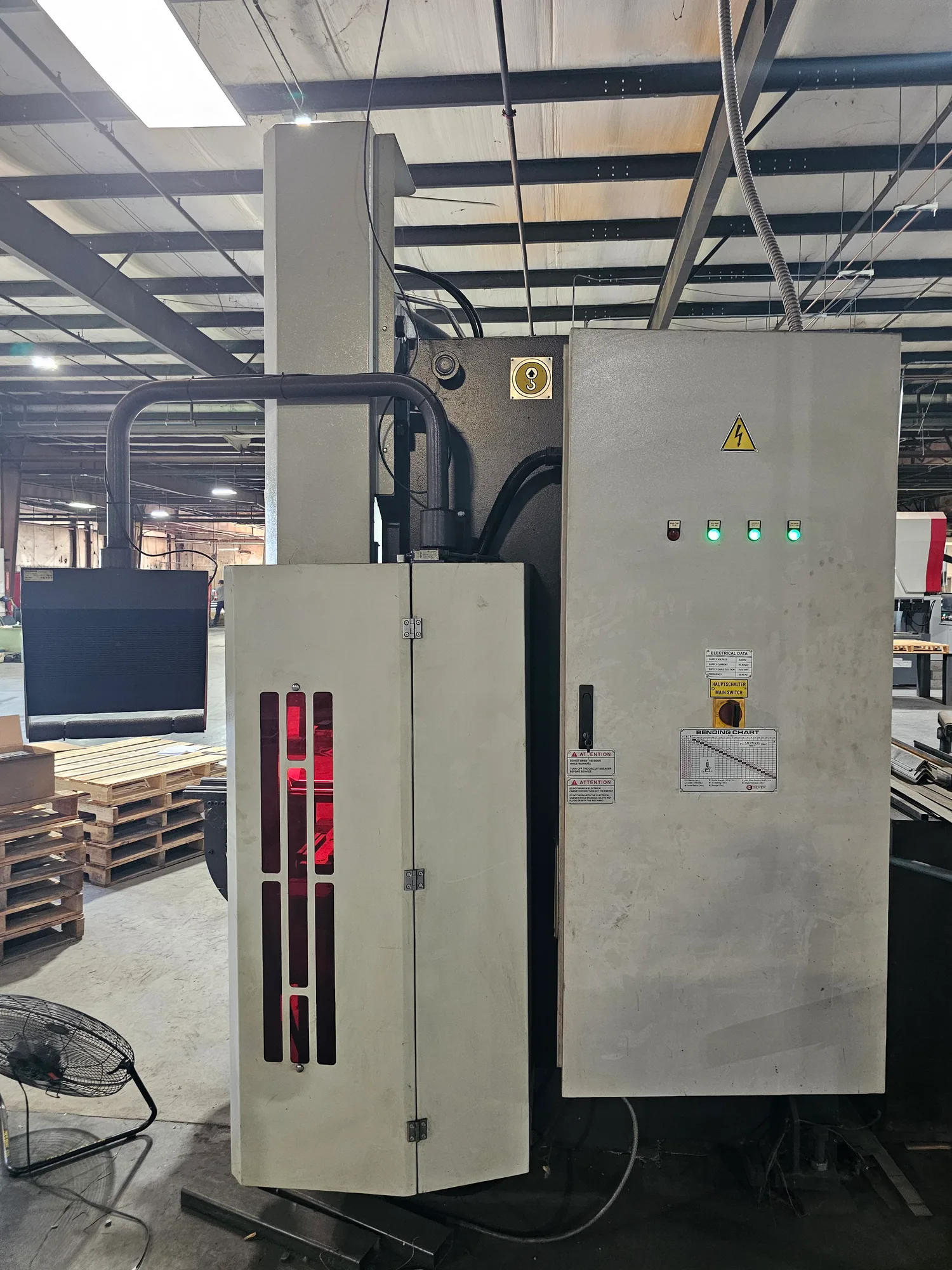

Used Dener DEXL 22040 ACZL (2016) Press Brake for Sale. This CNC press brake offers 242 ton capacity with a 13.2′ overall bed length and a 13.8″ stroke. Throat depth is 17.7″, open height is 23.6″, and maximum approach speed is 5.5 in/S. The machine is equipped with a 4-axis backgauge, crowning, flush floor, and (2) front support arms. Power comes from a 22 kW main motor, with a 300 Lt oil capacity. Approximate machine weight is 13,750 kg. The press brake can be seen under power for an inspection. Browse our other used press brakes or, for details on this Dener, Activate Pricing or use the Inquire Now button and we will follow up promptly.
Specifications
| Capacity |
242 Ton |
|---|---|
| Overall Length of Bed |
13.2' |
| Stroke |
13.8" |
| Main Motor |
22 kW |
| Oil Capacity |
300 Lt |
| Approx Machine Weight |
13750 kg |
| Throat Depth |
17.7" |
| Open Height |
23.6" |
| Max Approach Speed |
5.5 in/S |
Features
|
(2) Front Support Arms |
Crowning |
|
Flush Floor |
4-Axis Backgauge |
