Year |
2018 |
|---|---|
Make |
Felder |
Model |
Format 4 Profit H10 |
Description |
CNC Router |
Reference # |
8070749 |
Price |
Activate Pricing |

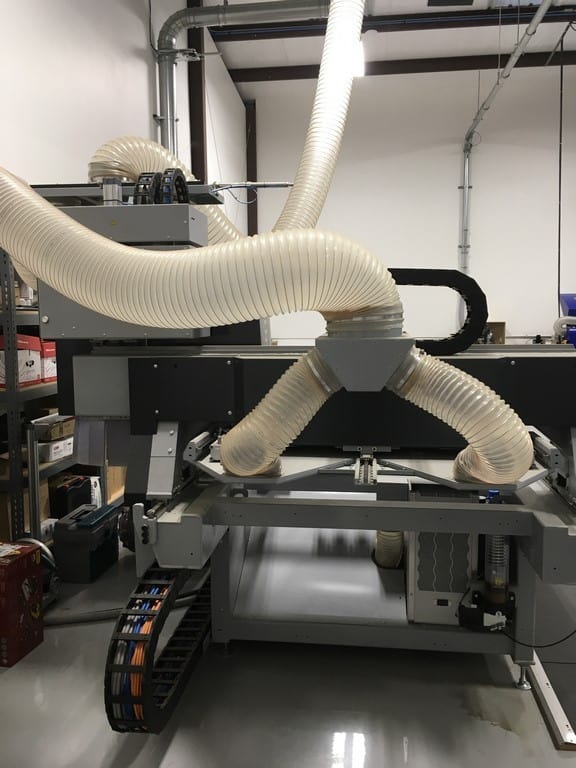

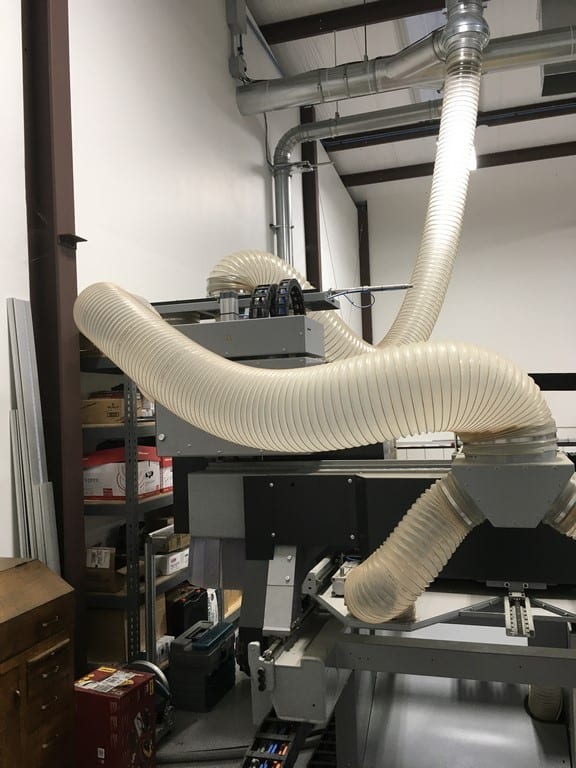

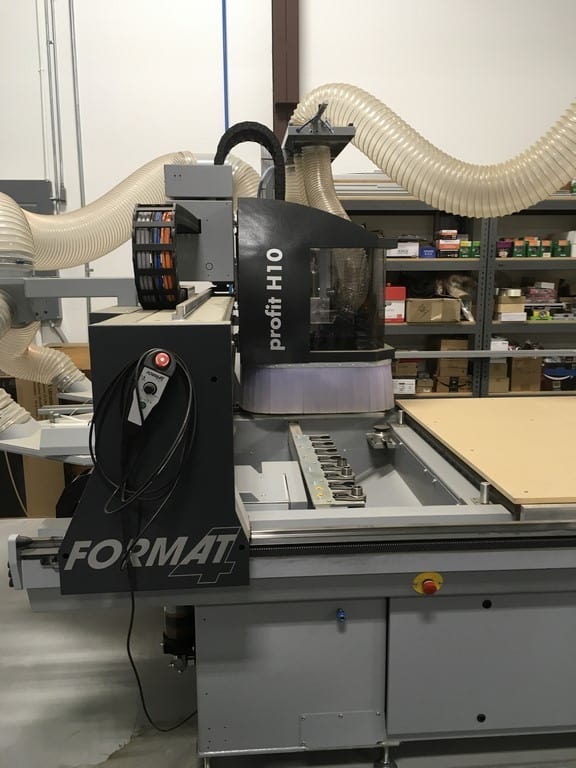

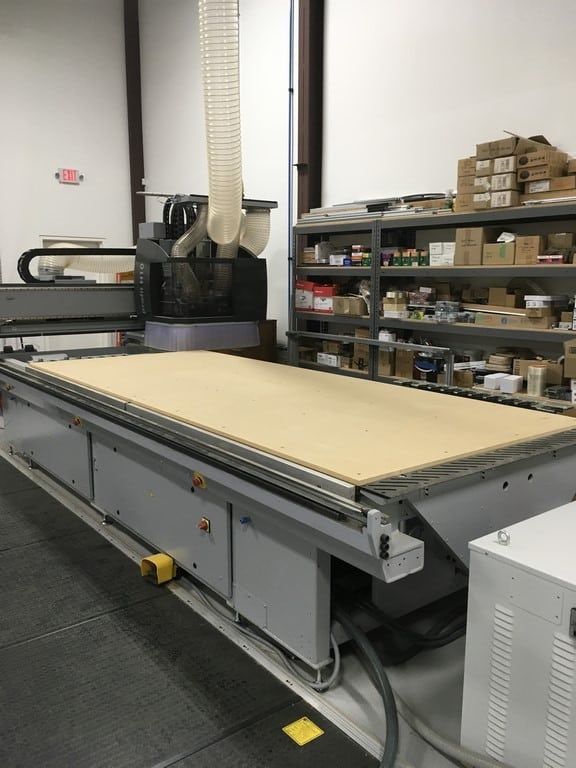

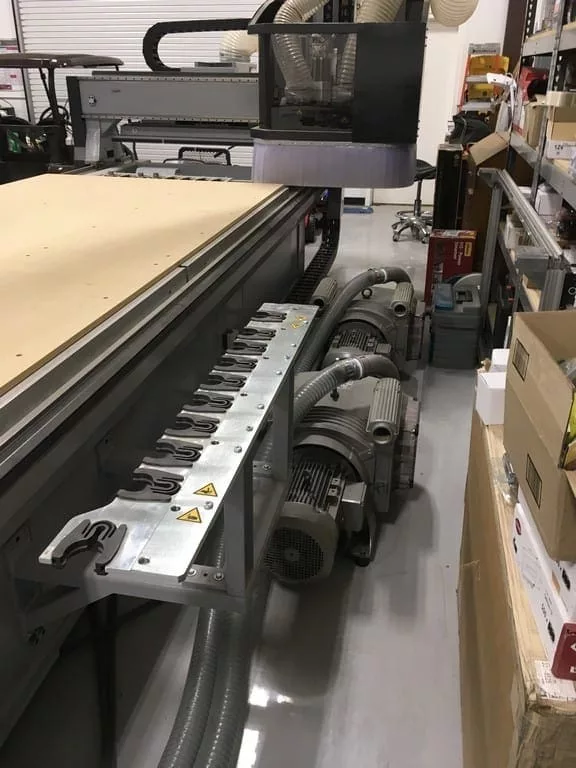

Used Felder Format 4 Profit H10 (2018) CNC Router for Sale. This 3-axis machine has a 60″ x 144″ table with 146″ of X-axis travel, 61″ of Y-axis travel and 4.1″ of Z-axis travel. The 13.4 HP air-cooled spindle runs to 24,000 RPM on ceramic bearings with an HSK F63 taper. Tool changing is handled by a 10-position side-mounted linear rail auto tool changer and an 8-position linear rail auto tool changer. Workholding is vacuum, using a matrix table and phenolic vacuum table served by two vacuum pumps. Control is F4Design software on a Windows 7 operating system, and the machine includes automatic tool length measurement for the tool in Z-axis and an automatic central lube system. Noted at approximately 100 hours of use. Can be seen under power for an inspection. See more used CNC routers, Activate Pricing, or Request a Quote.
Specifications
| Table Width |
60" |
|---|---|
| Table Length |
144" |
| Number of Axis |
3 |
| X-Axis Travel |
146" |
| Y-Axis Travel |
61" |
| Z-Axis Travel |
4.1" |
| Spindle Speed |
24,000 RPM |
| Spindle Motor |
13.4 HP |

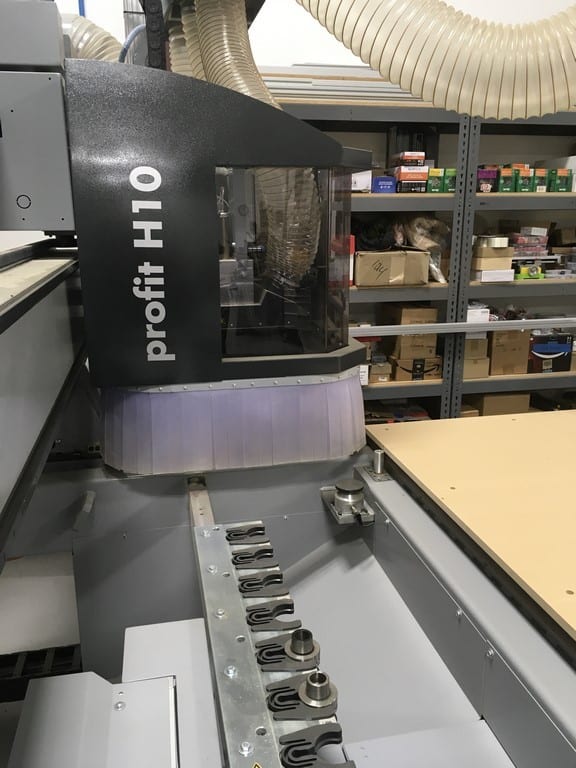

| Tool Changer |
(8) Position Linear Rail Auto Tool Changer, (10) Position Side Mounted Linear Rail Auto Tool Changer |

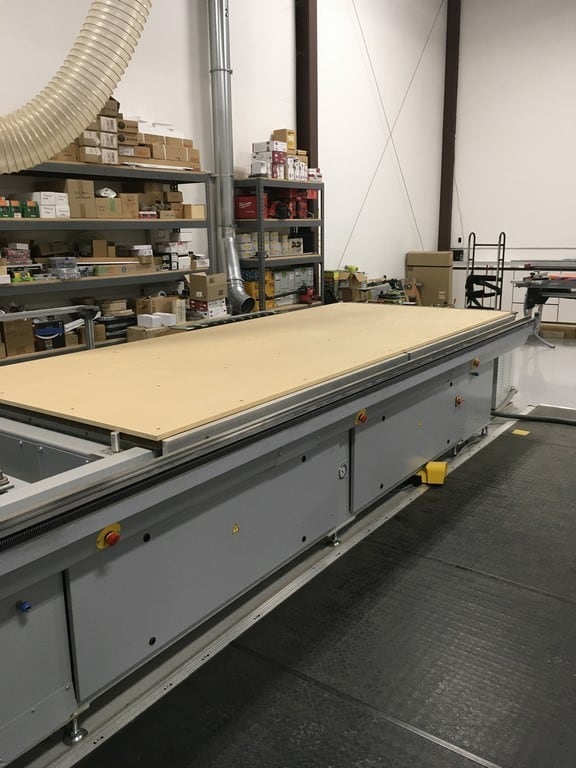

| Table Hold Down |
Vacuum (Matrix Table / Phenolic Vacuum Table) |
| Spindle Taper |
HSK F63 |
| Spindle Detail |
Air Cooled w/ Ceramic Bearings |
| Control |
Windows 7 Operating System W/F4Design Software |
| Note |
Approx. 100 Hours of Use |
Features
|

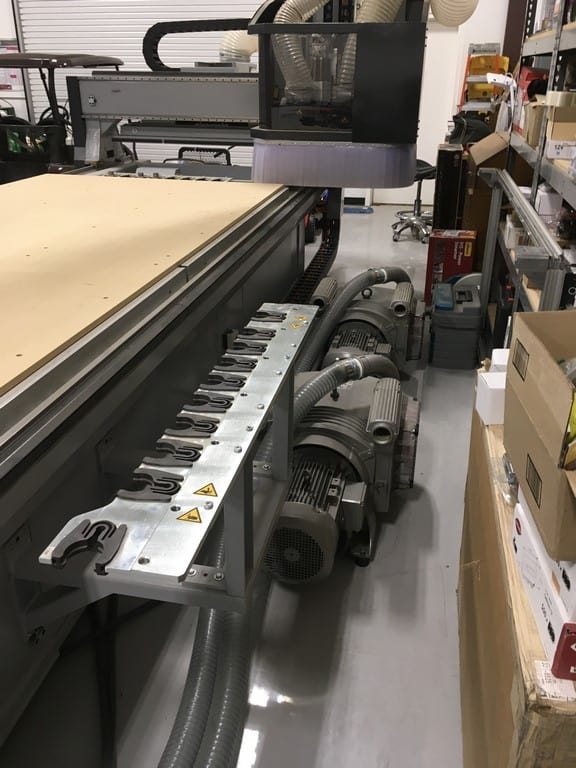

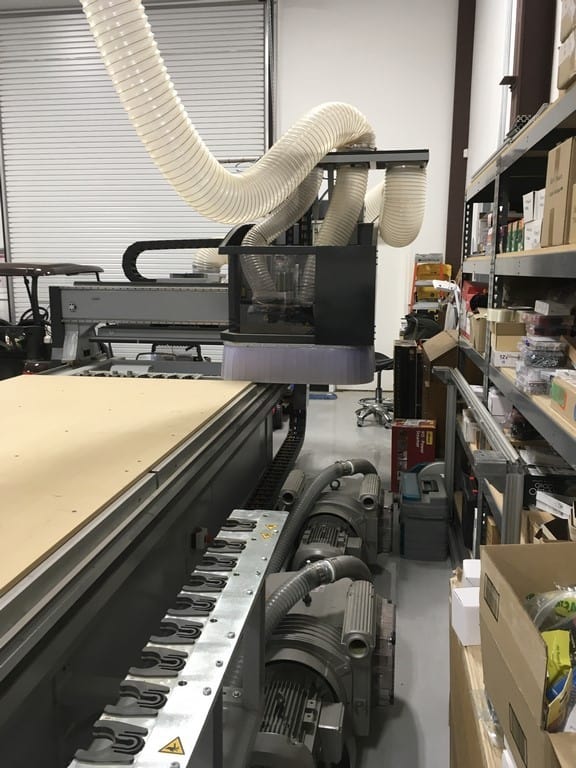

(2) Vacuum Pumps |
Auto Tool Length Measurement for Tool in Z-Axis |
|
Automatic Central Lube System |
