Year |
2018 |
|---|---|
Make |
CR Onsrud |
Model |
145G12 |
Description |
5 Axis CNC Router |
Reference # |
8078850 |
Price |
Activate Pricing |

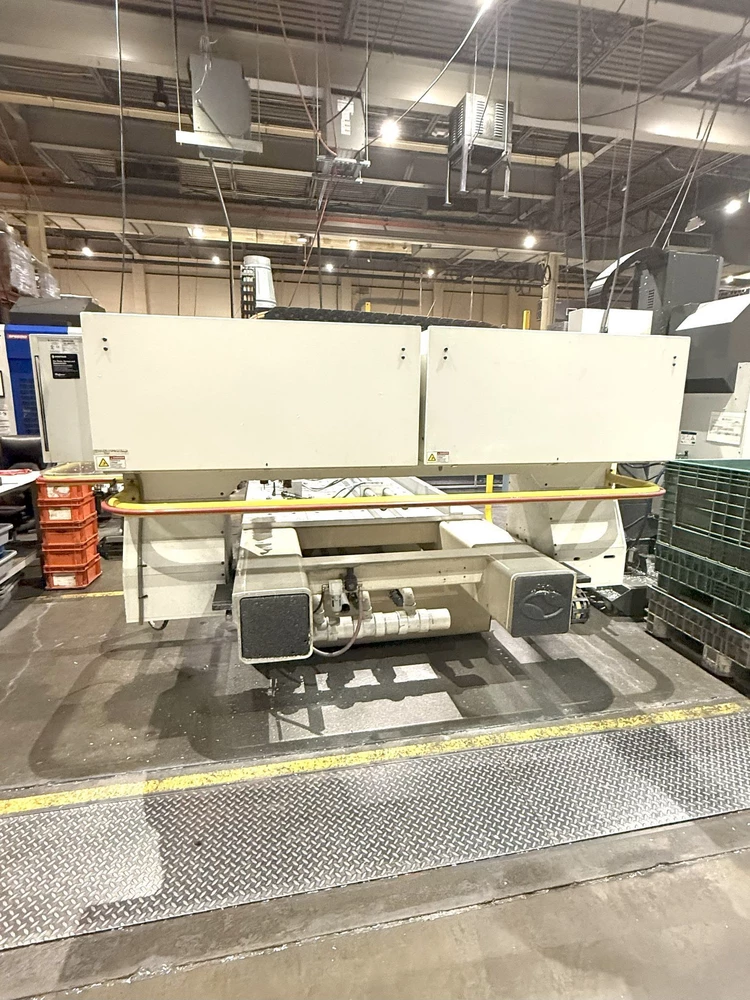

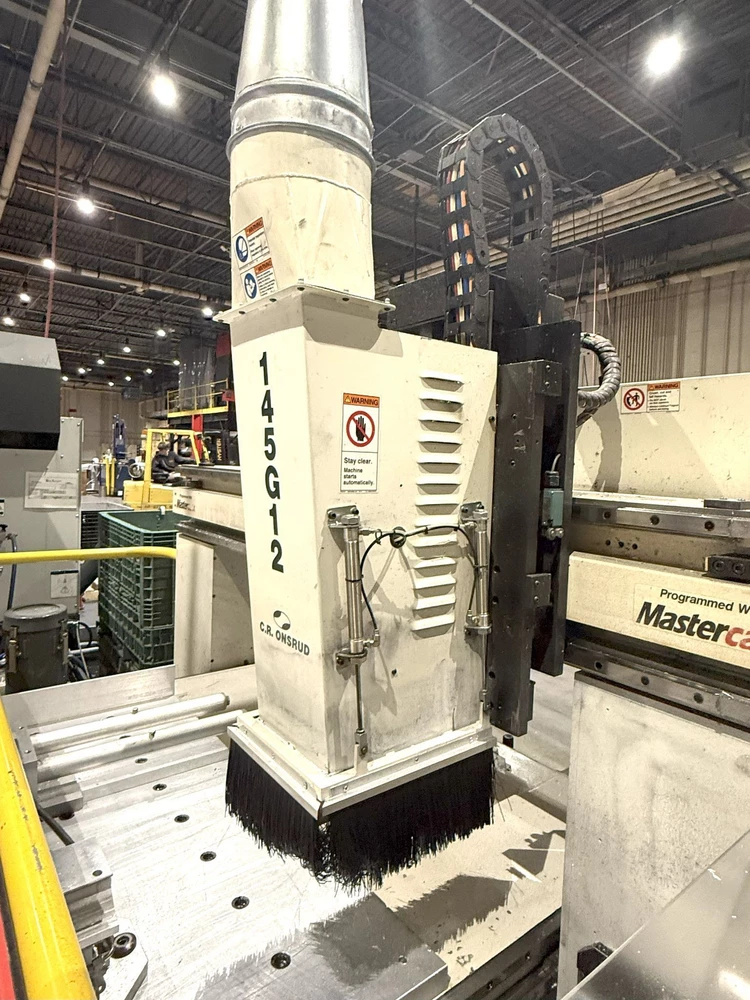

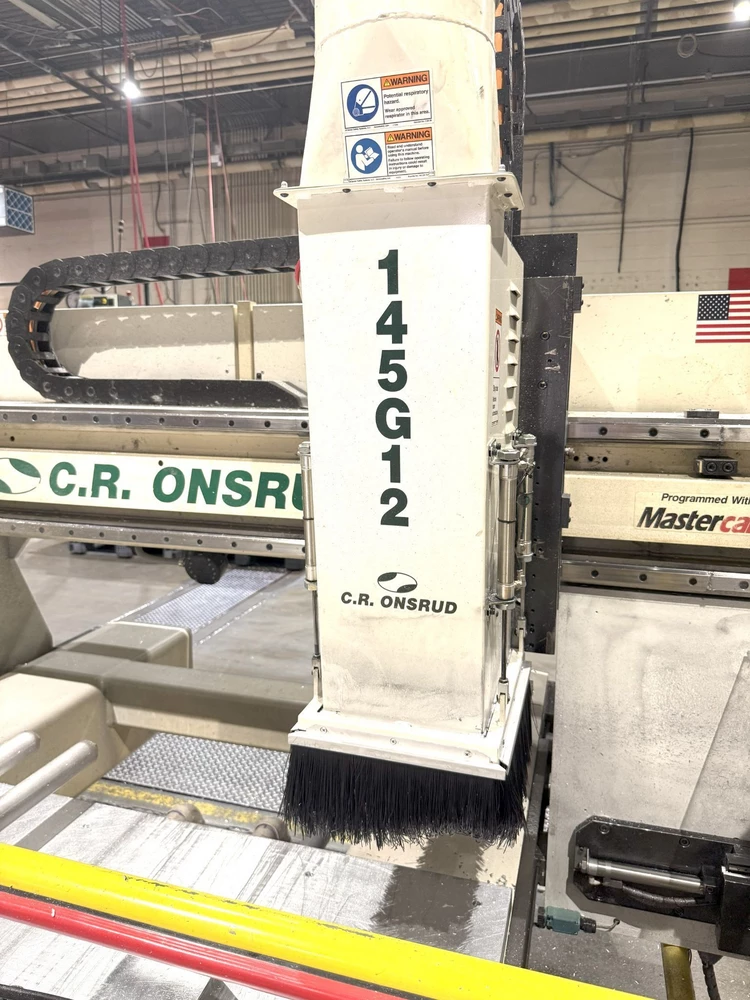

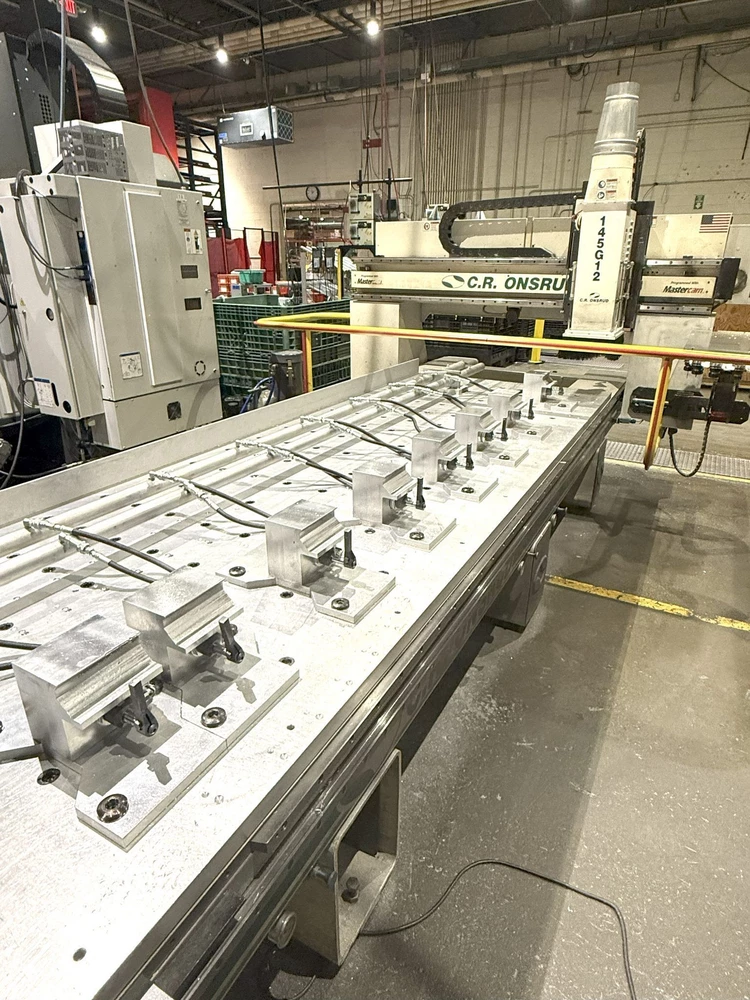

Used CR Onsrud 145G12 (2018) CNC Router for Sale. This 5 axis machine has a 60″ x 144″ table with vacuum and “T” slot hold down, 12 HP, and an 11″ Z axis stroke. The spindle runs to 24000 RPM through an HSK 63F taper and is a recent upgrade, as is the Fanuc machine controller and the Fanuc handheld controller with touch screen. Tool changes are handled by a 12 position rotary ATC. It is capable of routing and drilling, and comes with a 15KVA isolation transformer, automatic oil mist lubricator, and an integrated dust transition system. Cutting hours are approximately 2500. The router is still in operation and can be seen under power for an inspection. See more used CNC routers, Activate Pricing, or Request a Quote.
Specifications
| Number of Axis |
5 Axis |
|---|---|
| Table Width |
60" |
| Table Length |
144" |
| Table Hold Down |
Vacuum & "T" Slot |
| Horsepower |
12 HP |
| Spindle Speed |
24000 RPM (Recent Upgrade) |
| Spindle Taper |
HSK 63F |
| Z - Axis Stroke |
11" |
| Tool Changer |

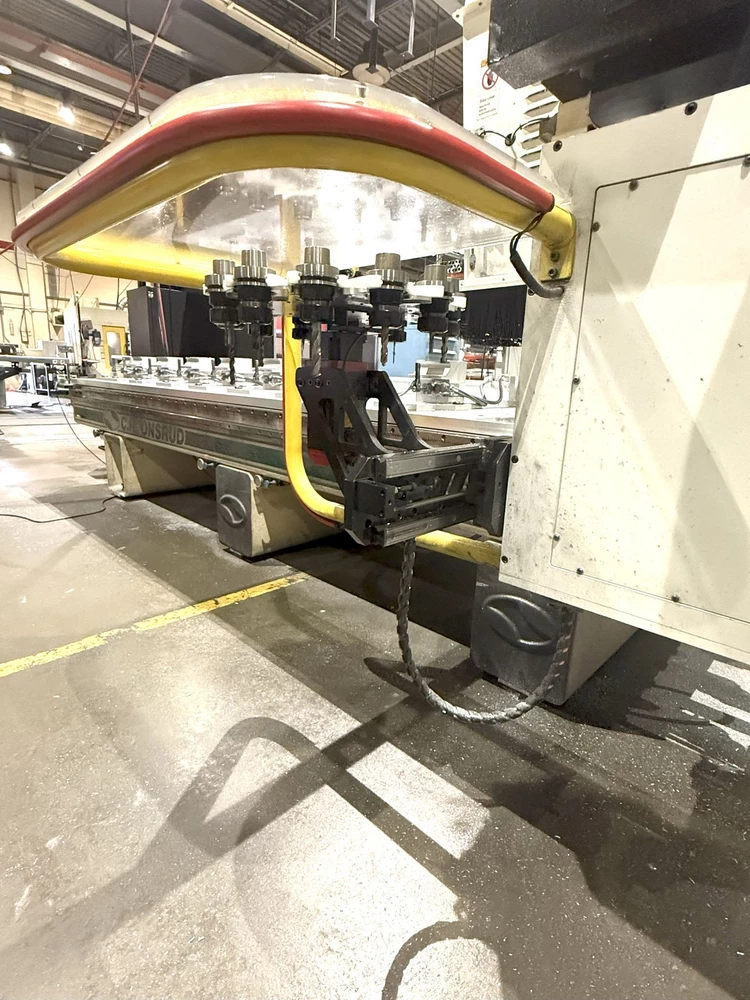

(12) Position Rotary ATC |
| Control |
Fanuc Machine Controller (Recent Upgrade) |
| Cutting Hours |
Approx 2500 Hours |
Features
|
Capable of Routing and Drilling |

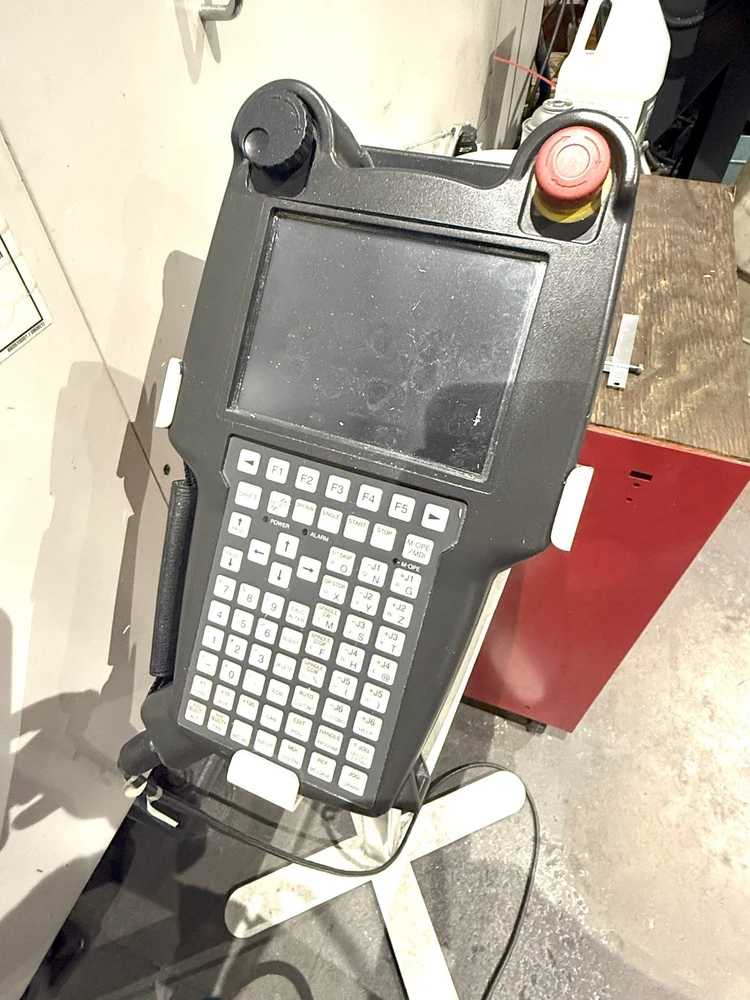

Fanuc Handheld Controller w/ Touch Screen (Recent Upgrade) |
|
Still in Operation for Inspections |
15KVA Isolation Transformer |
|
Automatic Oil Mist Lubricator |
Integrated Dust Transition System |
