Year |
2018 |
|---|---|
Make |
Bertsch |
Model |
100-10 |
Description |
1" x 10' Four Roll Plate Roll |
Reference # |
8077926 |
Price |
Activate Pricing |

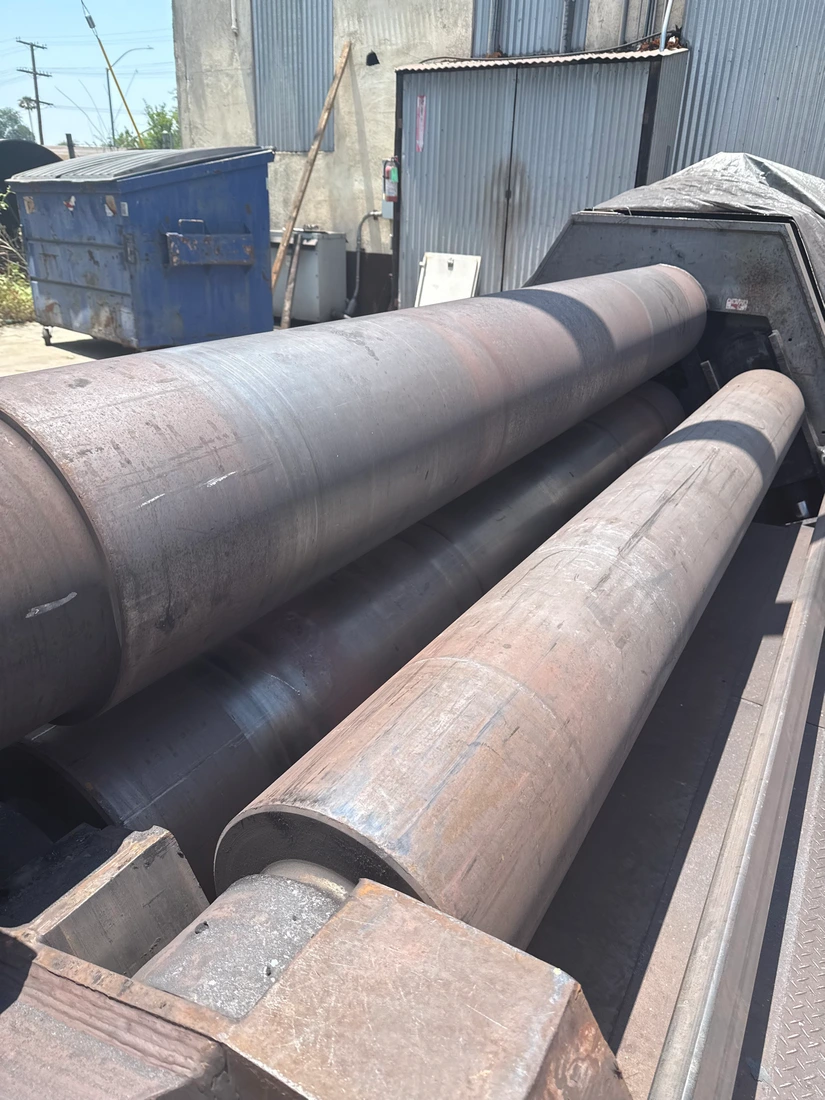

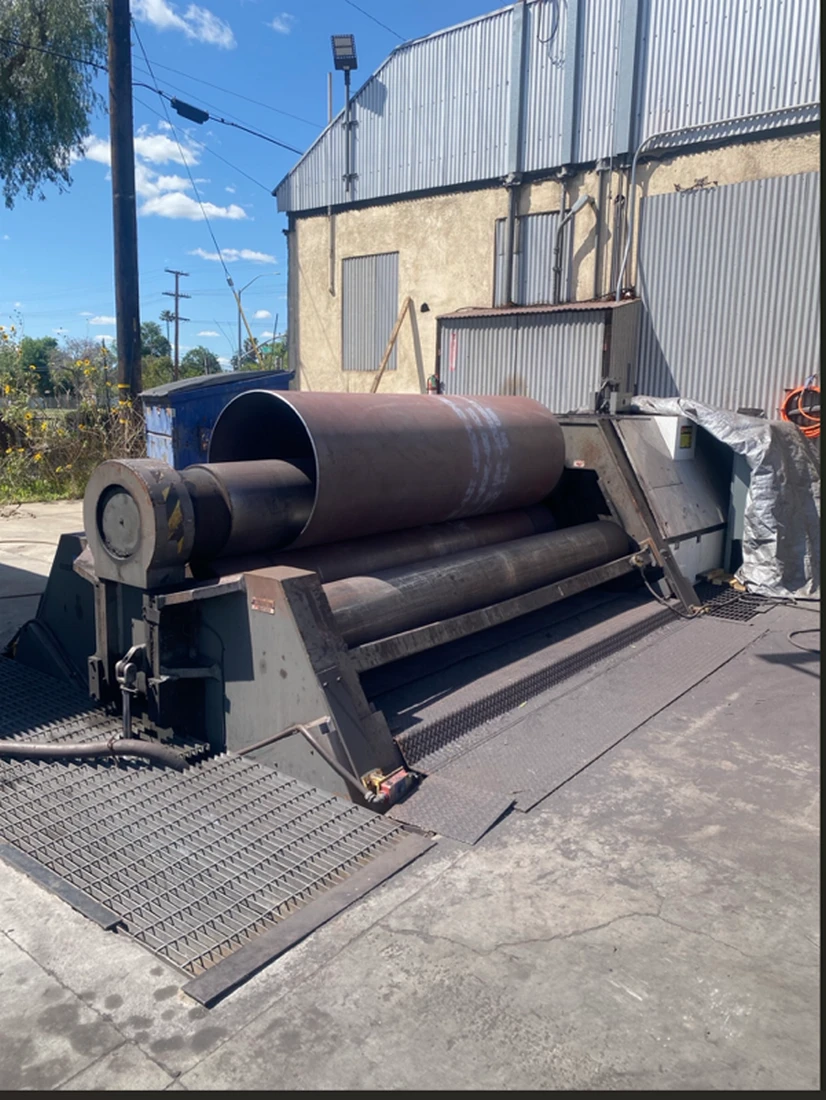

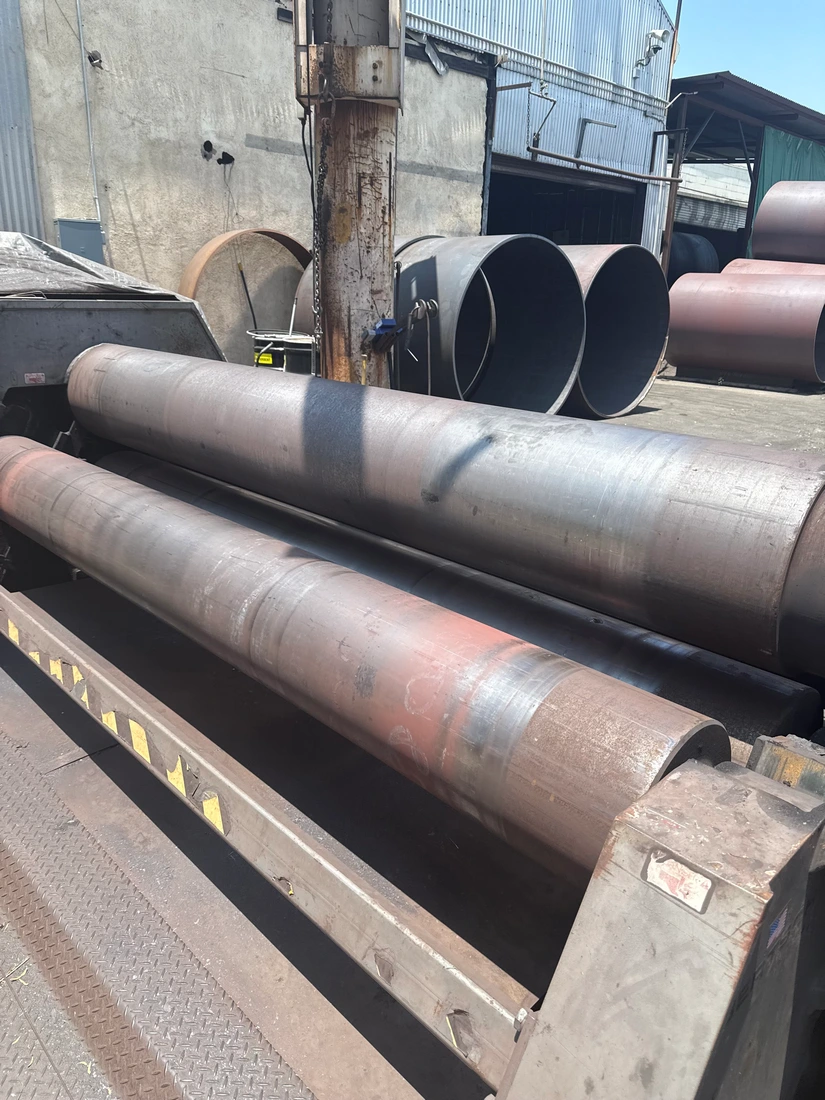

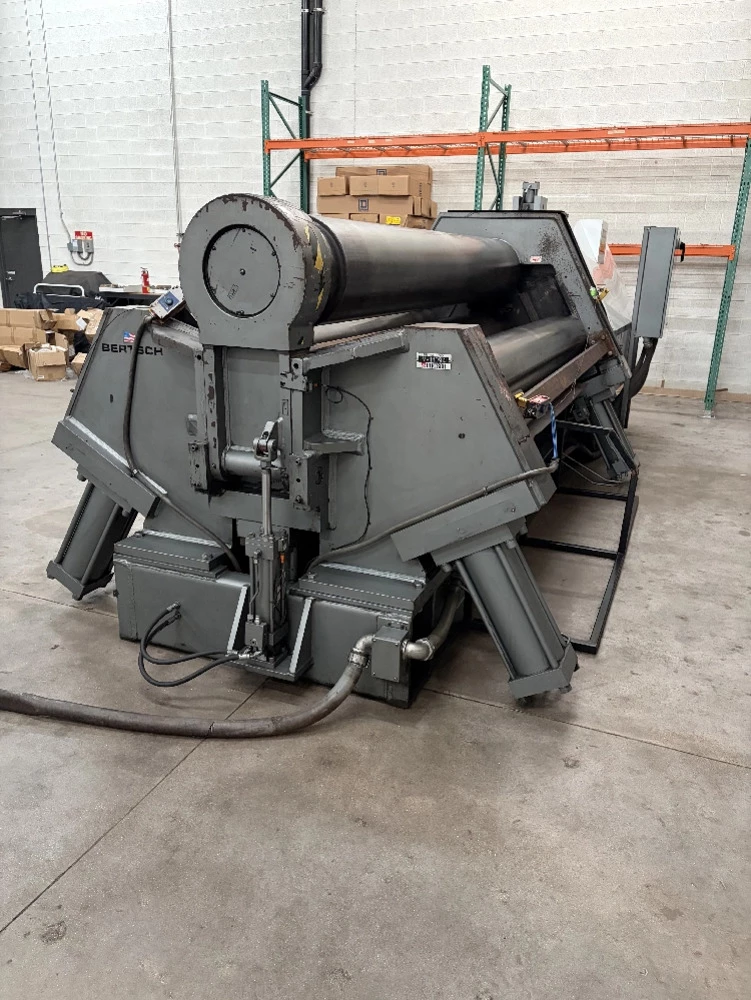

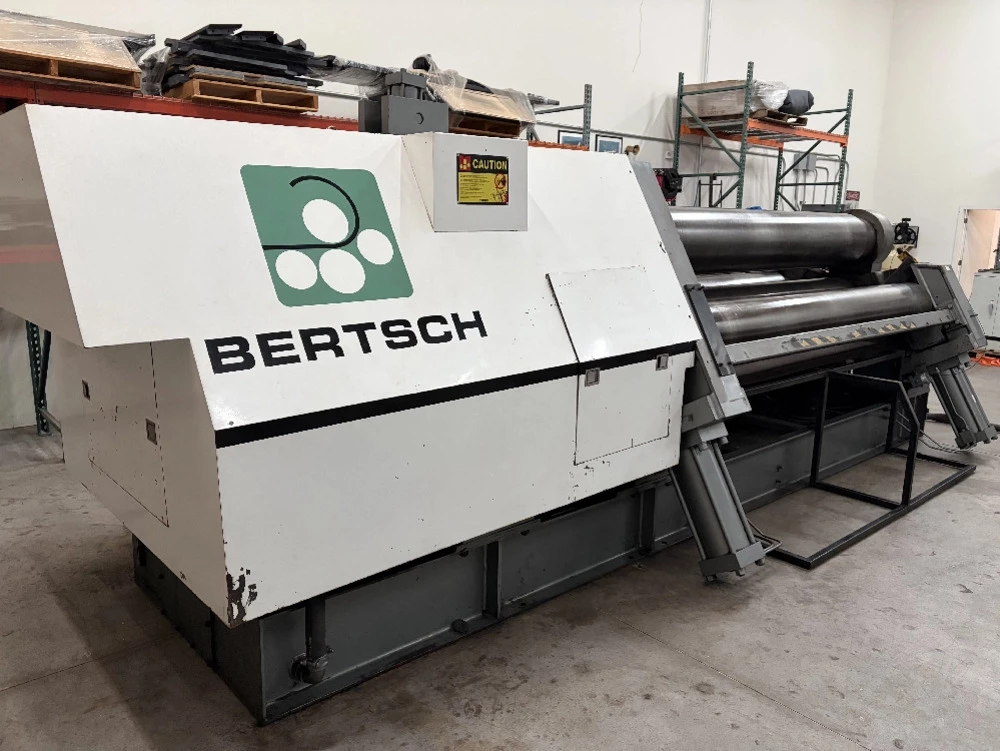

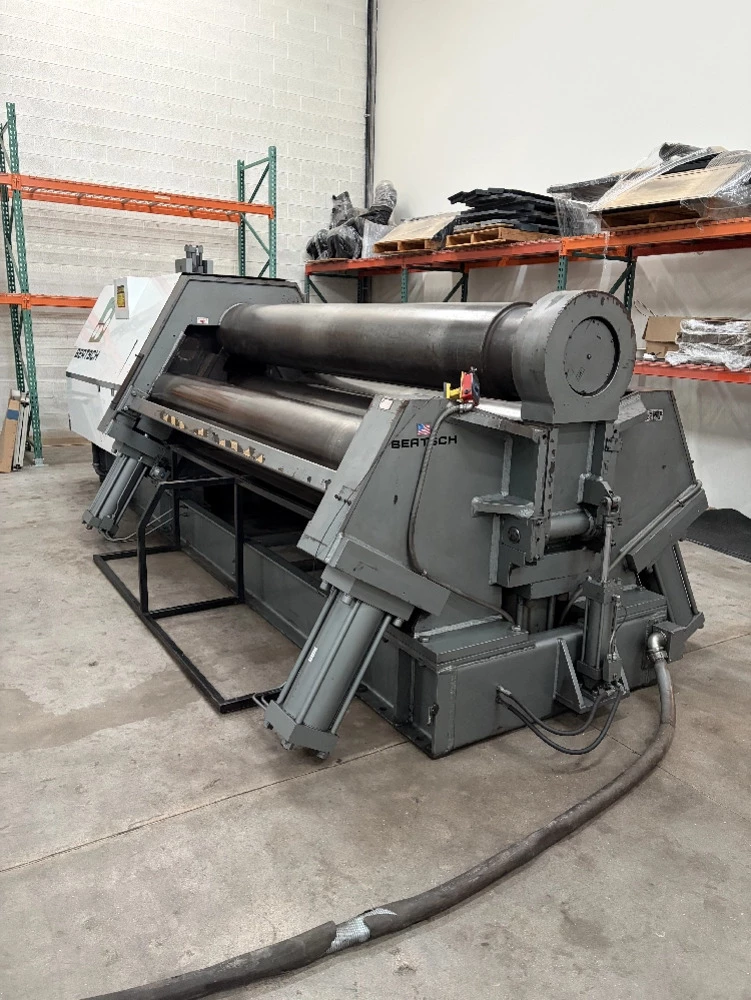

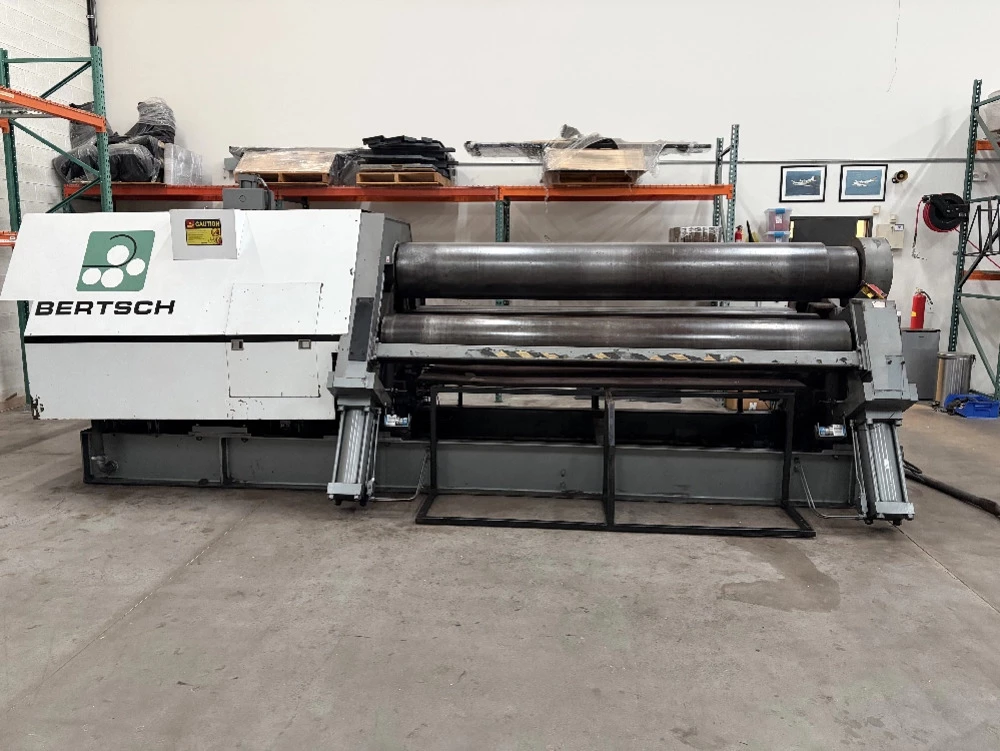

Used Bertsch 100-10 (2018) Plate Rolls for Sale. This four-roll double pinch machine has a hydraulic design with 10′ overall roll length, 122″ roll width and 120″ maximum working length. Nominal single-pass rolling capacity is 0.750″ x 120″ to 18.9″ diameter at 49,000 PSI yield strength, with pre-bend capacity of 1″ x 120″ to 25.5″ diameter. Mild steel capacity is 1″, and material thickness up to 3″ at reduced width per chart. Top roll is 17″ diameter, bottom roll 14″, roll speed 14′ per minute, driven by 40 HP at 230v/150 amps or 460v/90 amps. Equipped with cone rolling, emergency cable stop, pedestal control, powered front and rear rolls with digital readouts, and hydraulic drop end. Weight is 49,000 lbs; dimensions 271″ x 102″ x 53.75″. Available for inspection under power. Use Activate Pricing or Request a Quote. This machine is located in Arizona.
Specifications
| Overall Length of Rolls |
10' |
|---|---|
| Init/Dbl Pinch or Pyramid |
DBL Pinch |
| Max Thickness |
1" |
| Number of Rolls |
4 |
| Hyd/Mech |
Hyd |
| Power Rear Roll |
Yes |
| Nominal Rolling Capacity (Single-Pass) |
0.750" x 120" x 18.9" Diameter (49,000 PSI Yield Strength) |
| Nominal Pre-Bend Capacity |
1" x 120" x 25.5" Diameter (49,000 PSI Yield Strength) |
| Capacity (Mild Steel) |
1" |
| Max. Working Length |
120" |

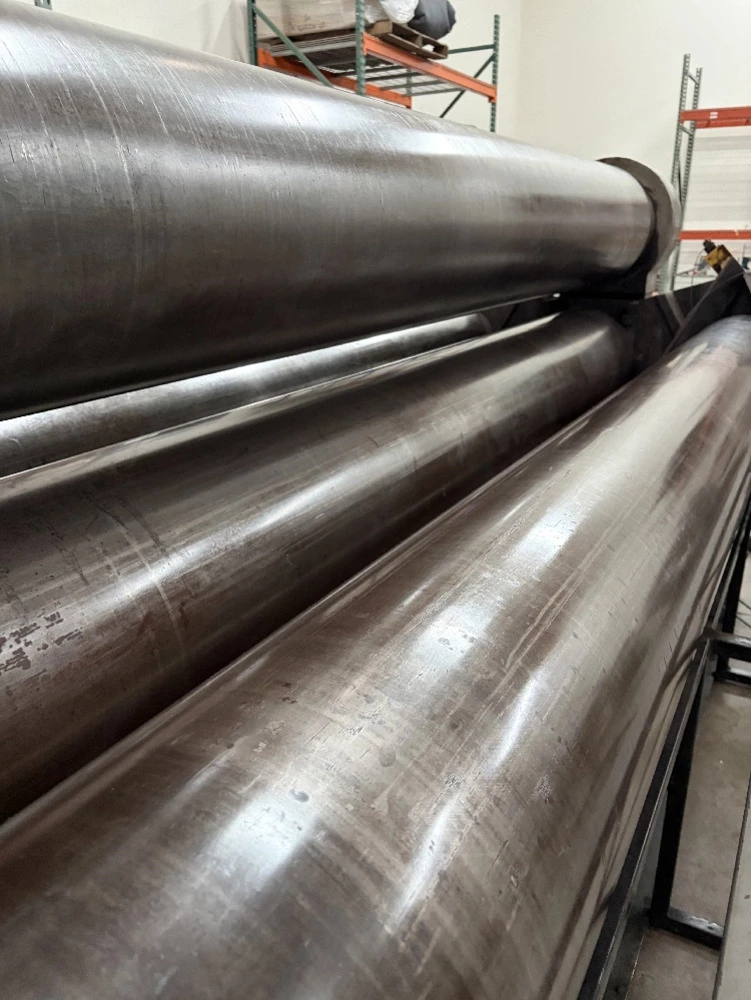

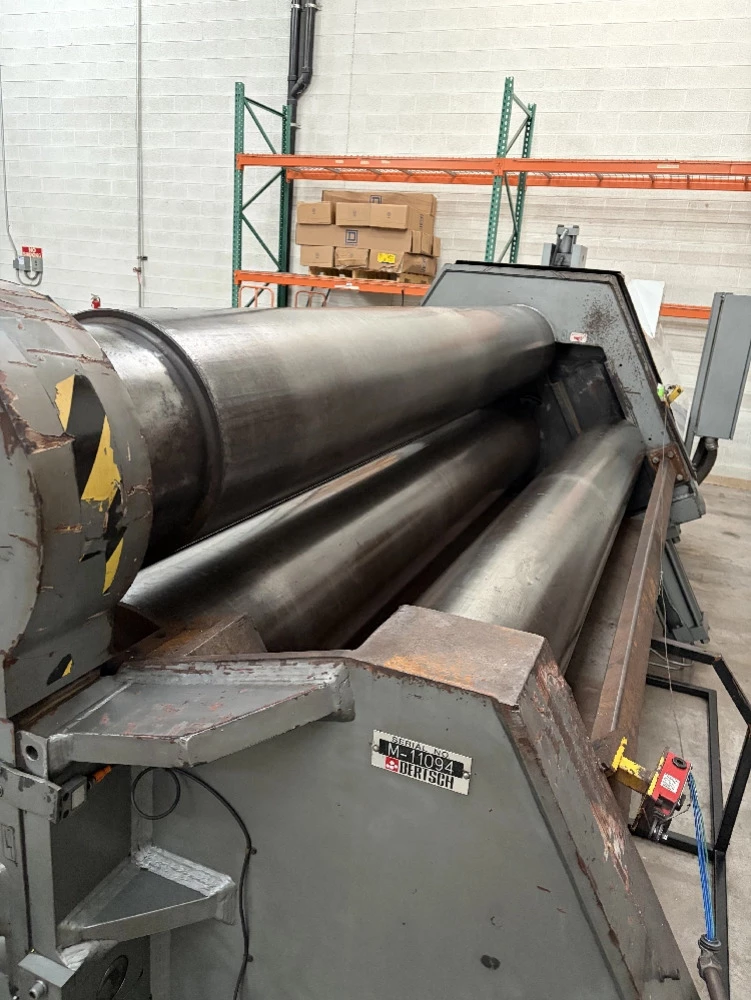

| Top Roll Diameter |
17" |
| Bottom Roll Diameter |
14" |
| Roll Speed |
14' Per Minute |
| Roll Width |
122" |
| Material Thickness (At Reduced Width- See Chart) |
3" |

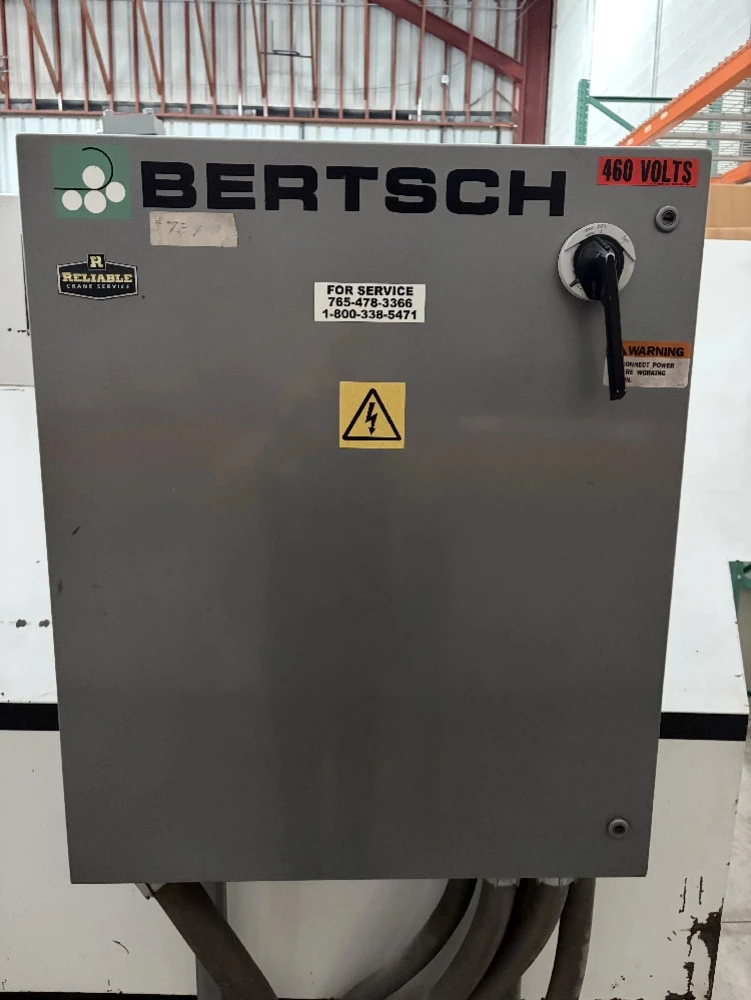

| Voltage |
230v at 150 amps / 460v at 90amps |
| Dimensions (L x W x H) |
271" x 102" x 53.75" |
| Weight |
49000 Lbs |
| Horsepower |
40 HP |
Features
|
Cone Rolling |
Emergency Cable Stop |
|

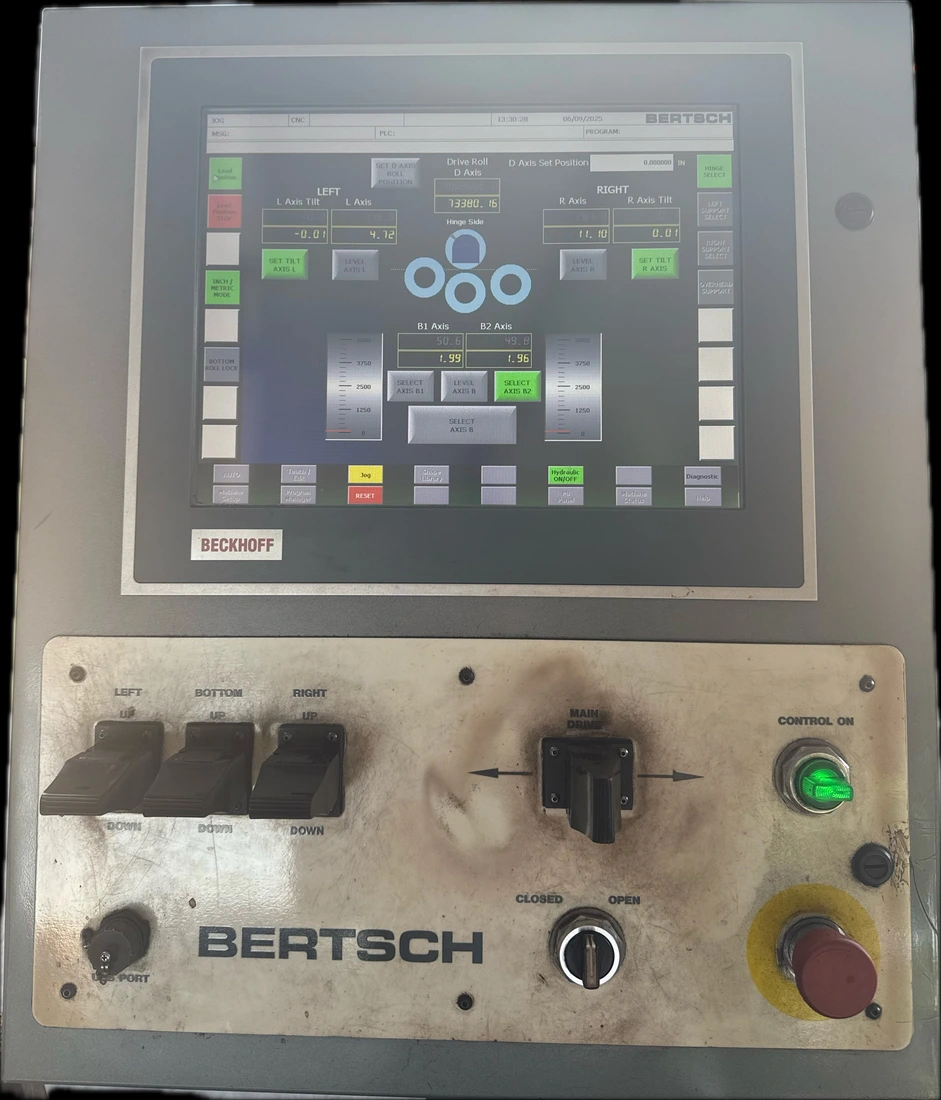

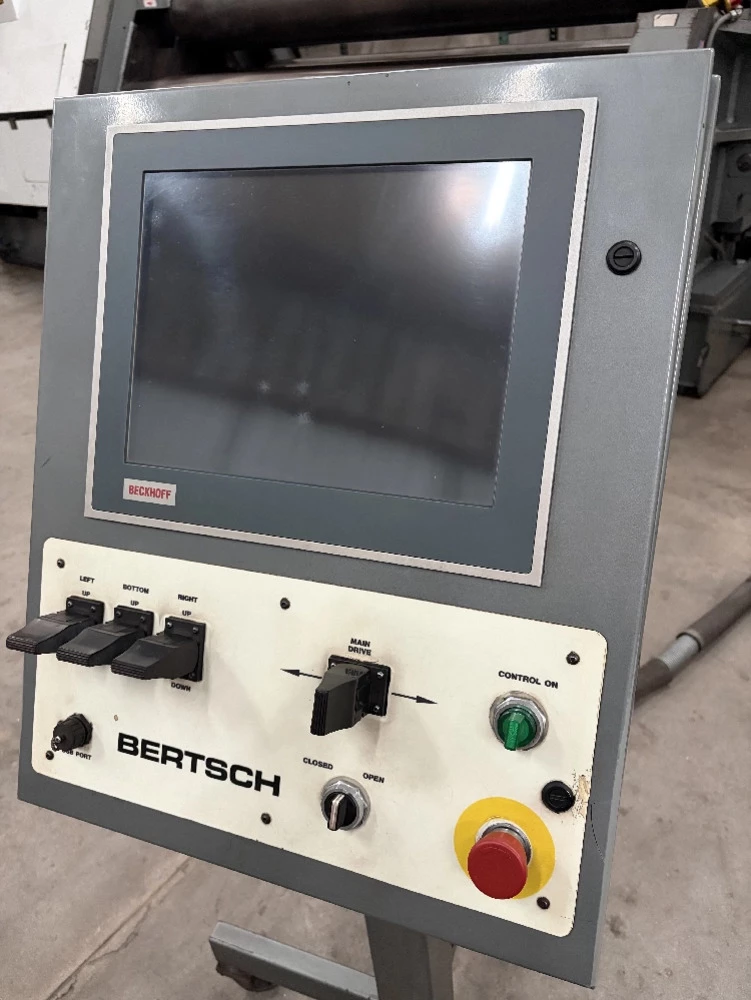

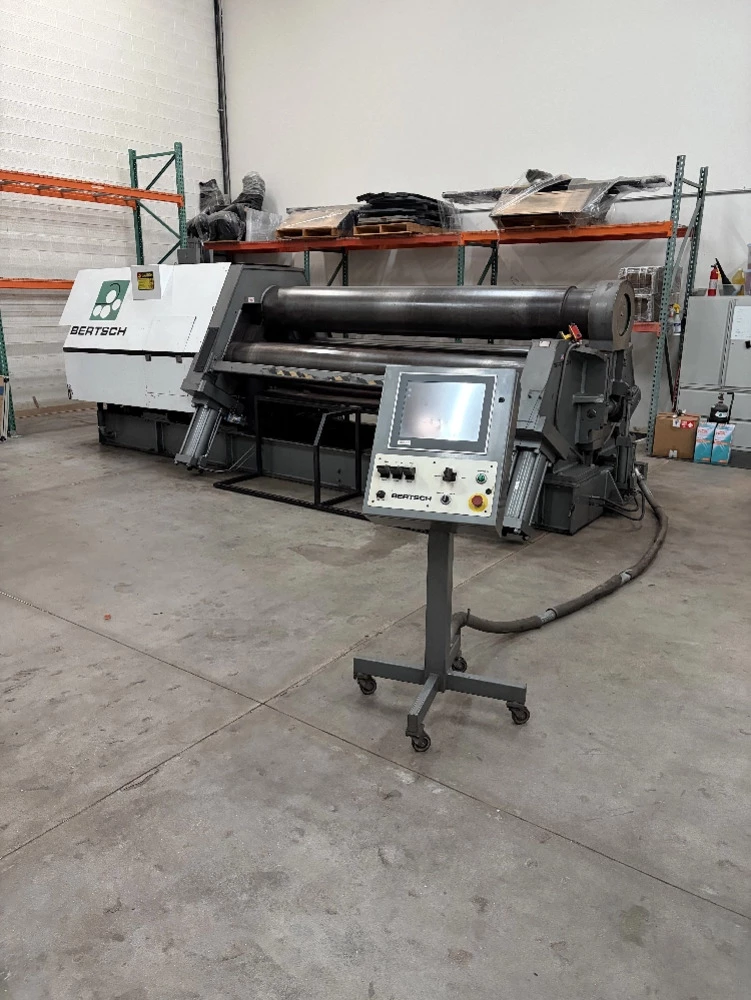

Pedestral Control |
Powered Front & Rear Rolls With Digital Readouts |
|
Hydraulic Drop End |
