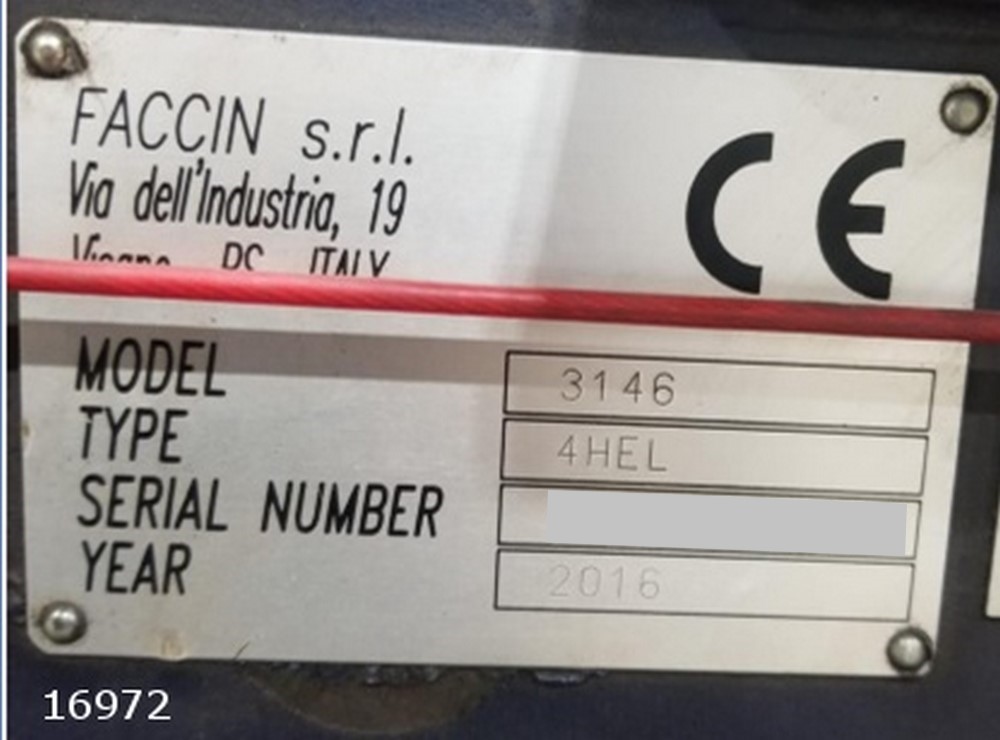

Year |
2016 |
|---|---|
Make |
Faccin |
Model |
4HEL-3146 |
Description |
Four Roll Plate Roll |
Reference # |
8073034 |
Price |
Activate Pricing |

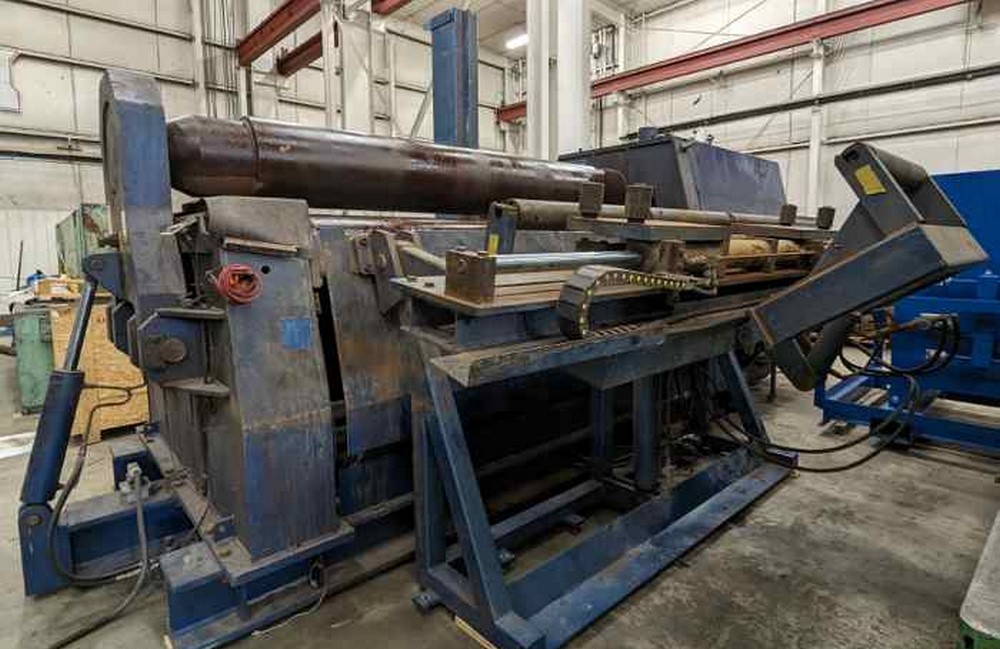

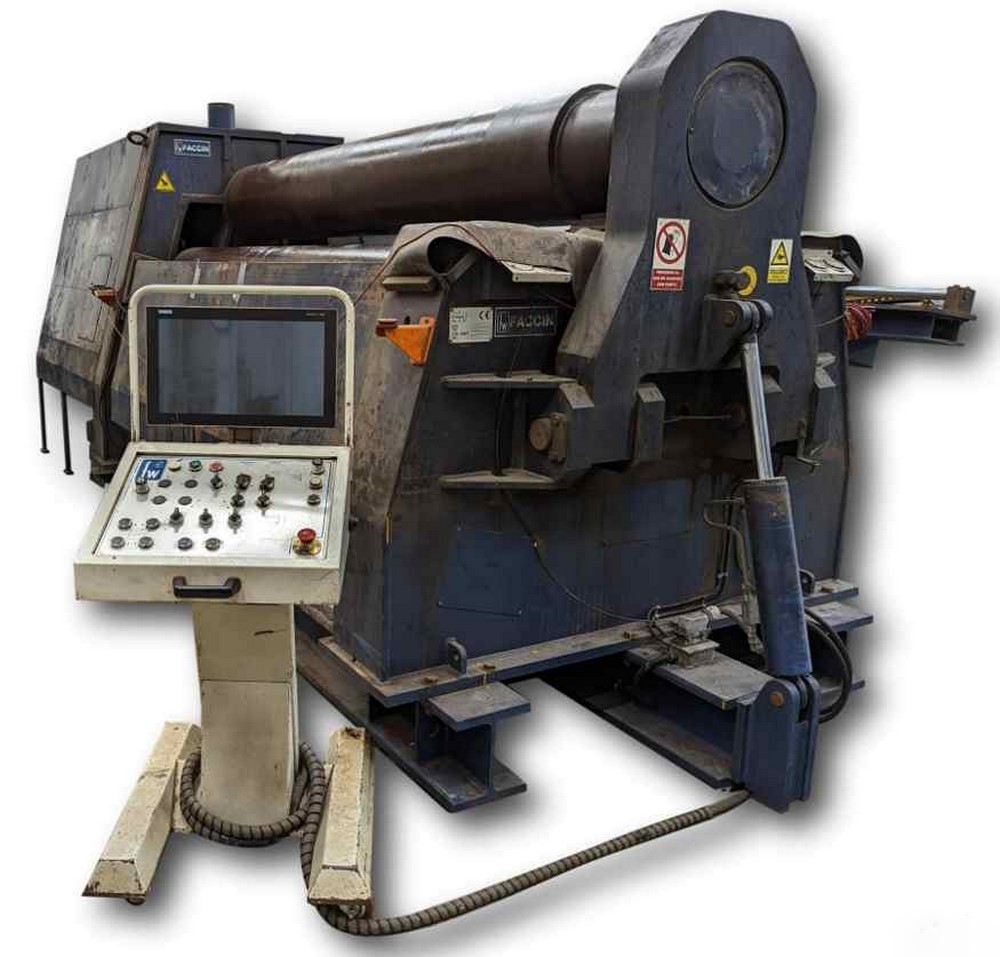

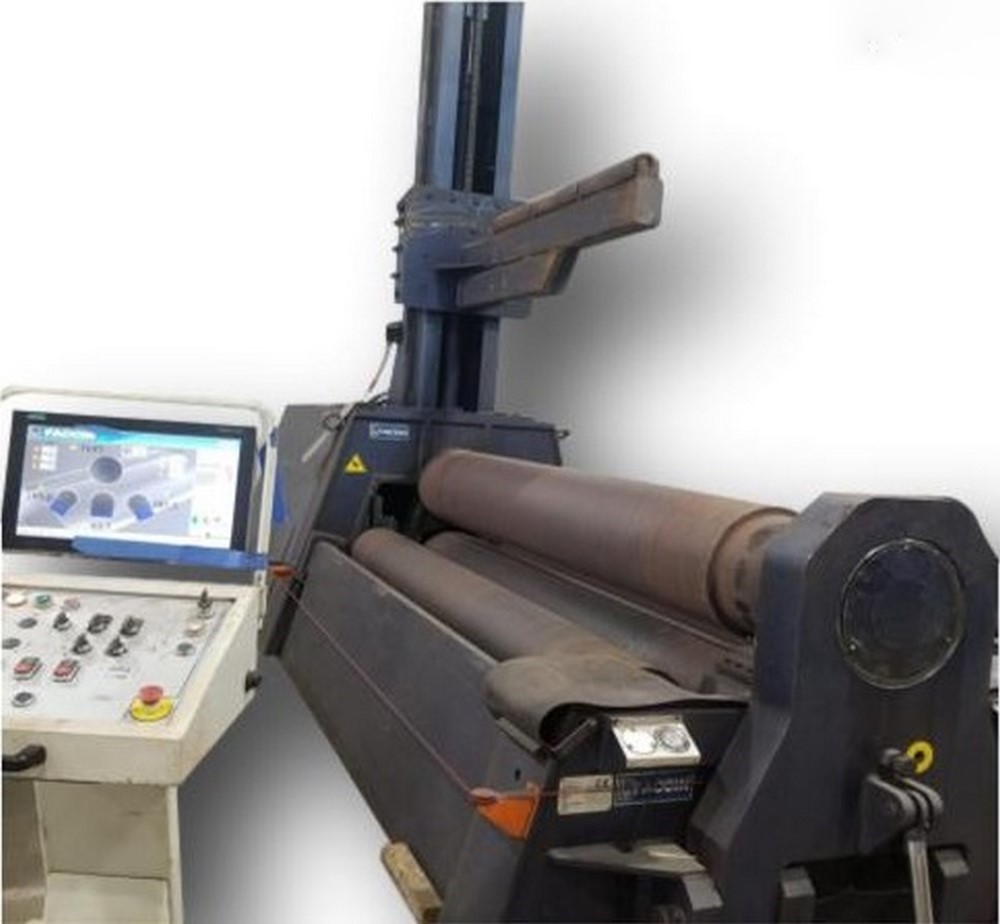

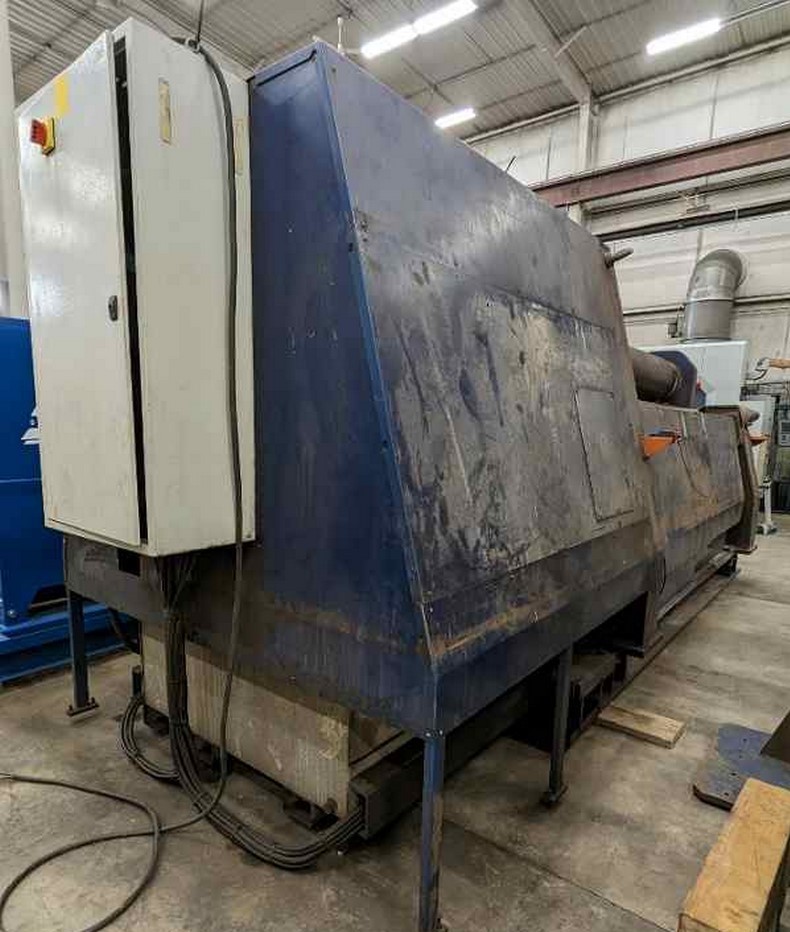

Used Faccin 4HEL-3146 (2016) Plate Rolls for Sale. This four-roll machine handles a maximum plate width of 120″ with 441 ton of bending force on the top roll and 60 HP of rolling power, at an infinitely variable rotation speed of 25 FPM. Roll diameters measure 18.11″ top, 16.93″ lower and 13.39″ side, with four bearings supporting each roll and ultra-wide roll bearing housings. Full-length capacity at 37.7 KSI is 1.42″ bending and 1.18″ pre-bend at 90.5″ inside diameter; at 52.2 KSI, 1.22″ bending and 0.95″ pre-bend. Equipped with Siemens PGS-Ultra CNC, cone bending with electronic control, electronic roll synchronization, 4-axis clamping side support, linear slides, micro-positioning, hardened and polished rolls, top roll tilting with hydraulic drop end opening, centralized lubrication and safety barrier with emergency stop. Dimensions 252″ x 85″ x 105″, 59,500 lbs. Available to see under power for inspection. Request a Quote.
Specifications
| Maximum Plate Width |
120" |
|---|---|
| Top Roll Diameter |
18.11" |
| Lower Roll Diameter |
16.93" |
| Side Rolls Diameter |
13.39" |
| Bending Force on Top Roll |
441 Ton |
| Infinitely Variable Rotation Speed |
25 FPM |
| Rolling Power |
60 HP |
| Full-Length Capacity At 37.7 KSI |
1.42" Bending Thickness With 90.5" Inside Dia. / 1.18" Pre-Bend Thickness With 90.5" Inside Dia |
| Full-Length Capacity At 52.2 KSI |
1.22" Bending Thickness With 90.5" Inside Dia. / 0.95" Pre-Bend Thickness With 90.5" Inside Dia |
| Dimensions |
252" X 85" X 105" |
| Weight |
59,500 Lbs |
Features
|
4 Axis Clamping for Side Support |
4 Bearings Supporting Each Roll |
|
Air-Oil Exchanger Upgrade |
Centralized Pump Lubrication System |
|
Cone Bending with Electronic Control |
Designed to Accept Future Upgrades |
|
Dual Linear Slide Sys for Rolls Translation |
Electronic Balancing System for Roll Synch |
|
Extra Torque & Special Braking Power System |
Extra-Large Double Shaft Drop End |
|
Hardened & Polished Rolls |
High Precision and Productivity Package |
|
Linear Slides |
Micro-Positioning |
|
Pressure Gauges for Pinch Roll Monitoring |
Side Support |
|
Safety Barrier with Emergency Stop |

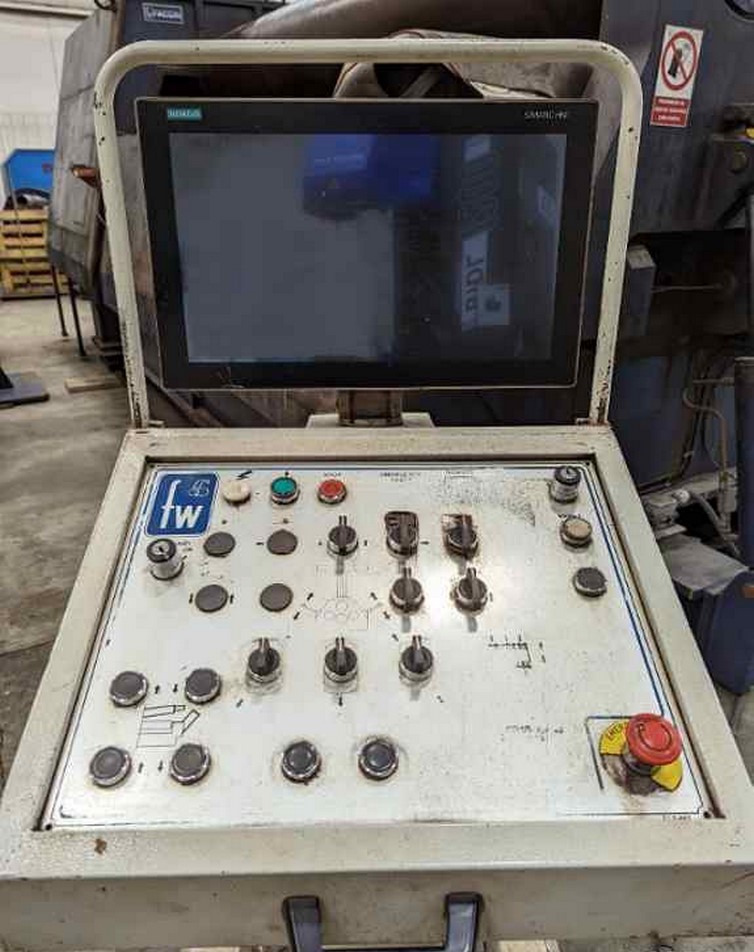

Siemens Pgs-Ultra CNC |
|
Simultaneous Machine Movements |
Top Roll Tilting with Hydraulic Drop End Opening |
|
Ultra-Wide Roll Bearing Housings |

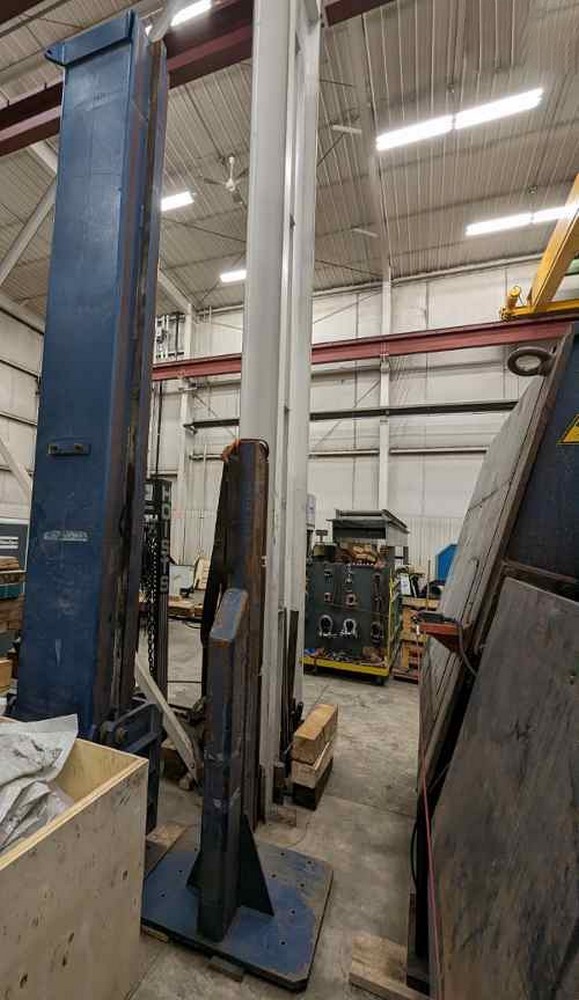

Overhead Support |
