Make |
Bertsch |
|---|---|
Model |
M-10240 |
Description |
3 Roll Plate Roll |
Reference # |
8073656 |
Price |
Activate Pricing |

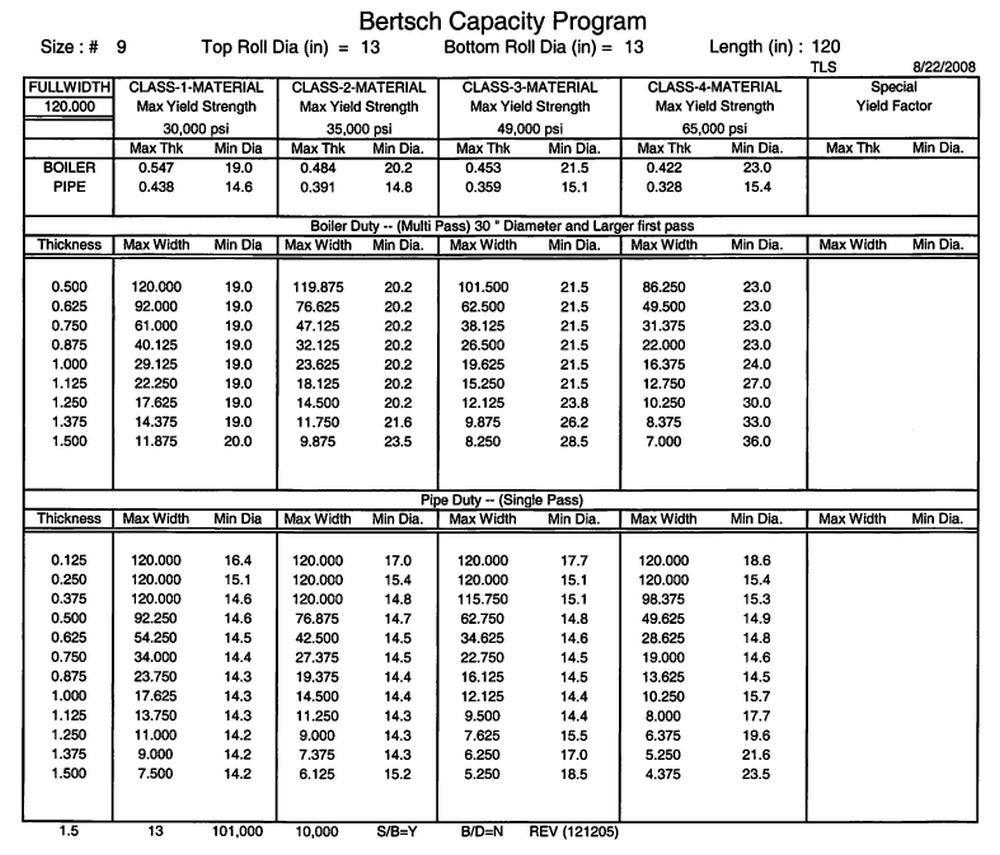

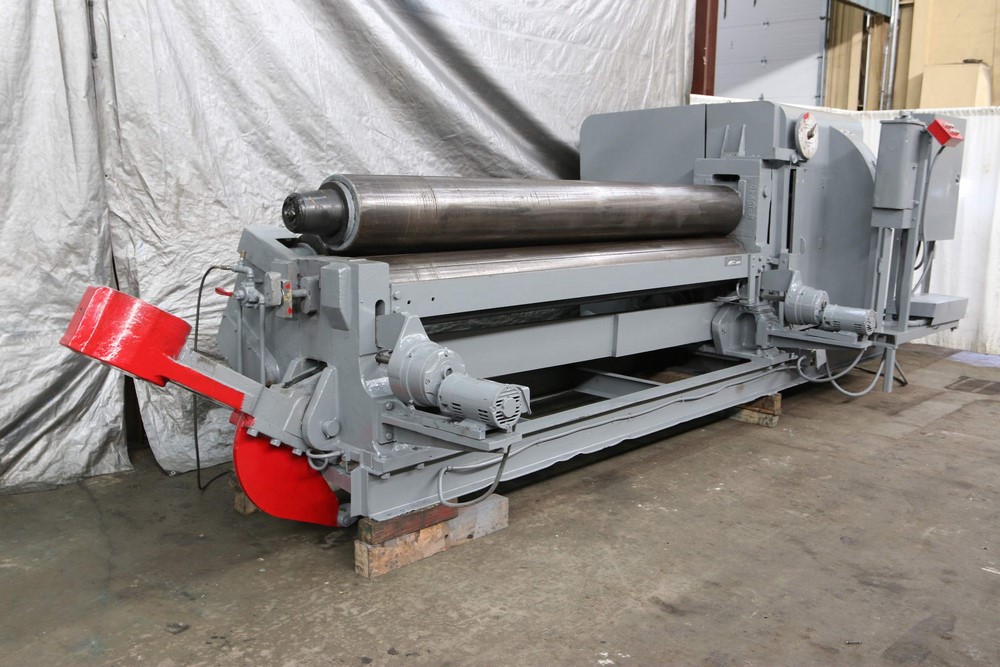

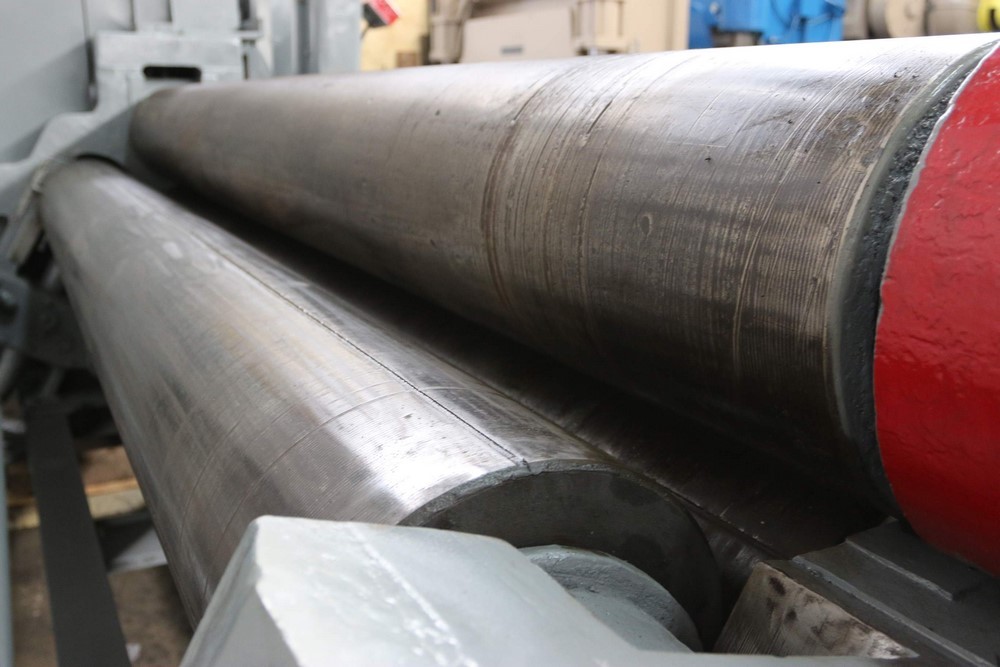

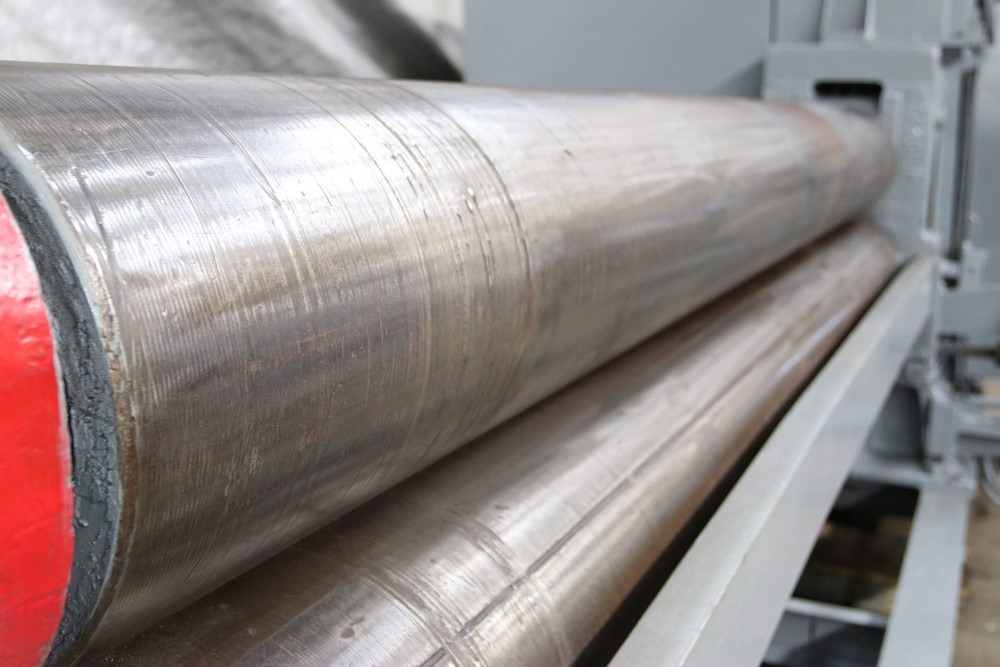

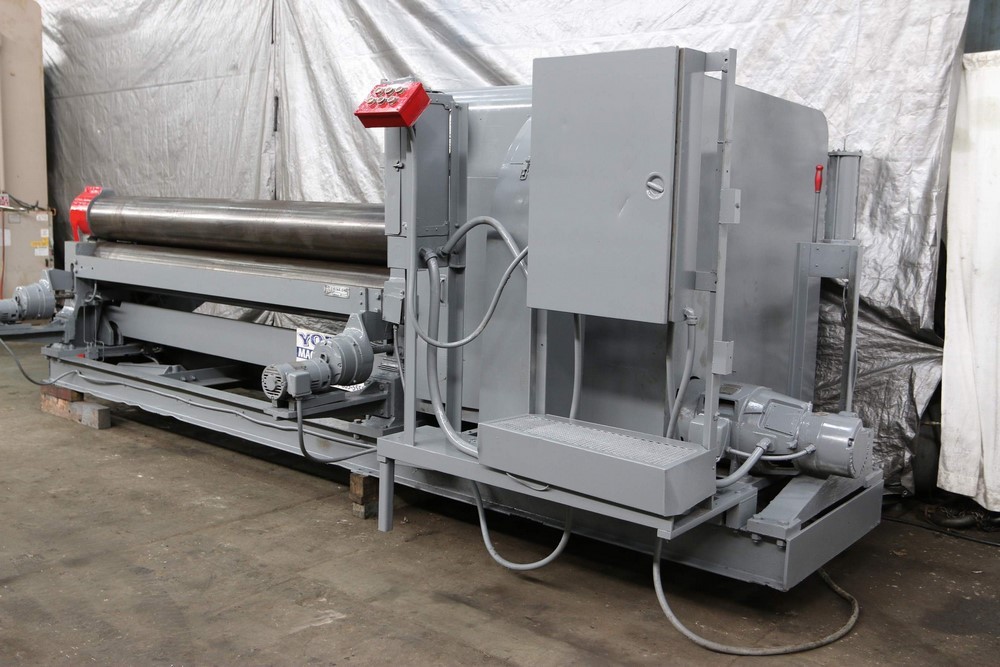

Used Bertsch M-10240 Plate Rolls for Sale. This machine has a 120″ (10′) roll length with a 13″ diameter top roll and 13″ diameter bottom rolls. Capacities are rated across four material classes. At 30,000 psi max yield strength, boiler duty is 0.547″ max thickness at 19.0 max diameter and pipe duty is 0.438″ at 14.6. At 35,000 psi, boiler duty is 0.484″ at 20.2 and pipe duty 0.391″ at 14.8. At 49,000 psi, boiler duty is 0.453″ at 21.5 and pipe duty 0.359″ at 15.1. At 65,000 psi, boiler duty is 0.422″ at 23.0 and pipe duty 0.328″ at 15.4. The machine can be seen under power for an inspection. Request a Quote for further details and availability.
Specifications
| Top Roll Dia |
13" |
|---|---|
| Bottom Roll Dia |
13" |
| Length |
120" (10') |
| Max Yield Strength (Class 1) |
30,000 psi |
| Boiler Duty 1 |
Max Thickness = 0.547 Max Dia = 19.0 |
| Pipe Duty 1 |
Max Thickness = 0.438 Max Dia = 14.6 |
| Max Yield Strength (Class 2) |
35,000 psi |
| Boiler Duty 2 |
Max Thickness = 0.484 Max Dia = 20.2 |
| Pipe Duty 2 |
Max Thickness = 0.391 Max Dia = 14.8 |
| Max Yield Strength (Class 3) |
49,000 psi |
| Boiler Duty 3 |
Max Thickness = 0.453 Max Dia = 21.5 |
| Pipe Duty 3 |
Max Thickness = 0.359 Max Dia = 15.1 |
| Max Yield Strength (Class 4) |
65,000 psi |
| Boiler Duty 4 |
Max Thickness = 0.422 Max Dia = 23.0 |
| Pipe Duty 4 |
Max Thickness = 0.328 Max Dia = 15.4 |
