Year

2018

Make

Amada

Model

EML 2515 AJ

Description

33 Ton Fiber Laser/ Punch Combo

Reference #

8070870

Price

$1,100,000

This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you.

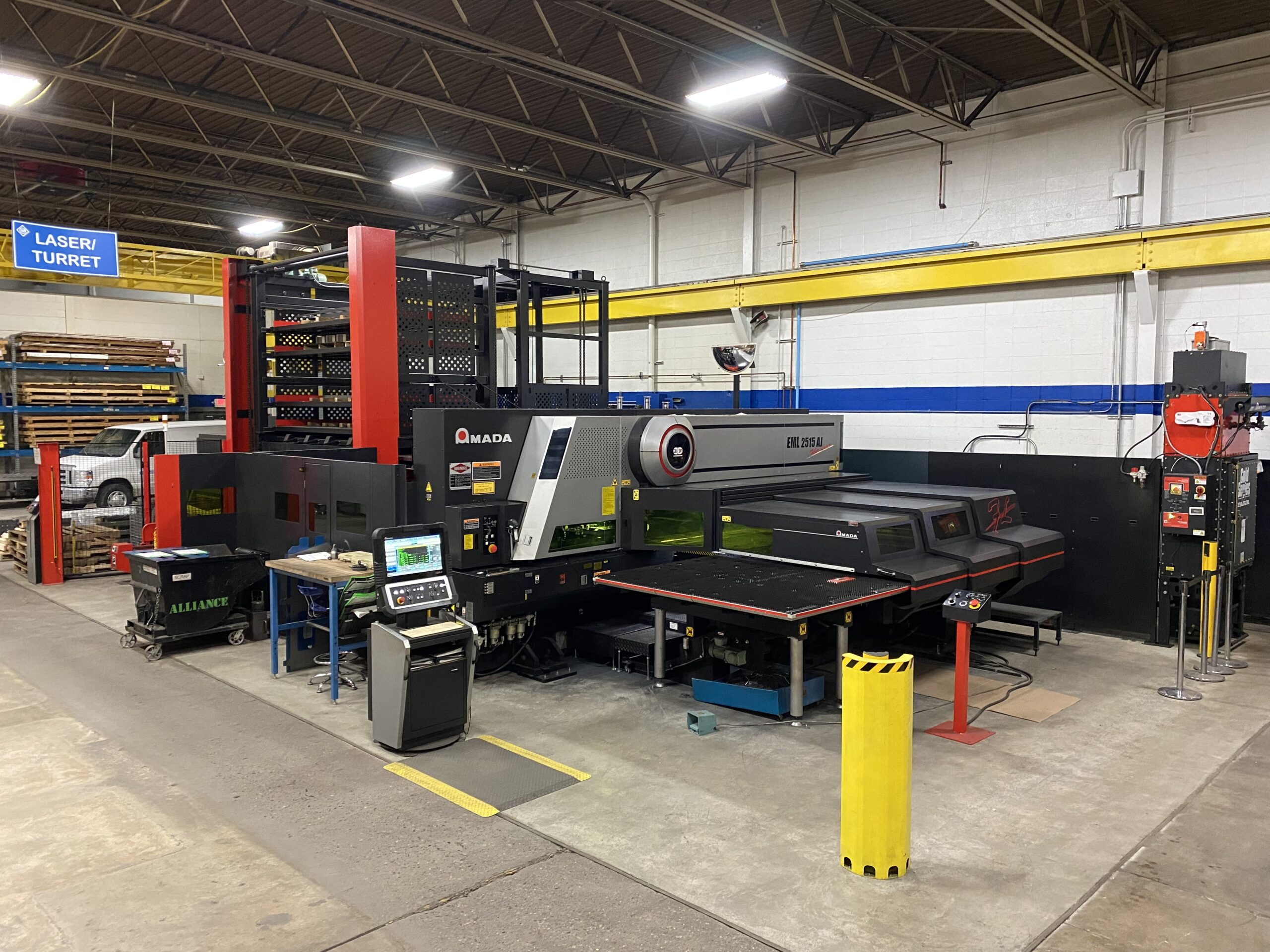

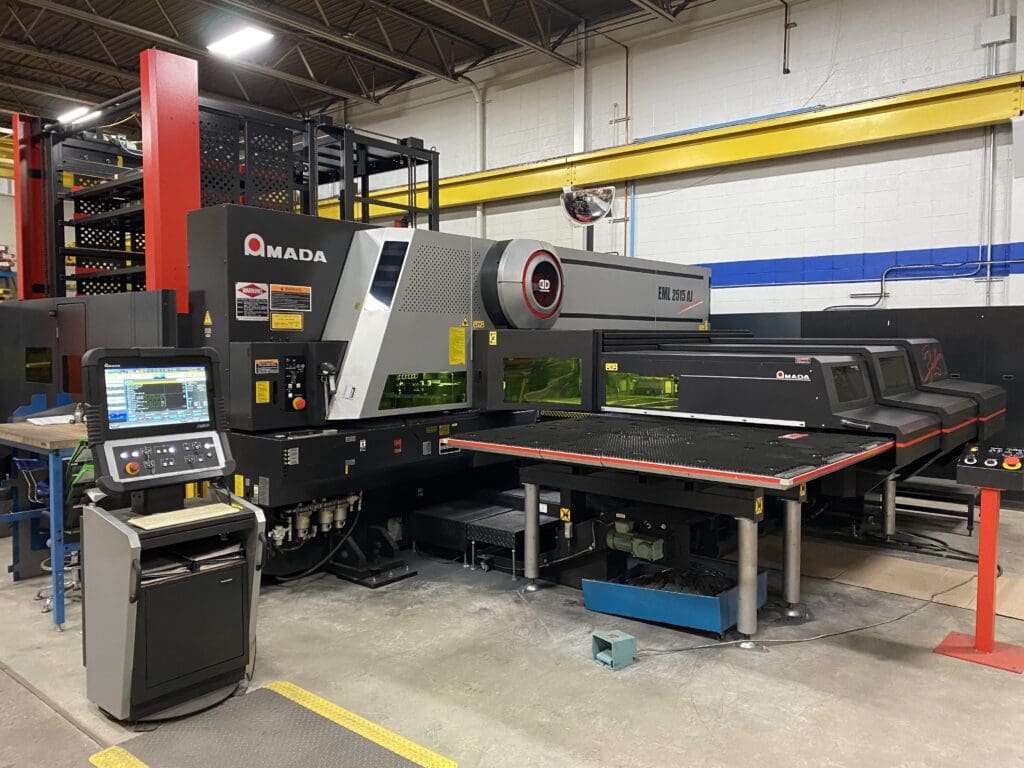

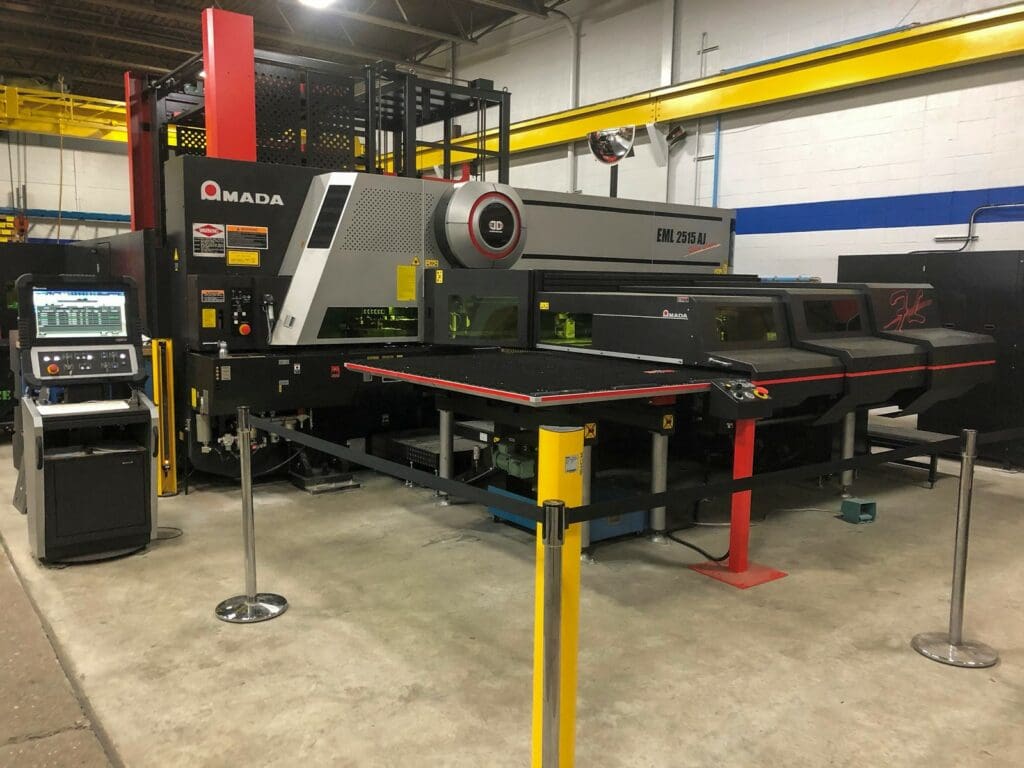

Amada EML 2515 AJ

Specifications

Capacity

33 Ton

Control

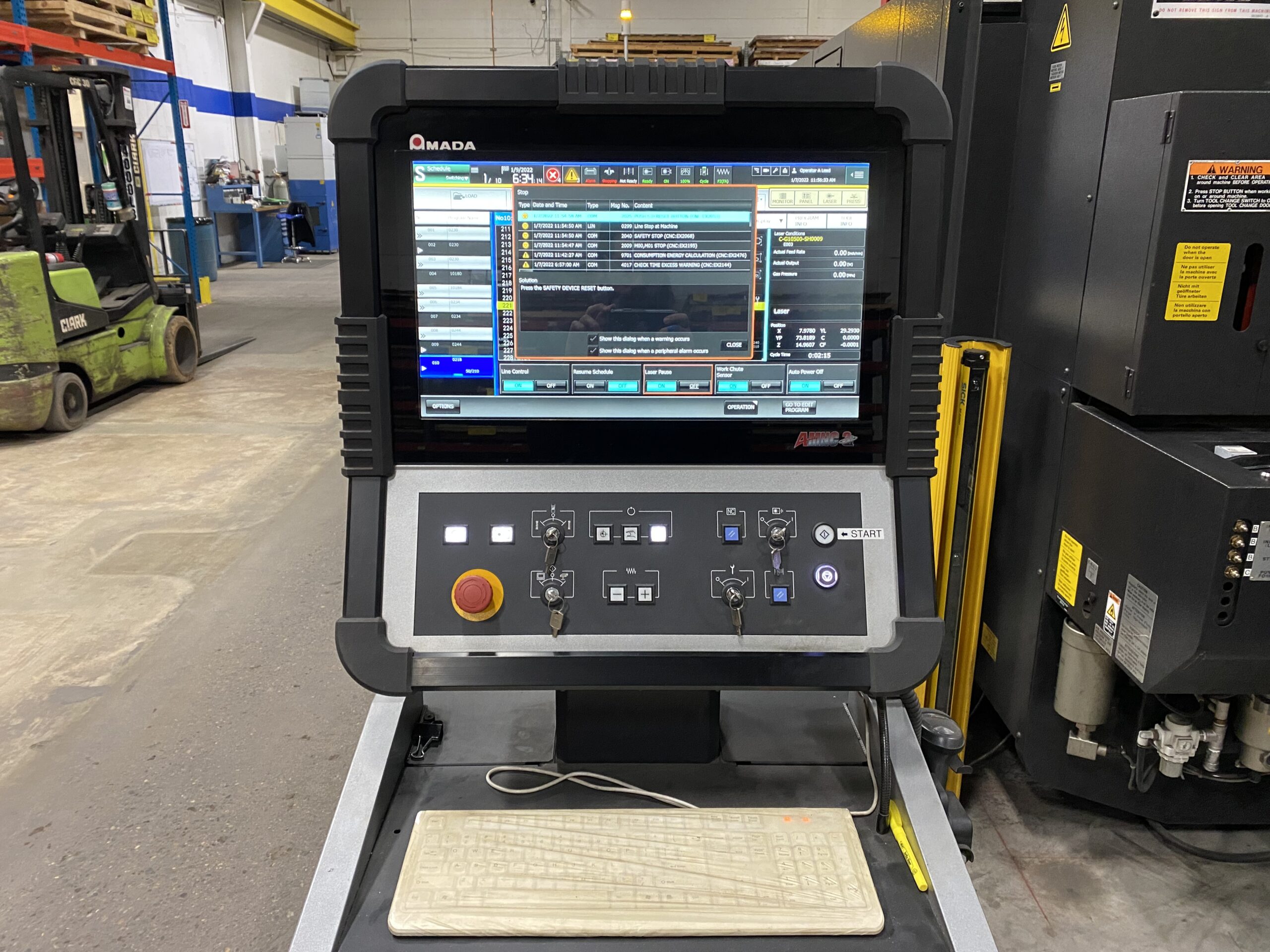

Amada AMNC 3i CNC

Max Sheet Size

5' x 10'

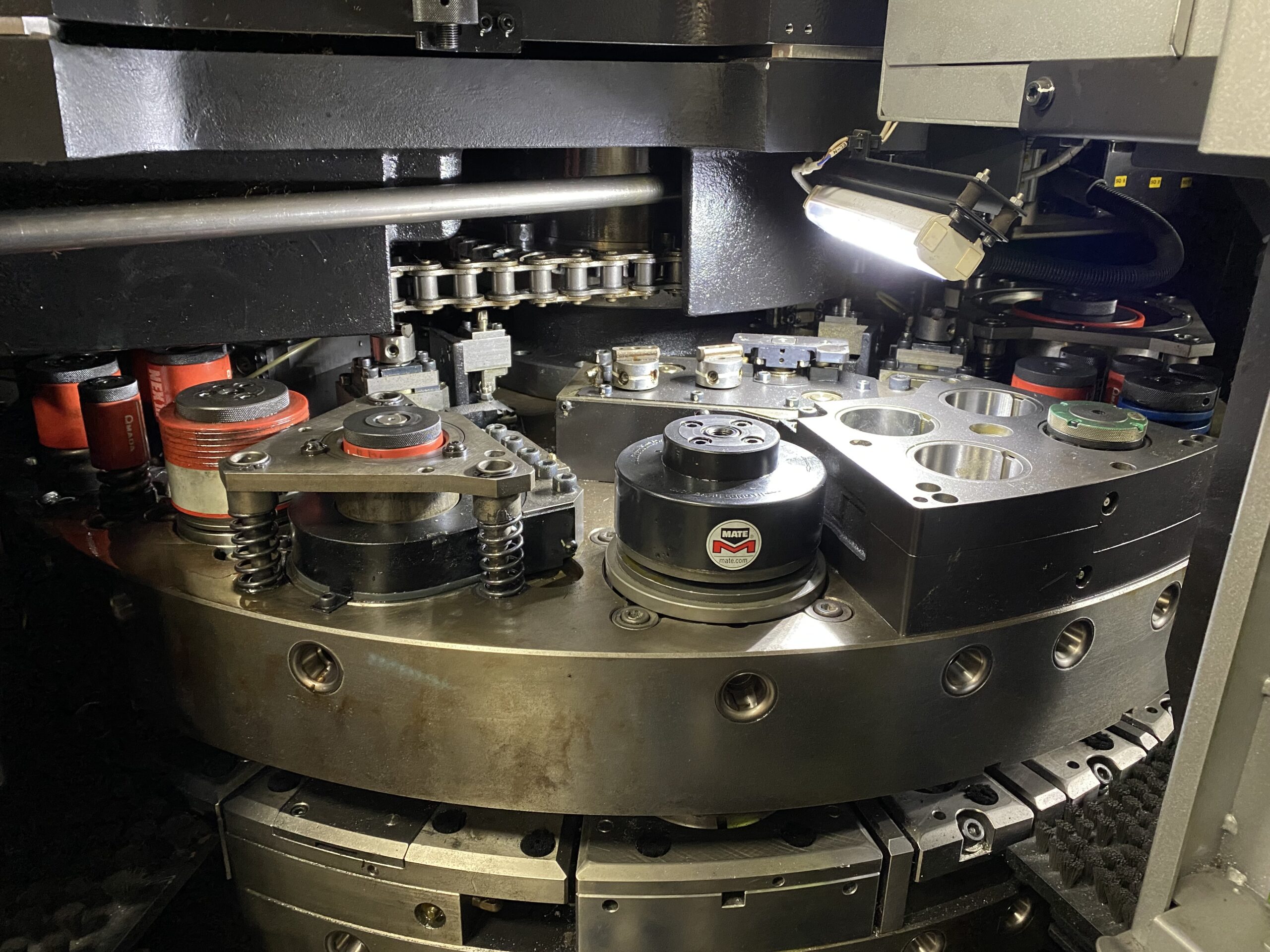

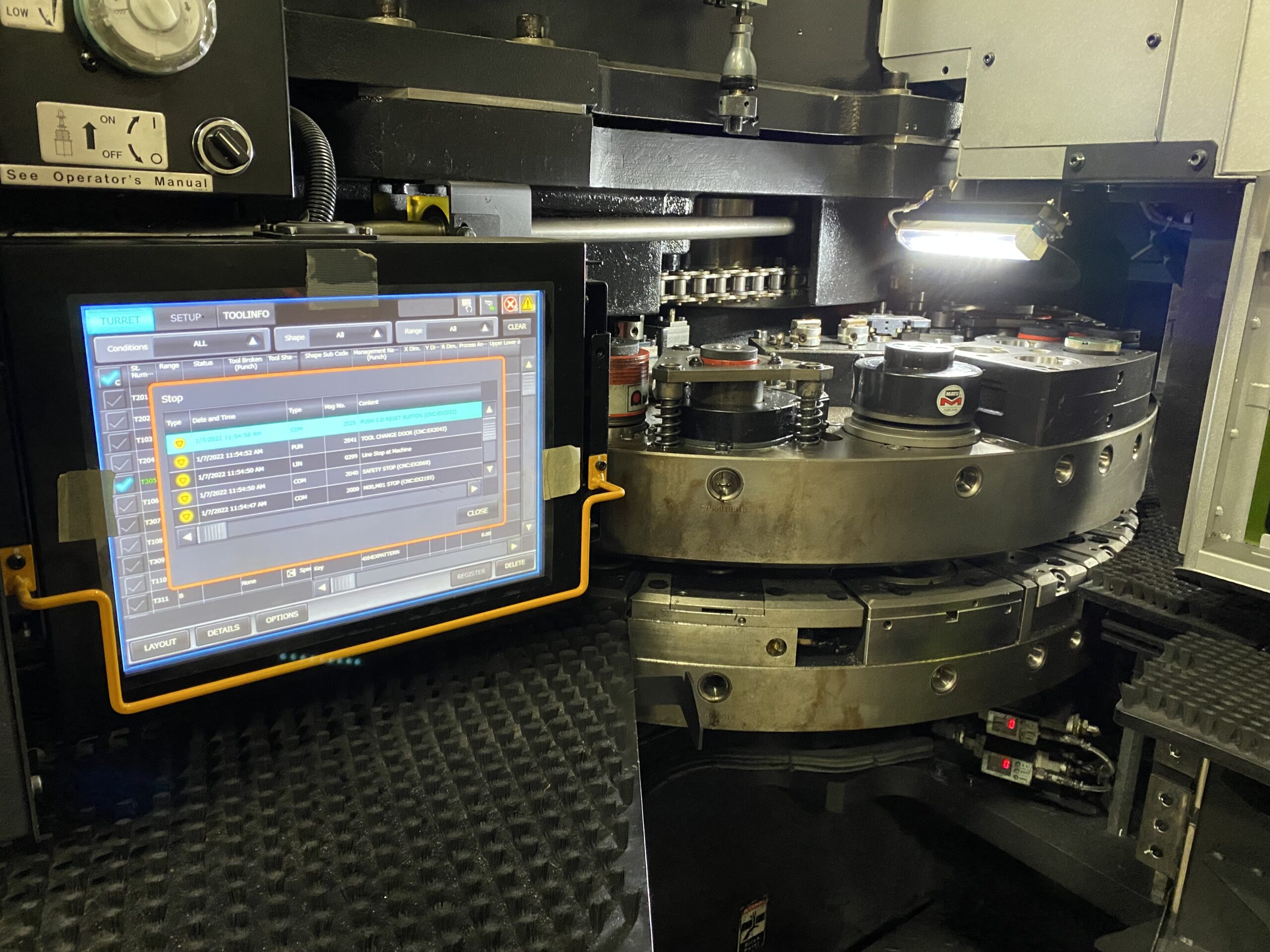

Turret Stations

55 Station w/ 4 A/I

X-Axis & Y-Axis Travels

60" x 120"

Throat Depth

60"

Punching Operation (X/Y)

120'' x 60''

Laser Operation (X/Y)

100" x 60"

Combined Work Area w/ Repositioning

120" x 60"

Z-Axis Laser

14.9''

Max Material Thickness

0.250"

Table Loading Weight

480lbs

Traverse Speed (X/YP)

3,937/3,149 IPM

Laser Axis (YL)

3,149 IPM

Axis Simultaneously

5,039 IPM

Z-Axis Simultaneously

2,362 IPM

Punching Accuracy (Amada's Punching Pattern)

+/- 0.0027"

Assist Gas Change

Automatic

Included Rotation Stations

4

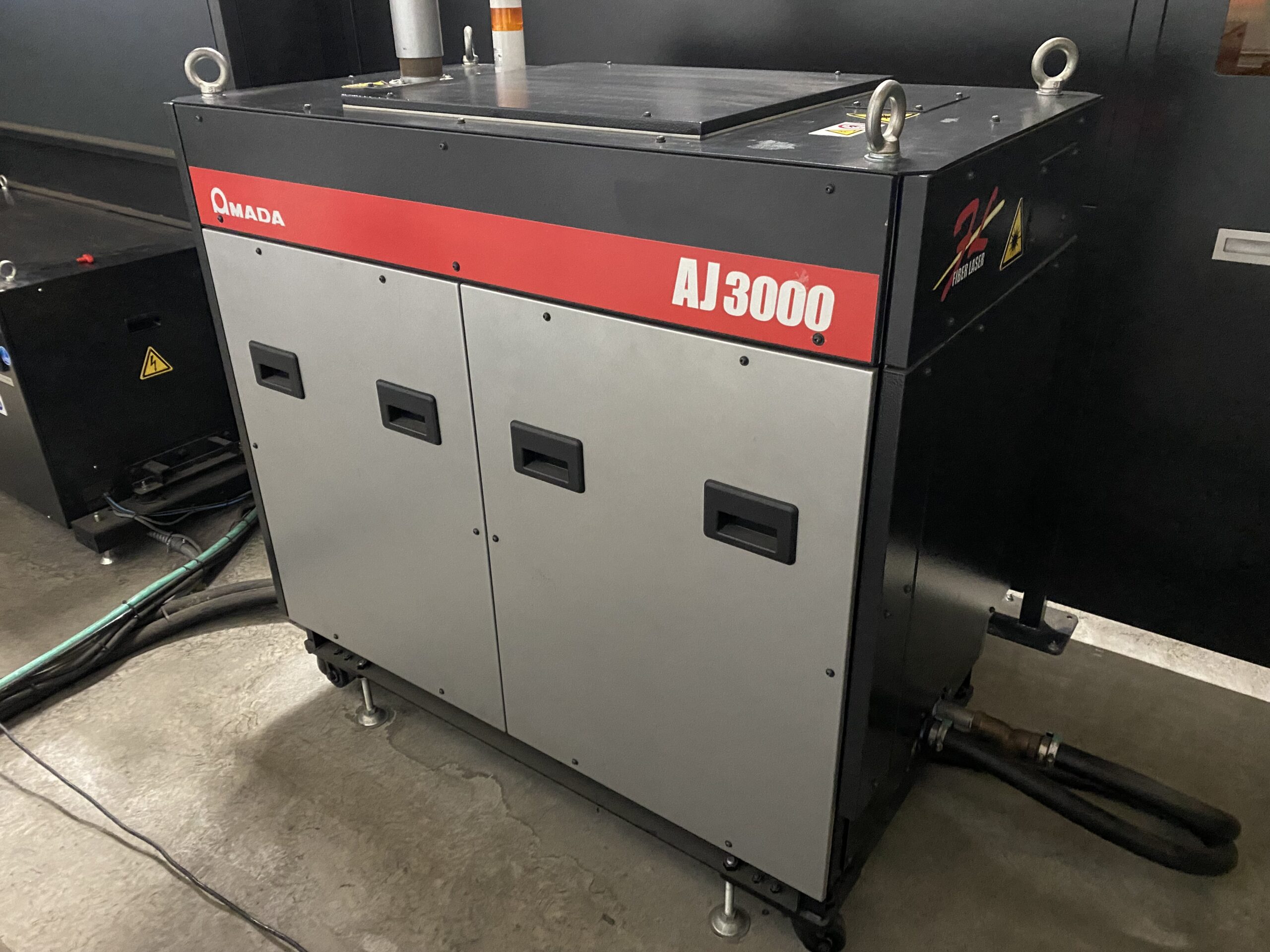

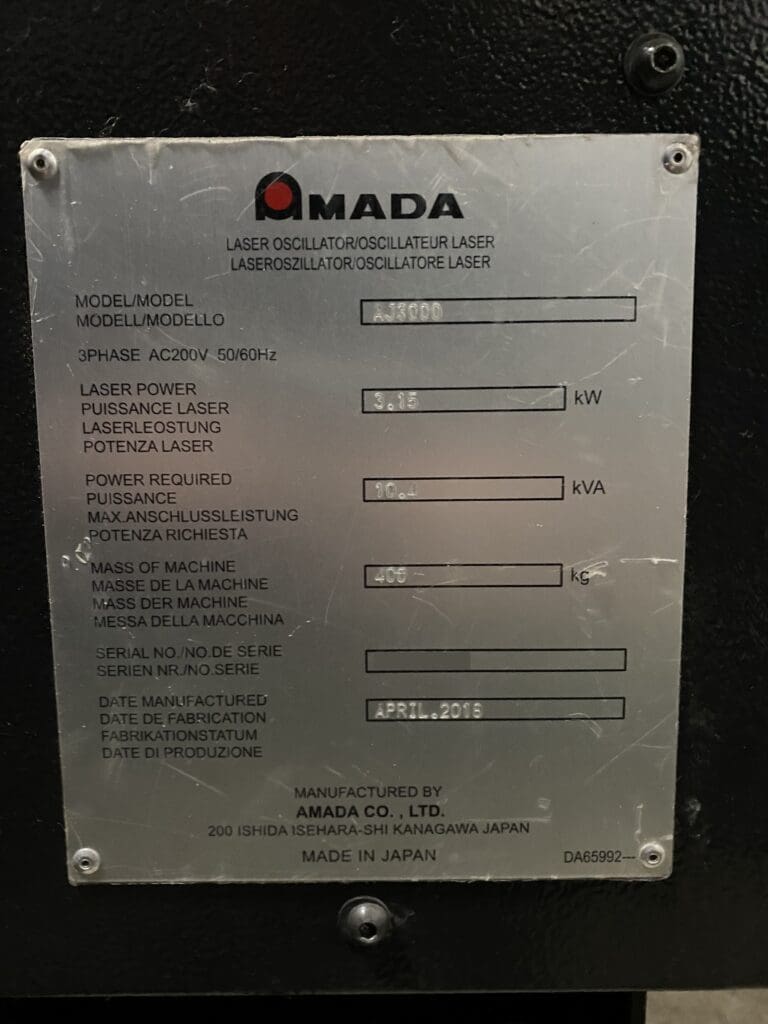

Laser Engine

Amada AJ3000 Fiber Laser Engine

Punching System Stroke

1.5"

Punch Rate

500/min

In Marking Mode

1850/min

Table Design

Brush Table

Parts Chute

15.75" x 60"

Machine Frame

Bridge Frame

Press Drive

Servo Electric Drive

Turret/Table Drive

AC Servo Motors

Machine Weight

33 tons

Storage Capacity

440kB

Number of Controlled Axes

6

Features

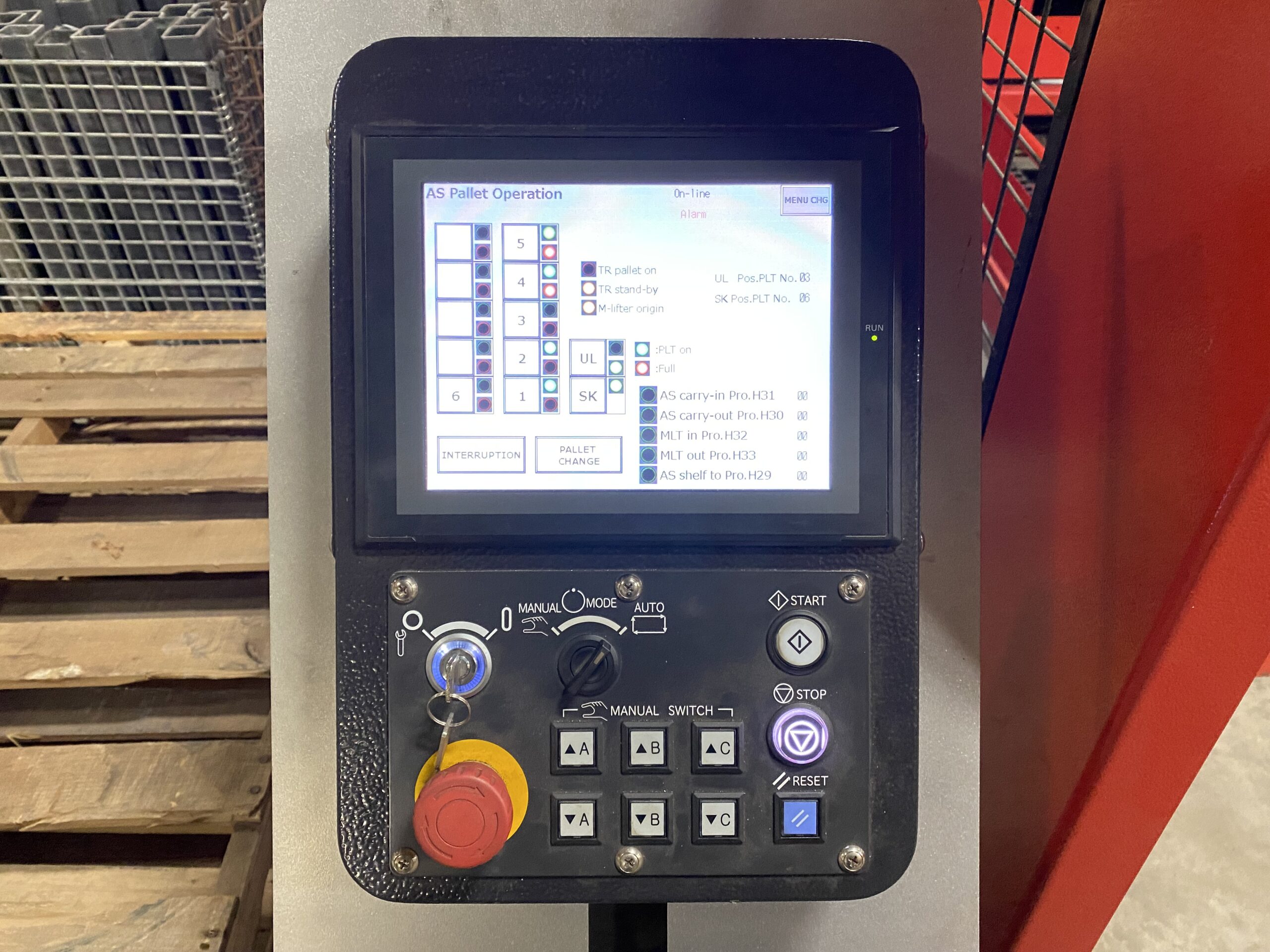

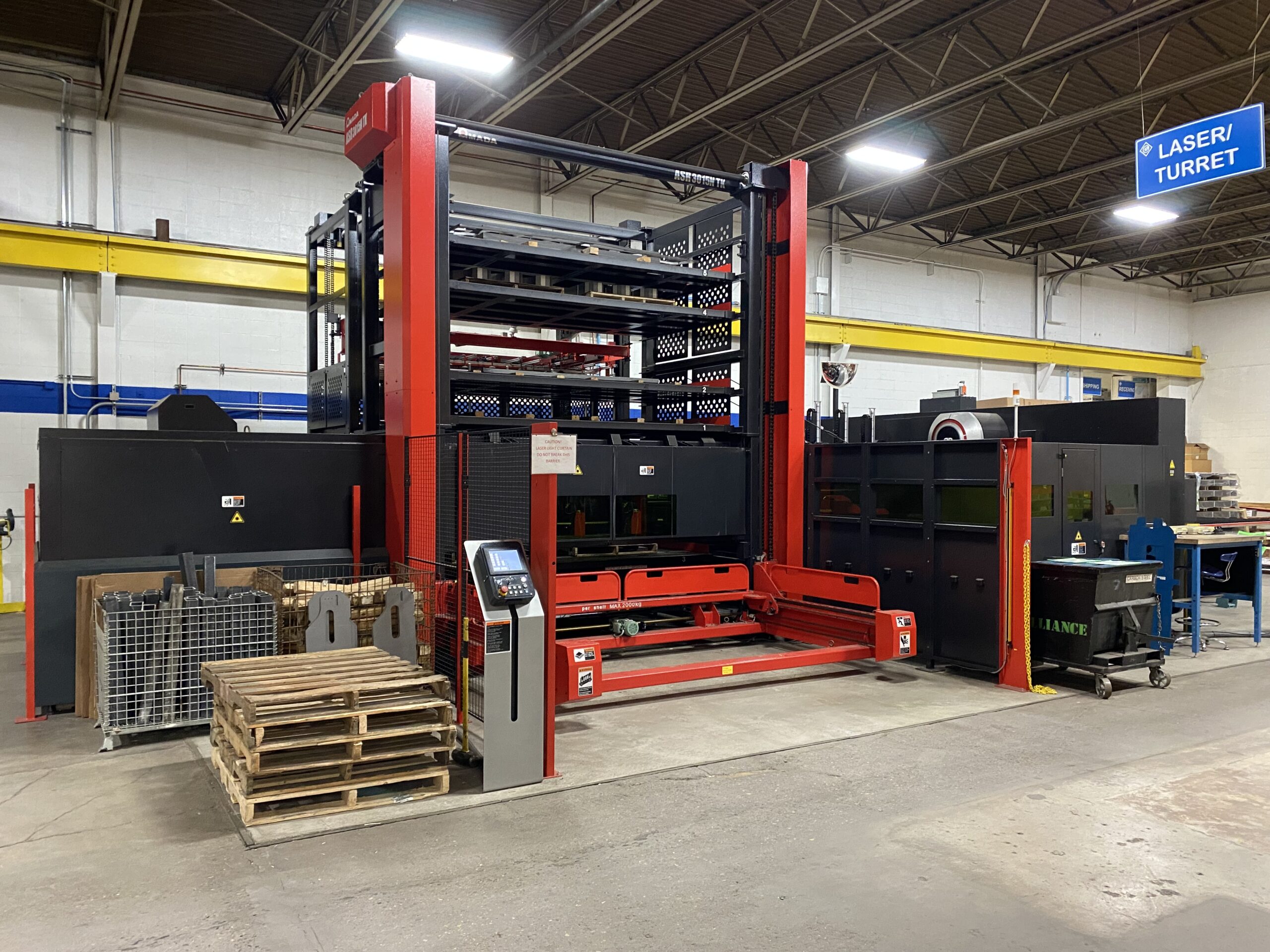

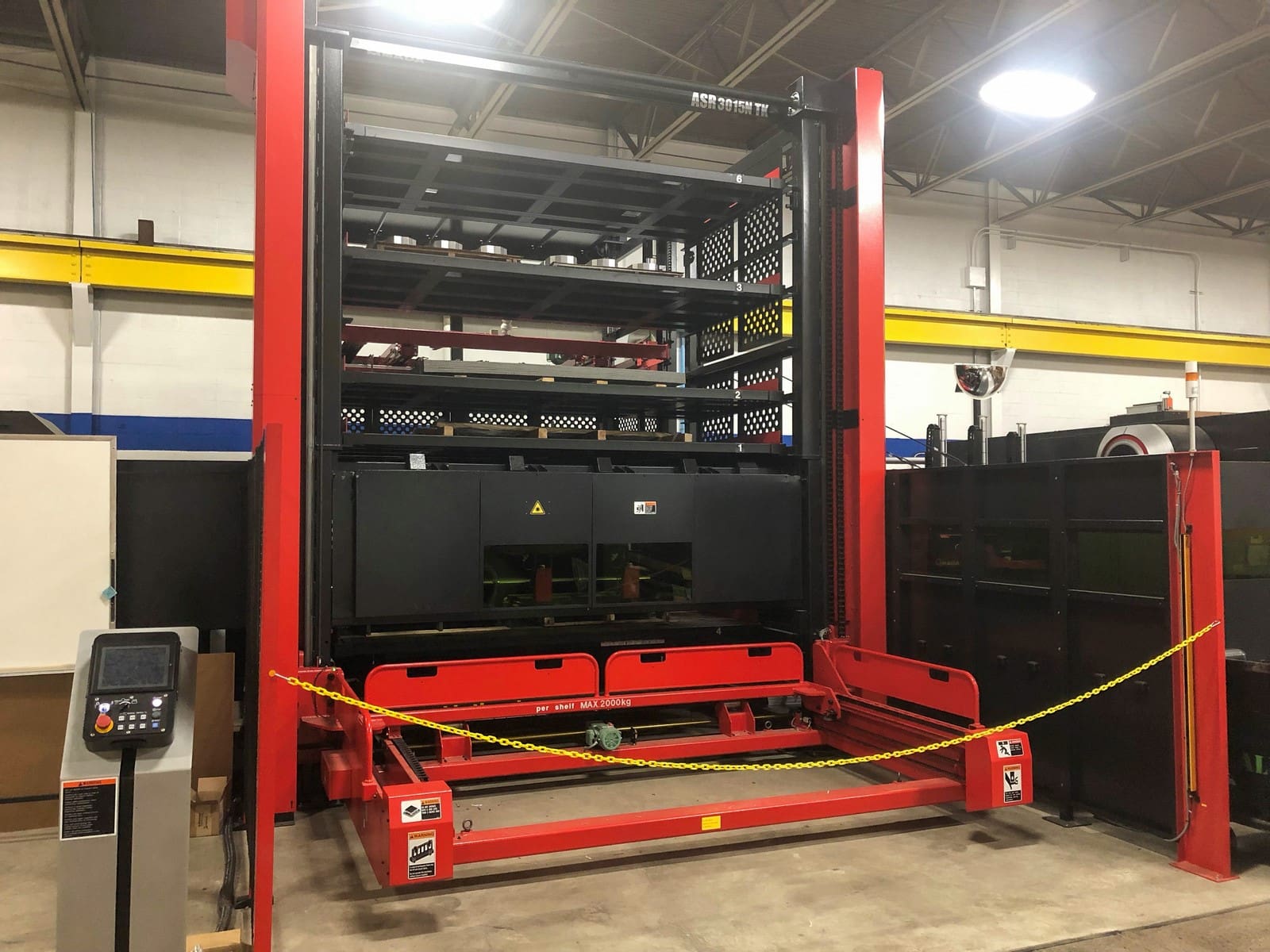

ASR 3015 NTK 6 Shelf Automation W/ Part Sorting

Multimedia CNC Control
