Year |
2017 |
|---|---|
Make |
Komo |
Model |
Fusion XL 510 |
Description |
CNC Router |
Reference # |
8079003 |
Price |
Activate Pricing |

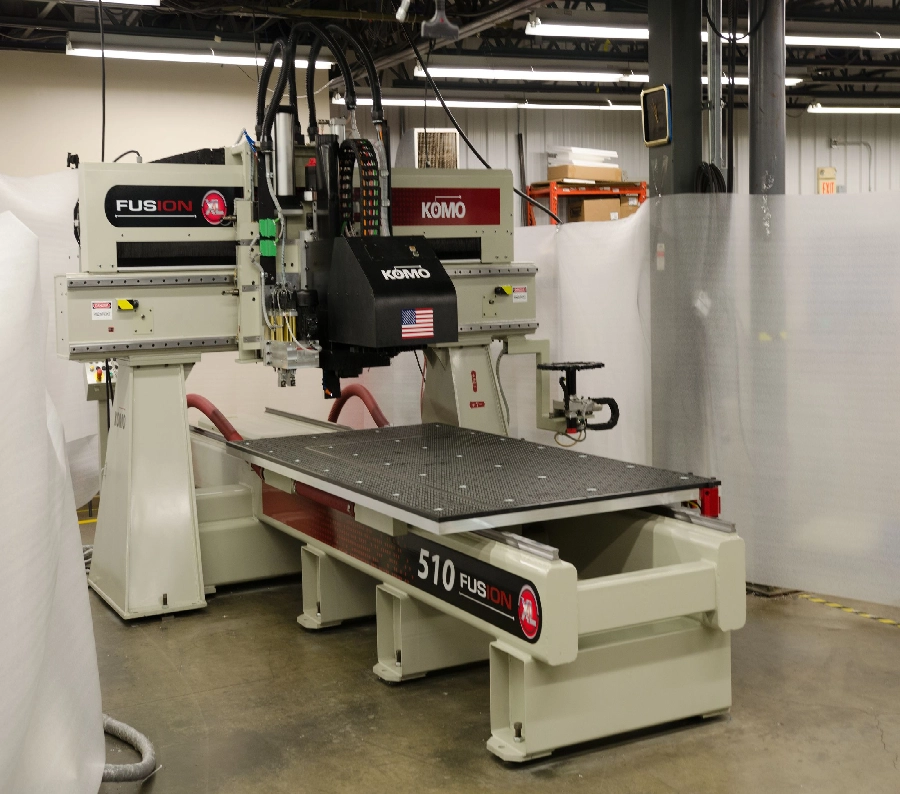

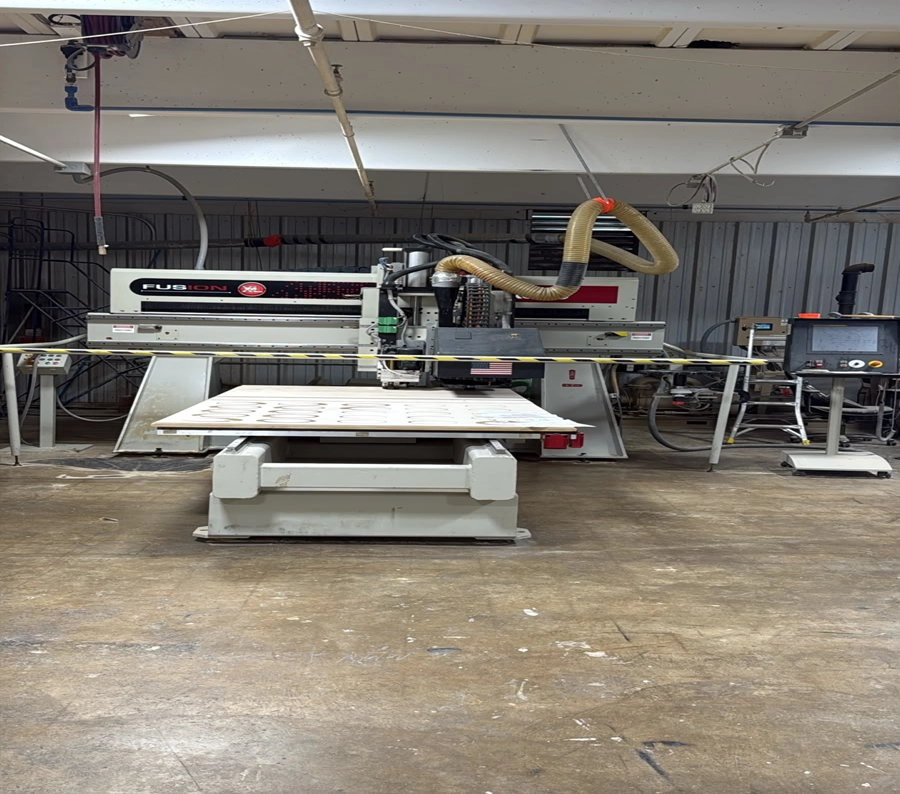

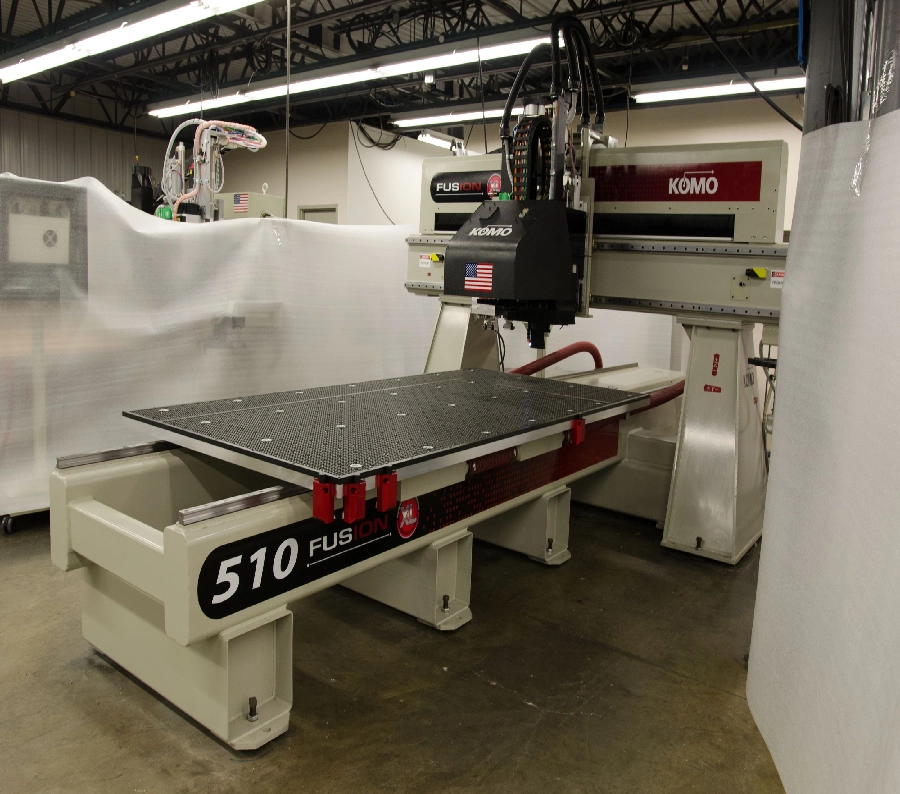

Used Komo Fusion XL 510 (2017) CNC Router for Sale. This 3-axis machine has a 60″ x 120″ aluminum table with a composite grid and vacuum hold down, served by a Dekker 40 HP vacuum pump. The 18 HP fan cooled spindle runs to 24,000 RPM and is fitted with an HSK 63F ER40 tooling package, backed by a 15-pocket ATC and a 20-spindle boring block (14 vertical and 2 horizontal). Control is a Fanuc Panel i CNC with Alpha HVI digital servo motors. Also equipped with a pop-up roller ball transfer system, four pop-up pin locators, an interpolating “C” axis and an auto tool setter. Just over 500 hours of use, and currently in operation, so it can be seen under power for an inspection. See our other used CNC routers, then Activate Pricing or use the Inquire Now button.
Specifications
| Number of Axis |
3 |
|---|---|
| Table Width |
60" |
| Table Length |
120" |
| Table Description |
Aluminum Table W/Composite Grid |
| Table Hold Down |
Vacuum Hold Down |
| Tooling |
HSK 63F ER40 Tooling Package |
| Spindle Speed |
24,000 RPM |
| Spindle Horsepower |
18 HP @ 24,000 RPM Fan Cooled Spindle |
| Auto Tool Changer |
(15) Pocket Auto Tool Changer |
| Multi-Spindle Boring Block |
(20) Spindle Boring Block (14 Vert. & 2 Horz.) |
| Controller |
Fanuc Panel I Cnc Controller W/Alpha HVI Digital Servo Motors |
| Electrical Requirements |
480v - 3ph - 60 Hz. |
Features
|
(4) Pop-Up Pin Locators |
Auto Tool Setter |
|
Currently In Operation For Inspections. |

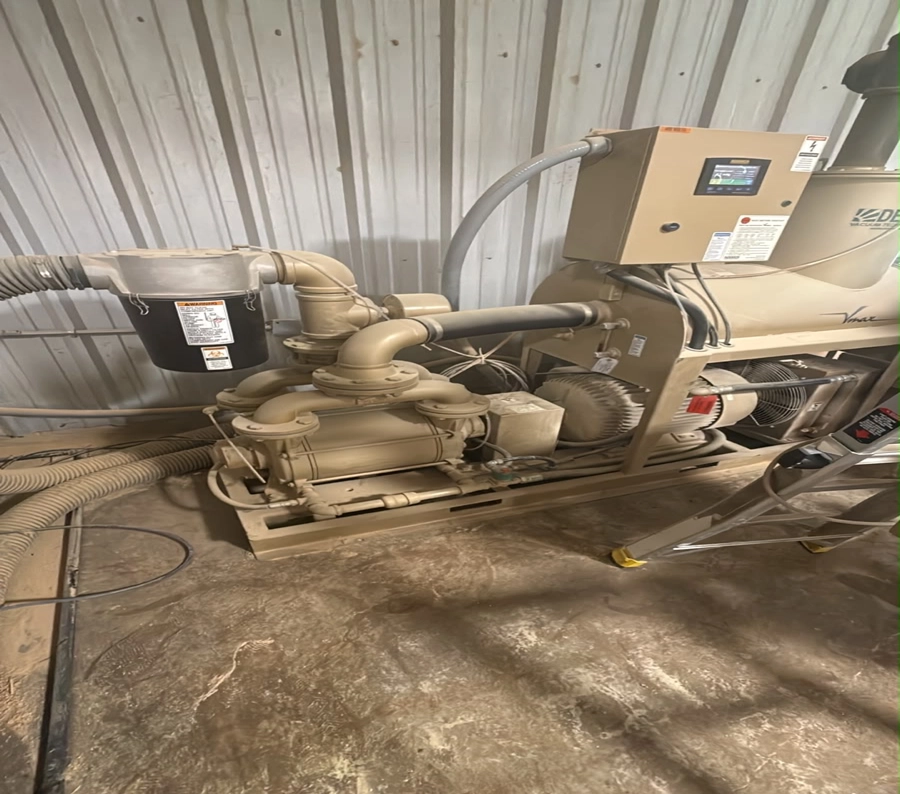

Dekker 40 HP Vac. Pump |
|
Interpolating "C" Axis |

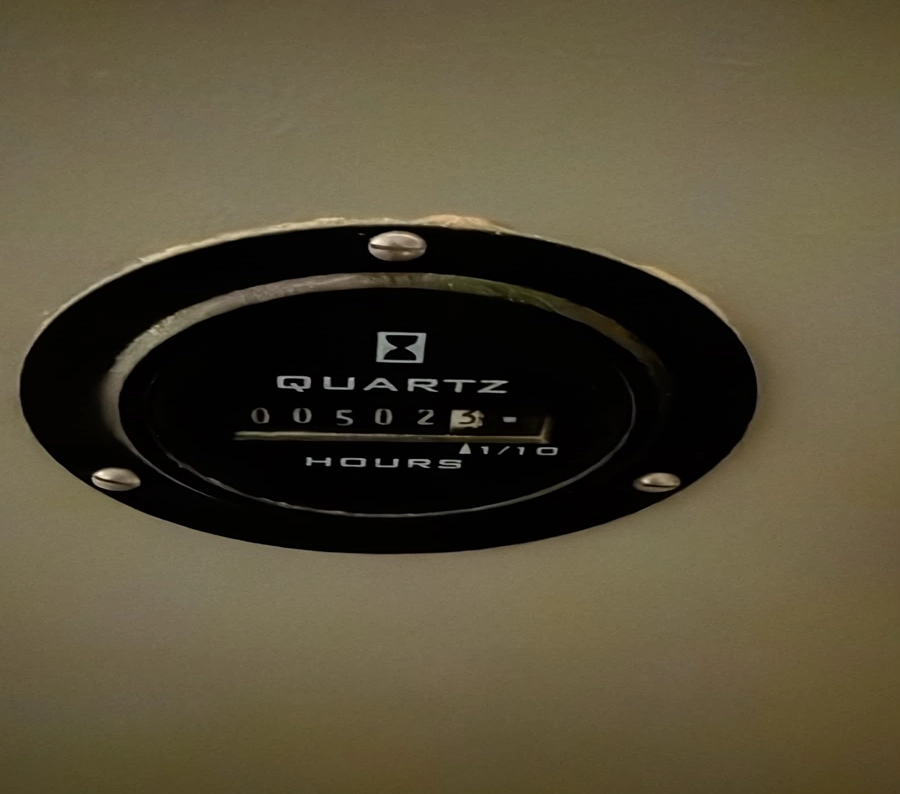

JUST OVER 500 HOURS OF USE!!! |
|
Pop-Up Roller Ball Transfer System |
