Year |
2017 |
|---|---|
Make |
Inovatech |
Model |
SteelPRO 600 PythonX SPG |
Description |
Robotic Beam Coper |
Reference # |
8079121 |
Price |
Activate Pricing |
Used Inovatech SteelPRO 600 PythonX SPG (2017) Robotic Beam Coper for Sale. This structural steel processing cell is built around a FANUC ArcMate 120iD robot (M-20iD/25) running under a FANUC robot controller with PythonX Director, paired with a Hypertherm XPR 300 power source rated 300A at 100% duty cycle and a FineLine 300HD plasma. Pierce capacity is 1.75 in (44 mm) with severance to 3 in (76 mm), and the torch tilts up to 55 degrees for beveling. Beam capacity runs 4 in to 44 in web and 4 in to 17 in flange, with HSS to 24 in x 20 in and stock lengths to 65 ft. Includes AirPack, measuring cart, SteelPRO DCC12 dust collector, and 60 ft infeed / 40 ft outfeed conveyor. Pass-line height 35 in; approximately 12,000 lbs. Available for inspection under power. See our other used robotic welders, then Activate Pricing or use the Inquire Now button.
Specifications
| Beam (Web Height) |
Min-4″ (100mm) Max-44” (1016mm) |
|---|---|
| Beam (Flange Height) |
Min-4″ (100mm) Max-17″ (430mm) |
| HSS. |
Min-3″X3″ (76mm X 76mm) Max-24″X20″ (609mm X 508mm |
| Channel (Height) |
Min-3″ (76mm) Max-18″ (457mm) |
| Channel (Width) |
Min-1 1/4″ (31.75mm) Max-5″ (127mm) |
| Angle |
Min-3″X3″ (76mm X 76mm) Max-8″X8″ (203mm X 203mm) |
| Flat Bar |
Min-3″X3/8″ Thick (76mm X 76mm) Max-13.780″ (350mm) |
| Bulb Flat |
Min-6.3″X0.275″ (160mm X 7mm) Max-13.4″X0.47″ (340mmx X12mm) |
| Power Source |

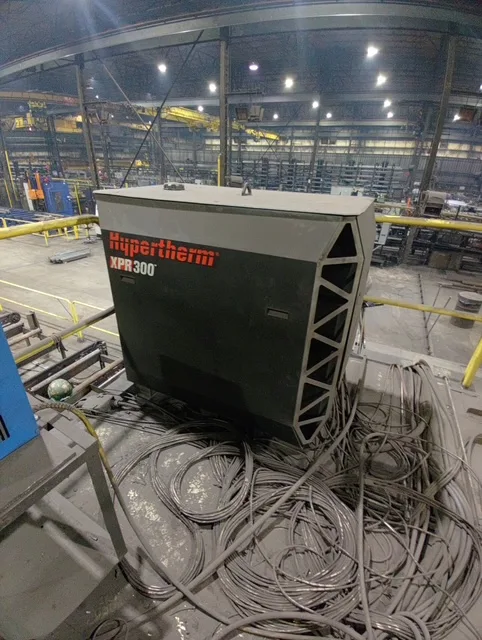

Hypertherm XPR 300 |
| Power Requirement |
Input Voltage +/- 10% 415 / 460 / 575, Input Amperes 32 / 27 / 22, Frequency (Hz) 50 / 60 |
| AMP Power Source |
300A, 100% Duty Cycle |
| Control |
FANUC Robot Controller With PythonX Director |
| Cutting Capacity |
Pierce Capacity 1.75 in [44 mm], Severance Capacity 3 in [76 mm] |
| Max Material Thickness |
1.75 [44] Pierce |
| Table Height |
Pass-Line Height 35 in (889 mm) |
| Approx Machine Weight |
12 000 lbs. (5,444 kg) |
| Note |
Maximum Stock And Part Length 65 ft (19.8 M), Torch Tilts Up To 55° For Beveling |
Features
|
AirPack |

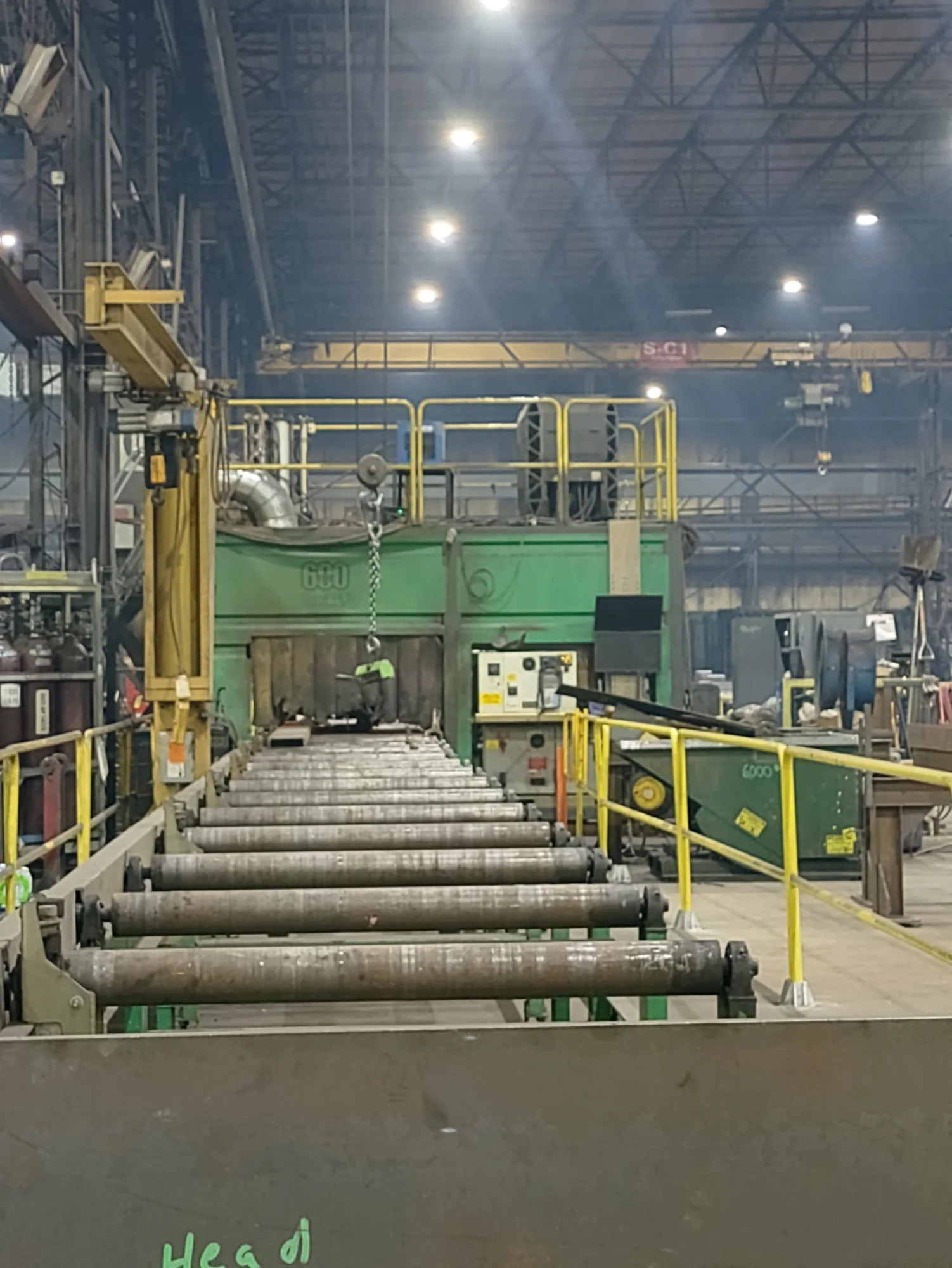

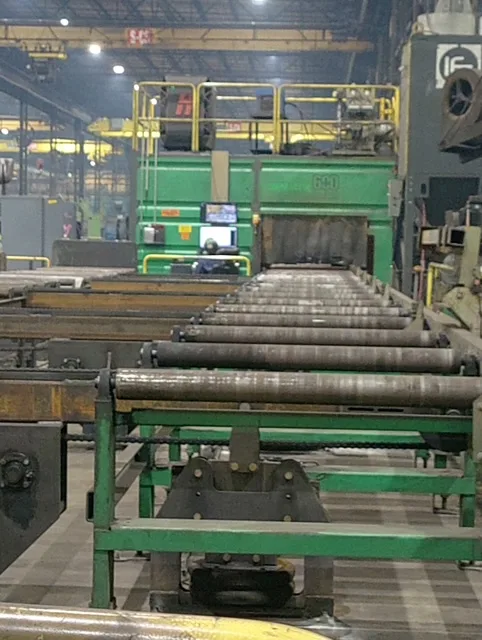

Conveyor: 60ft Infeed / 40ft Outfeed |
|
FANUC ArcMate 120iD Robot (M-20iD/25) |
FineLine 300HD Plasma |
|

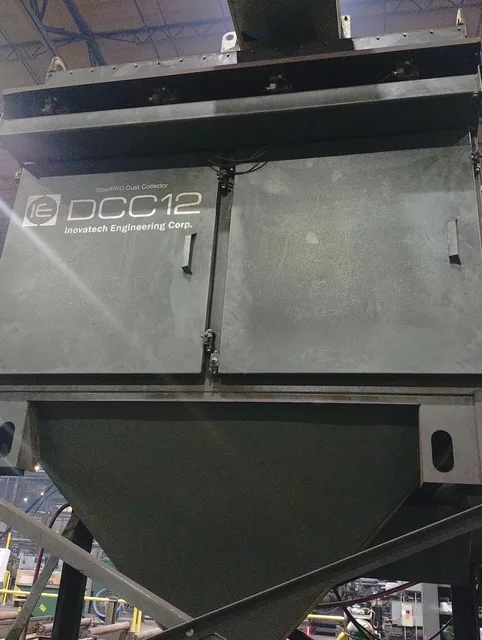

SteelPRO Dust Collector DCC12 |
Measuring Cart |
