Year |
2012 |
|---|---|
Make |
Yaskawa Motoman |
Model |
MA1400 |
Description |
6-Axis Arc Welding Robot |
Reference # |
8078520 |
Price |
$15,000.00 |

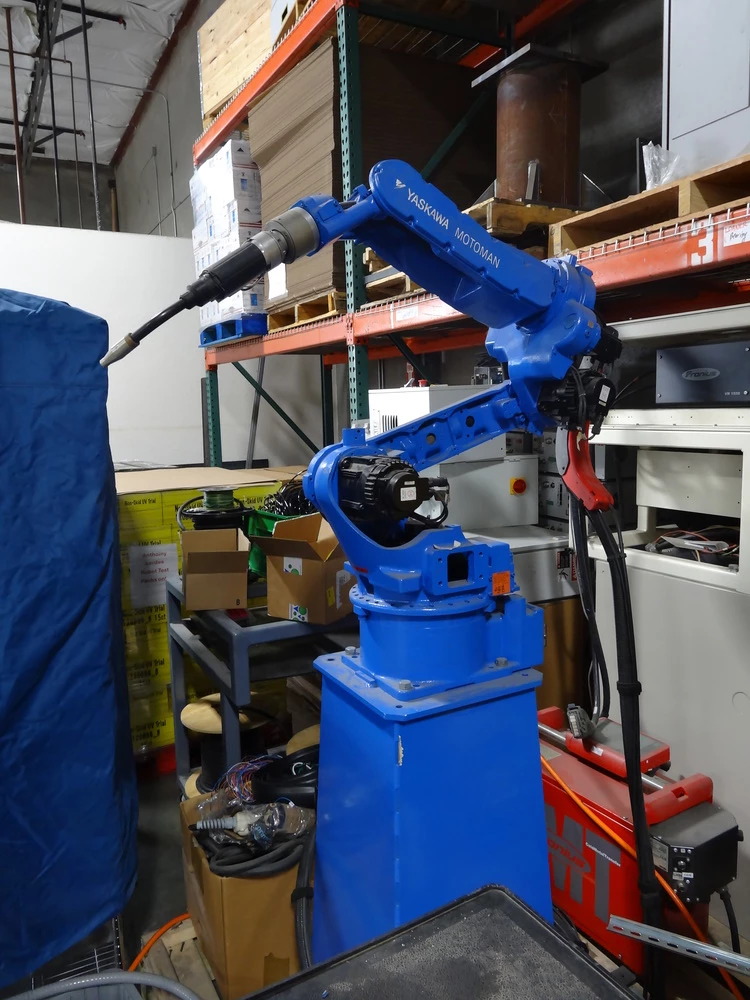

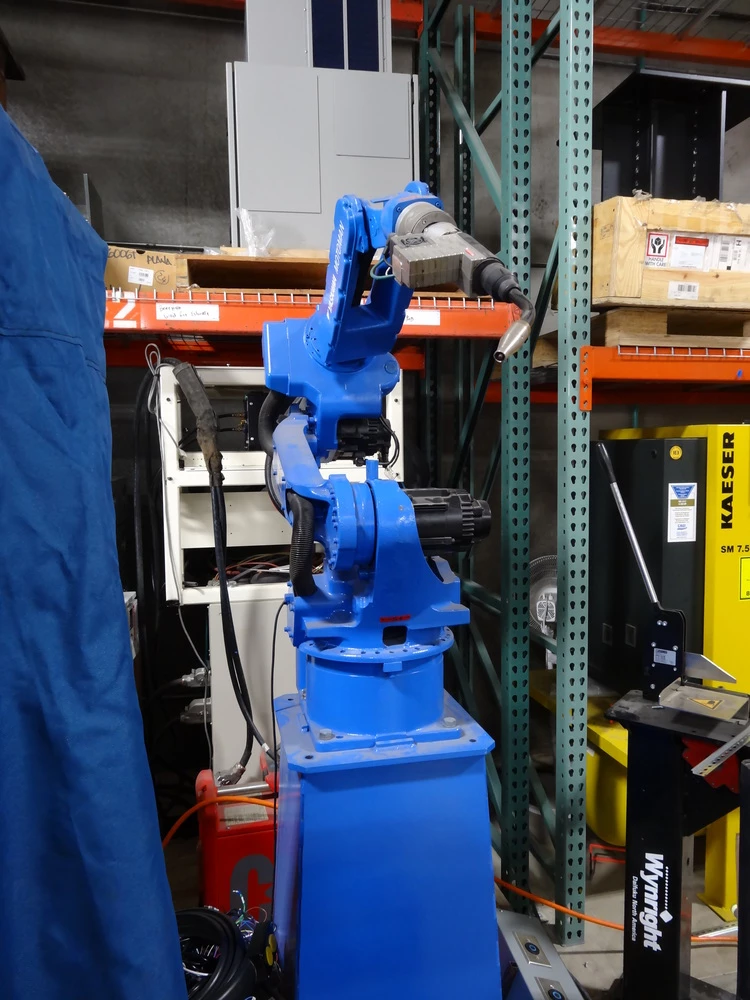

Used Yaskawa Motoman MA1400 (2012) Robotic Welding for Sale. This articulated six-axis arc welding robot carries a 3 Kg (6.6 Lb) payload with a horizontal reach of 1434 mm (56.5″) and a vertical reach of 2511 mm (98.9″), with repeatability of +/-0.08 mm (+/-0.003″). Robot mass is 130 Kg, and mounting options include floor, inverted, and angle. Axis travel covers S +/-170 degrees at 200, L +135/-110 degrees at 200, U +270/-119 degrees at 220, R +/-200 degrees at 410, B +/-135 degrees at 410, and T +/-450 degrees at 610. Drives are Sigma-5 AC servo motors under Motoman DX100 control. Applications include arc, MIG, TIG, and laser welding, as well as plasma cutting. The machine can be seen under power for an inspection. Request a Quote for further details.
Specifications
| Payload |
3 Kg (6.6 Lb) |
|---|---|
| Horizontal Reach |
1434 mm (56.5") |
| Vertical Reach |
2511 mm (98.9") |
| Repeatability |
+/-0.08 mm (+/-0.003") |
| Robot Mass |
130 Kg |
| Structure |
Articulated |
| Mounting |
Floor / Inverted / Angle |
| Control |
Motoman DX100 |
| S-Axis |
+/-170° @200° |
| L-Axis |
+135°/-110° @200° |
| U-Axis |
+270°/-119° @220° |
| R-Axis |
+/-200° @410° |
| B-Axis |
+/-135° @410° |
| T-Axis |
+/-450° @610° |
| Motor |
Sigma-5 AC Servo |
| Applications |
Arc Welding / MIG Welding / TIG Welding / Laser Welding / Plasma Cutting |
