Year |
2021 |
|---|---|
Make |
Trumpf |
Model |
TruArc 1000 |
Description |
Automated Arc Welding Cell |
Reference # |
8078173 |
Price |
Activate Pricing |

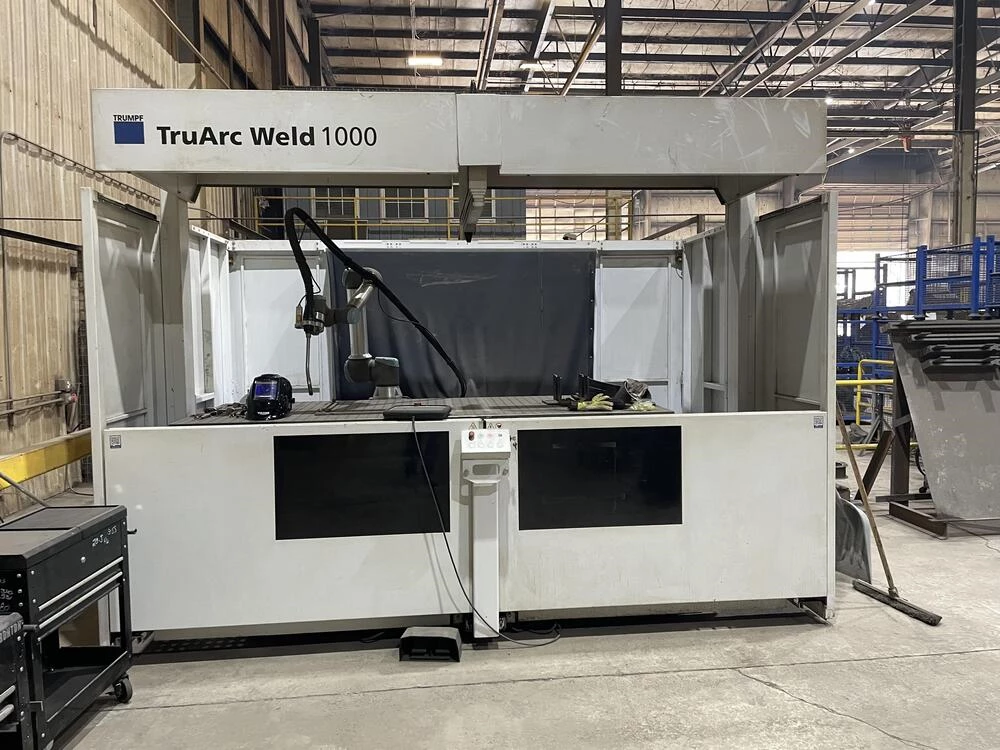

Used Trumpf TruArc 1000 (2021) Robotic Welding for Sale. This Trumpf cobot welding cell is built around a 6-axis cobot with a 1300 mm reach and repeatability of ±0.05 mm. Welding is handled by a Fronius TPS 320i pulse power source for MIG/MAG work, with a welding current range of 3 A to 320 A. The cell is equipped with easy programming and operation, a Profax WPC-16 welding positioner chuck, and a safety cabin. Main power requirements are 460 V, 3 PH, 50-60 Hz. The machine can be seen under power for an inspection, so buyers are able to review its operation before committing. If the TruArc 1000 suits your fabrication work, Request a Quote and we will follow up with details.
Specifications
| Welding Current Range |
3 A – 320 A |
|---|---|
| Pulse Power Source |

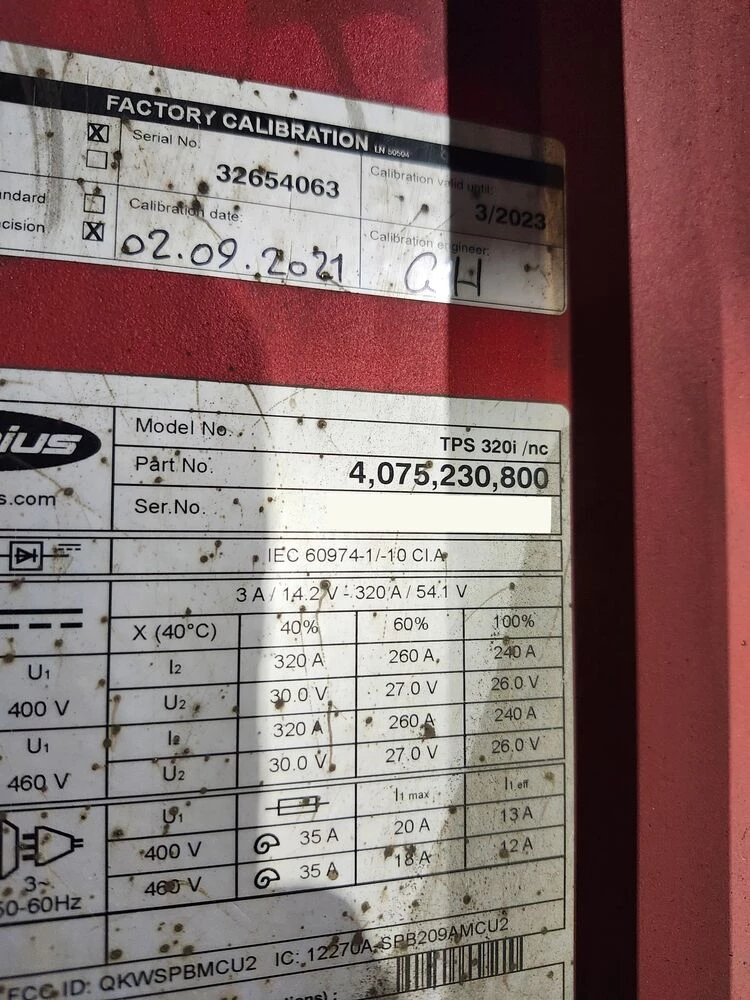

Fronius TPS 320i(MIG/MAG) |
| Reach |
1300 mm |
| Repeatability |
±0.05 mm |
| Main Power Requirements |
460 V/ 3 PH/ 50-60Hz |
Features
|
6-Axis Cobot |
Easy Programming and Operation |
|
Profax WPC-16 Welding Positioner Chuck |
Safety Cabin |
